Kenmore
Laundry Center

Model # 41761723510 Official Kenmore stacked laundry center

Here are the diagrams and repair parts for Official Kenmore 41761723510 stacked laundry center, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

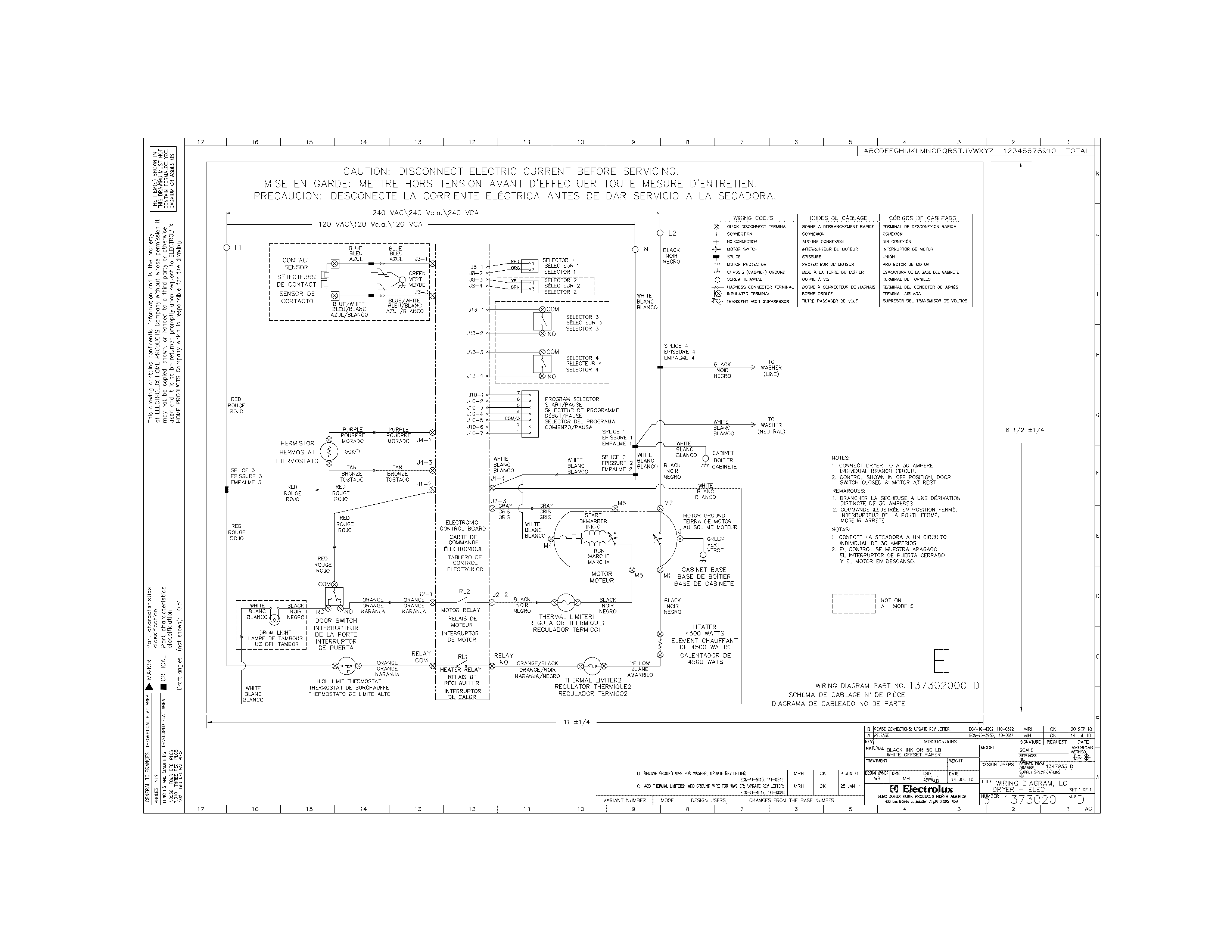

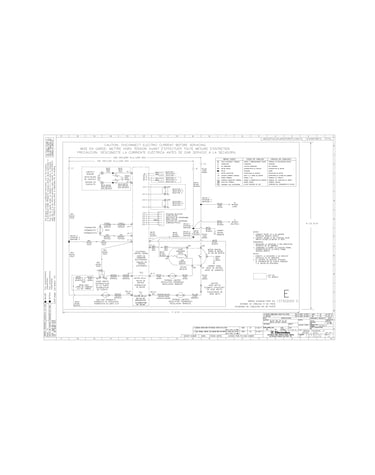

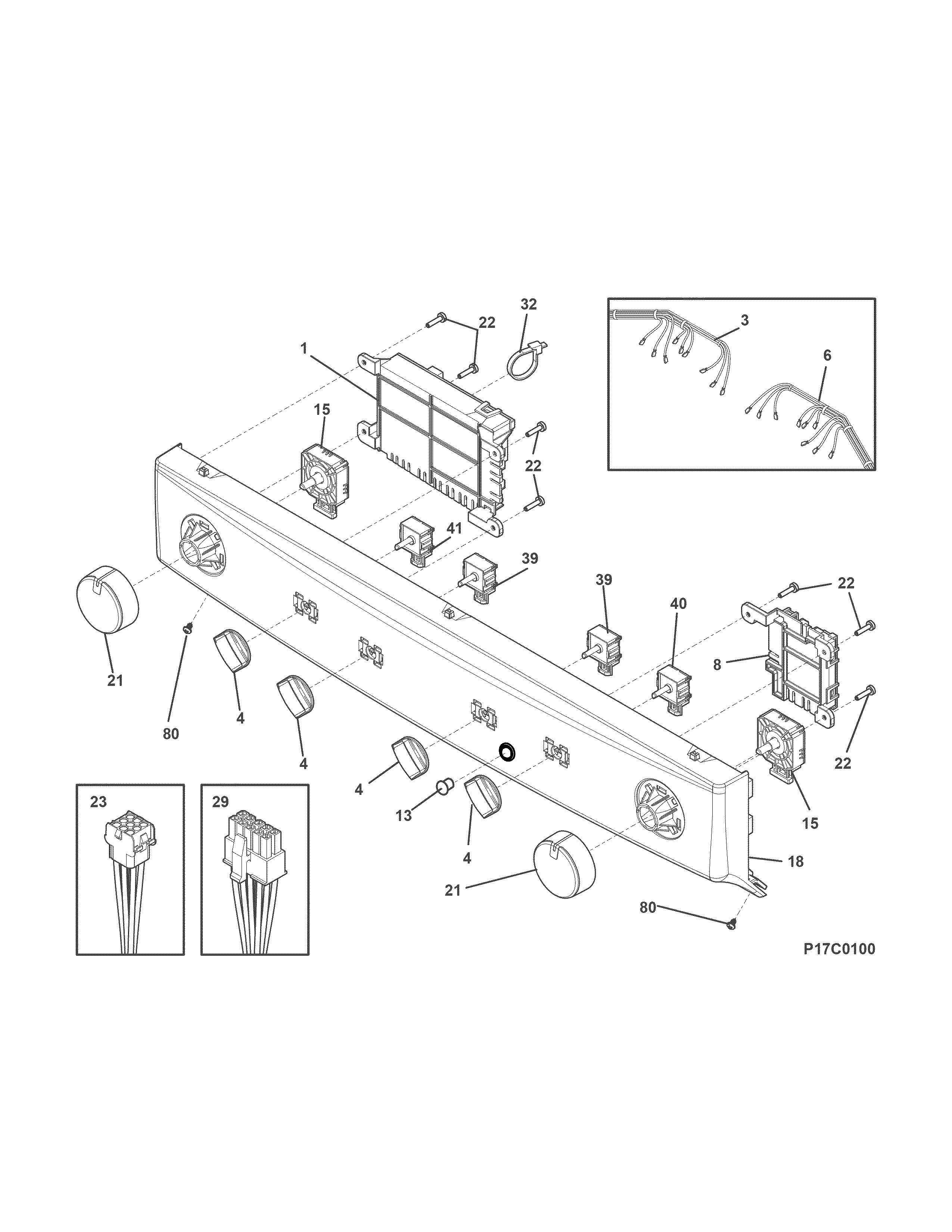

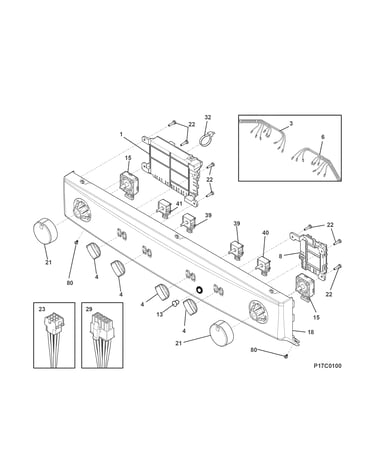

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 161 parts  |
Dryer Drum Bearing (replaces 5303281008, Q000143951, Wq143951) 131825900
#12

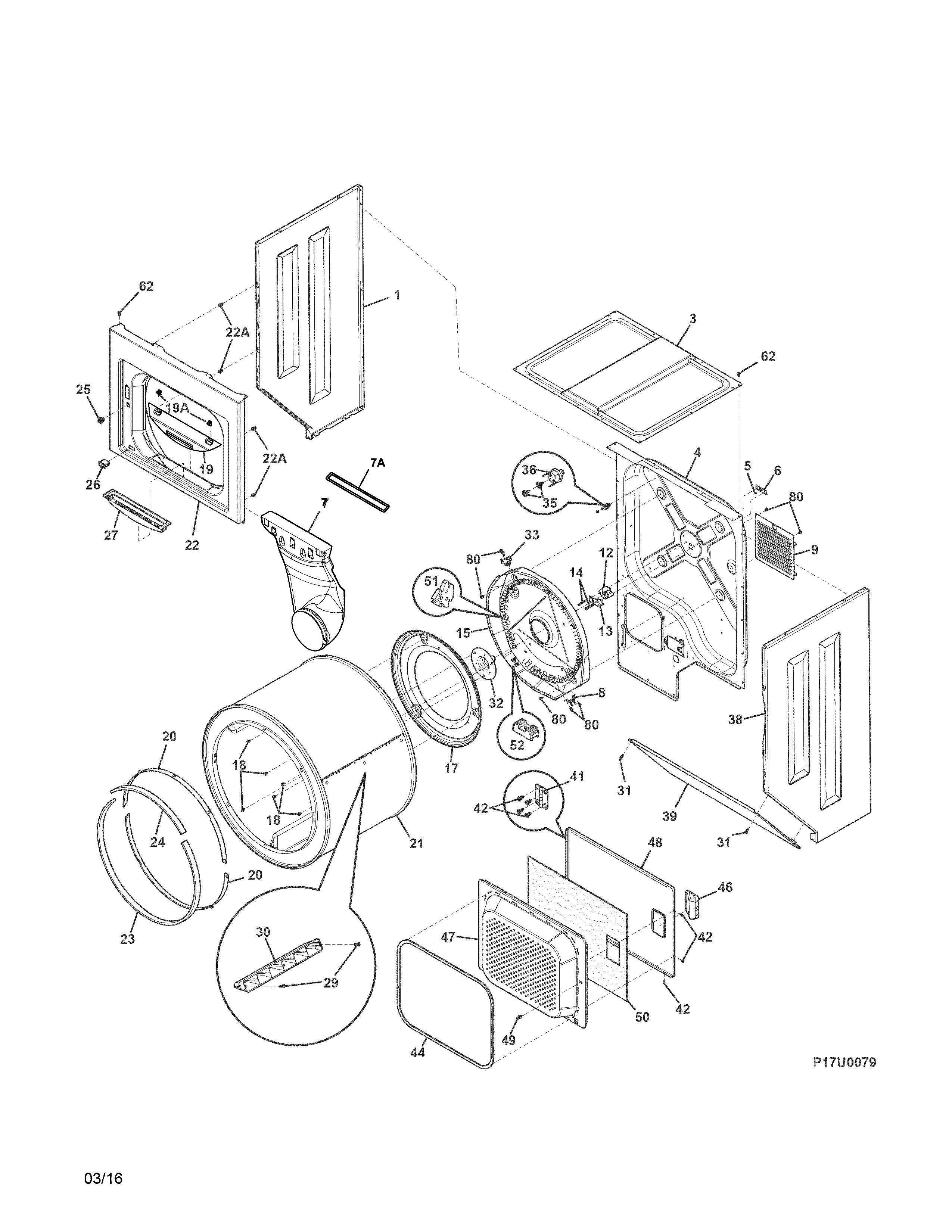

Upper cabinet/drum heater diagram

Dryer drum bearing (replaces 5303281008, q000143951, wq143951)

Part #131825900

BEST SELLER
$7.44 |
12% OFF Phone Price : $8.44
In Stock
Dryer Idler Assembly 131863100
#23

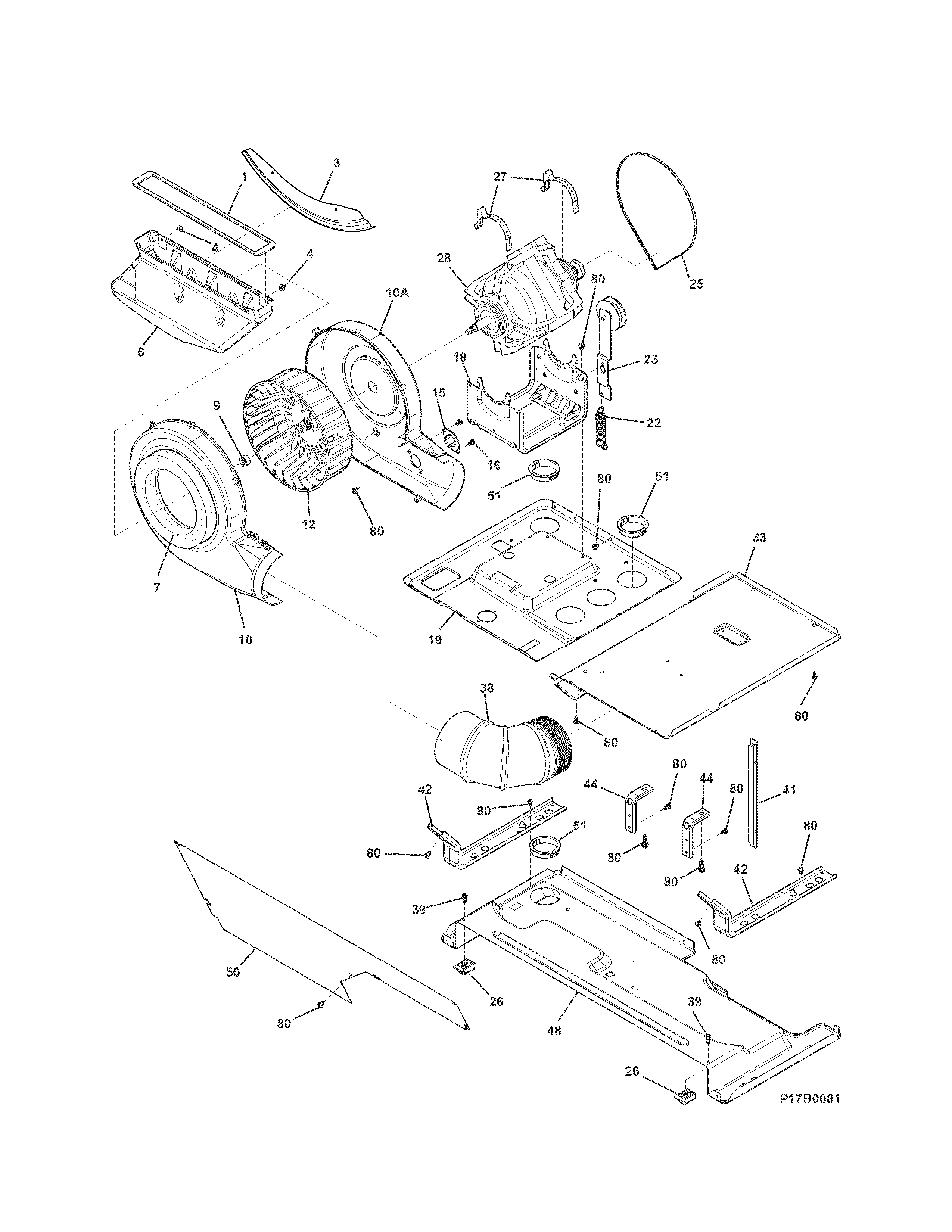

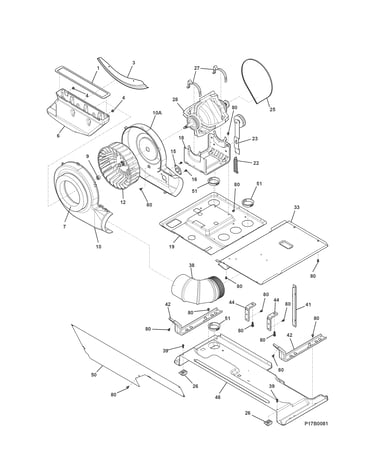

Motor/blower/belt diagram

Dryer idler assembly

Part #131863100

Replaced by #5304507499

?
Manufacturer substitution
This part replaces 131863100. Substitute parts can look different from the original.
BEST SELLER
$28.87 |
17% OFF Phone Price : $34.87
In Stock
Dryer Inlet Thermal Limiter (replaces 137060800, 7137032600) 137032600
#8

Upper cabinet/drum heater diagram

Dryer inlet thermal limiter (replaces 137060800, 7137032600)

Part #137032600

BEST SELLER
$55.37 |
10% OFF Phone Price : $61.37
In Stock
Dryer Drum Belt 137292700
#25

Motor/blower/belt diagram

Dryer drum belt

Part #137292700

BEST SELLER
$21.12 |
22% OFF Phone Price : $27.12
In Stock
Lint Trap 131359601
#27

Upper cabinet/drum heater diagram

Lint trap

Part #131359601

Replaced by #5304516871

?
Manufacturer substitution
This part replaces 131359601. Substitute parts can look different from the original.
BEST SELLER
$37.40 |
14% OFF Phone Price : $43.40
In Stock
Laundry Center Washer Drain Pump 5304500535
#36

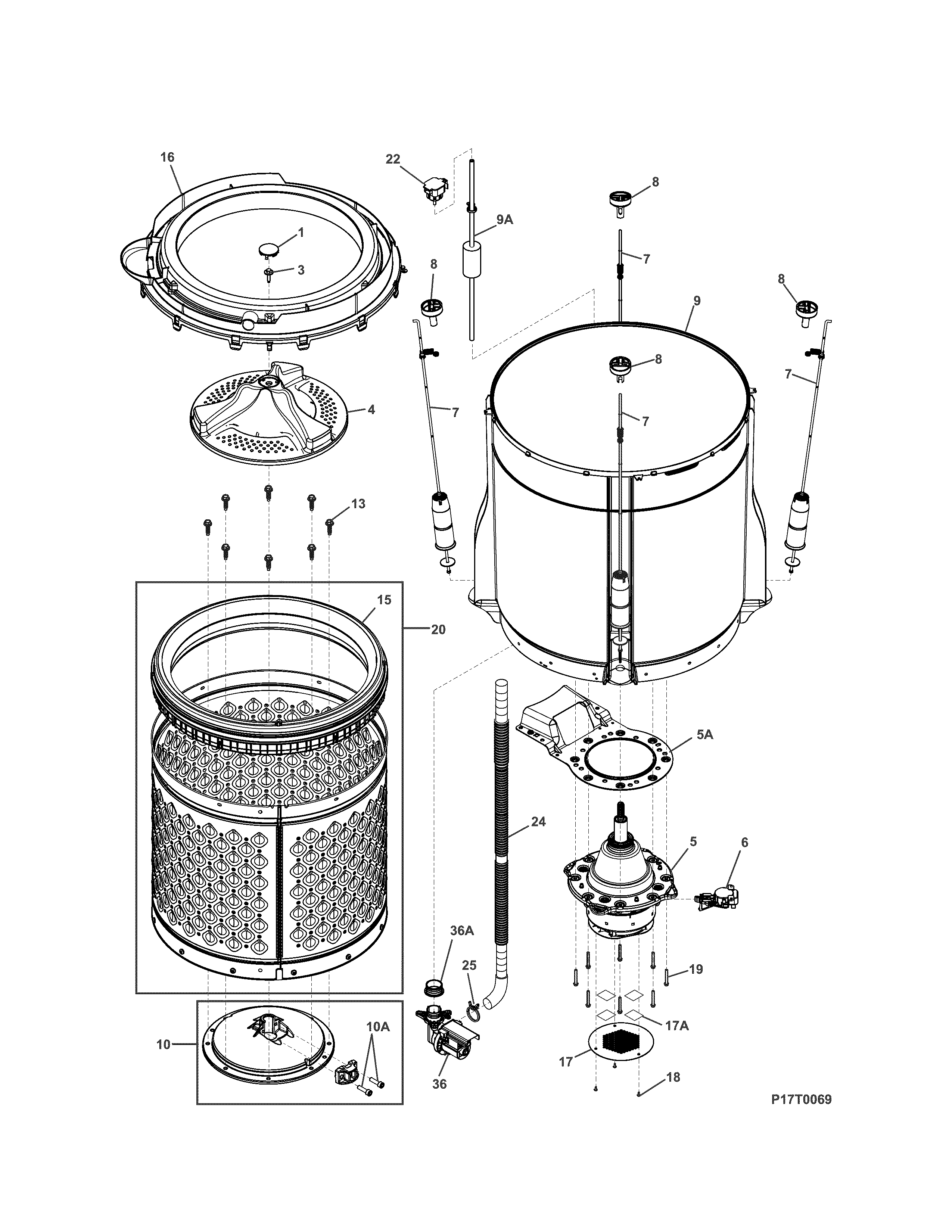

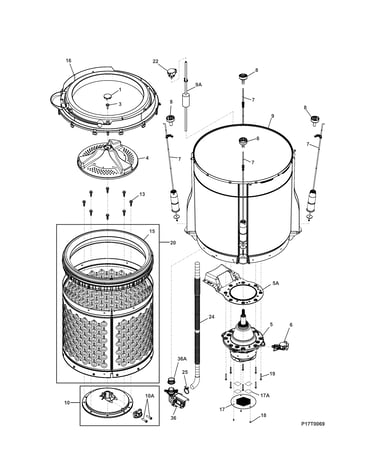

Motor/tub diagram

Laundry center washer drain pump

Part #5304500535

Replaced by #5304524452

?
Manufacturer substitution
This part replaces 5304500535. Substitute parts can look different from the original.
BEST SELLER
$133.57 |
8% OFF Phone Price : $145.57
In Stock
Electrolux Dryer Blower Wheel (replaces 5303212513) 131476300
#12

Motor/blower/belt diagram

Electrolux dryer blower wheel (replaces 5303212513)

Part #131476300

BEST SELLER
$49.97 |
11% OFF Phone Price : $55.97
In Stock
Dryer Thermal Limiter (replaces 146062-000, 5303209192) 134120900
#36

Upper cabinet/drum heater diagram

Dryer thermal limiter (replaces 146062-000, 5303209192)

Part #134120900

BEST SELLER
$26.79 |
18% OFF Phone Price : $32.79
In Stock
Dryer Drum Bearing Bracket 131724300
#13

Upper cabinet/drum heater diagram

Dryer drum bearing bracket

Part #131724300

Replaced by #131724301

?
Manufacturer substitution
This part replaces 131724300. Substitute parts can look different from the original.
BEST SELLER
$13.29 |
13% OFF Phone Price : $15.29
In Stock
Crosley Laundry Center Washer Motor Control Board 808653801
#21

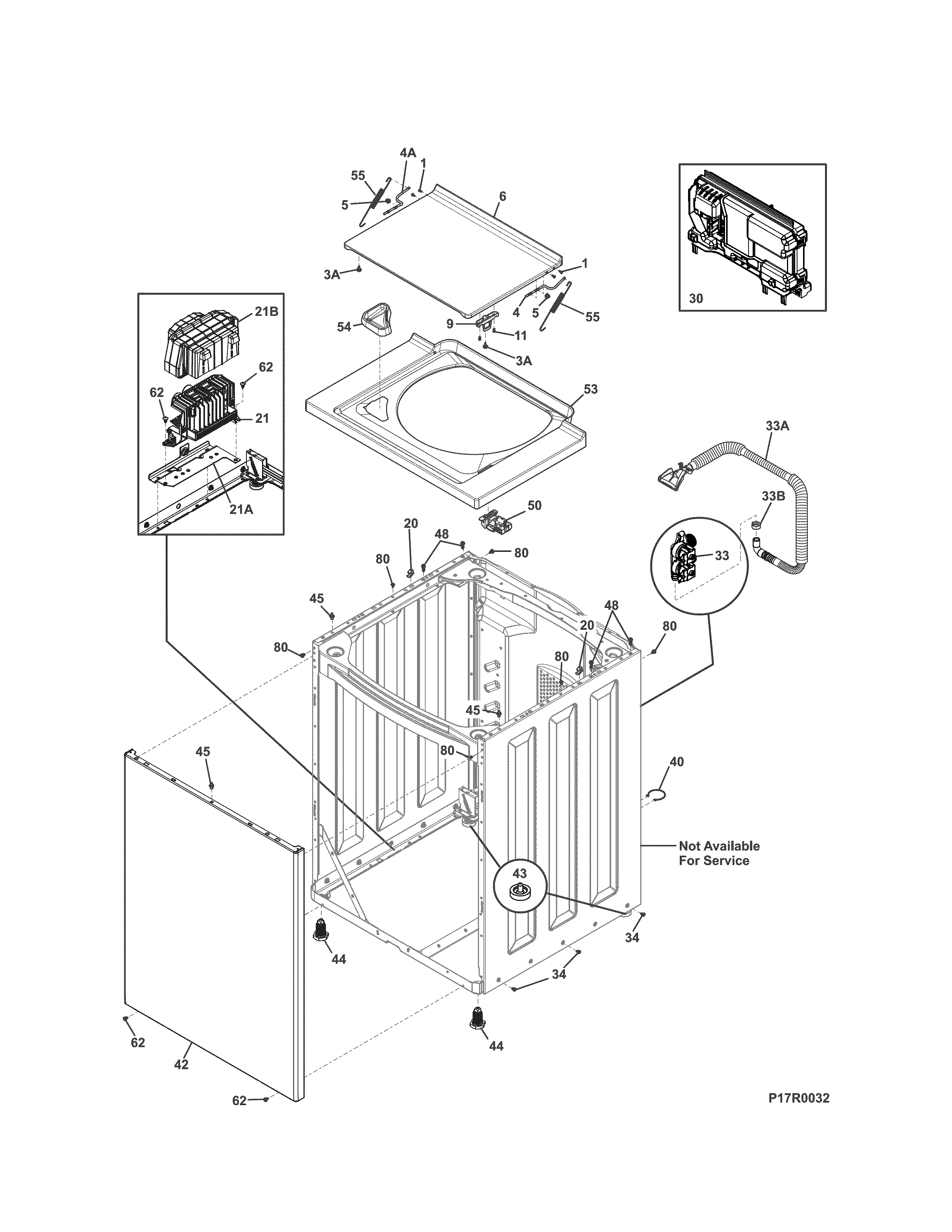

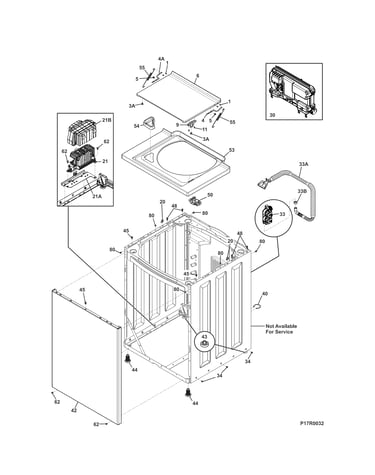

Lower cabinet/top diagram

Crosley laundry center washer motor control board

Part #808653801

BEST SELLER
This item is not returnable
$154.37 |
7% OFF Phone Price : $166.37
In Stock

RECOMMENDED MAINTENANCE PARTS AND ACCESSORIES

Most common symptoms to help you fix your laundry centers

Choose a symptom to see related laundry center repairs.

View all

Why won't my laundry center washer fill?

Main causes: lack of water supply, failed lid switch or lid lock, bad water level pressure switch, control system failur…

Read more

Why won't my laundry center's washer agitate or spin?

Main causes: bad lid switch or lid lock, drive motor failure, broken motor coupler, bad timer, faulty electronic control…

Read more

Why does my laundry'center dryer leaves clothes damp?

Main causes: blocked exhaust vent, clogged lint screen, bad timer, moisture sensing problems, weak gas valve coils, bad …

Read more

Why won't my laundry center dryer tumble?

Main causes: broken dryer drive belt, weak drive motor, binding drum seals…

Read more

Why won't my laundry center dryer heat?

Main causes: control system failure, broken heating element, bad gas valve coils, gas supply failure, voltage supply pro…

Read more

Why does my laundry center washer bang loudly?

Main causes: unbalanced load, broken suspension springs or shocks, worn snubber ring…

Read more

Why won't my laundry center dryer start?

Main causes: door not fully shut, bad door switch, faulty push-to-start switch, wiring failure, bad drive motor, blown f…

Read more

Why doesn't my laundry center washer drain?

Main causes: clogged drain system, blocked drain hose, bad drain pump…

Read more

Why won't my laundry center washer spin?

Main causes: broken lid switch or lid lock, faulty drive motor, drain system problem, broken drive system components…

Read more
