Kenmore
Gas Range

Model # 1037385000 Official Kenmore gas range

Here are the diagrams and repair parts for Official Kenmore 1037385000 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

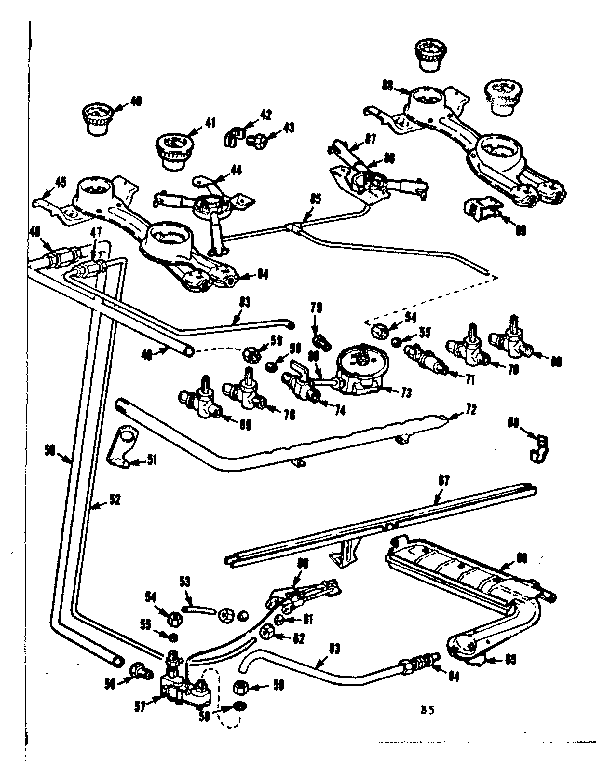

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 151 parts  |
Drawer Guide 97820
#132

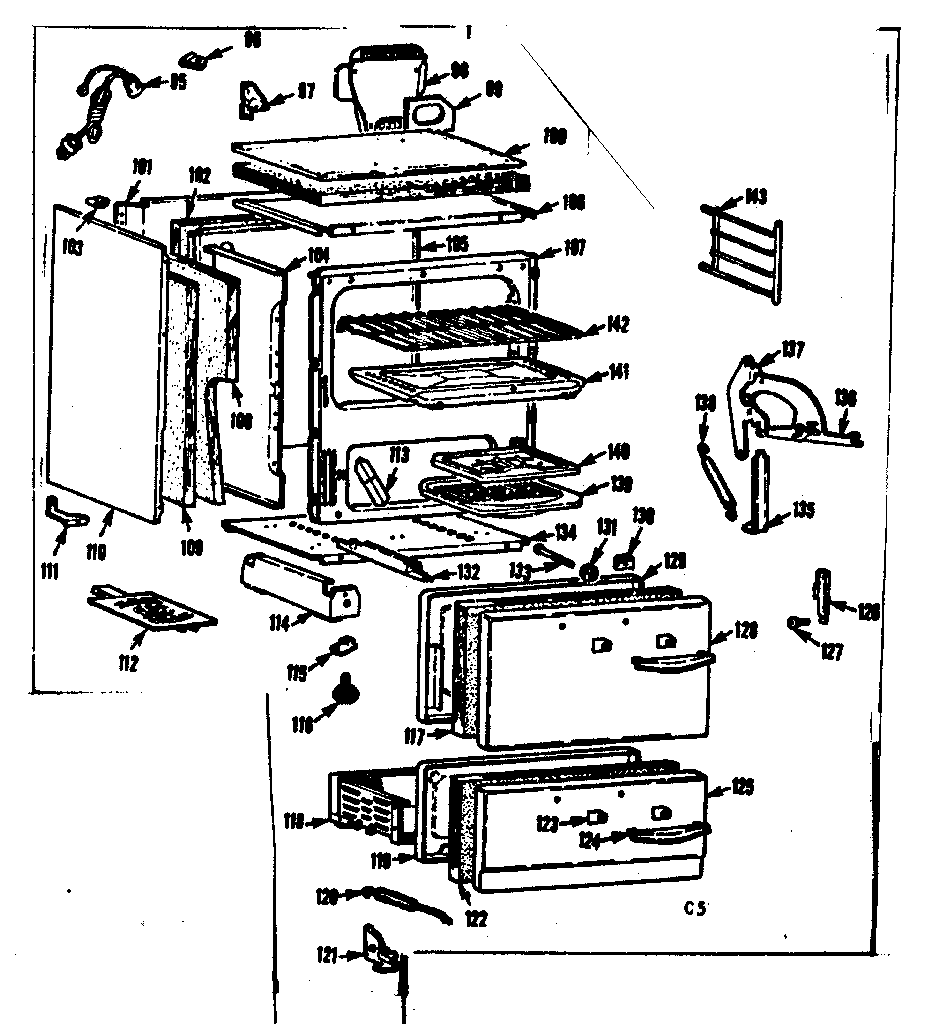

Body section diagram

Drawer guide

Part #97820

This item is not returnable
$3.99
In Stock
Door Arm 97758
#136

Body section diagram

Door arm

Part #97758

Replaced by #230872

?
Manufacturer substitution
This part replaces 97758. Substitute parts can look different from the original.
This item is not returnable
$6.99
In Stock
Trim Clip 70588
#13

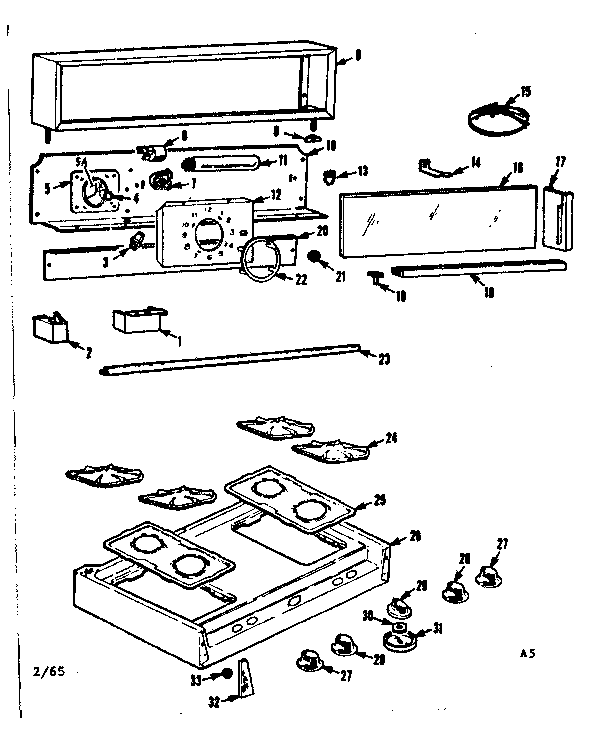

Backguard & main top diagram

Trim clip

Part #70588

Replaced by #WB2X9573

?
Manufacturer substitution
This part replaces 70588. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Lining-right 105080
#104

Body section diagram

Lining-right

Part #105080

The manufacturer no longer makes this part, and there's no substitute part

Glass Spring 100655
#14

Backguard & main top diagram

Glass spring

Part #100655

The manufacturer no longer makes this part, and there's no substitute part

Door Panel 106693
#125

Body section diagram

Door panel

Part #106693

The manufacturer no longer makes this part, and there's no substitute part

Oven 96506
#141

Body section diagram

Oven

Part #96506

The manufacturer no longer makes this part, and there's no substitute part

Door Lining 105258
#129

Body section diagram

Door lining

Part #105258

The manufacturer no longer makes this part, and there's no substitute part

Grate 108888
#24

Backguard & main top diagram

Grate

Part #108888

The manufacturer no longer makes this part, and there's no substitute part

Vent Trim 108908
#23

Backguard & main top diagram

Vent trim

Part #108908

The manufacturer no longer makes this part, and there's no substitute part
