Craftsman
Gas Walk-Behind Mower

Model # 917378403 Official Craftsman gas walk-behind lawn mower

Here are the diagrams and repair parts for Official Craftsman 917378403 gas walk-behind lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 281 parts  |
Premium Blade 176135
#47

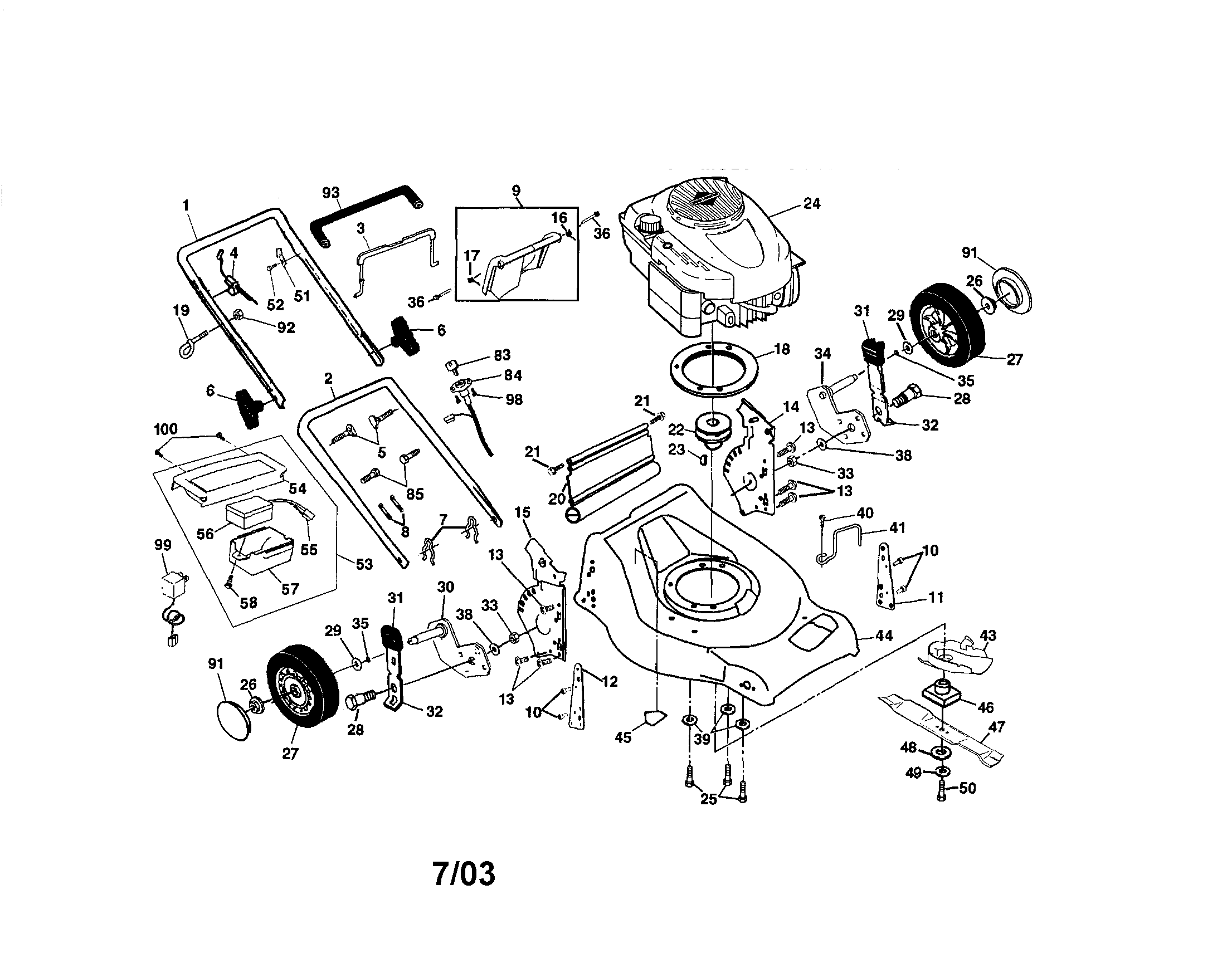

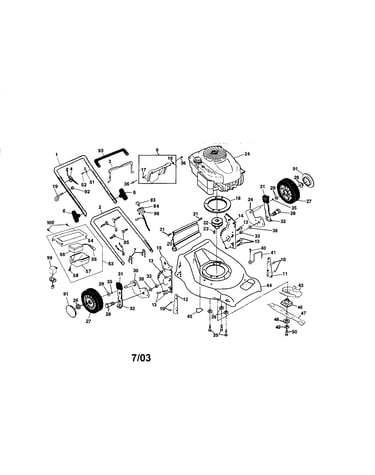

Engine/housing/handle diagram

Premium blade

Part #176135

Replaced by #532406706

?
Manufacturer substitution
This part replaces 176135. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$26.64 |
18% OFF Phone Price : $32.64
In Stock
Selector Knob 180912
Selector knob

Part #180912

Replaced by #532701037

?
Manufacturer substitution
This part replaces 180912. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Spring 188291
#20

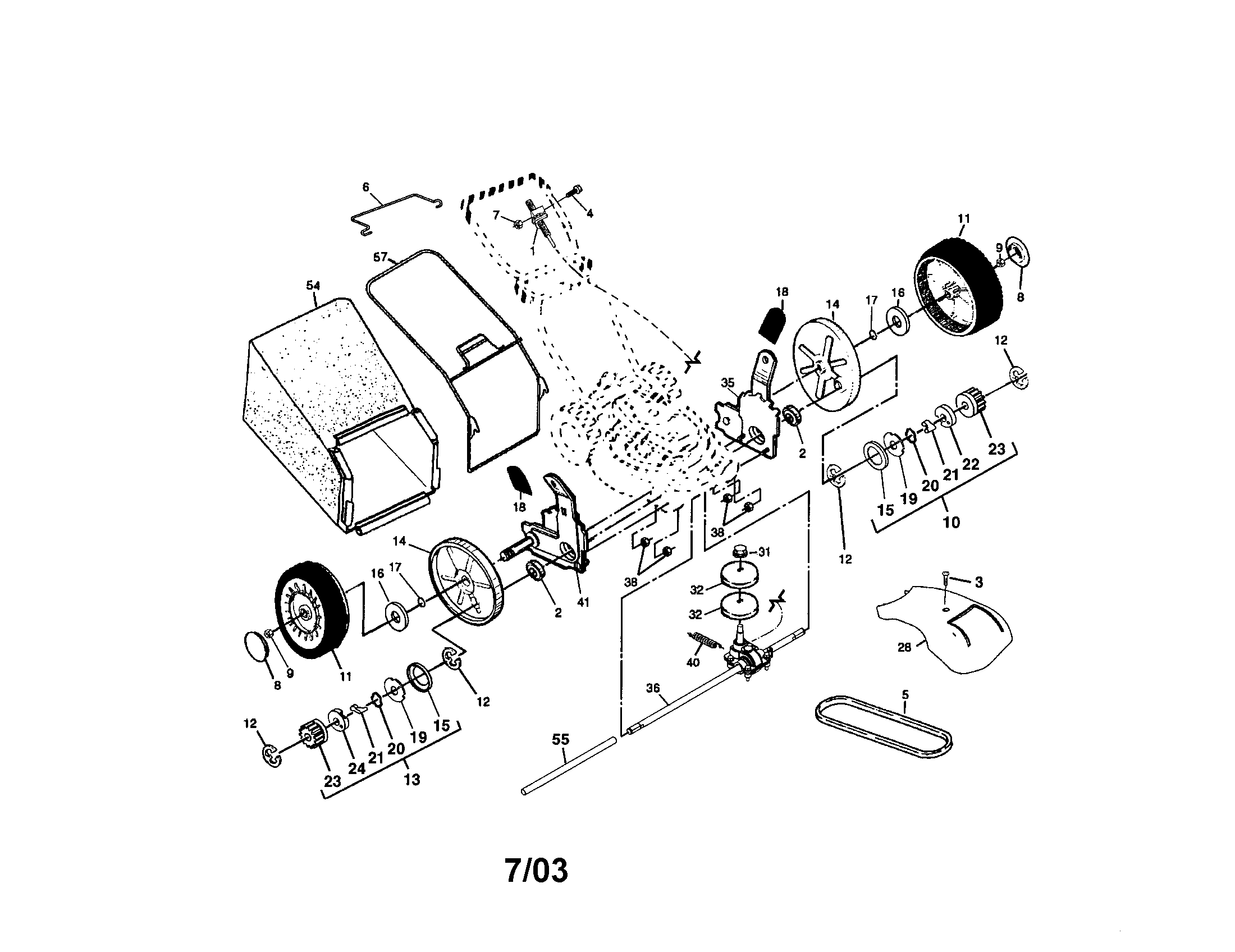

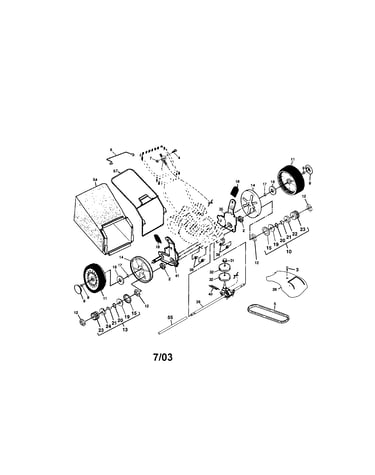

Wheels/tires/bag diagram

Spring

Part #188291

Replaced by #532188291

?
Manufacturer substitution
This part replaces 188291. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Lawn & Garden Equipment Lock Nut 73800400
#38

Wheels/tires/bag diagram

Lawn & garden equipment lock nut

Part #73800400

Replaced by #582478602

?
Manufacturer substitution
This part replaces 73800400. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Nut 132004
#92

Engine/housing/handle diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Lawn & Garden Equipment Hinge Screw 88652
#21

Engine/housing/handle diagram

Lawn & garden equipment hinge screw

Part #88652

Replaced by #532088652

?
Manufacturer substitution
This part replaces 88652. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Cable.mzr.60 182755
#4

Engine/housing/handle diagram

Cable.mzr.60

Part #182755

Replaced by #532183567

?
Manufacturer substitution
This part replaces 182755. Substitute parts can look different from the original.
$19.98 |
9% OFF Phone Price : $21.98
In Stock
Lawn Mower Drive Wheel, 8 X 2-in (replaces 180767, 532180775, 5321807-75) 180775
#11

Wheels/tires/bag diagram

Lawn mower drive wheel, 8 x 2-in (replaces 180767, 532180775, 5321807-75)

Part #180775

Replaced by #532180775

?
Manufacturer substitution
This part replaces 180775. Substitute parts can look different from the original.
$39.98
In Stock
Rope Guide 179585
#19

Engine/housing/handle diagram

Rope guide

Part #179585

Replaced by #586122501

?
Manufacturer substitution
This part replaces 179585. Substitute parts can look different from the original.
This item is not returnable
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Lawn Mower E-ring (replaces 12000057) 12000058
#12

Wheels/tires/bag diagram

Lawn mower e-ring (replaces 12000057)

Part #12000058

Replaced by #812000058

?
Manufacturer substitution
This part replaces 12000058. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock

Symptoms for gas walk-behind mowers

Choose a symptom to see related walk-behind mower repairs.

View all

Why does my lawn mower run rough?

Main causes: engine needs tune up, dirty or clogged carburetor, damaged flywheel key…

Read more

Why does my lawn mower cut unevenly?

Main causes: uneven wheel height settings, damaged wheel, dull or damaged cutting blade…

Read more

Why does my lawn mower vibrate a lot?

Main causes: damaged cutting blade, loose cutting blade, damaged flywheel key, engine needs tune up…

Read more

Why won't my lawn mower start?

Main causes: stale gas, engine needs tune up, bad spark plug, dead battery, bad recoil starter, faulty safety switch, ba…

Read more

Why does my lawn mower stall?

Main causes: dirty carburetor, bad spark plug, clogged air filter, engine choke problems, clogged gas cap vent…

Read more

Why won't my lawn mower move?

Main causes: drive control cable failure, worn or broken drive belt, bad transmission, broken drive wheel…

Read more
