Model # KB-0333KW Official Sharp range hood

Here are the diagrams and repair parts for Official Sharp KB-0333KW range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 34 parts  |
Control CPNLCB598MRK0
#13

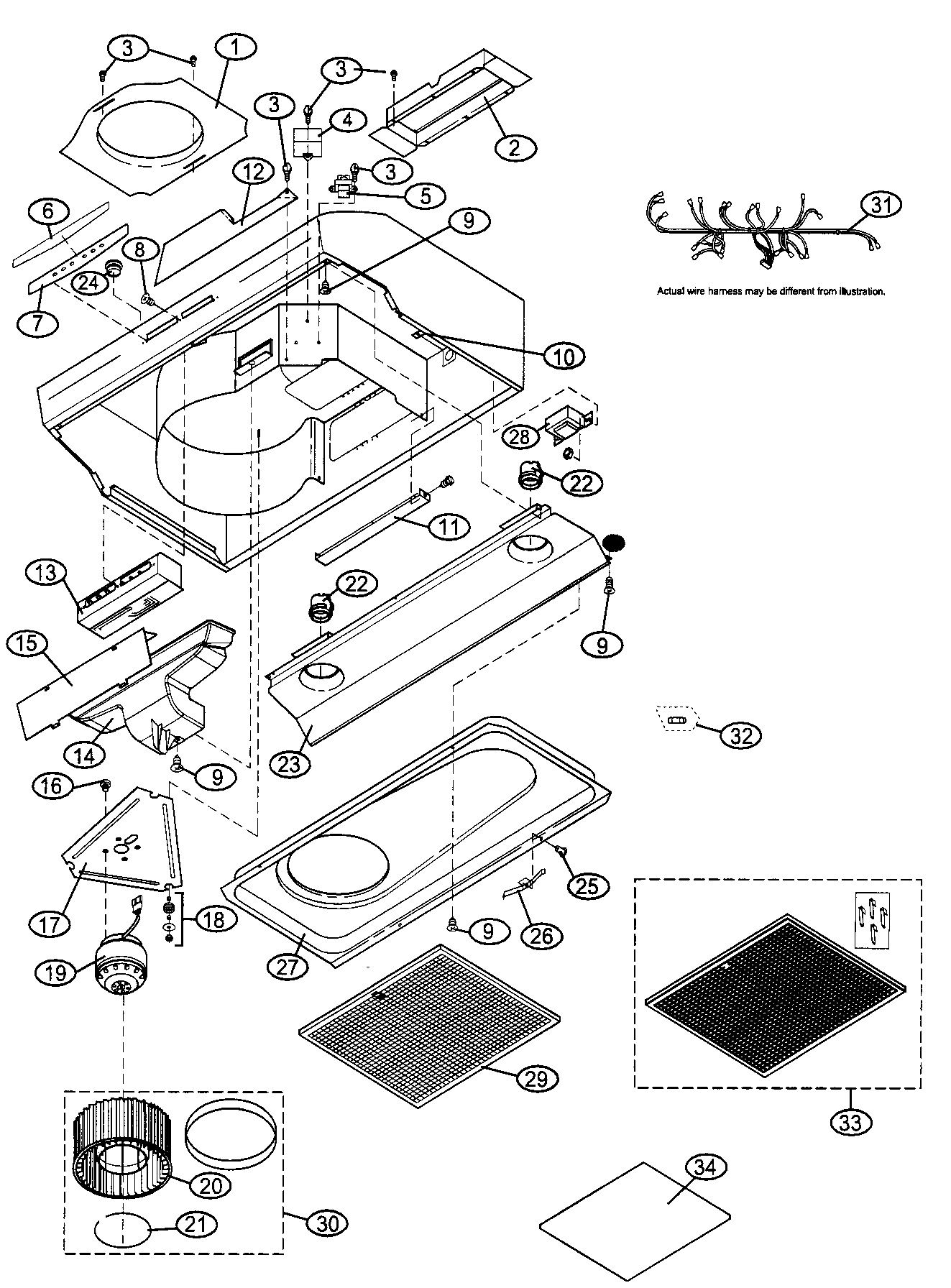

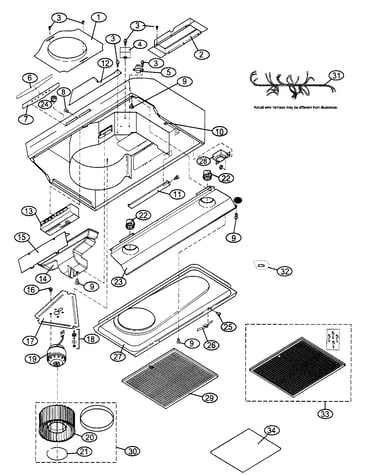

Cabinet parts diagram

Control

Part #CPNLCB598MRK0

The manufacturer no longer makes this part, and there's no substitute part

Filter Kit A3KBK330
#33

Cabinet parts diagram

Filter kit

Part #A3KBK330

The manufacturer no longer makes this part, and there's no substitute part

Filter PFIL-B015MRE0
#29

Cabinet parts diagram

Filter

Part #PFIL-B015MRE0

The manufacturer no longer makes this part, and there's no substitute part

Screw LX-BZB021MRE0
#3

Cabinet parts diagram

Screw

Part #LX-BZB021MRE0

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Wheel FFAN-B018MRK0
#30

Cabinet parts diagram

Range hood blower wheel

Part #FFAN-B018MRK0

The manufacturer no longer makes this part, and there's no substitute part

Wheel NFANPB008MRE0
#20

Cabinet parts diagram

Wheel

Part #NFANPB008MRE0

The manufacturer no longer makes this part, and there's no substitute part

Cover FCOVPB049MRK0
#27

Cabinet parts diagram

Cover

Part #FCOVPB049MRK0

The manufacturer no longer makes this part, and there's no substitute part

Transformer RTRN-B089MRE0
#5

Cabinet parts diagram

Transformer

Part #RTRN-B089MRE0

The manufacturer no longer makes this part, and there's no substitute part

Air Chute PDUC-B154MRK0
#14

Cabinet parts diagram

Air chute

Part #PDUC-B154MRK0

The manufacturer no longer makes this part, and there's no substitute part

Capacitor RC-QZB025MRE0
#4

Cabinet parts diagram

Capacitor

Part #RC-QZB025MRE0

The manufacturer no longer makes this part, and there's no substitute part
