Model # 143611082 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143611082 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 124 parts  |

Plug Cover 27276
#27

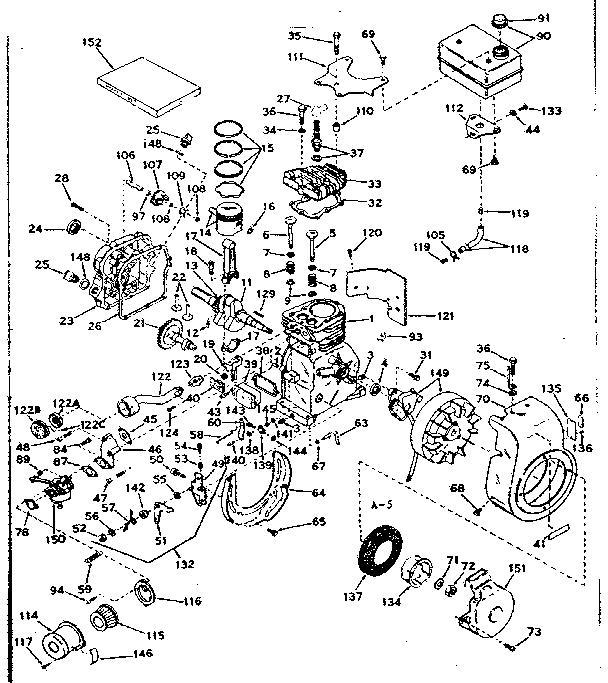

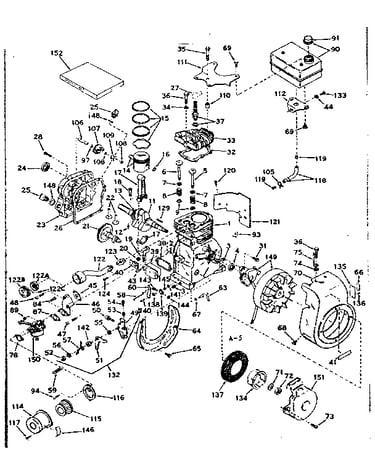

Basic engine diagram

Plug cover

Part #27276

The manufacturer no longer makes this part, and there's no substitute part

Element 31410
#40

Basic engine diagram

Element

Part #31410

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27677
#26

Basic engine diagram

Gasket

Part #27677

The manufacturer no longer makes this part, and there's no substitute part

Governor Gear Assembly 30591
#107

Basic engine diagram

Governor gear assembly

Part #30591

The manufacturer no longer makes this part, and there's no substitute part

Screw 650665
#69

Basic engine diagram

Screw

Part #650665

The manufacturer no longer makes this part, and there's no substitute part

Spring 31672
#8

Basic engine diagram

Spring

Part #31672

The manufacturer no longer makes this part, and there's no substitute part

Spring 31426
#59

Basic engine diagram

Spring

Part #31426

The manufacturer no longer makes this part, and there's no substitute part

Body 31715
#114

Basic engine diagram

Body

Part #31715

The manufacturer no longer makes this part, and there's no substitute part

/gvnr Shaft 30574
#106

Basic engine diagram

/gvnr shaft

Part #30574

The manufacturer no longer makes this part, and there's no substitute part

Rewnd Startr 590420
#151

Basic engine diagram

Rewnd startr

Part #590420

The manufacturer no longer makes this part, and there's no substitute part
