Kenmore
Electric Range

Model # 79090154305 Official Kenmore electric range

Here are the diagrams and repair parts for Official Kenmore 79090154305 electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

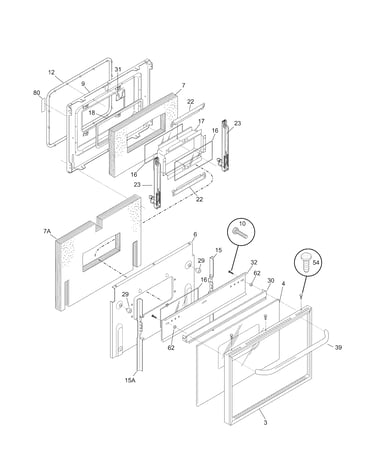

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Range Oven Light Bulb 5303013071
#15

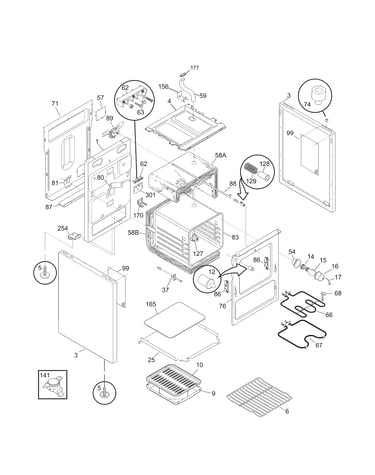

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$14.76 |
12% OFF Phone Price : $16.76
In Stock
Range Oven Temperature Sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002) 316217002
#37

Body diagram

Range oven temperature sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002)

Part #316217002

BEST SELLER
$43.55 |
12% OFF Phone Price : $49.55
In Stock
Element 318198830
#15

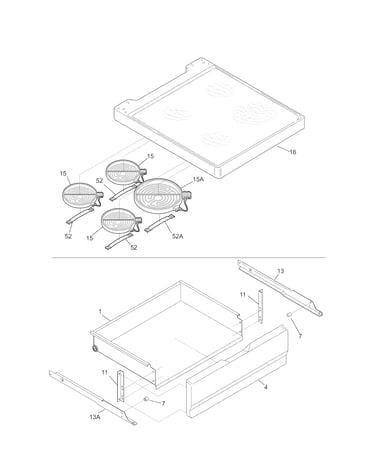

Top/drawer diagram

Element

Part #318198830

Replaced by #318178110

?
Manufacturer substitution
This part replaces 318198830. Substitute parts can look different from the original.
BEST SELLER
$138.09 |
8% OFF Phone Price : $150.09
In Stock
Terminal Block 5303935061
#62

Body diagram

Terminal block

Part #5303935061

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 5303935061. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Range Broil Element 318255600
#66

Body diagram

Range broil element

Part #318255600

Replaced by #318255605

?
Manufacturer substitution
This part replaces 318255600. Substitute parts can look different from the original.
BEST SELLER
$124.23 |
9% OFF Phone Price : $136.23
In Stock
Range Oven Light Lens 318406100
#16

Body diagram

Range oven light lens

Part #318406100

Replaced by #5304524341

?
Manufacturer substitution
This part replaces 318406100. Substitute parts can look different from the original.
BEST SELLER
$13.90 |
13% OFF Phone Price : $15.90
In Stock
Crosley Range Radiant Surface Element, 8-in (replaces 316010206, 316010207) 318198834
#15A

Top/drawer diagram

Crosley range radiant surface element, 8-in (replaces 316010206, 316010207)

Part #318198834

$119.60 |
9% OFF Phone Price : $131.60
In Stock
Overlay 318013317
#NI

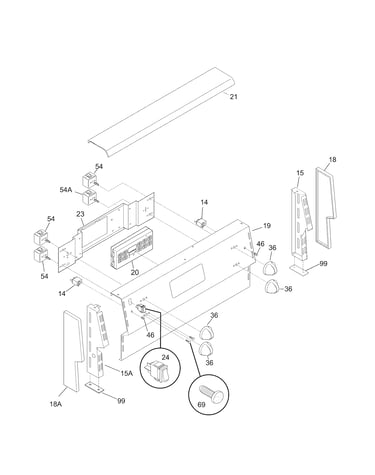

Backguard diagram

Overlay

Part #318013317

Replaced by #316101514

?
Manufacturer substitution
This part replaces 318013317. Substitute parts can look different from the original.
$31.55 |
16% OFF Phone Price : $37.55
In Stock
Range Door Lock Switch 318394801
#12

Body diagram

Range door lock switch

Part #318394801

Replaced by #318394803

?
Manufacturer substitution
This part replaces 318394801. Substitute parts can look different from the original.
$35.19 |
15% OFF Phone Price : $41.19
In Stock
Range Oven Light Socket (replaces 7318224000) 318224000
#14

Body diagram

Range oven light socket (replaces 7318224000)

Part #318224000

This item is not returnable
$59.18 |
9% OFF Phone Price : $65.18
In Stock
