Model # CDT855M5N0S5 Official GE dishwasher

Here are the diagrams and repair parts for Official GE CDT855M5N0S5 dishwasher, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

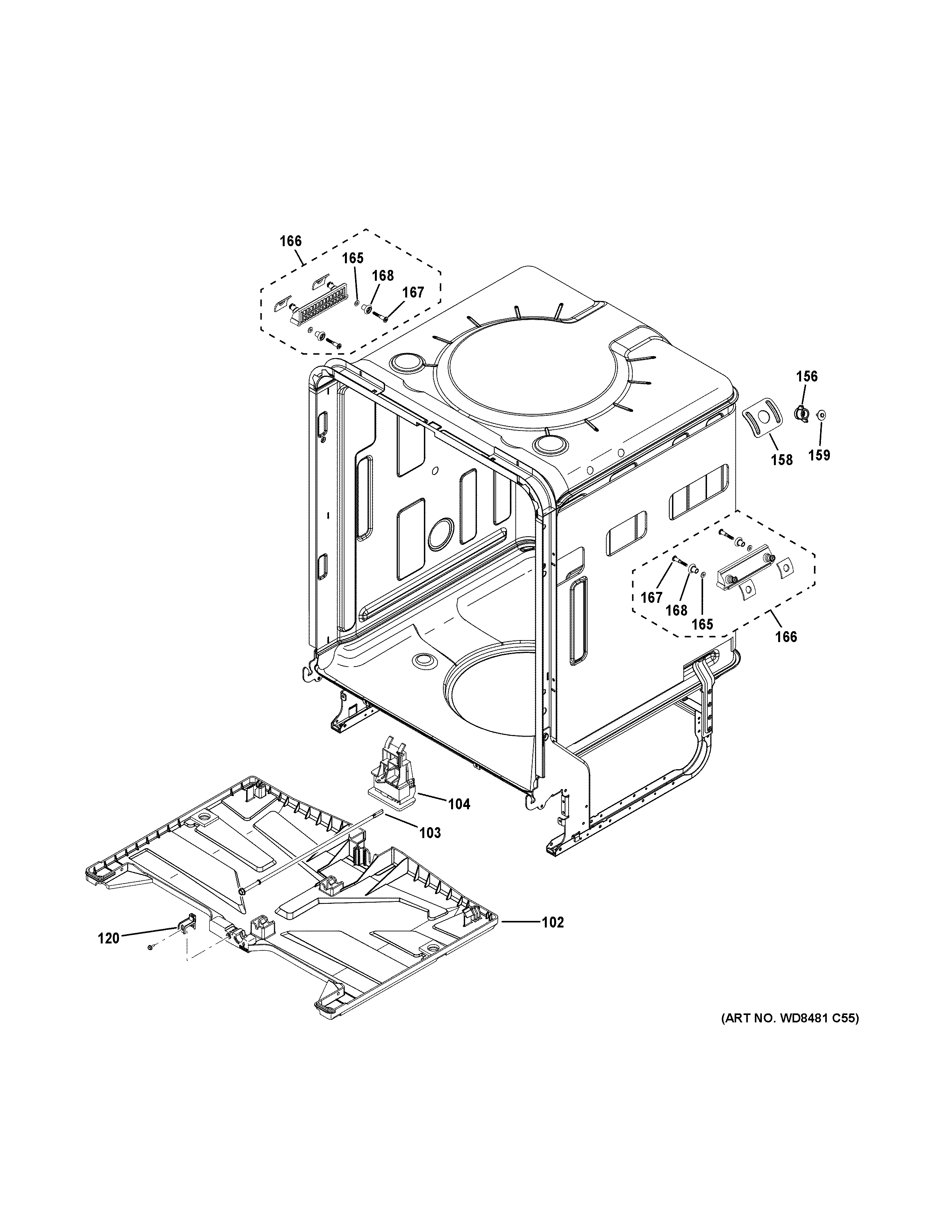

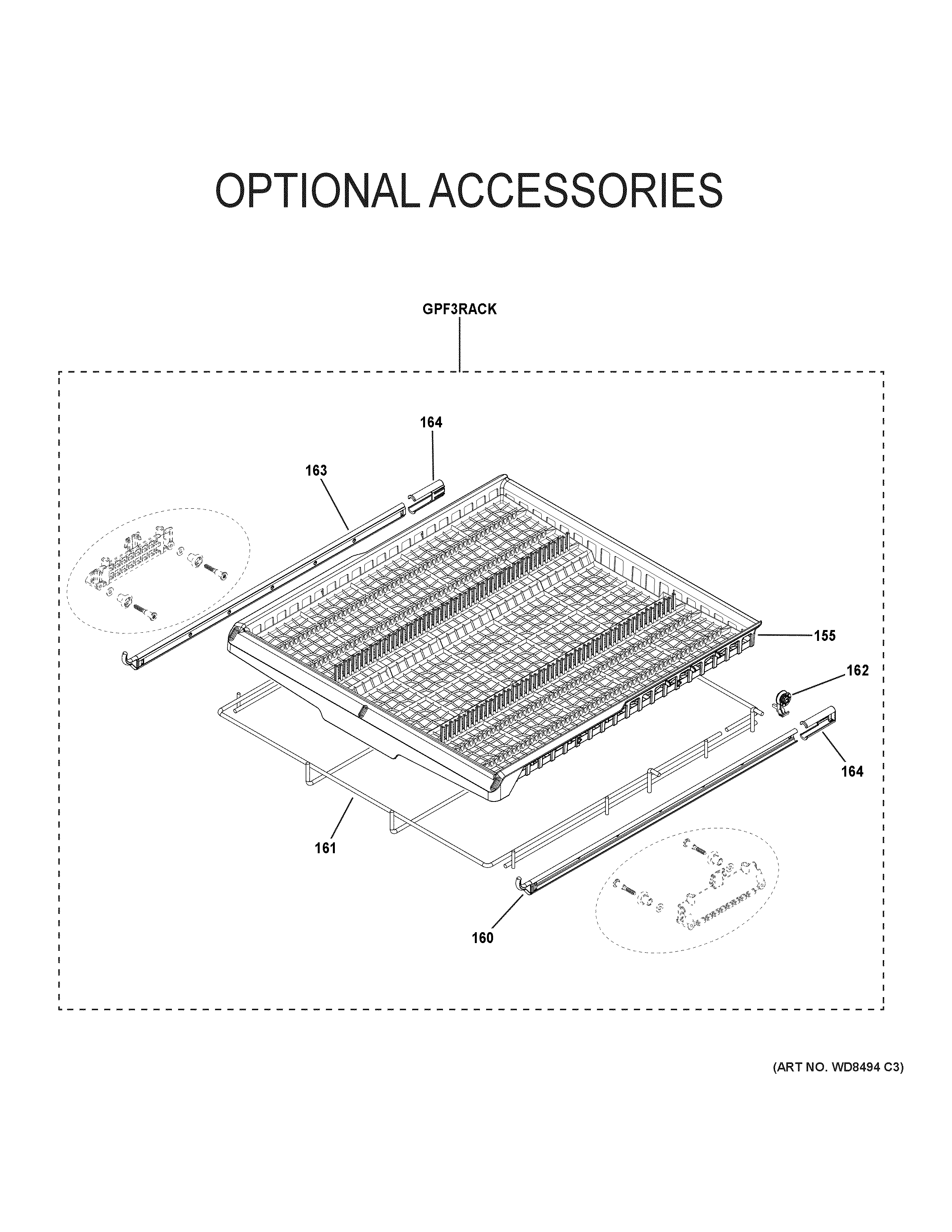

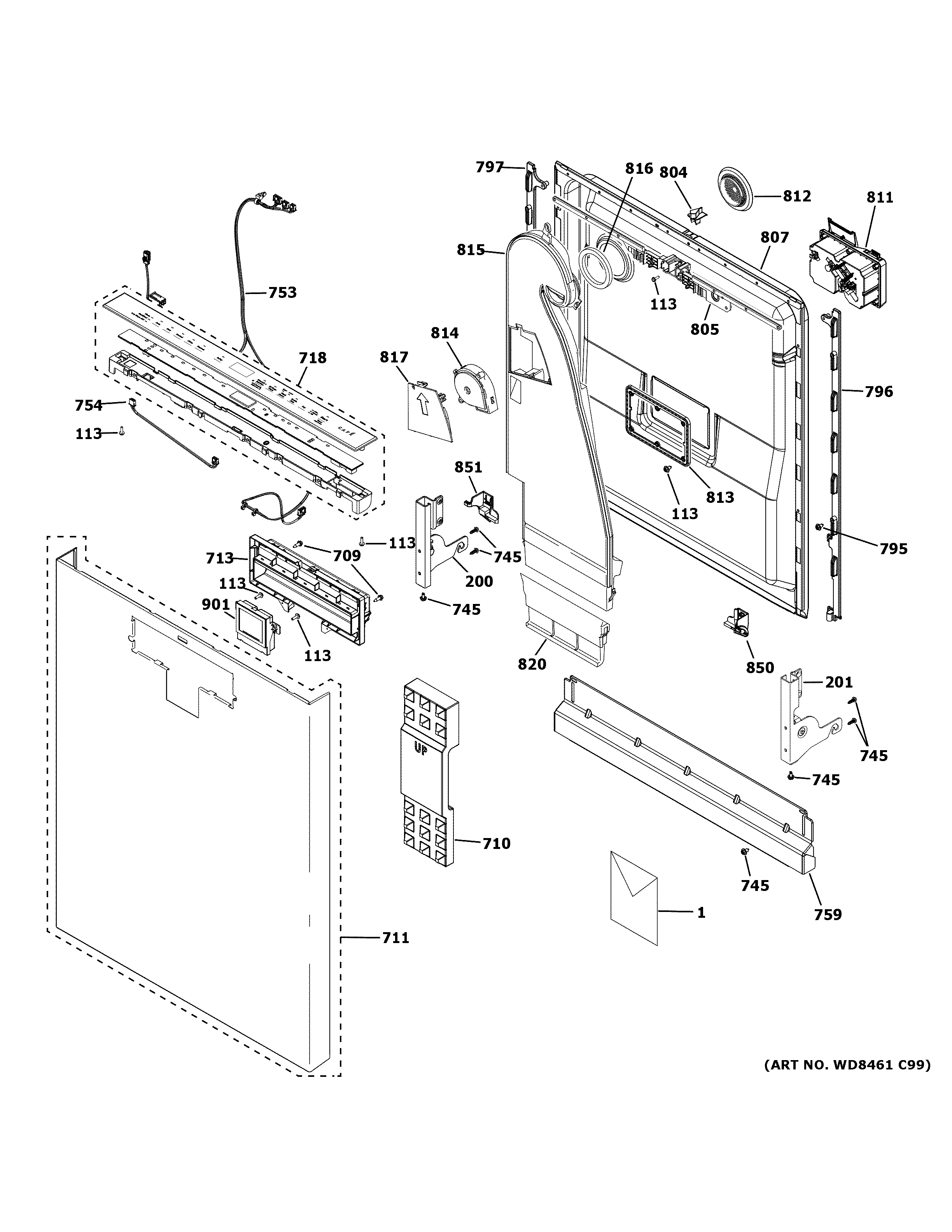

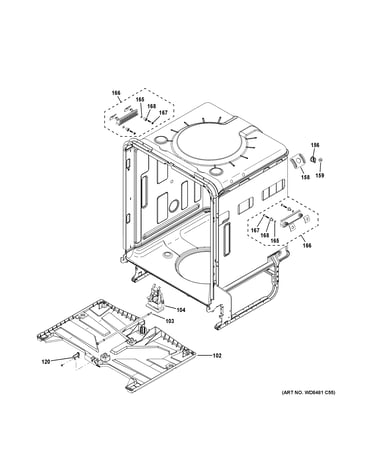

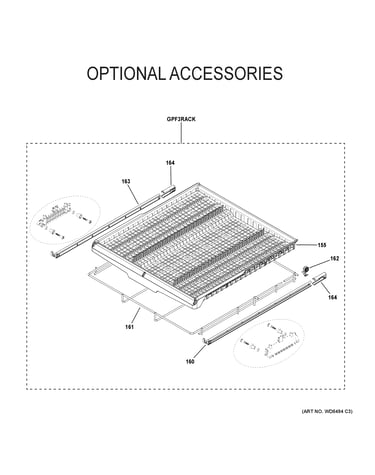

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 155 parts  |
Dishwasher Pressure Sensor WD21X25468
#333

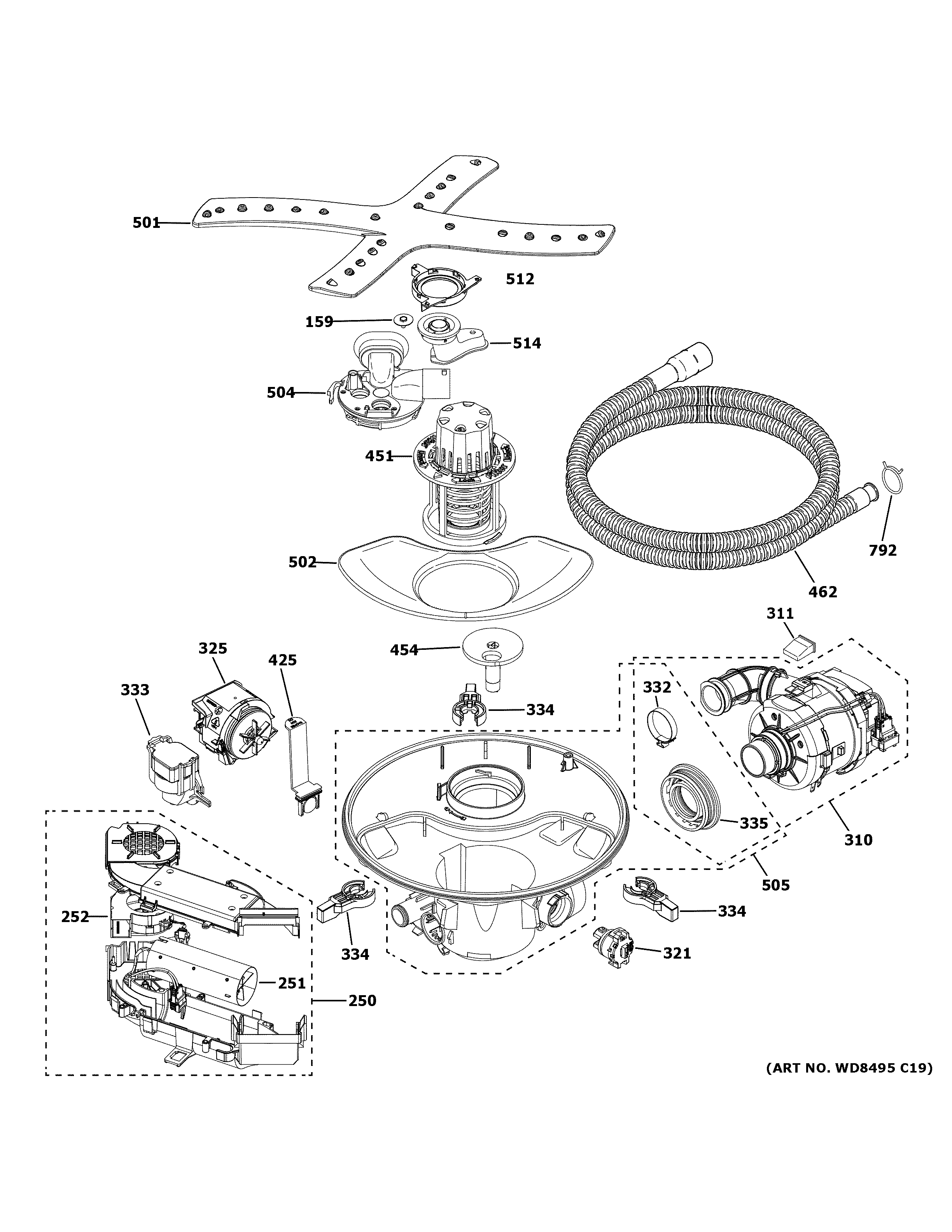

Motor, sump & filter assembly diagram

Dishwasher pressure sensor

Part #WD21X25468

BEST SELLER
$29.24 |
17% OFF Phone Price : $35.24
In Stock
Dishwasher Tub Gasket (replaces Wd08x20675) WD08X22095
#843

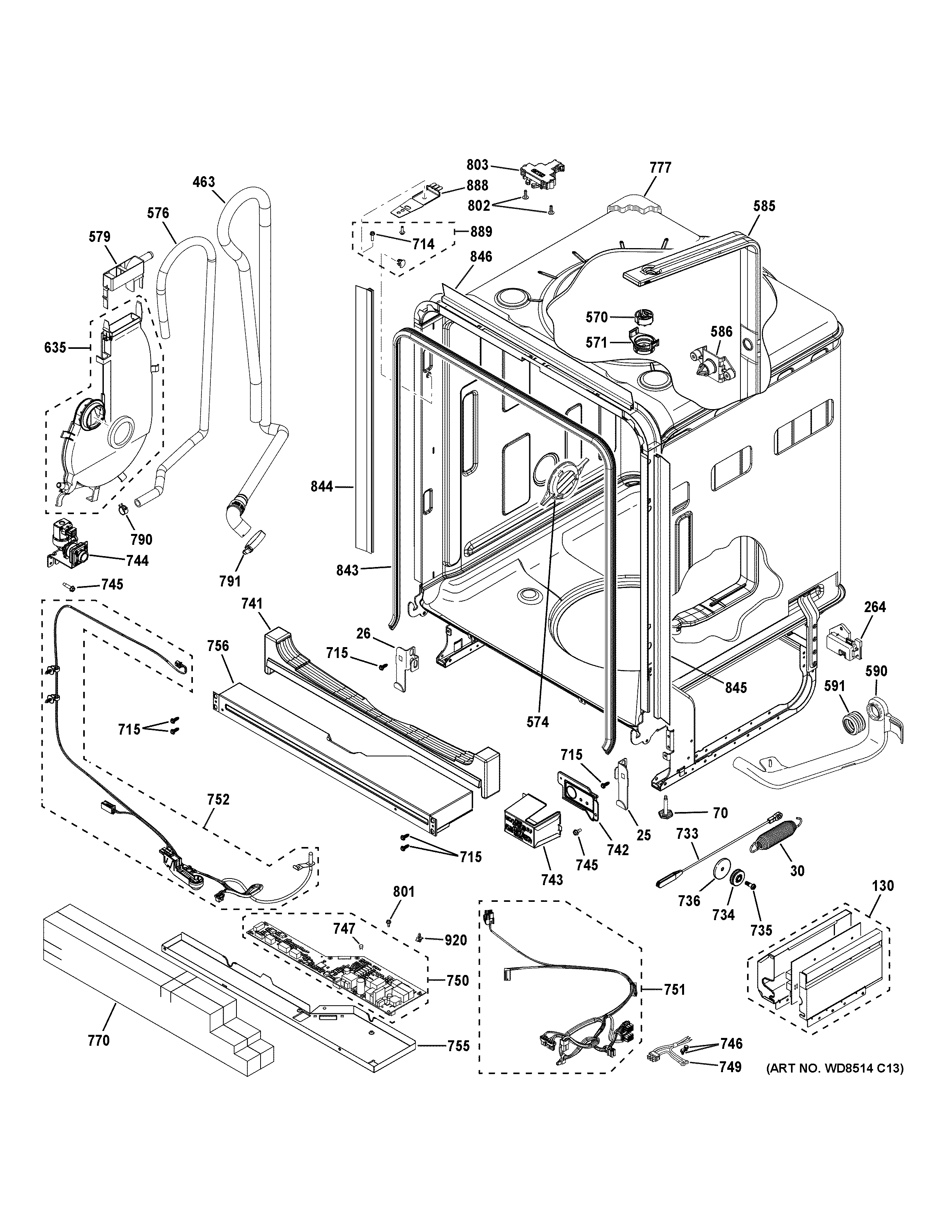

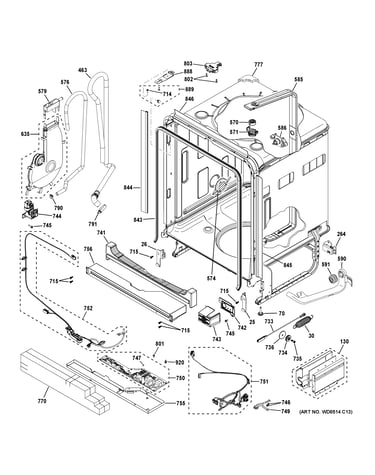

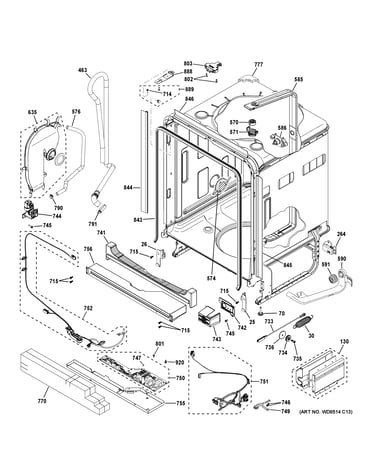

Body parts (1) diagram

Dishwasher tub gasket (replaces wd08x20675)

Part #WD08X22095

BEST SELLER
$15.67 |
11% OFF Phone Price : $17.67
In Stock
Dishwasher Lower Dishrack Roller WD12X10435
#704

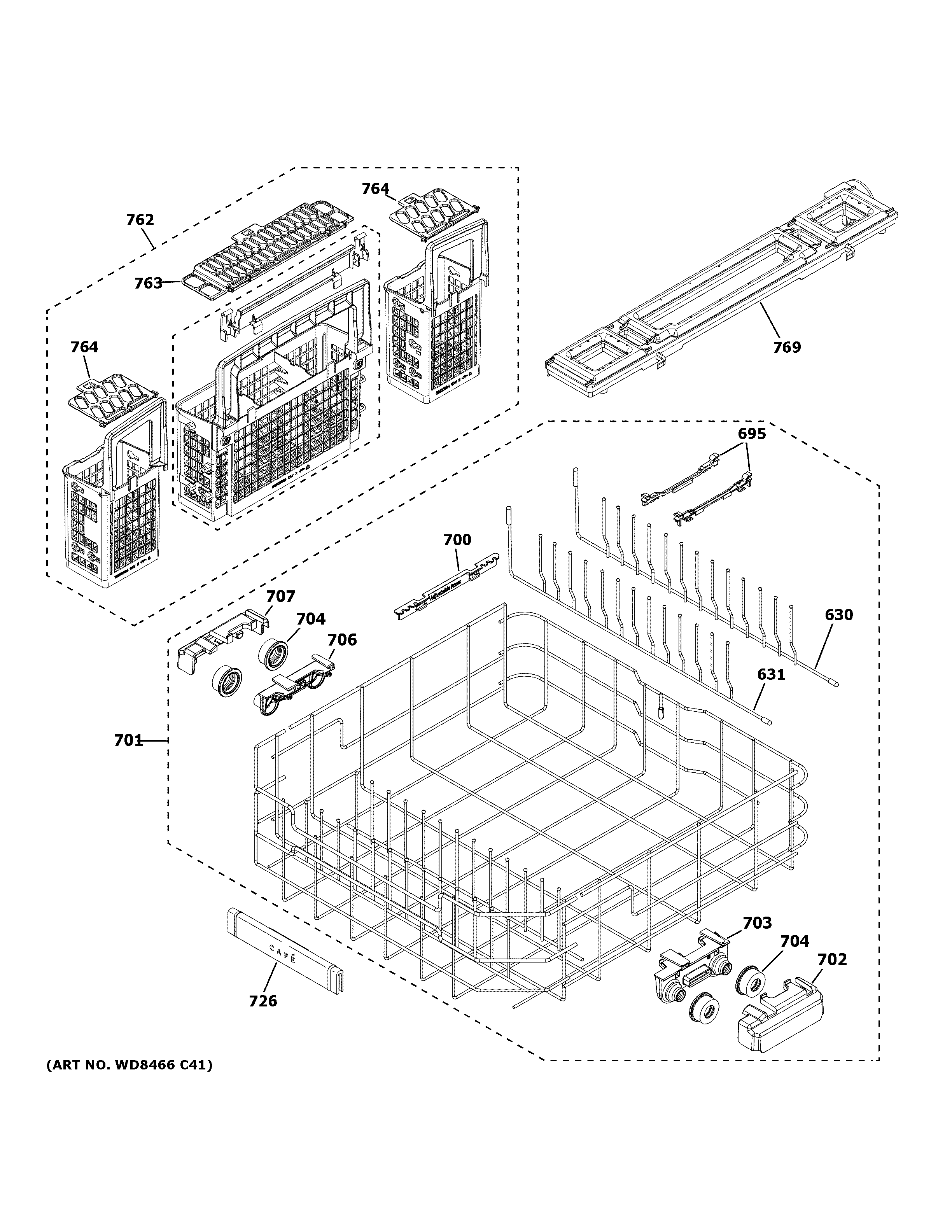

Lower rack assembly diagram

Dishwasher lower dishrack roller

Part #WD12X10435

Replaced by #WD12X26146

?
Manufacturer substitution
This part replaces WD12X10435. Substitute parts can look different from the original.
BEST SELLER
$7.44 |
12% OFF Phone Price : $8.44
In Stock
Dishwasher Turbidity Sensor WD21X22830
#321

Motor, sump & filter assembly diagram

Dishwasher turbidity sensor

Part #WD21X22830

BEST SELLER
This item is not returnable
$23.89 |
20% OFF Phone Price : $29.89
In Stock
Dishwasher Water Inlet Valve (replaces Wd15x21340, Wd15x26140) WD15X22999
#744

Body parts (1) diagram

Dishwasher water inlet valve (replaces wd15x21340, wd15x26140)

Part #WD15X22999

BEST SELLER
$28.86 |
17% OFF Phone Price : $34.86
In Stock
Dishwasher Sump Gasket WD08X25471
#335

Motor, sump & filter assembly diagram

Dishwasher sump gasket

Part #WD08X25471

Replaced by #WD08X27458

?
Manufacturer substitution
This part replaces WD08X25471. Substitute parts can look different from the original.
BEST SELLER
$22.64
In Stock
Dishwasher Upper Spray Arm Manifold WD21X20309
#632

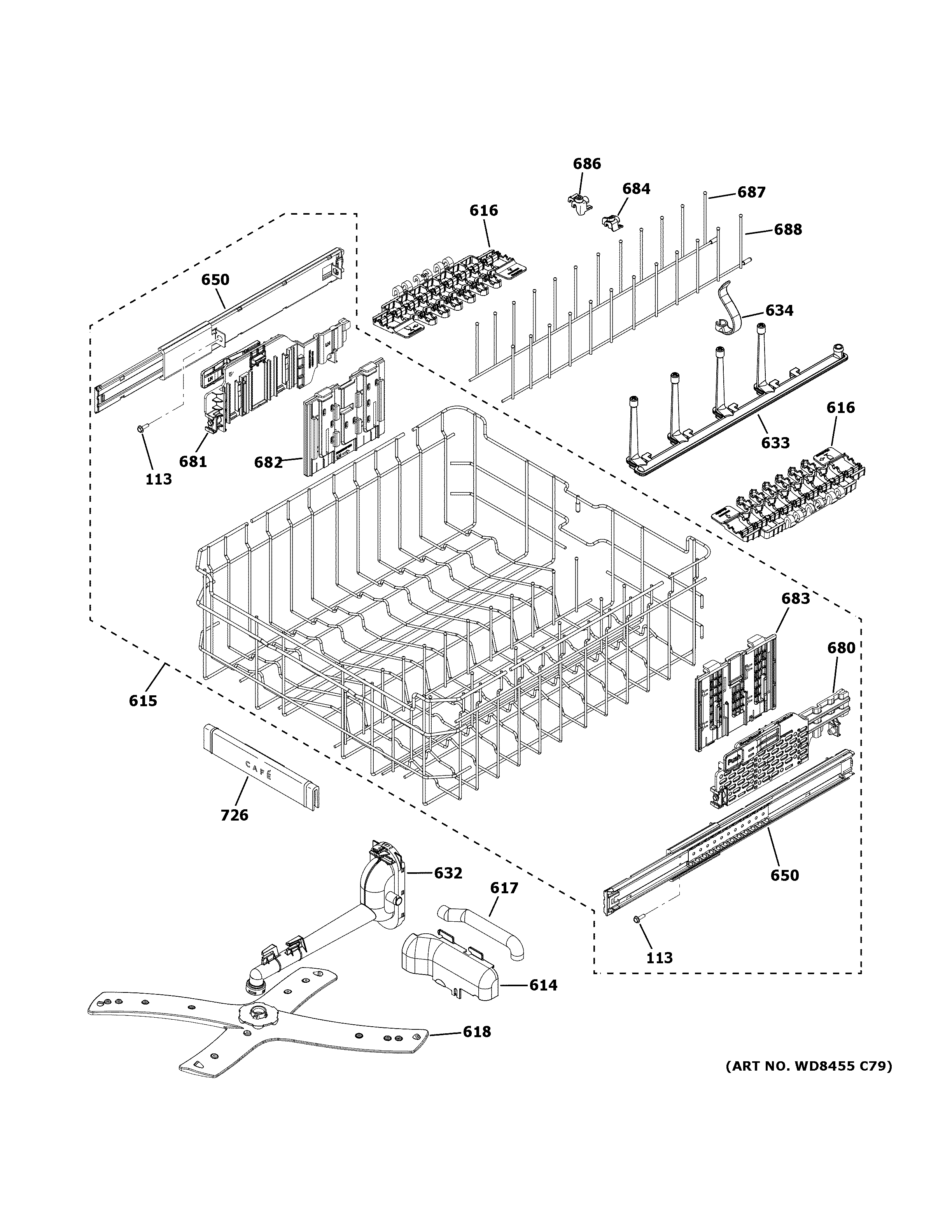

Upper rack assembly diagram

Dishwasher upper spray arm manifold

Part #WD21X20309

BEST SELLER
$43.05 |
12% OFF Phone Price : $49.05
In Stock
Sump Overmold Asm WD19X25467
#505

Motor, sump & filter assembly diagram

Sump overmold asm

Part #WD19X25467

Replaced by #WD19X25867

?
Manufacturer substitution
This part replaces WD19X25467. Substitute parts can look different from the original.
BEST SELLER
$44.88 |
12% OFF Phone Price : $50.88
In Stock
Clamp WD02X25470
#332

Motor, sump & filter assembly diagram

Clamp

Part #WD02X25470

Replaced by #WD01X22545

?
Manufacturer substitution
This part replaces WD02X25470. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$7.56 |
12% OFF Phone Price : $8.56
In Stock
Dishwasher Hose Clamp WD01X24246
#791

Body parts (1) diagram

Dishwasher hose clamp

Part #WD01X24246

BEST SELLER
$7.88 |
11% OFF Phone Price : $8.88
In Stock
