Model # 580320670 Official Craftsman 5000-watt alternator

Here are the diagrams and repair parts for Official Craftsman 580320670 5000-watt alternator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Lock Nut 26772
#12

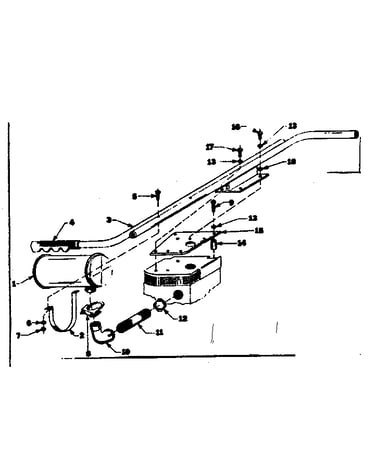

Muffler assembly diagram

Lock nut

Part #26772

Replaced by #691808

?
Manufacturer substitution
This part replaces 26772. Substitute parts can look different from the original.
This item is not returnable
$14.34
In Stock
Housing 25132
#1

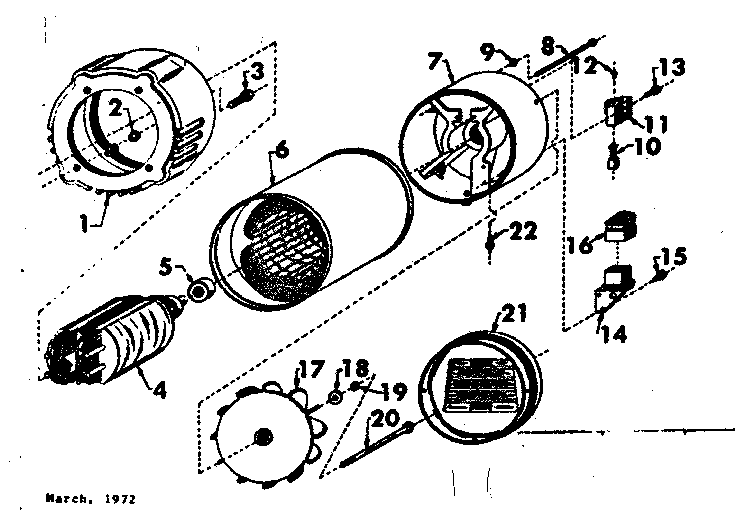

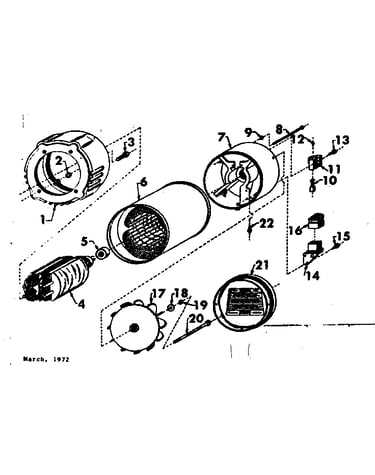

Alternator diagram

Housing

Part #25132

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 22238
Cap screw

Part #22238

The manufacturer no longer makes this part, and there's no substitute part

Box Back 24989
#12

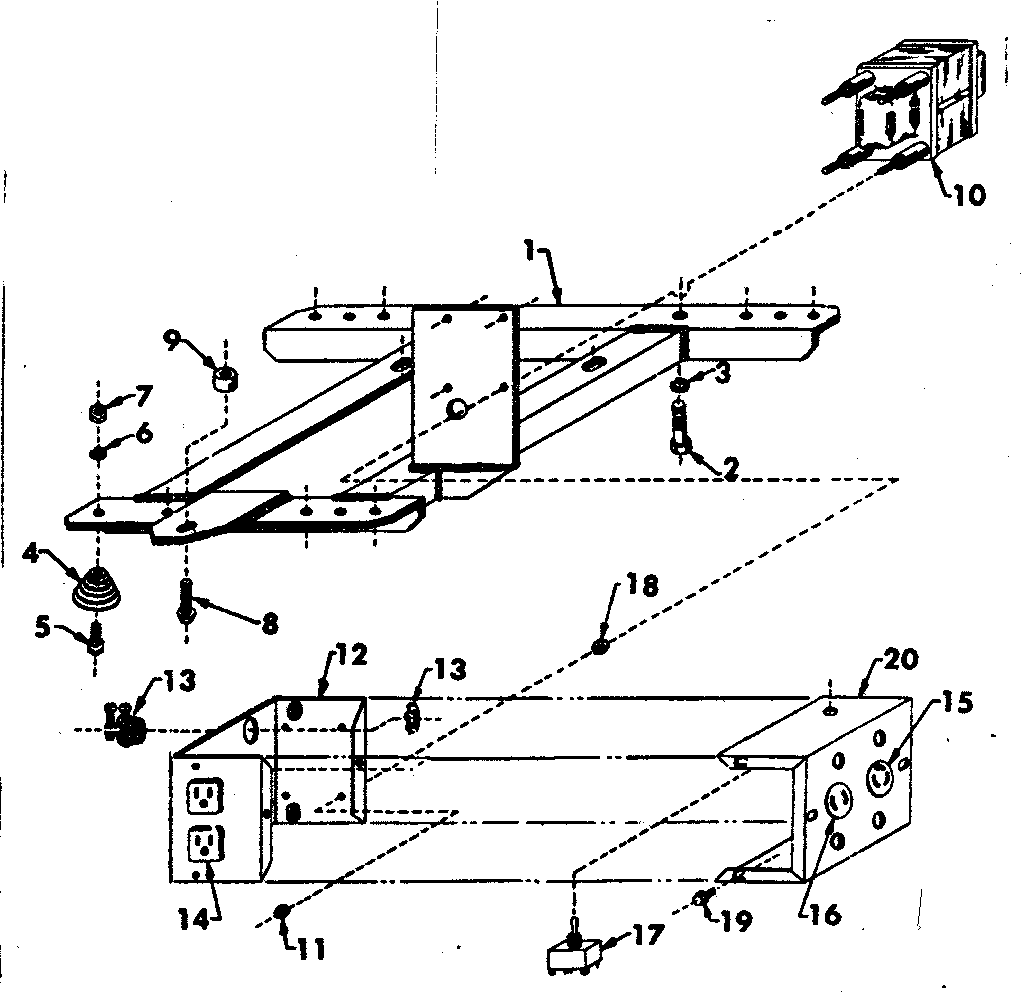

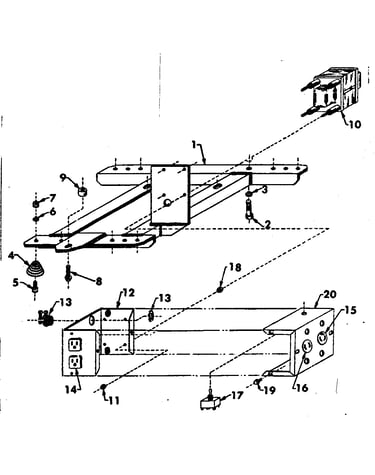

Mounting base diagram

Box back

Part #24989

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 24237
#11

Mounting base diagram

Hex nut

Part #24237

The manufacturer no longer makes this part, and there's no substitute part

Switch 28465
#17

Mounting base diagram

Switch

Part #28465

The manufacturer no longer makes this part, and there's no substitute part

Washer 23502
#4

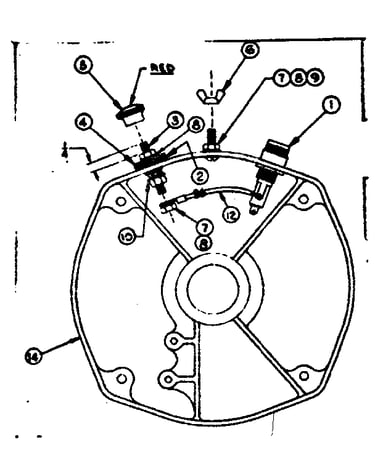

Rear bearing carrier assembly diagram

Washer

Part #23502

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw 24726
#5

Muffler assembly diagram

Cap screw

Part #24726

The manufacturer no longer makes this part, and there's no substitute part

Spring 23594
#4

Mounting base diagram

Spring

Part #23594

The manufacturer no longer makes this part, and there's no substitute part

Wire Assembly 25835-85
#12

Rear bearing carrier assembly diagram

Wire assembly

Part #25835-85

The manufacturer no longer makes this part, and there's no substitute part
