Model # GTD81GSPJ1MC Official GE gas dryer

Here are the diagrams and repair parts for Official GE GTD81GSPJ1MC gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

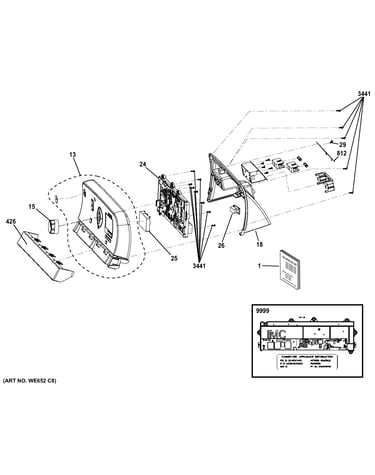

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |

Dryer Drum Support Roller WE12M39
Dryer drum support roller

Part #WE12M39

Replaced by #WE03X10016

?
Manufacturer substitution
This part replaces WE12M39. Substitute parts can look different from the original.
BEST SELLER
$29.20
17% OFF Phone Price : $35.20
In Stock
Dryer Door Switch (replaces We04m0415, We4m335) WE4M415
#380

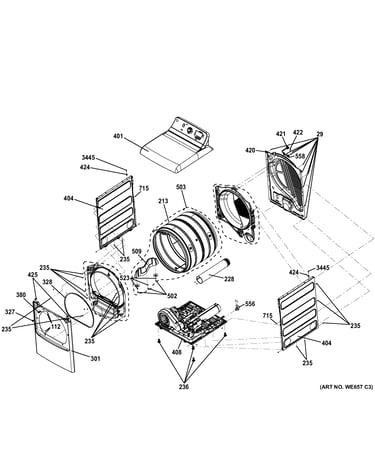

Cabinet diagram

Dryer door switch (replaces we04m0415, we4m335)

Part #WE4M415

BEST SELLER
$23.58
20% OFF Phone Price : $29.58
In Stock
Dryer Radiant Sensor (replaces We04x0448) WE4X448
#552

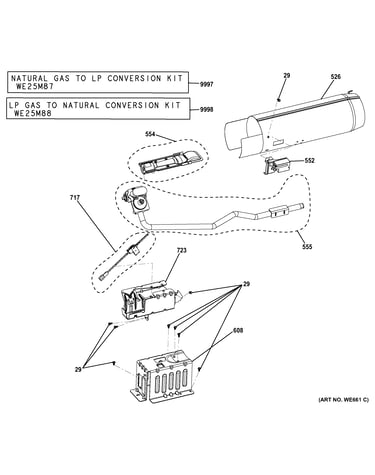

Gas valve & burner assembly diagram

Dryer radiant sensor (replaces we04x0448)

Part #WE4X448

BEST SELLER
$47.23
11% OFF Phone Price : $53.23
In Stock
Dryer Burner Igniter (replaces We04m0449) WE4M449
#717

Gas valve & burner assembly diagram

Dryer burner igniter (replaces we04m0449)

Part #WE4M449

BEST SELLER
$84.86
7% OFF Phone Price : $90.86
In Stock
Dryer Door Catch (replaces We01m1011, We1m536) WE1M1011
#327

Cabinet diagram

Dryer door catch (replaces we01m1011, we1m536)

Part #WE1M1011

BEST SELLER
This item is not returnable
$10.55
16% OFF Phone Price : $12.55
In Stock
Dryer Door Strike WE01M10007
#3049

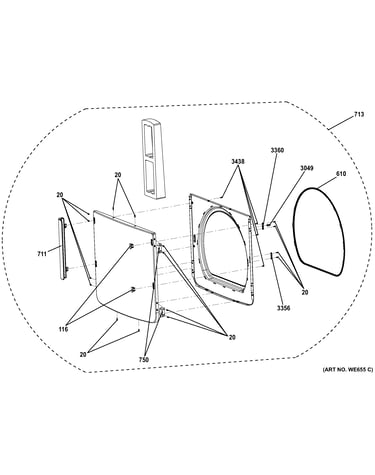

Door assembly diagram

Dryer door strike

Part #WE01M10007

This item is not returnable
$7.13
12% OFF Phone Price : $8.13
In Stock
Dryer Drum Belt (replaces We12m0037) WE12M37
#213

Cabinet diagram

Dryer drum belt (replaces we12m0037)

Part #WE12M37

$38.91
13% OFF Phone Price : $44.91
In Stock
Dryer Moisture Sensor And Grille Assembly WE1M1058
#3363

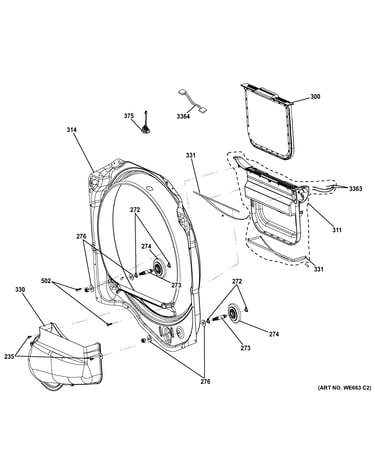

Front roller support diagram

Dryer moisture sensor and grille assembly

Part #WE1M1058

$16.08
11% OFF Phone Price : $18.08
In Stock
Motor Strap WE01X0921
#204

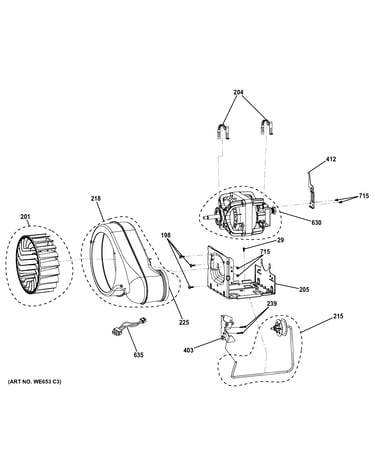

Blower & motor diagram

Motor strap

Part #WE01X0921

Replaced by #WE1X921

?
Manufacturer substitution
This part replaces WE01X0921. Substitute parts can look different from the original.
$24.07
20% OFF Phone Price : $30.07
In Stock
Thermistor Ice Control WE4M550
#801

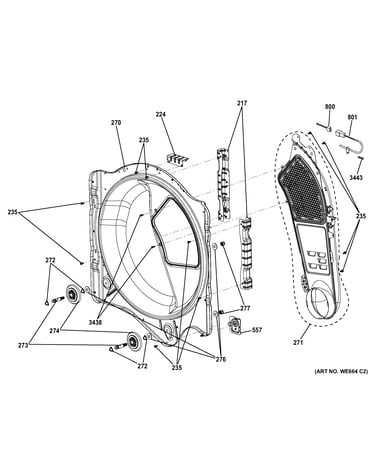

Rear roller support diagram

Thermistor ice control

Part #WE4M550

$32.51
16% OFF Phone Price : $38.51
In Stock
