Model # 27293151.81 Official Kenmore sewing machine cabinet

Here are the diagrams and repair parts for Official Kenmore 2729315181 sewing machine cabinet, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Bracket 000452
#3

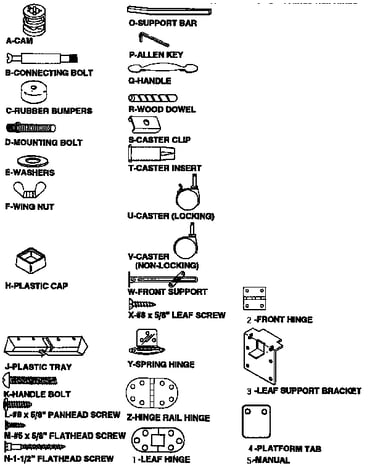

Hardware parts diagram

Bracket

Part #000452

The manufacturer no longer makes this part, and there's no substitute part

Wind Nut 000488
#F

Hardware parts diagram

Wind nut

Part #000488

The manufacturer no longer makes this part, and there's no substitute part

Adjustment Screw 000159
#15

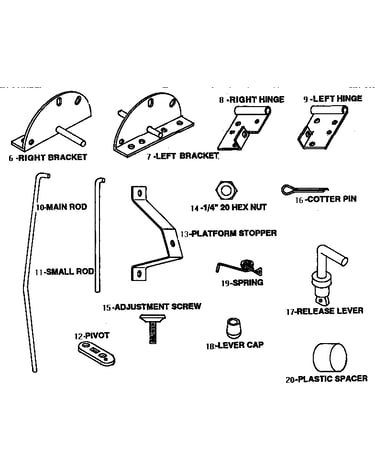

3-position mechanism diagram

Adjustment screw

Part #000159

The manufacturer no longer makes this part, and there's no substitute part

Leaf Support 000855
#O

Hardware parts diagram

Leaf support

Part #000855

The manufacturer no longer makes this part, and there's no substitute part

Cotter Pin 000163
#16

3-position mechanism diagram

Cotter pin

Part #000163

The manufacturer no longer makes this part, and there's no substitute part

Release Lever 000164
#17

3-position mechanism diagram

Release lever

Part #000164

The manufacturer no longer makes this part, and there's no substitute part

Back 002577
#G

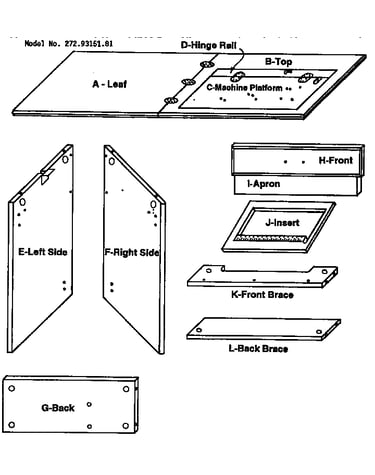

Wood parts diagram

Back

Part #002577

The manufacturer no longer makes this part, and there's no substitute part

Tray 002548
#J

Hardware parts diagram

Tray

Part #002548

The manufacturer no longer makes this part, and there's no substitute part

Stop 000086
#4

Hardware parts diagram

Stop

Part #000086

The manufacturer no longer makes this part, and there's no substitute part

Top 002714
#B

Wood parts diagram

Top

Part #002714

The manufacturer no longer makes this part, and there's no substitute part
