Craftsman
Electric Walk-Behind Mower

Model # 917386402 Official Craftsman rotary lawn mower

Here are the diagrams and repair parts for Official Craftsman 917386402 rotary lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

  View engine

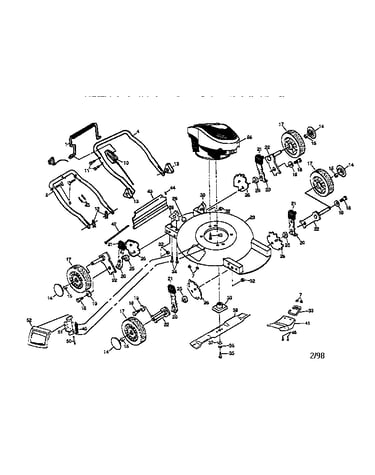

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 67 parts  |
Lawn Mower Height Adjuster Knob 701037
#21

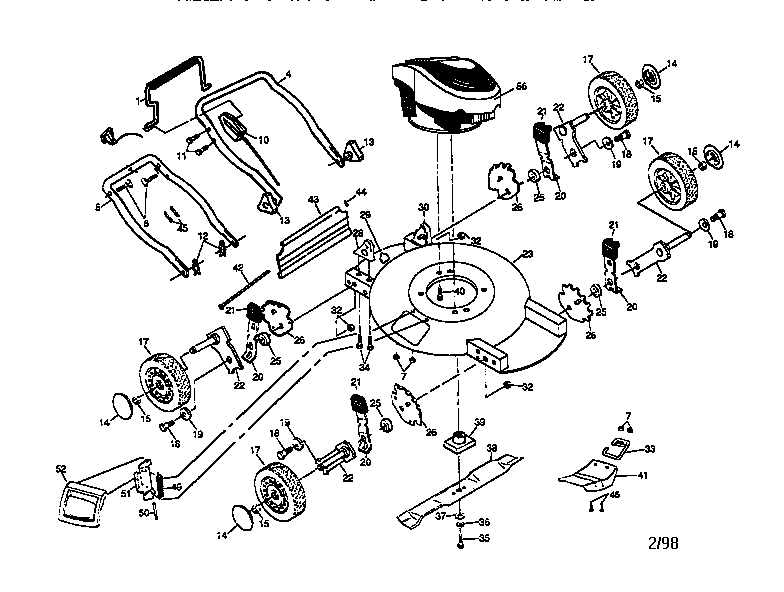

Replacement parts diagram

Lawn mower height adjuster knob

Part #701037

Replaced by #532701037

?
Manufacturer substitution
This part replaces 701037. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Lawn Mower Blade Adapter 851514
#39

Replacement parts diagram

Lawn mower blade adapter

Part #851514

Replaced by #581547901

?
Manufacturer substitution
This part replaces 851514. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Torsion Spring 152124
#49

Replacement parts diagram

Torsion spring

Part #152124

Replaced by #532152124

?
Manufacturer substitution
This part replaces 152124. Substitute parts can look different from the original.
This item is not returnable
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Spring 700331X004
#20

Replacement parts diagram

Spring

Part #700331X004

Replaced by #532401621

?
Manufacturer substitution
This part replaces 700331X004. Substitute parts can look different from the original.
$8.54
In Stock
Lawn Mower Battery Charger 90023

#NI

All parts diagram

Lawn mower battery charger

Part #90023

$108.09 |
10% OFF Phone Price : $120.09
In Stock
Walk-behind Lawn Mower Handle Knob 87692
#13

Replacement parts diagram

Walk-behind lawn mower handle knob

Part #87692

Replaced by #532087692

?
Manufacturer substitution
This part replaces 87692. Substitute parts can look different from the original.
$15.40
In Stock
Lawn & Garden Equipment Bolt (replaces 532150406, 532850998, 850998) 150406
#40

Replacement parts diagram

Lawn & garden equipment bolt (replaces 532150406, 532850998, 850998)

Part #150406

Replaced by #532150406

?
Manufacturer substitution
This part replaces 150406. Substitute parts can look different from the original.
$8.54
In Stock
Clip 700279
#44

Replacement parts diagram

Clip

Part #700279

Replaced by #532700279

?
Manufacturer substitution
This part replaces 700279. Substitute parts can look different from the original.
This item is not returnable
$5.11
In Stock
Rod.hinge.co 147286
#50

Replacement parts diagram

Rod.hinge.co

Part #147286

Replaced by #532147286

?
Manufacturer substitution
This part replaces 147286. Substitute parts can look different from the original.
This item is not returnable
$9.31 |
10% OFF Phone Price : $10.31
In Stock
Height Spacer 146630
#25

Replacement parts diagram

Height spacer

Part #146630

Replaced by #532401629

?
Manufacturer substitution
This part replaces 146630. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
