Model # ZET1058SF3SS Official GE wall oven

Here are the diagrams and repair parts for Official GE ZET1058SF3SS wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

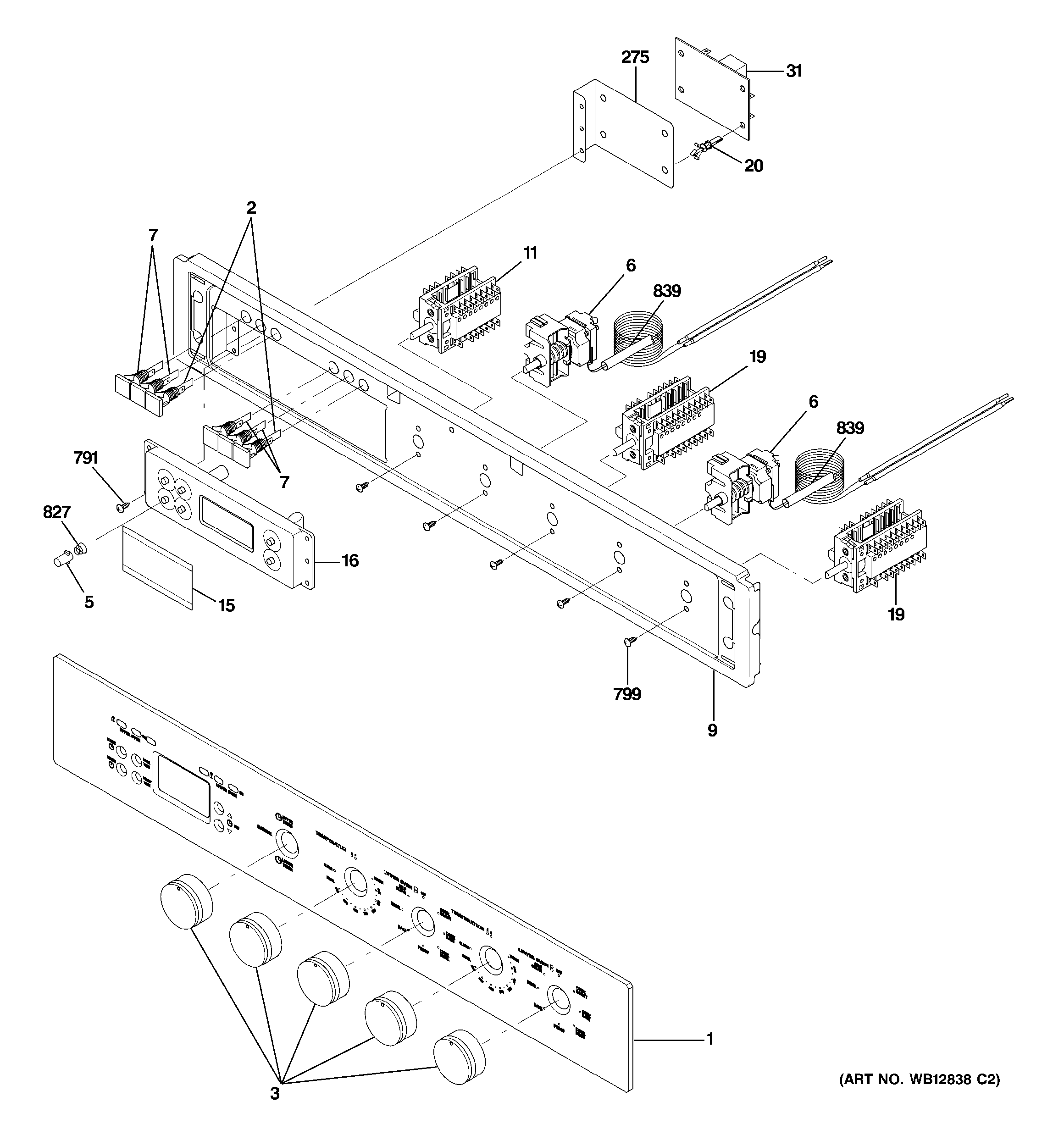

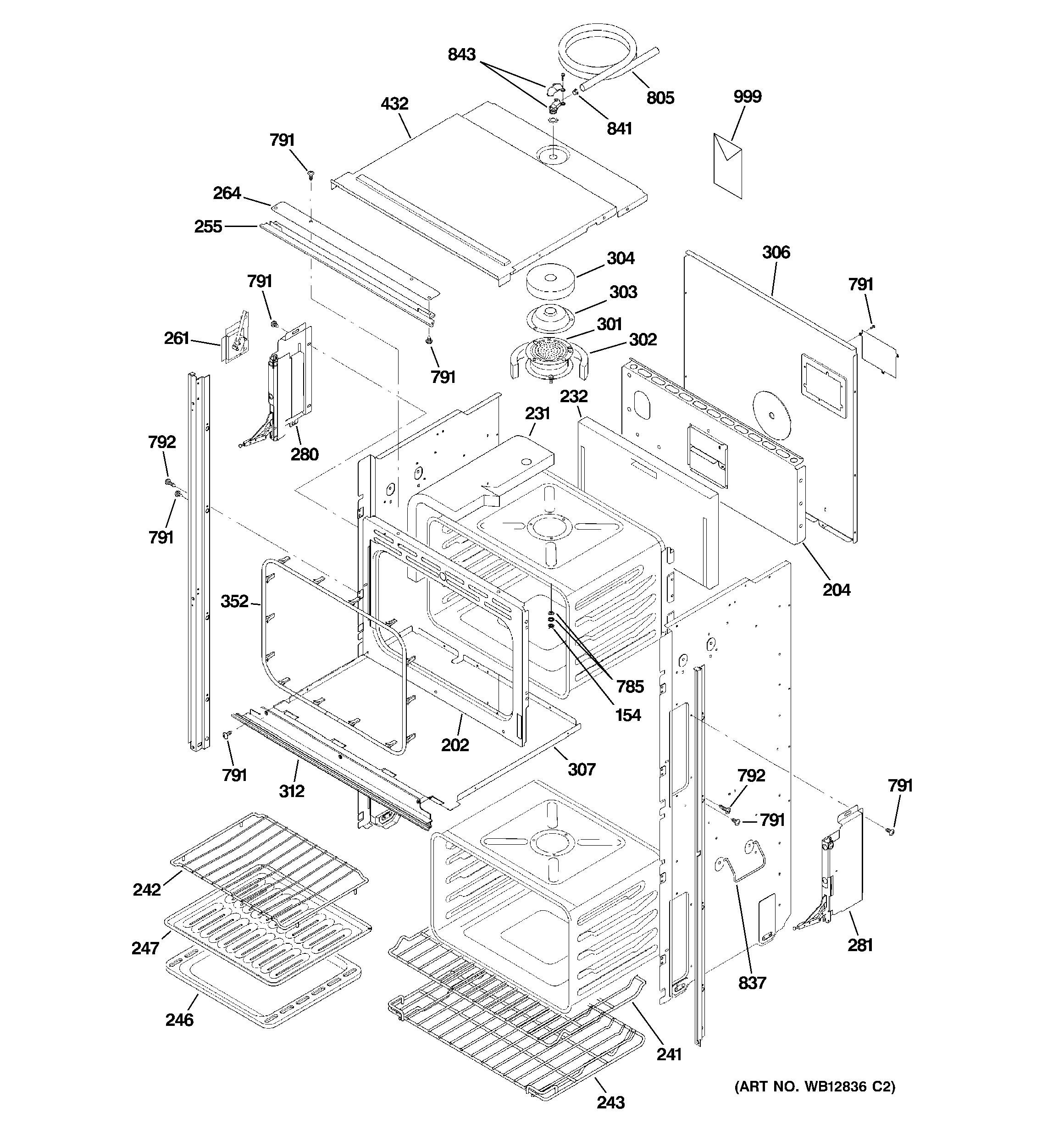

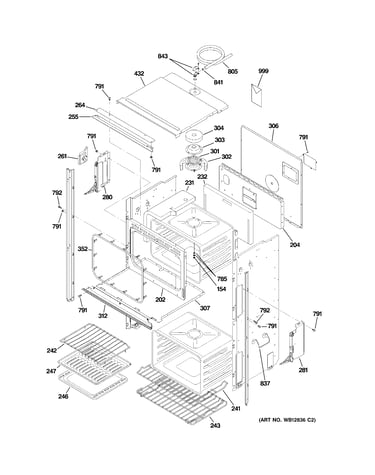

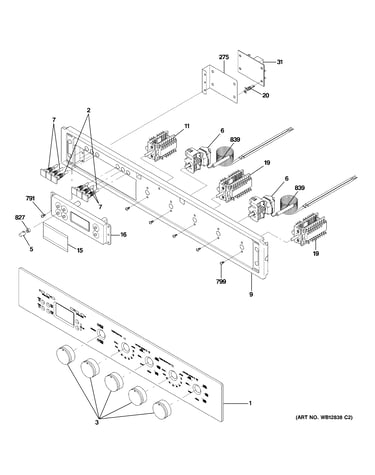

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 145 parts  |
Decal WB02X10833
#852

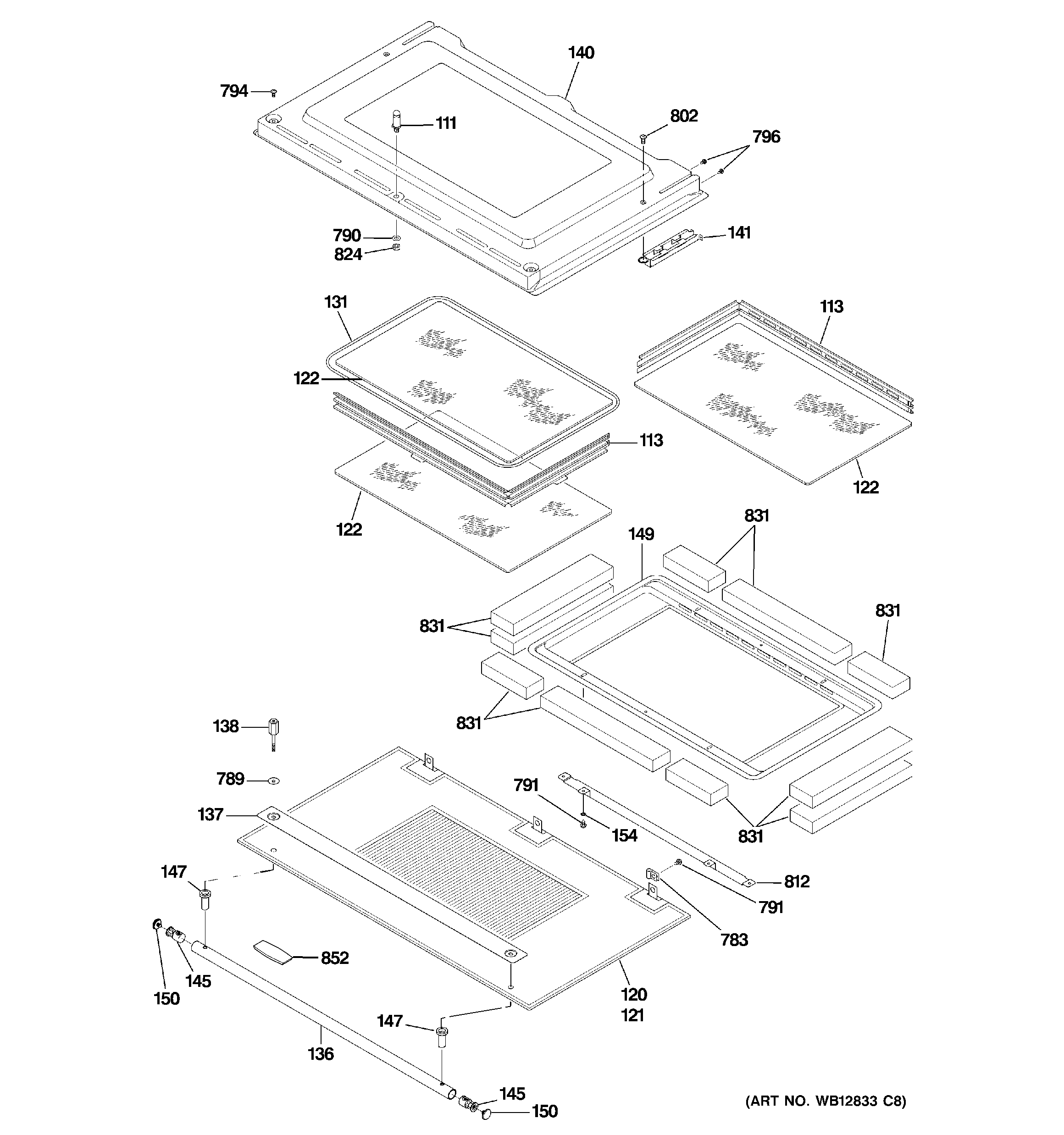

Door diagram

Decal

Part #WB02X10833

$42.96
In Stock
Oven Support WB07X10151
#308

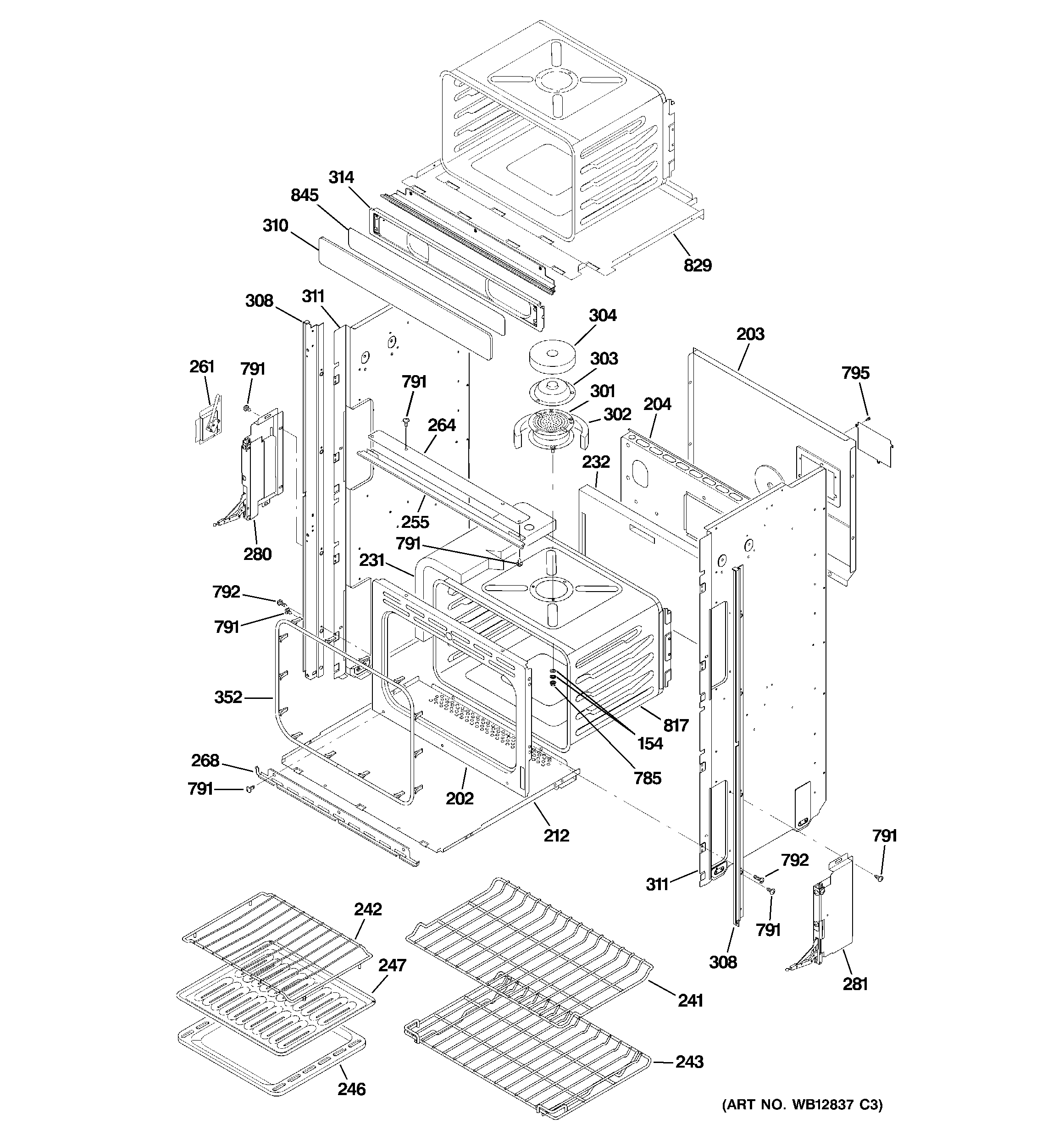

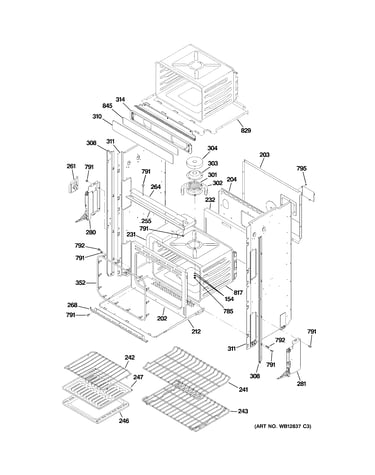

Body parts (2) diagram

Oven support

Part #WB07X10151

$110.43
In Stock
Cooking Appliance Halogen Light Bulb (replaces Wb08x10045, Wb36x10176, Wr02x11184) WB01X10239
#838

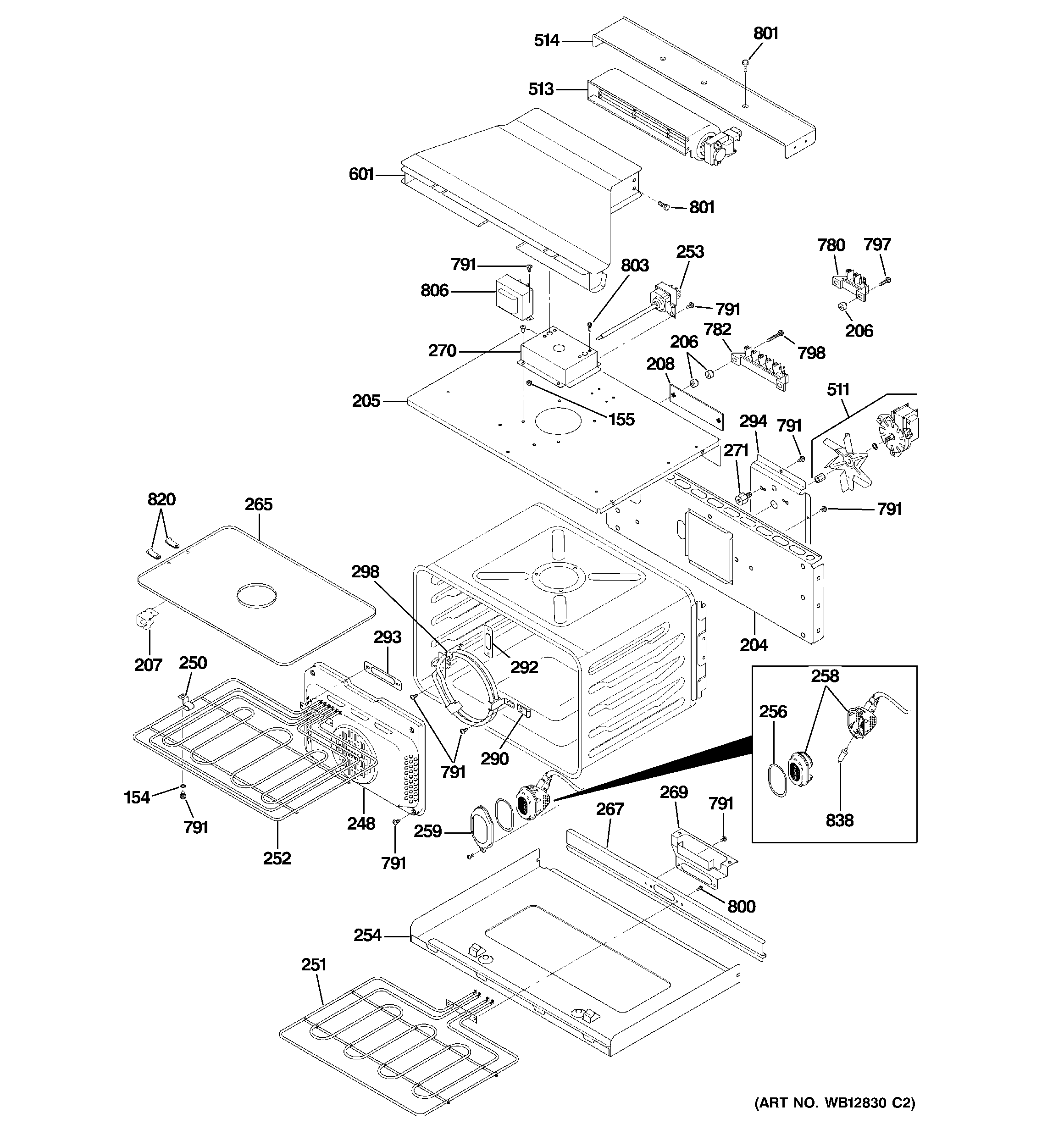

Upper oven diagram

Cooking appliance halogen light bulb (replaces wb08x10045, wb36x10176, wr02x11184)

Part #WB01X10239

$27.25 |
18% OFF Phone Price : $33.25
In Stock
Wall Oven Door Hinge WB10X10028
#141

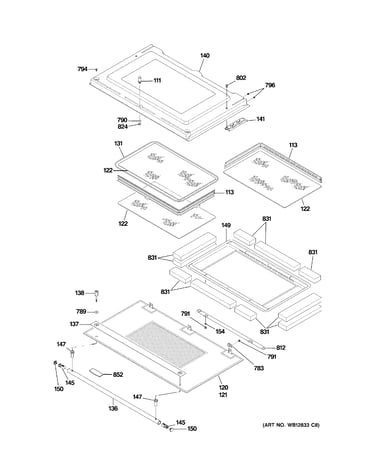

Door diagram

Wall oven door hinge

Part #WB10X10028

$33.02 |
15% OFF Phone Price : $39.02
In Stock
Wall Oven Door Hinge Assembly, Right WB10X10055
Wall oven door hinge assembly, right

Part #WB10X10055

Replaced by #WB10X10078

?
Manufacturer substitution
This part replaces WB10X10055. Substitute parts can look different from the original.
$135.45 |
8% OFF Phone Price : $147.45
In Stock
Convection R WB48X10012
Convection r

Part #WB48X10012

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB48X10012. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock

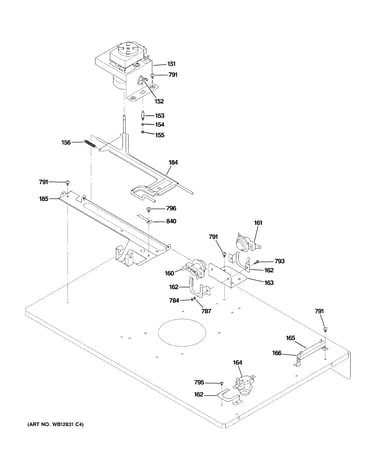

Wall Oven Door Lock Motor WB14X10005
#151

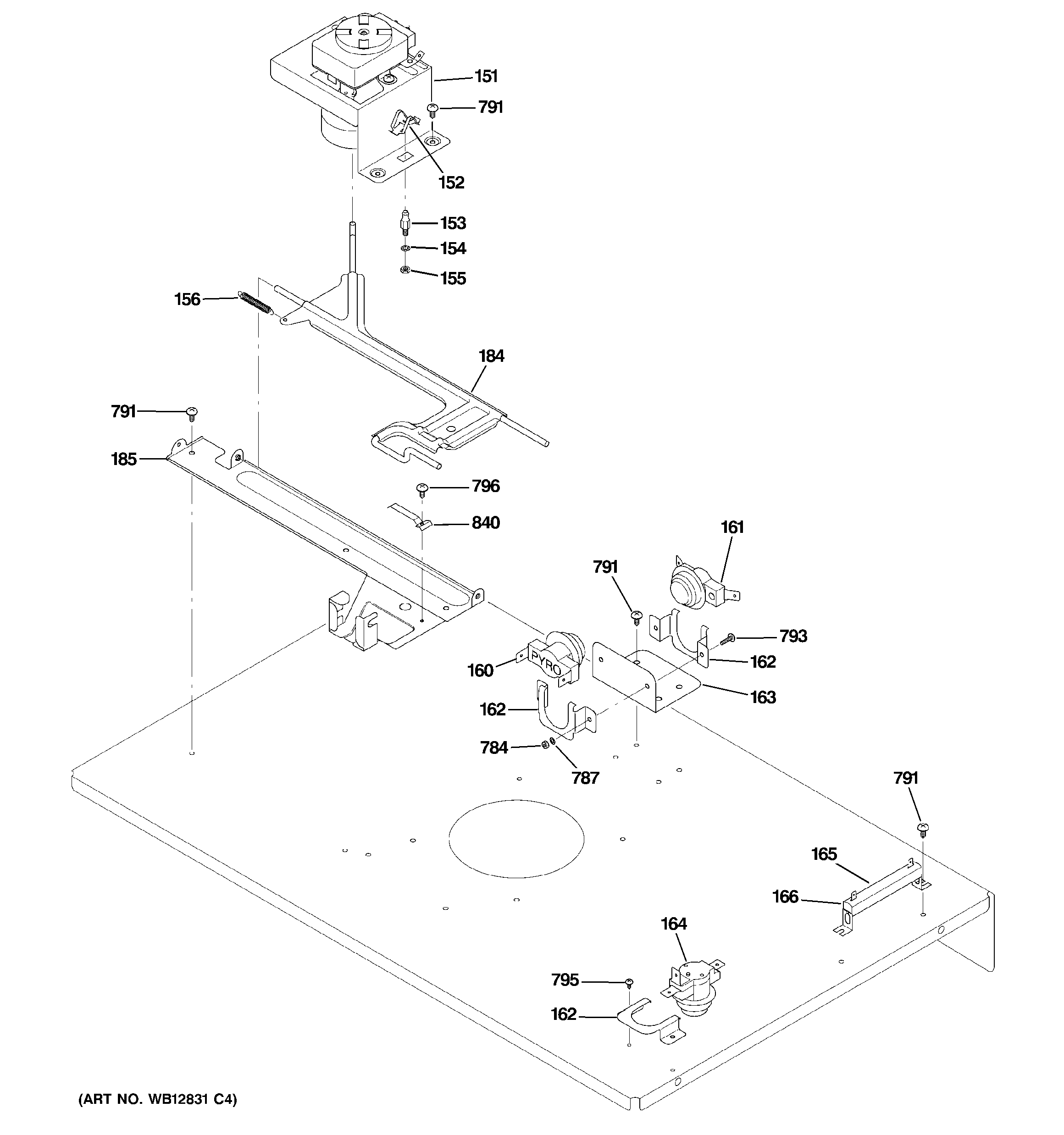

Door lock diagram

Wall oven door lock motor

Part #WB14X10005

Replaced by #WB00X7310

?
Manufacturer substitution
This part replaces WB14X10005. Substitute parts can look different from the original.
$111.86
In Stock

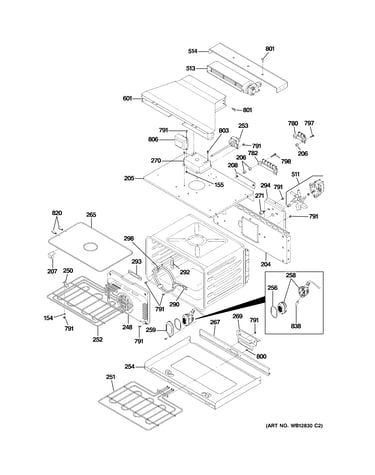

Wall Oven Cooling Fan WB26X10022
#513

Upper oven diagram

Wall oven cooling fan

Part #WB26X10022

The manufacturer no longer makes this part, and there's no substitute part

Insulation WB05X10001
Insulation

Part #WB05X10001

Replaced by #WB5X10001

?
Manufacturer substitution
This part replaces WB05X10001. Substitute parts can look different from the original.
$13.49
In Stock
Oven Broiler Pan WB49X10115
Oven broiler pan

Part #WB49X10115

Replaced by #WB48X10056

?
Manufacturer substitution
This part replaces WB49X10115. Substitute parts can look different from the original.
$31.29 |
16% OFF Phone Price : $37.29
In Stock
