Model # 21758882 Official Craftsman 7.5-hp outboard motor

Here are the diagrams and repair parts for Official Craftsman 21758882 7.5-hp outboard motor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

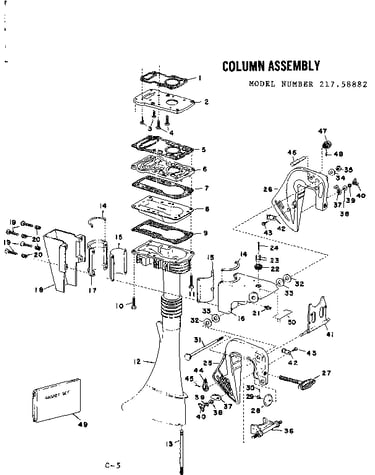

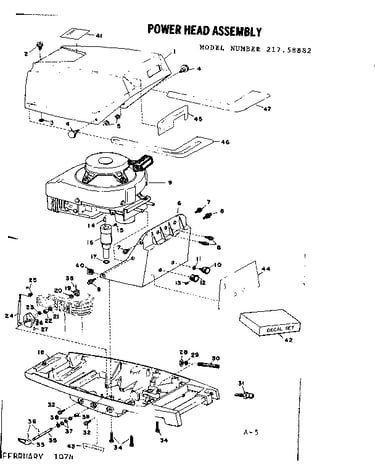

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 286 parts |

#25

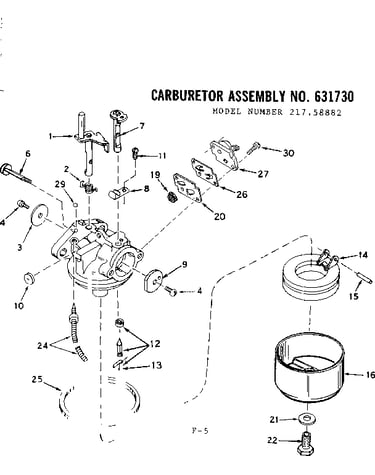

Carburetor asm diagram

Gasket

Part #631028

The manufacturer no longer makes this part, and there's no substitute part

#14

Carburetor asm diagram

Float

Part #631023

The manufacturer no longer makes this part, and there's no substitute part

#29

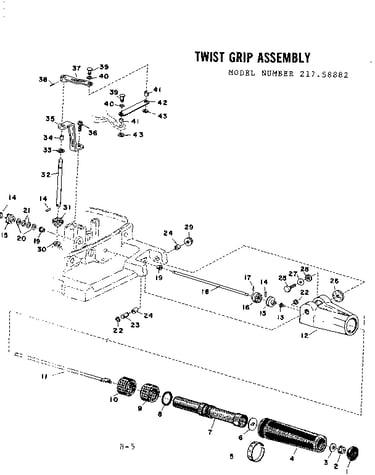

Twist grip asm diagram

Lock nut

Part #2632

The manufacturer no longer makes this part, and there's no substitute part

#72

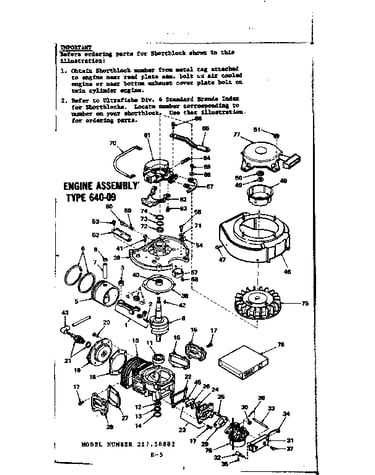

Engine asm diagram

Seal

Part #510242

The manufacturer no longer makes this part, and there's no substitute part

#12

Engine asm diagram

Seal

Part #510311

The manufacturer no longer makes this part, and there's no substitute part

#13

Carburetor asm diagram

Clip

Part #631022

The manufacturer no longer makes this part, and there's no substitute part

#14

Engine asm diagram

Spring

Part #510109

The manufacturer no longer makes this part, and there's no substitute part

#13

Engine asm diagram

Retainer

Part #510106

The manufacturer no longer makes this part, and there's no substitute part

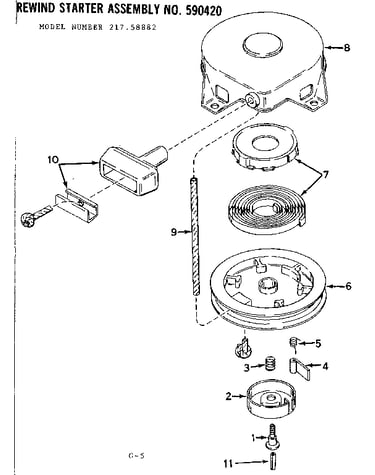

Reqind starter asm diagram

Spring

Part #590412

The manufacturer no longer makes this part, and there's no substitute part

#46

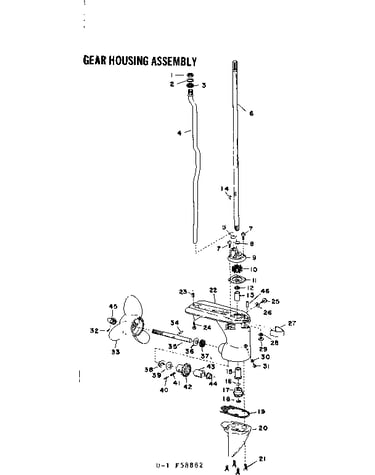

Gear housing asm diagram

Preway roll pin

Part #7058

The manufacturer no longer makes this part, and there's no substitute part
