Craftsman
Angle Grinder

Model # 90011650TY1 Official Craftsman angle grinder

Here are the diagrams and repair parts for Official Craftsman 90011650TY1 angle grinder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 7 of 7 parts  |
Craftsman Angle Grinder Cutting Wheel Flange Guard 5140014-76
#36

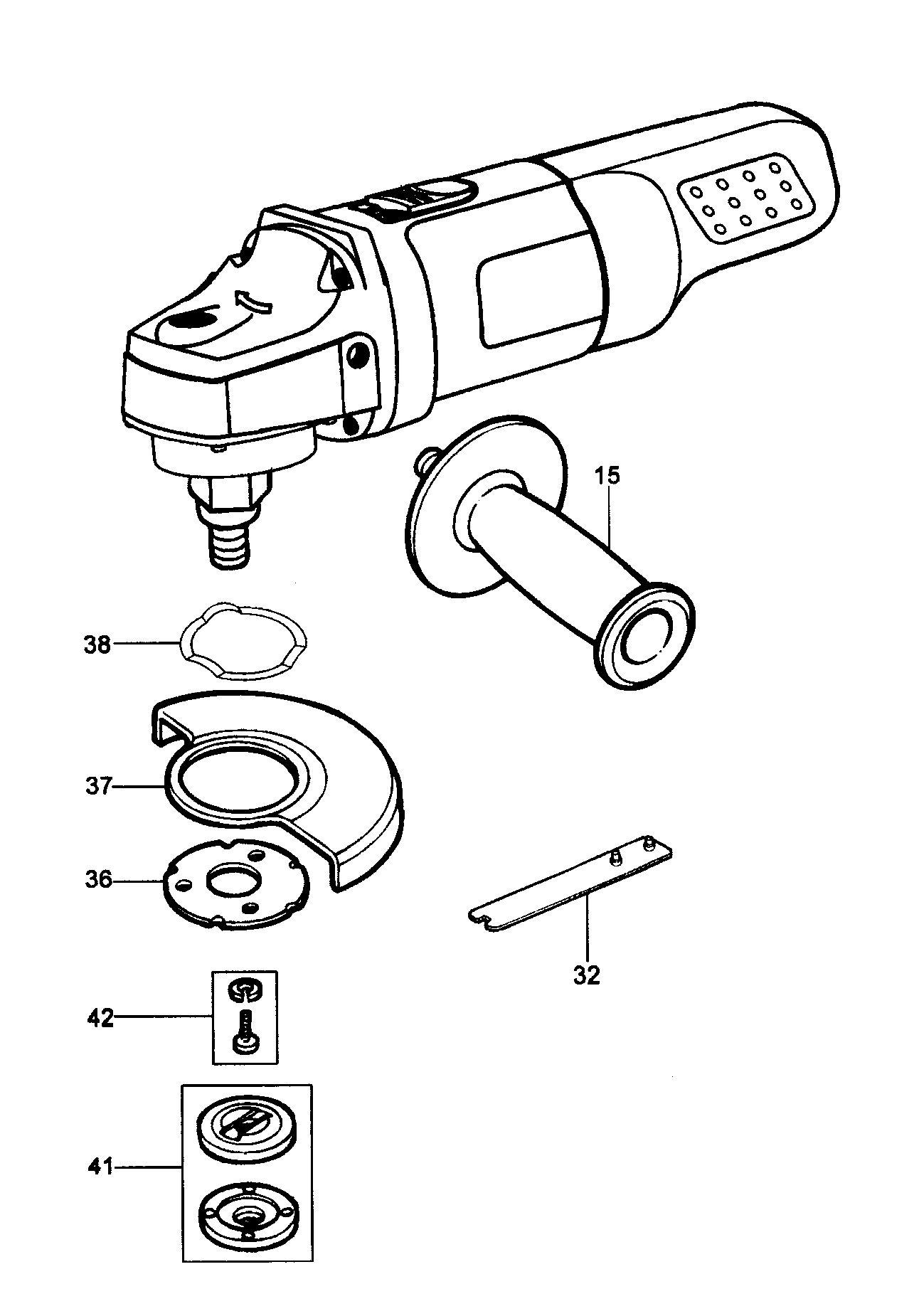

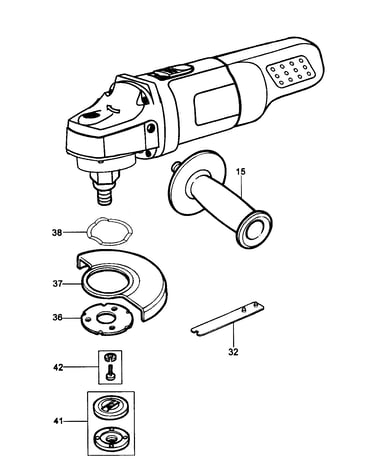

Grinder diagram

Craftsman angle grinder cutting wheel flange guard

Part #5140014-76

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Angle Grinder Guard 5140014-77
#37

Grinder diagram

Craftsman angle grinder guard

Part #5140014-77

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Side Handle 5140014-74
#15

Grinder diagram

Craftsman side handle

Part #5140014-74

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Spring Washer 5140014-78
#38

Grinder diagram

Craftsman spring washer

Part #5140014-78

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Angle Grinder Cutting Wheel Flange Set 5140014-79
#41

Grinder diagram

Craftsman angle grinder cutting wheel flange set

Part #5140014-79

The manufacturer no longer makes this part, and there's no substitute part

Washer Screw 5140014-80
#42

Grinder diagram

Washer screw

Part #5140014-80

The manufacturer no longer makes this part, and there's no substitute part

Angle Grinder Wrench 5140014-75
#32

Grinder diagram

Angle grinder wrench

Part #5140014-75

The manufacturer no longer makes this part, and there's no substitute part
