Kenmore
Gas Cooktop

Model # 79032099400 Official Kenmore gas cooktop

Here are the diagrams and repair parts for Official Kenmore 79032099400 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

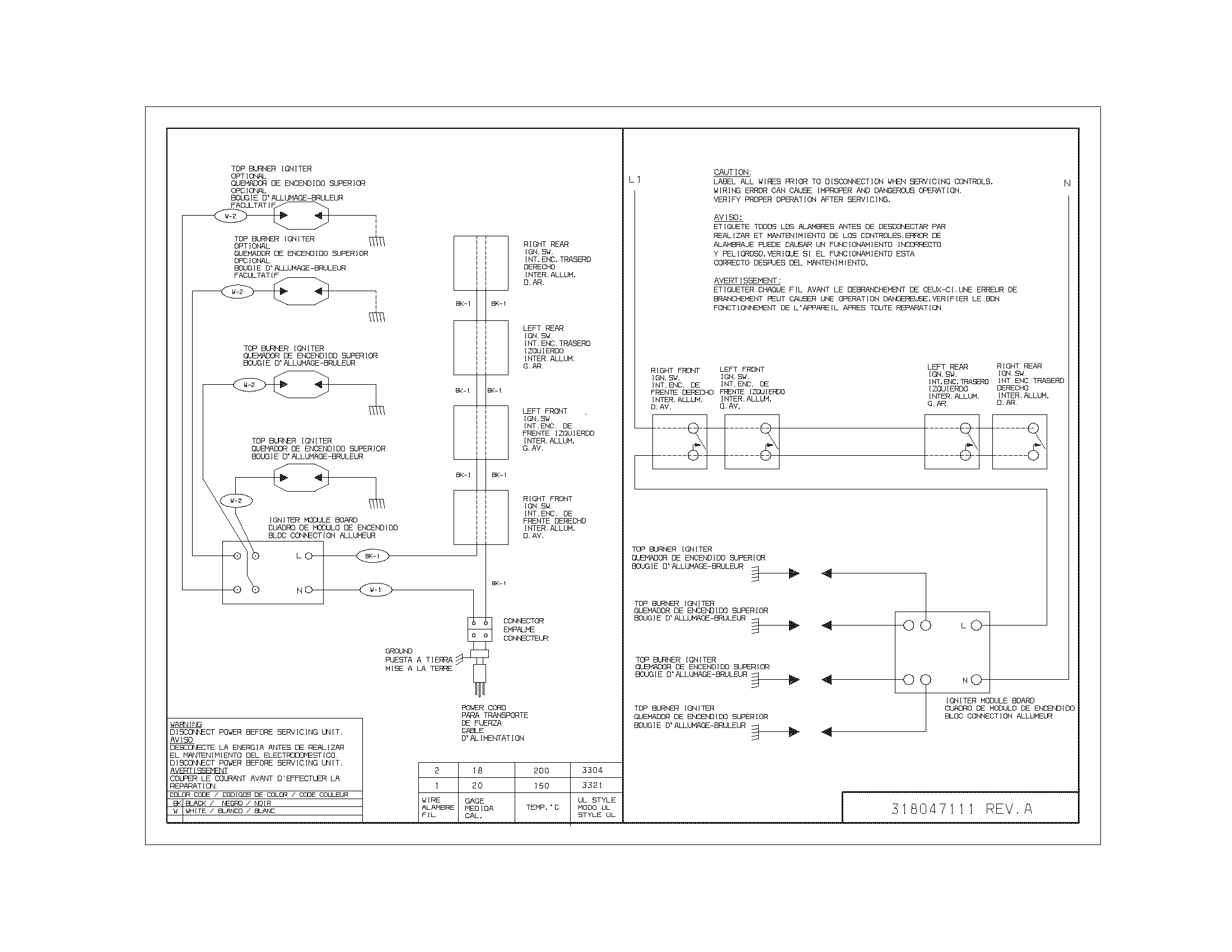

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Range Screw, #10-24 X 0.375-in 08011955
#NI

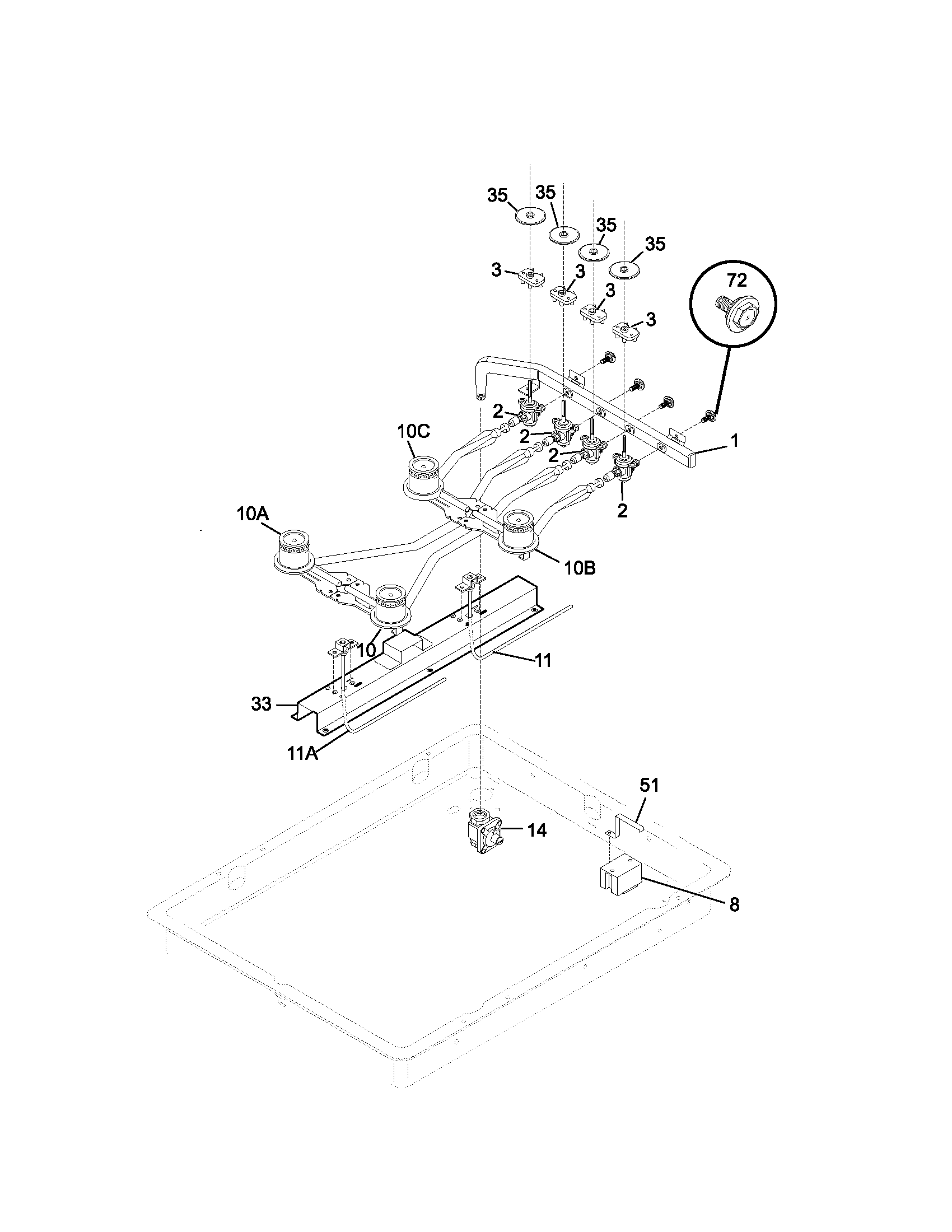

Bunrer diagram

Range screw, #10-24 x 0.375-in

Part #08011955

Replaced by #5303311174

?
Manufacturer substitution
This part replaces 08011955. Substitute parts can look different from the original.
This item is not returnable
$16.46 |
11% OFF Phone Price : $18.46
In Stock
Use And Care Guide 318200667
#NI

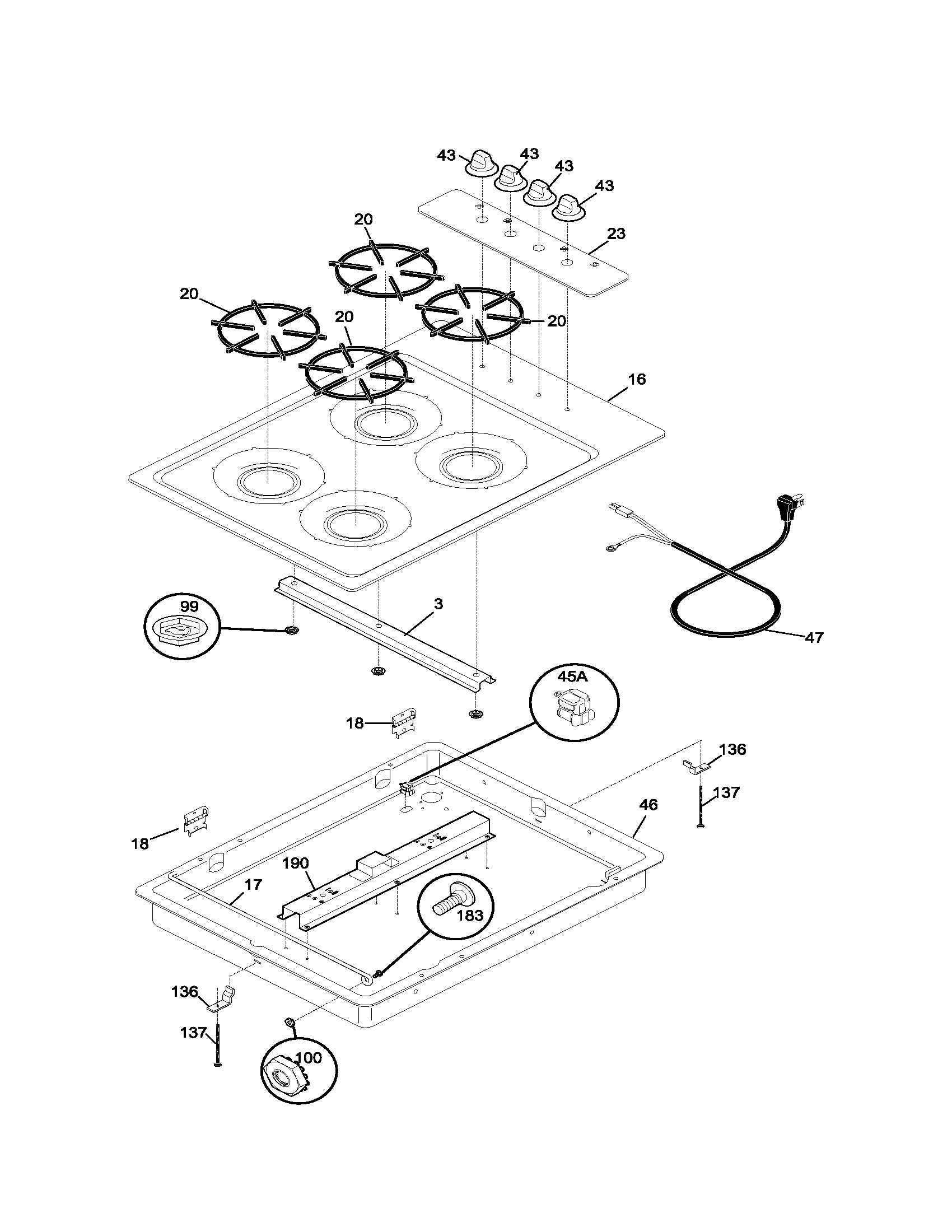

Maintop diagram

Use and care guide

Part #318200667

This item is not returnable
$5.80
In Stock
Range Screw 5303323140
#NI

Maintop diagram

Range screw

Part #5303323140

$11.17
In Stock
Cooktop Burner, Right Rear 3201435
#10C

Bunrer diagram

Cooktop burner, right rear

Part #3201435

$249.65
In Stock
Range Pressure Regulator 5308007974
#14

Bunrer diagram

Range pressure regulator

Part #5308007974

$186.45 |
6% OFF Phone Price : $198.45
In Stock
Cooktop Screw, #10-16 X 0.25-in 5304403558
#NI

Maintop diagram

Cooktop screw, #10-16 x 0.25-in

Part #5304403558

$13.26
In Stock
Screw 5303311306
Screw

Part #5303311306

Replaced by #5300803416

?
Manufacturer substitution
This part replaces 5303311306. Substitute parts can look different from the original.
This item is not returnable
$6.26
In Stock
Grate 316040807
#20

Maintop diagram

Grate

Part #316040807

Replaced by #316055800

?
Manufacturer substitution
This part replaces 316040807. Substitute parts can look different from the original.
$37.00 |
14% OFF Phone Price : $43.00
In Stock
Range Spark Module 316135700
#8

Bunrer diagram

Range spark module

Part #316135700

Replaced by #5304518635

?
Manufacturer substitution
This part replaces 316135700. Substitute parts can look different from the original.
$89.49 |
6% OFF Phone Price : $95.49
In Stock
Cooktop Screw 5303311532
Cooktop screw

Part #5303311532

Replaced by #316524400

?
Manufacturer substitution
This part replaces 5303311532. Substitute parts can look different from the original.
This item is not returnable
$12.60
In Stock
