Amana
Top-Mount Refrigerator

Model # A8RXEGFXW00 Official Amana refrigerator

Here are the diagrams and repair parts for Official Amana A8RXEGFXW00 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

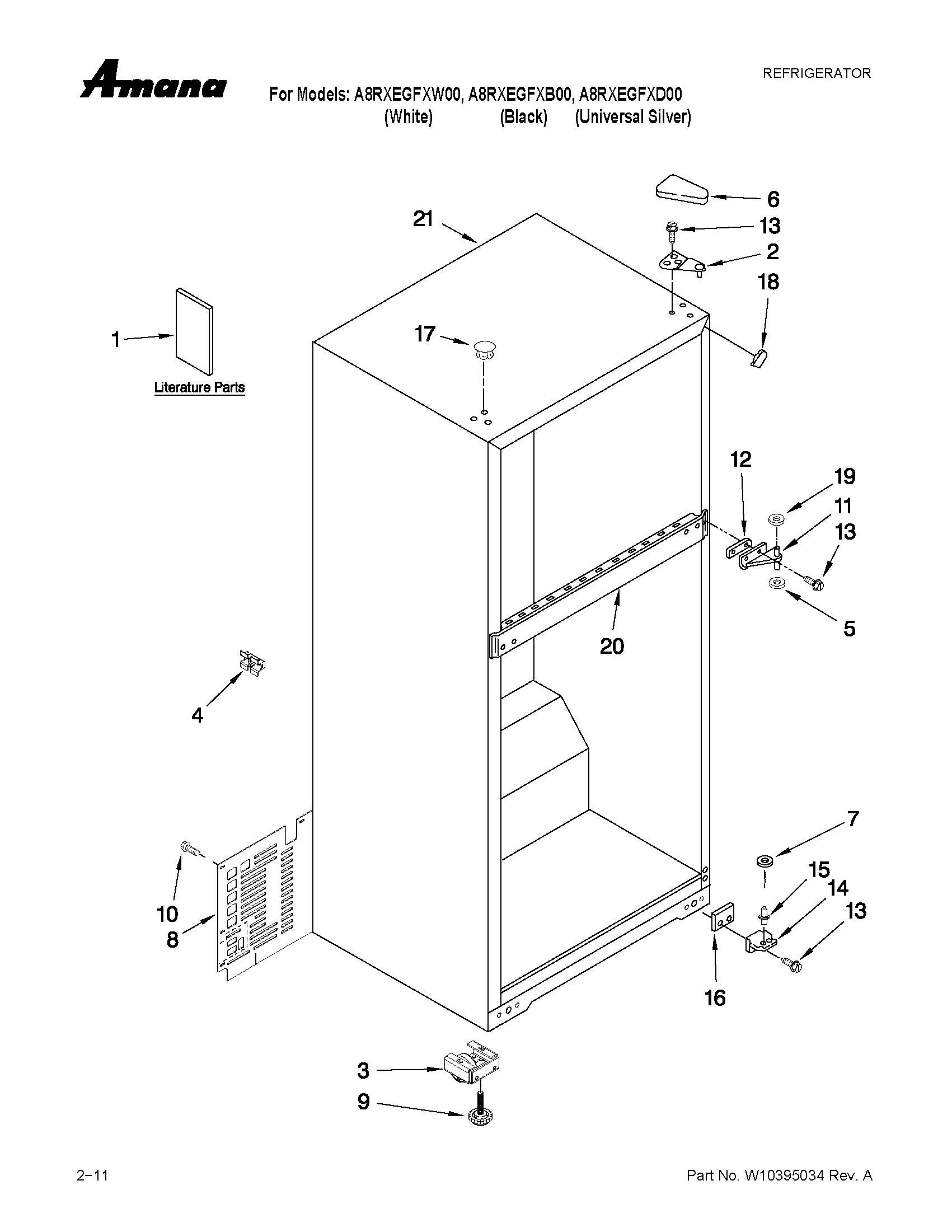

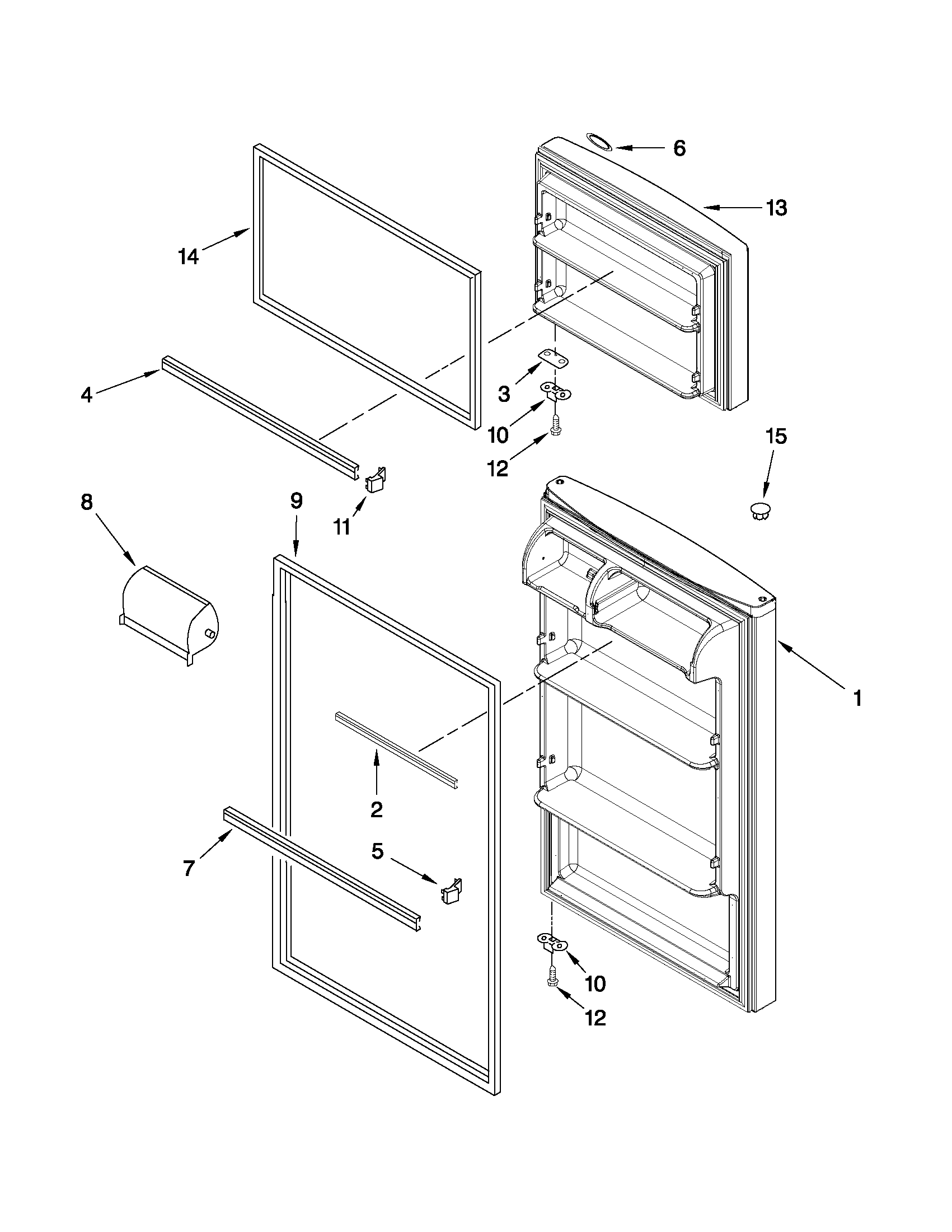

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 157 parts  |
Drier W/dye 2317845
#22A

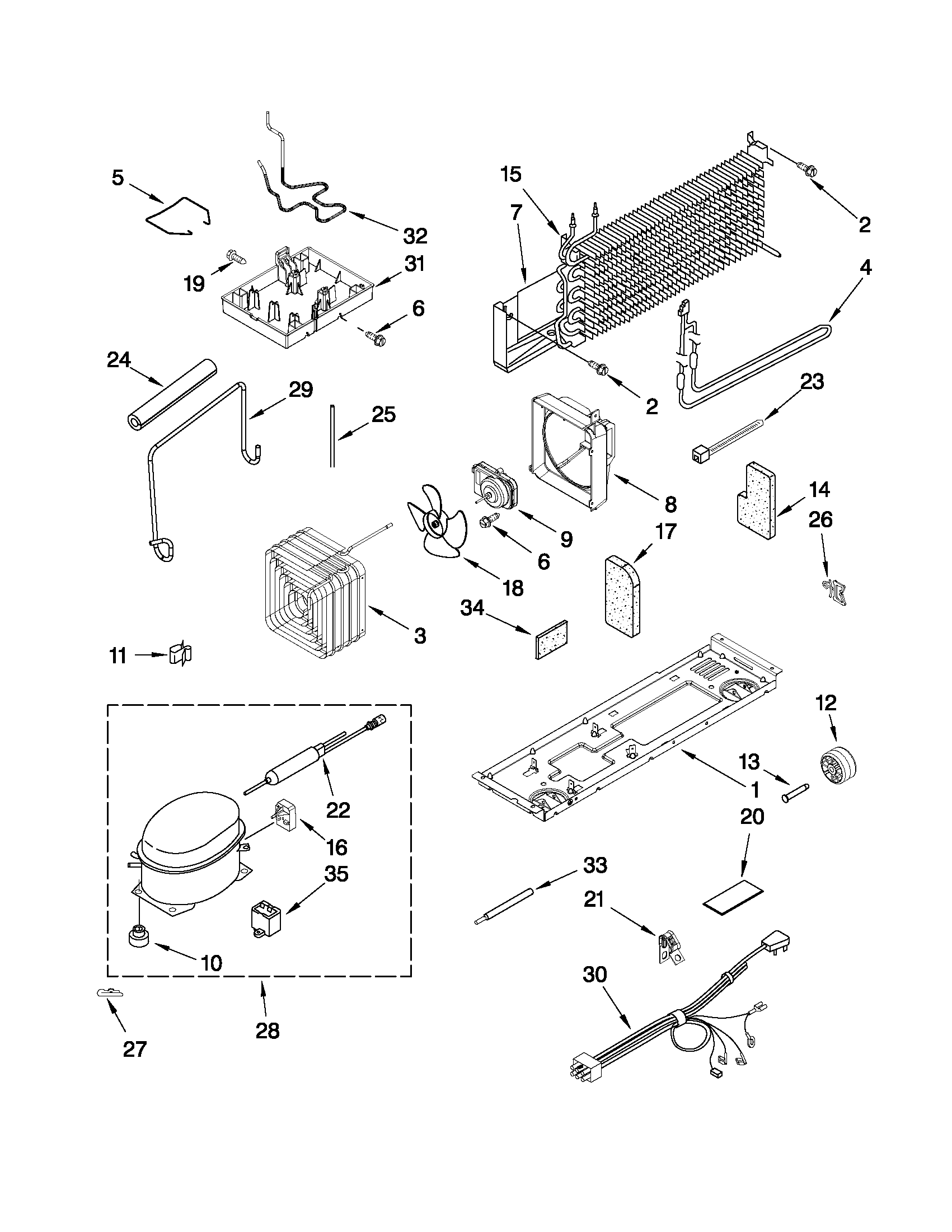

Unit parts diagram

Drier w/dye

Part #2317845

Replaced by #WPW10143759

?
Manufacturer substitution
This part replaces 2317845. Substitute parts can look different from the original.
BEST SELLER
$20.87 |
22% OFF Phone Price : $26.87
In Stock
Refrigerator Defrost Bi-metal 2266066
#32

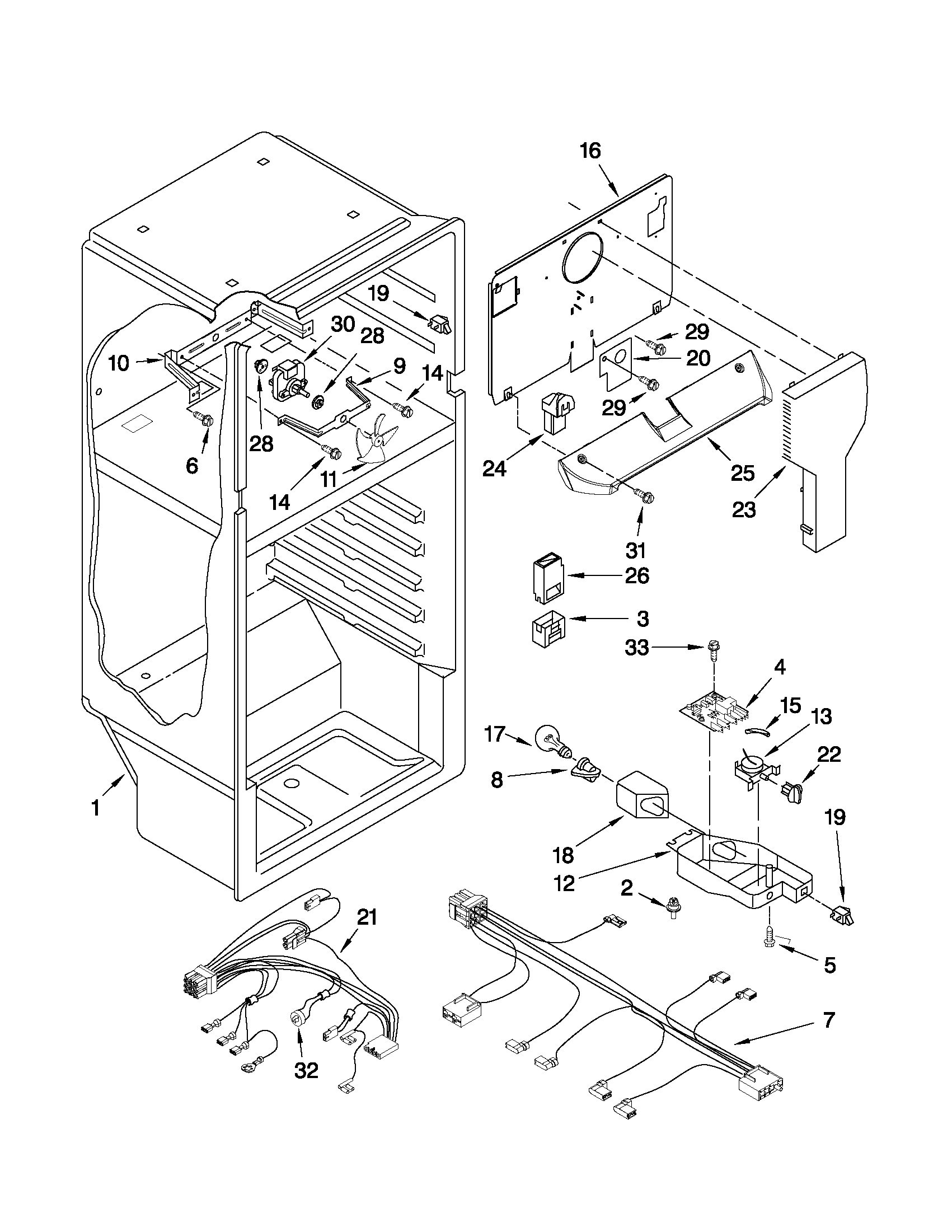

Liner parts diagram

Refrigerator defrost bi-metal

Part #2266066

Replaced by #WPW10225581

?
Manufacturer substitution
This part replaces 2266066. Substitute parts can look different from the original.
BEST SELLER
$34.02 |
15% OFF Phone Price : $40.02
In Stock
Light Bulb 527949
#17

Liner parts diagram

Light bulb

Part #527949

Replaced by #40A15

?
Manufacturer substitution
This part replaces 527949. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Refrigerator Light Switch 1118894
#19

Liner parts diagram

Refrigerator light switch

Part #1118894

Replaced by #W11384469

?
Manufacturer substitution
This part replaces 1118894. Substitute parts can look different from the original.
BEST SELLER
$22.86 |
21% OFF Phone Price : $28.86
In Stock
Drier Tube W10190413
#22

Unit parts diagram

Drier tube

Part #W10190413

Replaced by #W10843121

?
Manufacturer substitution
This part replaces W10190413. Substitute parts can look different from the original.
BEST SELLER
$31.58 |
16% OFF Phone Price : $37.58
In Stock
Refrigerator Run Capacitor 2264017
Refrigerator run capacitor

Part #2264017

Replaced by #WPW10662129

?
Manufacturer substitution
This part replaces 2264017. Substitute parts can look different from the original.
BEST SELLER
$50.37 |
11% OFF Phone Price : $56.37
In Stock
Ice Maker 2155469
#NI

Optional parts (not included) diagram

Ice maker

Part #2155469

Replaced by #W11510803

?
Manufacturer substitution
This part replaces 2155469. Substitute parts can look different from the original.
BEST SELLER
$111.86 |
10% OFF Phone Price : $123.86
In Stock
Refrigerator Condenser Fan Motor 2188874
#9

Unit parts diagram

Refrigerator condenser fan motor

Part #2188874

Replaced by #WP2188874

?
Manufacturer substitution
This part replaces 2188874. Substitute parts can look different from the original.
BEST SELLER
$89.96 |
6% OFF Phone Price : $95.96
In Stock
Refrigerator Crisper Drawer 2256704
#4

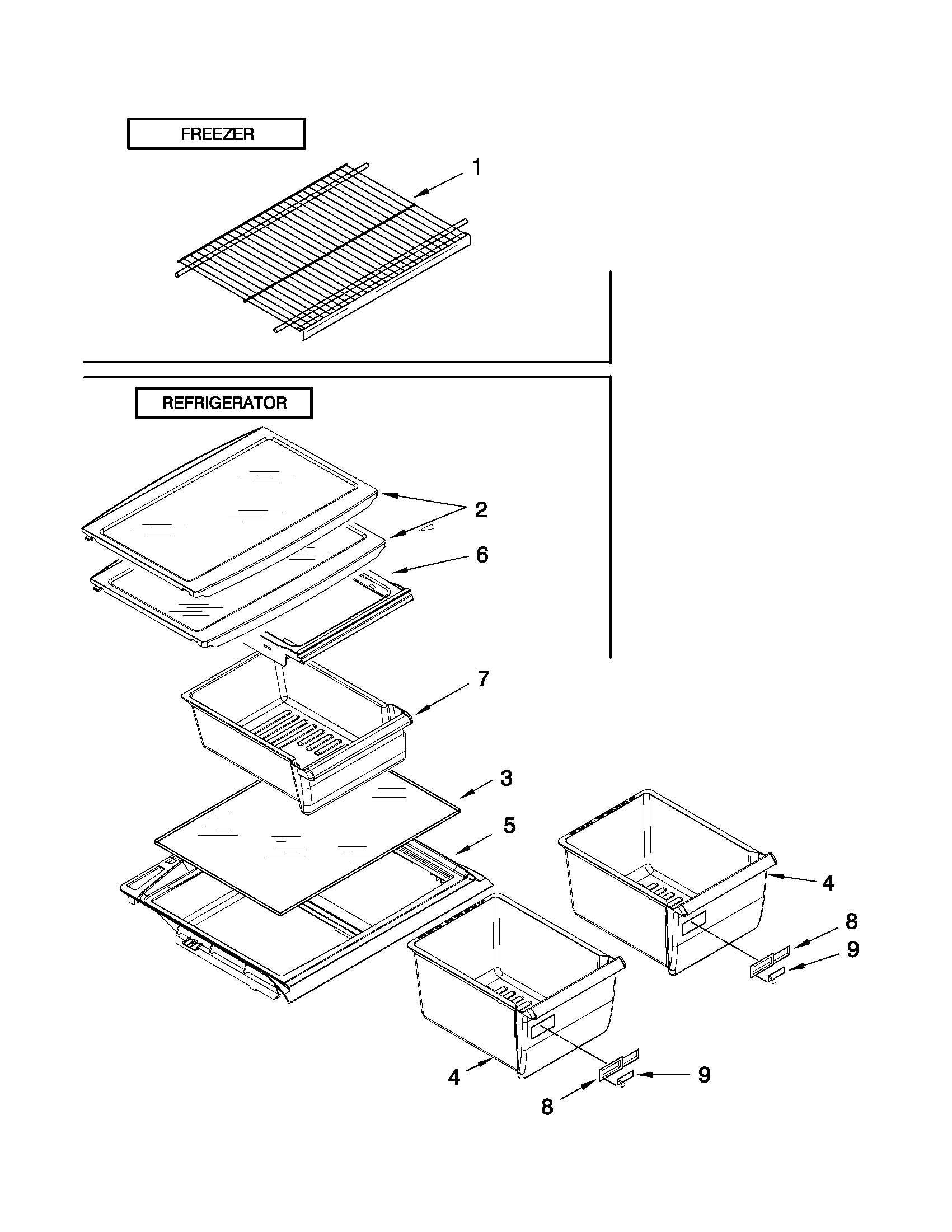

Shelf parts diagram

Refrigerator crisper drawer

Part #2256704

Replaced by #WP2256704

?
Manufacturer substitution
This part replaces 2256704. Substitute parts can look different from the original.
BEST SELLER
$76.35 |
7% OFF Phone Price : $82.35
In Stock
Appliance Silicone Lubricant 542638
#NI

Optional parts (not included) diagram

Appliance silicone lubricant

Part #542638

Replaced by #WP542638

?
Manufacturer substitution
This part replaces 542638. Substitute parts can look different from the original.
BEST SELLER
$26.69 |
18% OFF Phone Price : $32.69
In Stock
