Craftsman
Gas Walk-Behind Mower

Model # 917380940 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917380940 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Lawn Mower Blade Adapter 850977
#39

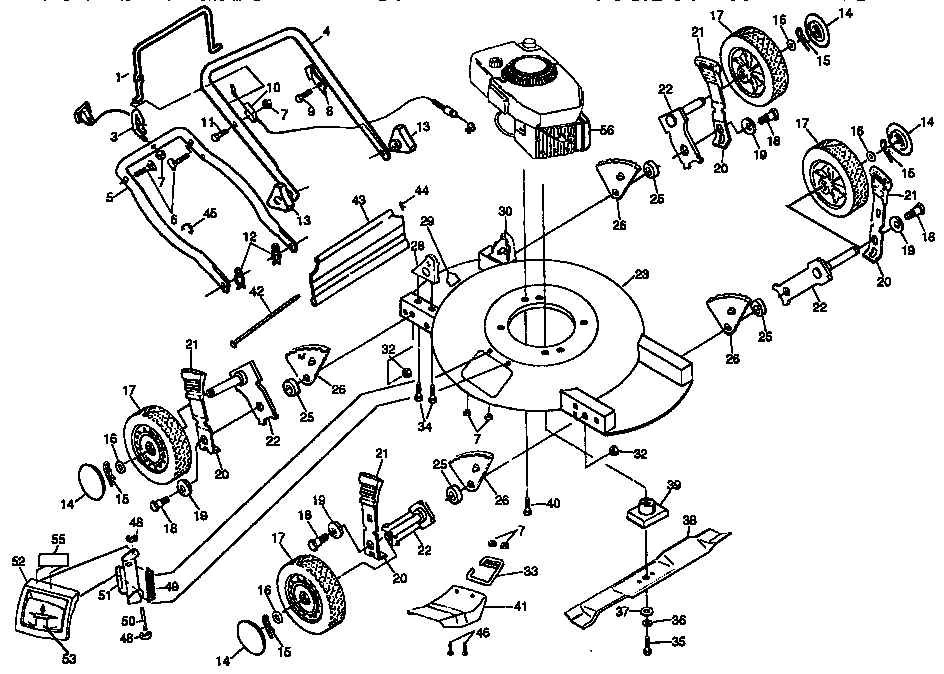

Lawn mower diagram

Lawn mower blade adapter

Part #850977

Replaced by #581547901

?
Manufacturer substitution
This part replaces 850977. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Walk-behind Lawn Mower Selector Knob 87877
#20

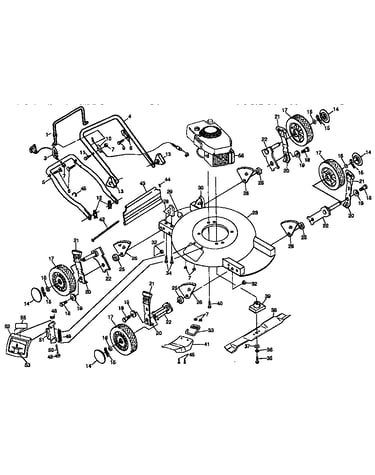

Lawn mower diagram

Walk-behind lawn mower selector knob

Part #87877

Replaced by #532087877

?
Manufacturer substitution
This part replaces 87877. Substitute parts can look different from the original.
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Spring 700331X004
#21

Lawn mower diagram

Spring

Part #700331X004

Replaced by #532401621

?
Manufacturer substitution
This part replaces 700331X004. Substitute parts can look different from the original.
$8.54
In Stock
Lawn Mower E-ring 12000014
#45

Lawn mower diagram

Lawn mower e-ring

Part #12000014

Replaced by #812000014

?
Manufacturer substitution
This part replaces 12000014. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Lawn Mower Cable Bracket 86899X004
#3

Lawn mower diagram

Lawn mower cable bracket

Part #86899X004

Replaced by #532430034

?
Manufacturer substitution
This part replaces 86899X004. Substitute parts can look different from the original.
$10.26
In Stock
Tapping Screw 750097
#4

Lawn mower diagram

Tapping screw

Part #750097

Replaced by #817021008

?
Manufacturer substitution
This part replaces 750097. Substitute parts can look different from the original.
This item is not returnable
$3.99
In Stock
Handle Bolt 131959
#51

Lawn mower diagram

Handle bolt

Part #131959

Replaced by #532191574

?
Manufacturer substitution
This part replaces 131959. Substitute parts can look different from the original.
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn & Garden Equipment Washer (replaces 532851074, 5328510-74) 851074
#37

Lawn mower diagram

Lawn & garden equipment washer (replaces 532851074, 5328510-74)

Part #851074

Replaced by #532851074

?
Manufacturer substitution
This part replaces 851074. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
Shoulder Bolt 84921
#24

Lawn mower diagram

Shoulder bolt

Part #84921

Replaced by #532174719

?
Manufacturer substitution
This part replaces 84921. Substitute parts can look different from the original.
This item is not returnable
$13.69
In Stock
Clip 85827
#8

Lawn mower diagram

Clip

Part #85827

Replaced by #582940401

?
Manufacturer substitution
This part replaces 85827. Substitute parts can look different from the original.
This item is not returnable
$6.83
In Stock
