Kenmore
Gas Cooktop

Model # 12303(1988) Official Kenmore gas cooktop

Here are the diagrams and repair parts for Official Kenmore 123031988 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Screw 708733
#25

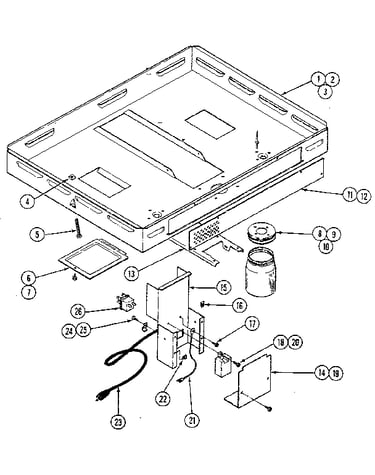

Burner box assembly diagram

Screw

Part #708733

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 708733. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Sw Valve Rh 704512
#4

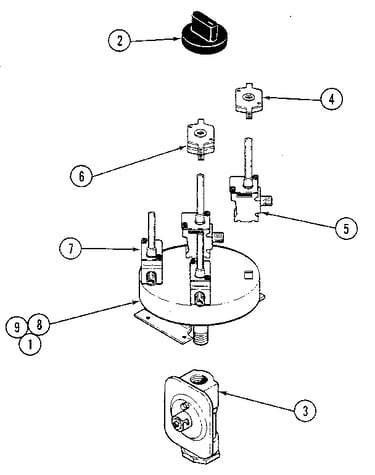

Control assembly diagram

Sw valve rh

Part #704512

Replaced by #WPY704512

?
Manufacturer substitution
This part replaces 704512. Substitute parts can look different from the original.
$52.27 |
10% OFF Phone Price : $58.27
In Stock
Screw 712087
#17

Burner box assembly diagram

Screw

Part #712087

Replaced by #WP71001171

?
Manufacturer substitution
This part replaces 712087. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Valve Switch 704269
#6

Control assembly diagram

Valve switch

Part #704269

Replaced by #WP4330739

?
Manufacturer substitution
This part replaces 704269. Substitute parts can look different from the original.
$50.79 |
11% OFF Phone Price : $56.79
In Stock
Burner Bracket 704519
#8

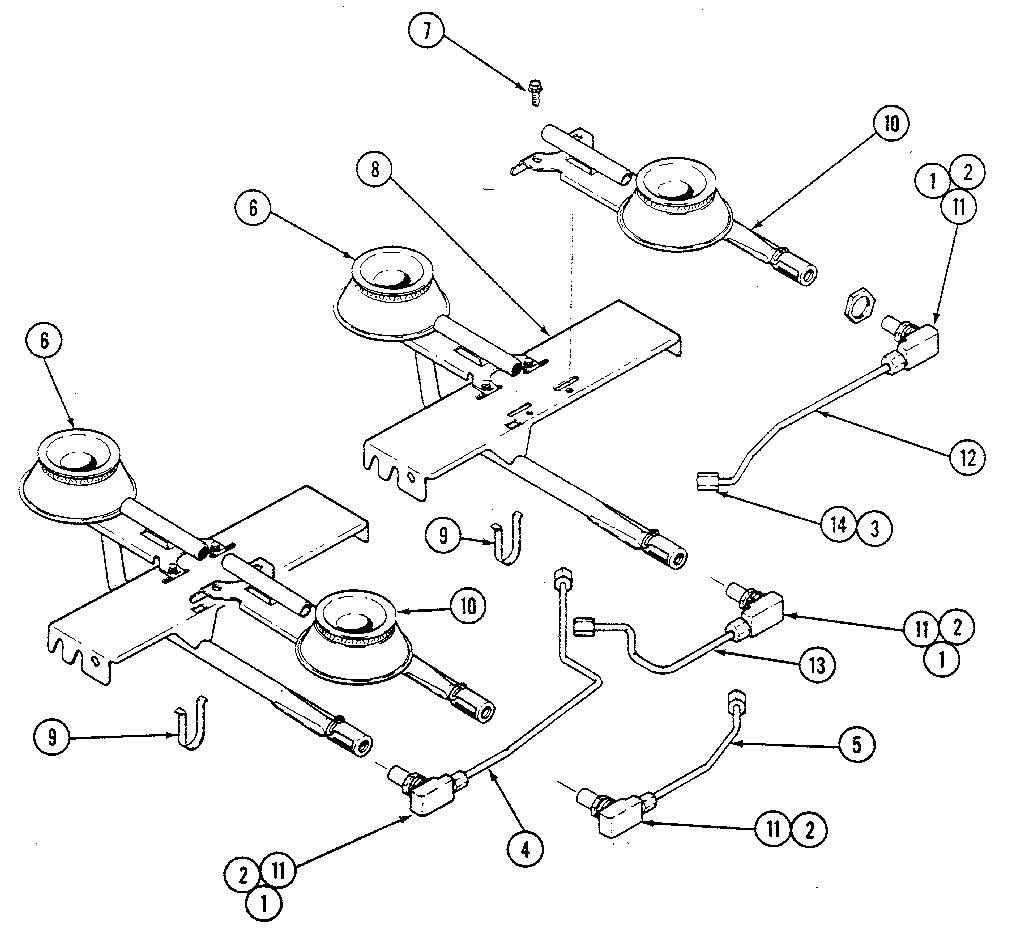

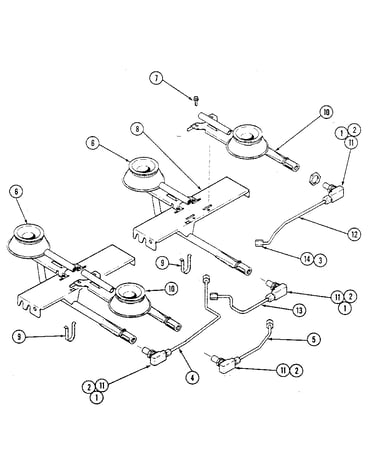

Burner/manifold assembly diagram

Burner bracket

Part #704519

Replaced by #WP3801F403-80

?
Manufacturer substitution
This part replaces 704519. Substitute parts can look different from the original.
$32.99 |
15% OFF Phone Price : $38.99
In Stock
Rivet 707128
#10

Burner box assembly diagram

Rivet

Part #707128

Replaced by #WP210720

?
Manufacturer substitution
This part replaces 707128. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Burner Bowl 712274
#2

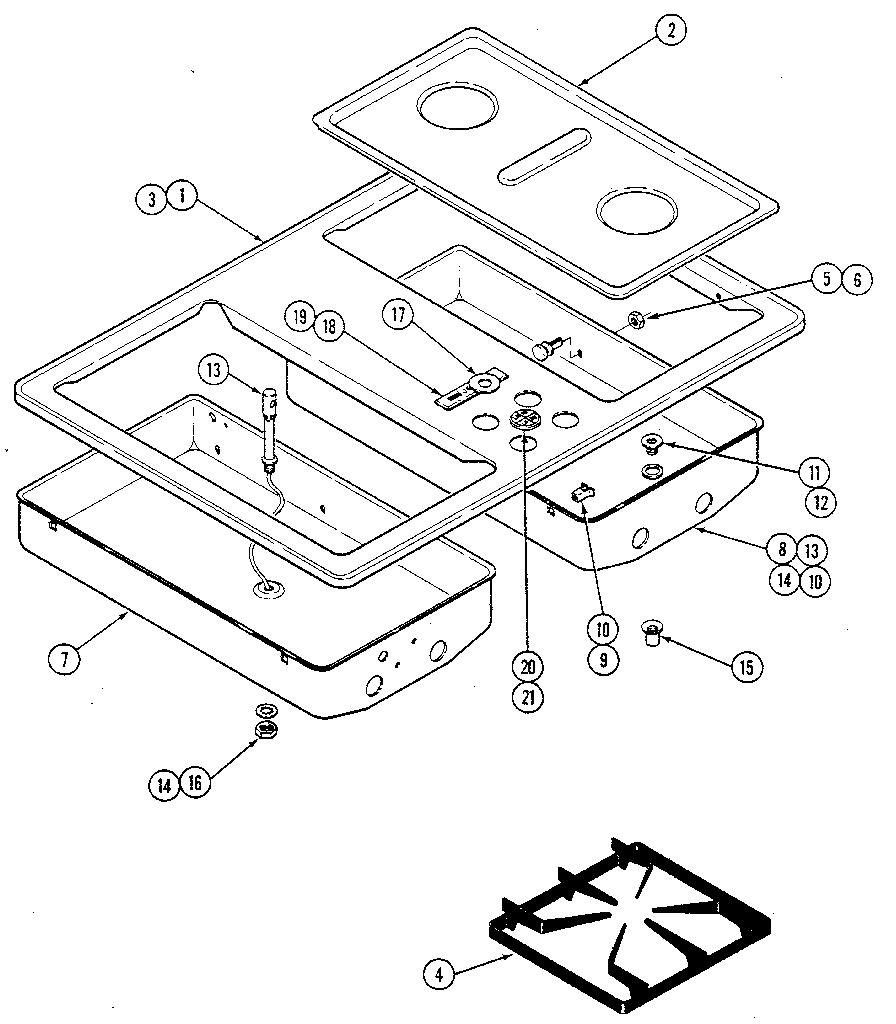

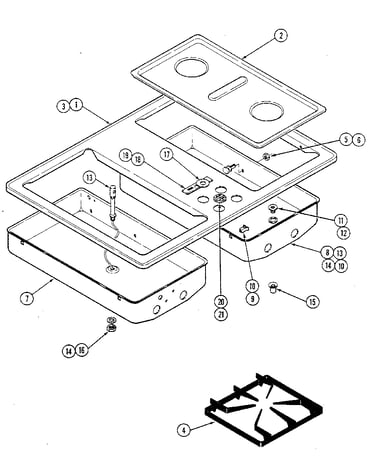

Top assembly diagram

Burner bowl

Part #712274

Replaced by #3401X055-09

?
Manufacturer substitution
This part replaces 712274. Substitute parts can look different from the original.
$149.87 |
7% OFF Phone Price : $161.87
In Stock
Screw 707172
#19

Burner box assembly diagram

Screw

Part #707172

Replaced by #WP59002061

?
Manufacturer substitution
This part replaces 707172. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Nut Compres 704589
#14

Burner/manifold assembly diagram

Nut compres

Part #704589

Replaced by #WP245183

?
Manufacturer substitution
This part replaces 704589. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Flat Washer 702592
#3

Burner box assembly diagram

Flat washer

Part #702592

Replaced by #WP74003976

?
Manufacturer substitution
This part replaces 702592. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
