GE
Electric Range

Model # PS920SF1SS Official GE electric range

Here are the diagrams and repair parts for Official GE PS920SF1SS electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 149 parts  |
Wall Oven Temperature Sensor WB21T10007
#253

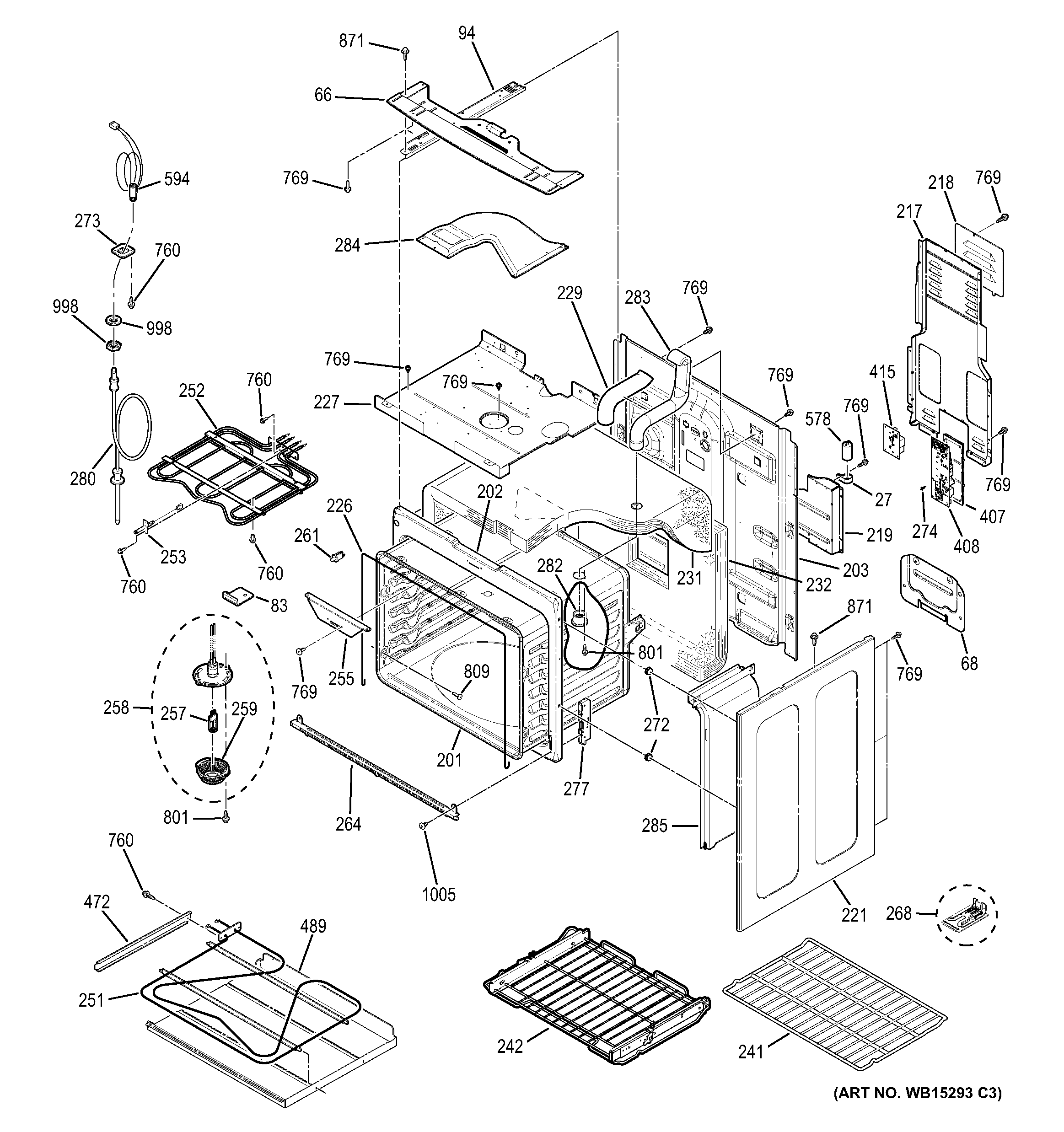

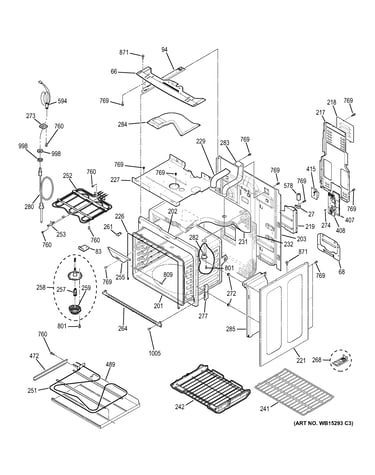

Body parts diagram

Wall oven temperature sensor

Part #WB21T10007

Replaced by #WB21X22134

?
Manufacturer substitution
This part replaces WB21T10007. Substitute parts can look different from the original.
BEST SELLER
$24.05 |
20% OFF Phone Price : $30.05
In Stock
Range Triple Radiant Surface Element WB30T10155
#59

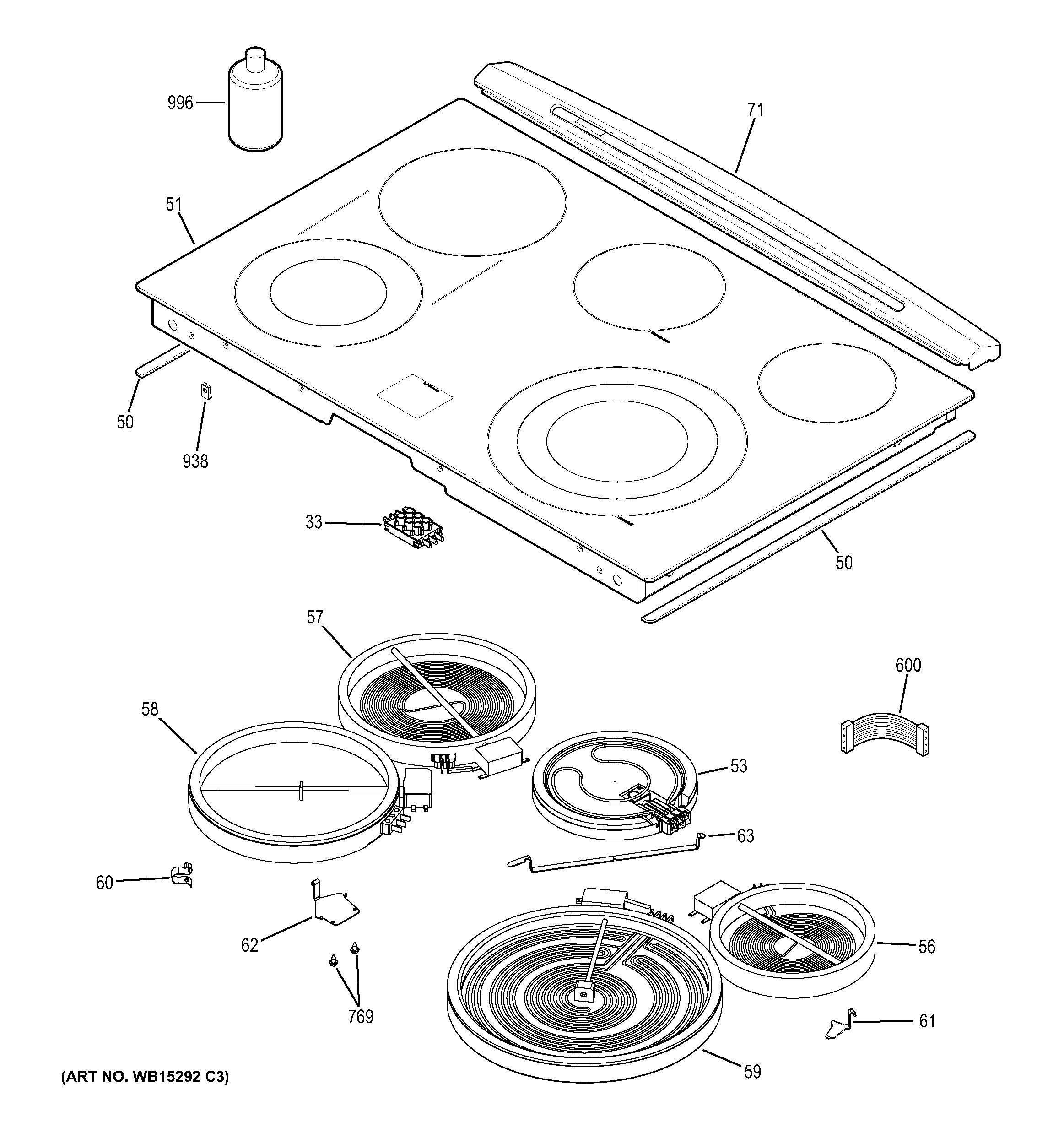

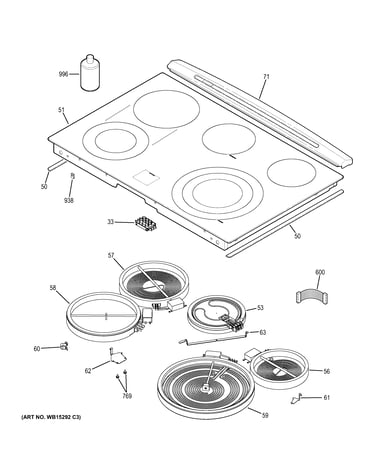

Cooktop diagram

Range triple radiant surface element

Part #WB30T10155

BEST SELLER
$171.55 |
9% OFF Was : $188.52
In Stock
Range Radiant Surface Element, 5-1/2-in (replaces Wb30t10127) WB30T10145
#56

Cooktop diagram

Range radiant surface element, 5-1/2-in (replaces wb30t10127)

Part #WB30T10145

BEST SELLER
$89.97 |
6% OFF Phone Price : $95.97
In Stock
Range Radiant Surface Element, 8-in (replaces Wb30t10128) WB30T10132
#57

Cooktop diagram

Range radiant surface element, 8-in (replaces wb30t10128)

Part #WB30T10132

BEST SELLER
$51.57 |
10% OFF Phone Price : $57.57
In Stock
Oven Door Glass WB55T10191
#338

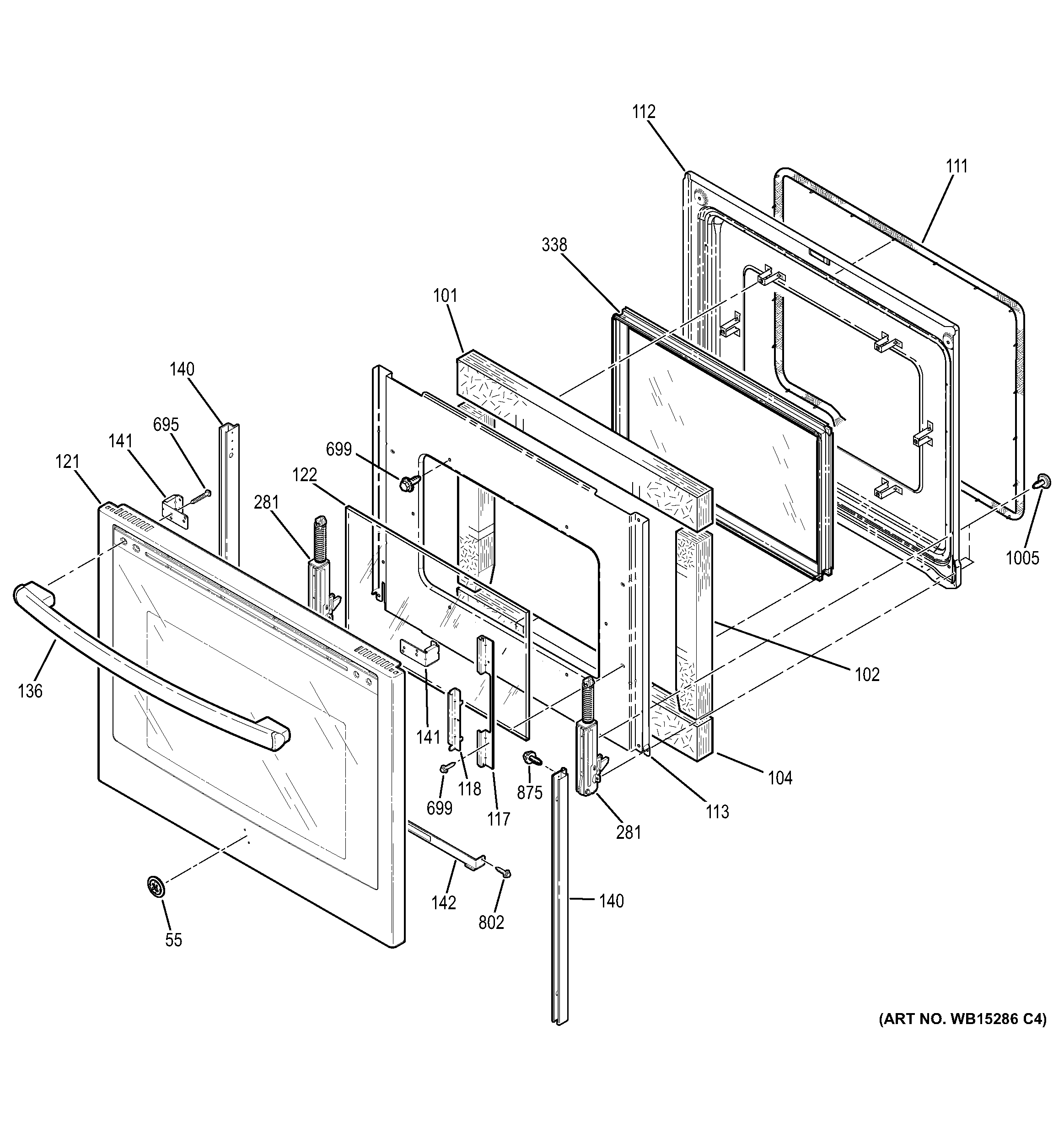

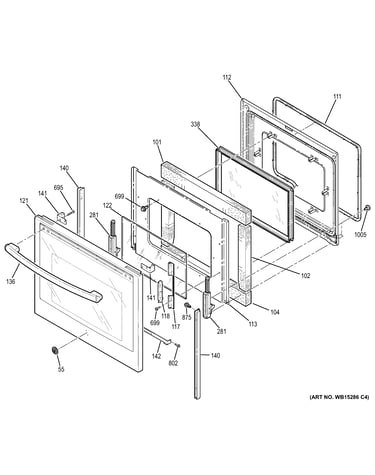

Door diagram

Oven door glass

Part #WB55T10191

Replaced by #WB56T10105

?
Manufacturer substitution
This part replaces WB55T10191. Substitute parts can look different from the original.
BEST SELLER
$101.93 |
11% OFF Phone Price : $113.93
In Stock
Range Main Top WB62X20898
#51

Cooktop diagram

Range main top

Part #WB62X20898

Replaced by #WB62X25968

?
Manufacturer substitution
This part replaces WB62X20898. Substitute parts can look different from the original.
BEST SELLER
$591.21 |
$12.00 OFF Phone Price : $603.21
In Stock
Range Oven Door Switch (replaces 71001129, Wb24k10004, Wb24t10112, Wb24x25231, Wb24x5316) WB24T10147
#261

Body parts diagram

Range oven door switch (replaces 71001129, wb24k10004, wb24t10112, wb24x25231, wb24x5316)

Part #WB24T10147

This item is not returnable
$16.39 |
11% OFF Phone Price : $18.39
In Stock
Range Bake Element (replaces Wb44t10049) WB44T10104
#251

Body parts diagram

Range bake element (replaces wb44t10049)

Part #WB44T10104

Replaced by #WB44X45499

?
Manufacturer substitution
This part replaces WB44T10104. Substitute parts can look different from the original.
$63.11
In Stock
Range Oven Relay Control Board WB27T11357
#407

Body parts diagram

Range oven relay control board

Part #WB27T11357

This item is not returnable
$178.52 |
6% OFF Phone Price : $190.52
In Stock
Range Convection Fan Blade WB02T10289
#43

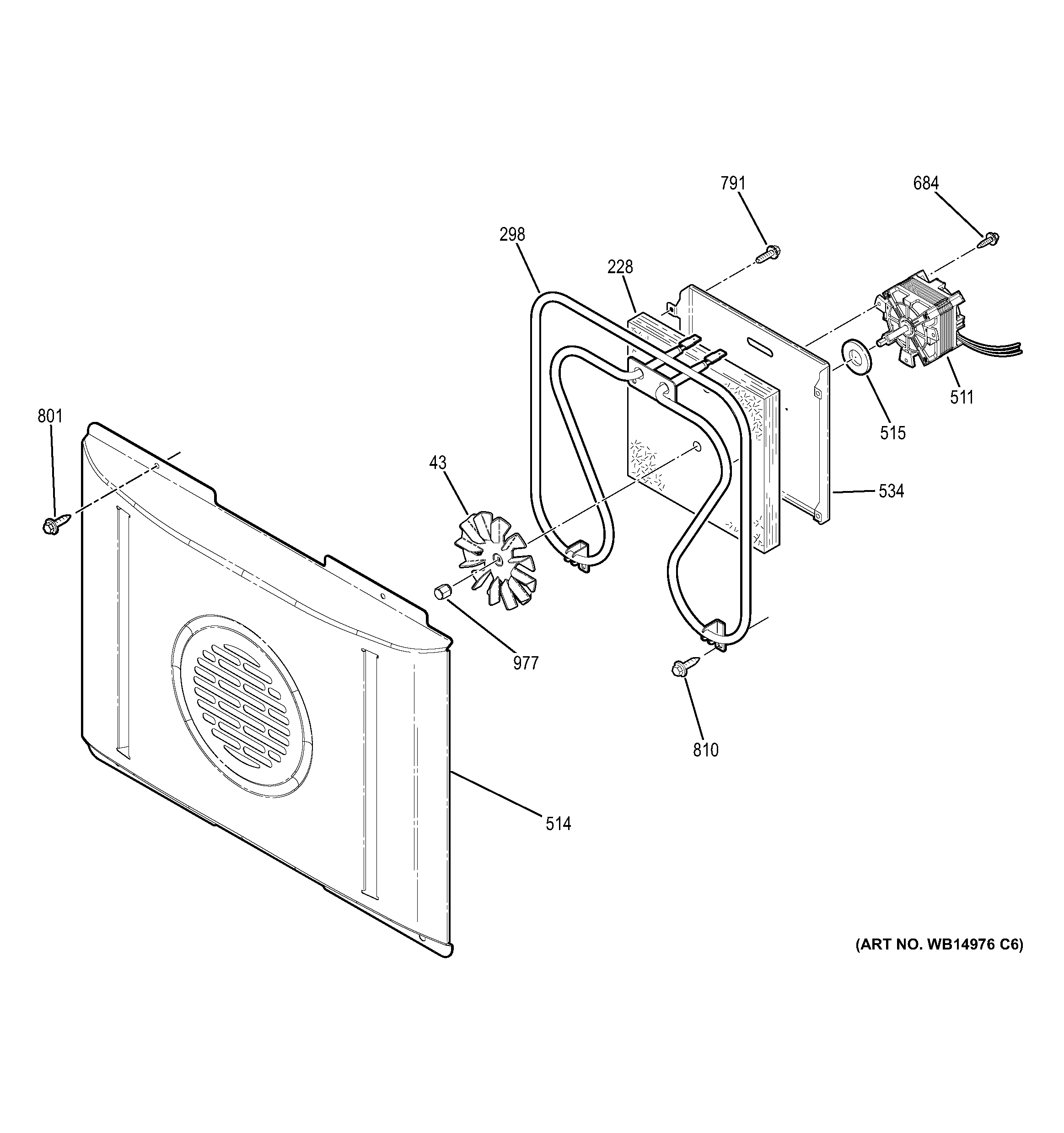

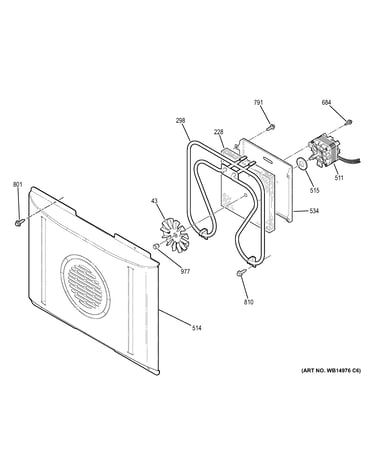

Convection fan diagram

Range convection fan blade

Part #WB02T10289

This item is not returnable
$18.91 |
10% OFF Phone Price : $20.91
In Stock
