Model # UFPF10ILW0 Official Frigidaire freezer - lf30890180
Here are the diagrams and repair parts for Official Frigidaire UFPF10ILW0 freezer - lf30890180, as well as links to manuals and error code tables, if available.
Error CodesBy Schematic

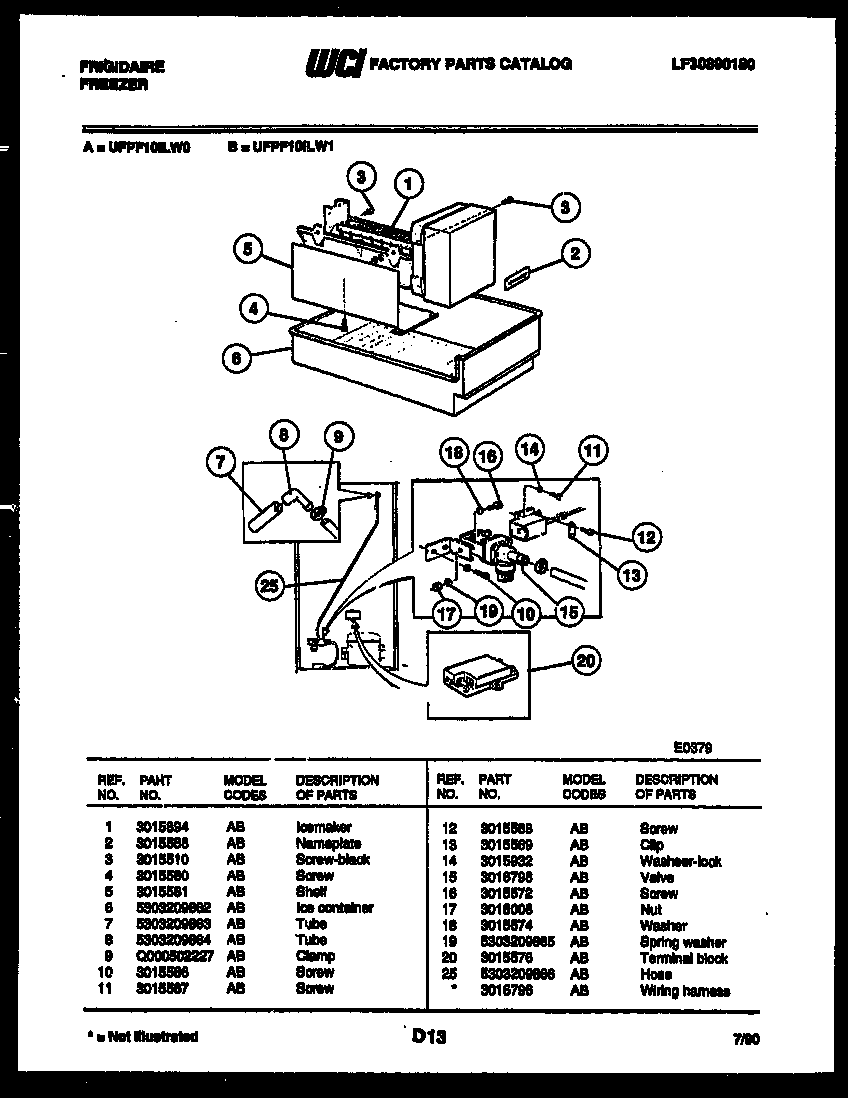

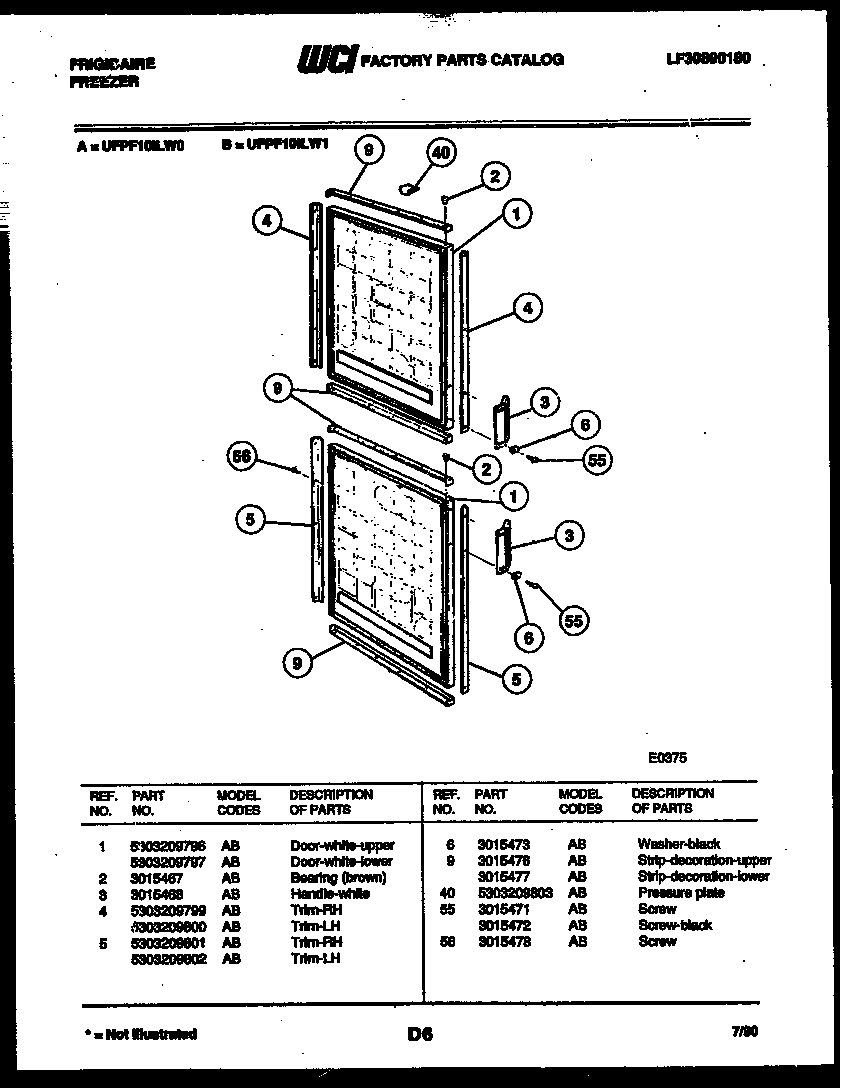

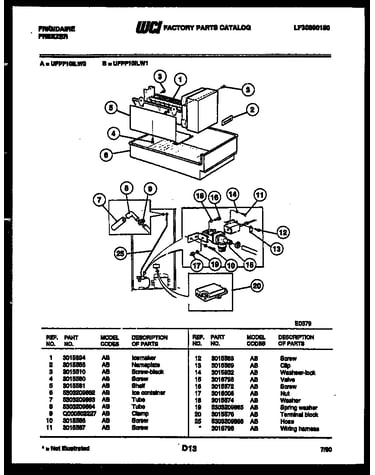

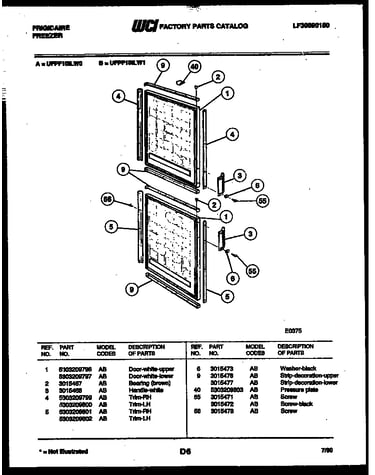

SELECT DIAGRAM
Browse Parts for
UFPF10ILW0 Freestanding Freezers
#7

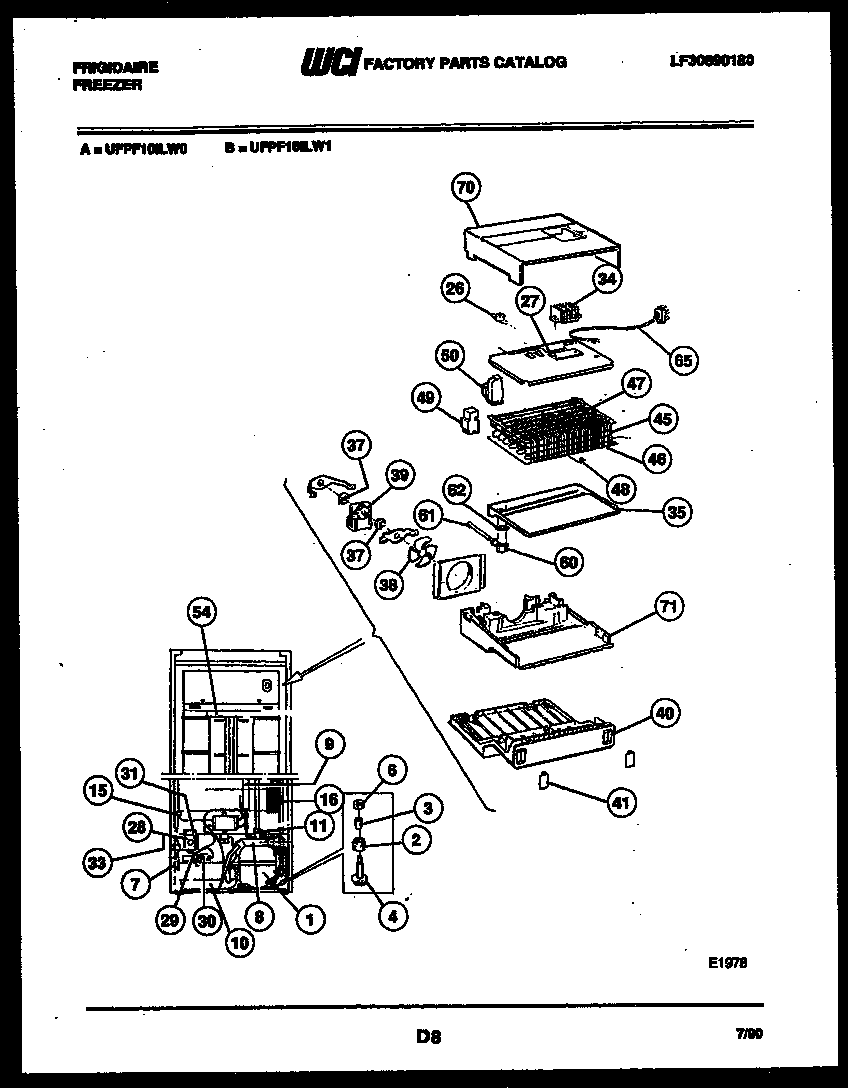

System and automatic defrost parts diagram
Filter
Part #5308000027
Replaced by #5303305677
?
Manufacturer substitution
This part replaces 5308000027. Substitute parts can look different from the original.
$12.96 |
13% OFF Phone Price : $14.96
In Stock
#21

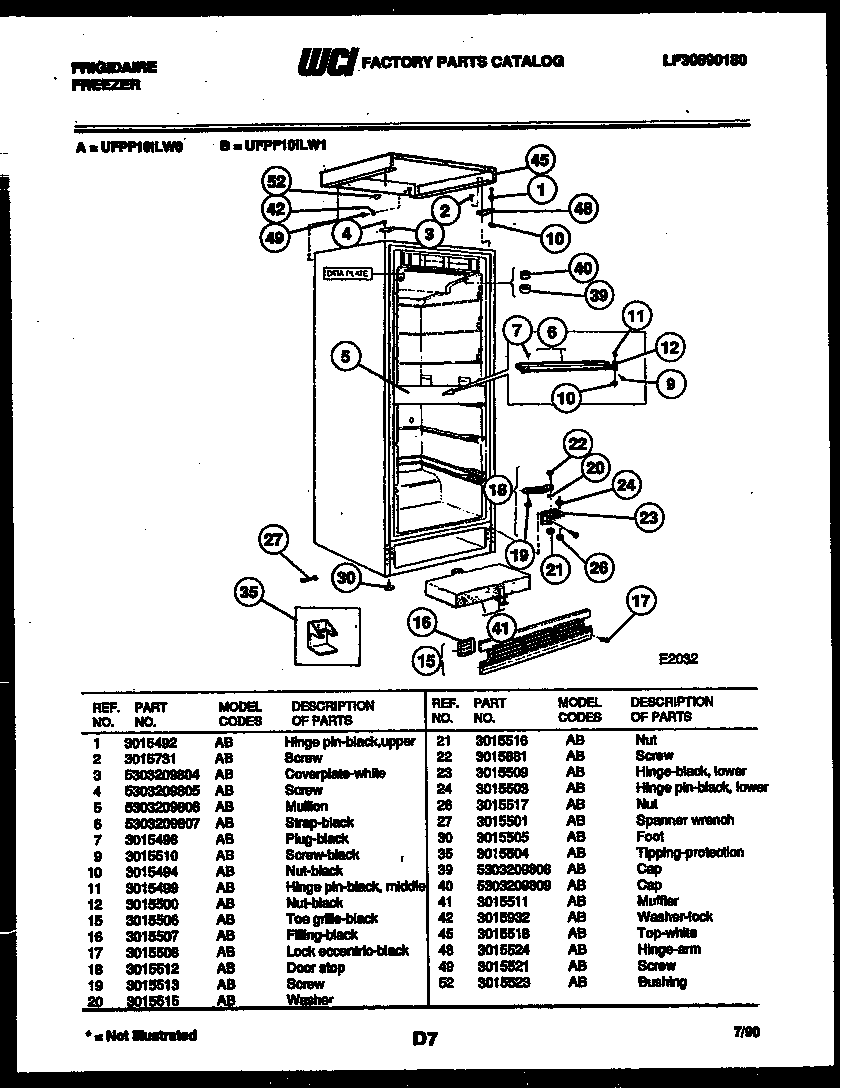

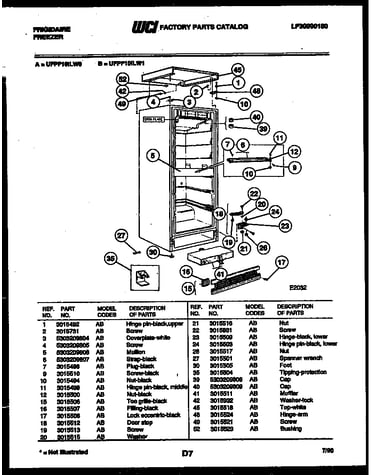

Cabinet parts diagram
Nut
Part #3015516
This item is not returnable
$2.49
In Stock
#2
System and automatic defrost parts diagram
Grommet
Part #5308002681
Replaced by #216498900
?
Manufacturer substitution
This part replaces 5308002681. Substitute parts can look different from the original.
This item is not returnable
$13.39 |
13% OFF Phone Price : $15.39
In Stock
#1
System and automatic defrost parts diagram
Compressor
Part #5303916012
Replaced by #5304476642
?
Manufacturer substitution
This part replaces 5303916012. Substitute parts can look different from the original.
$452.57 |
$12.00 OFF Phone Price : $464.57
In Stock
#31

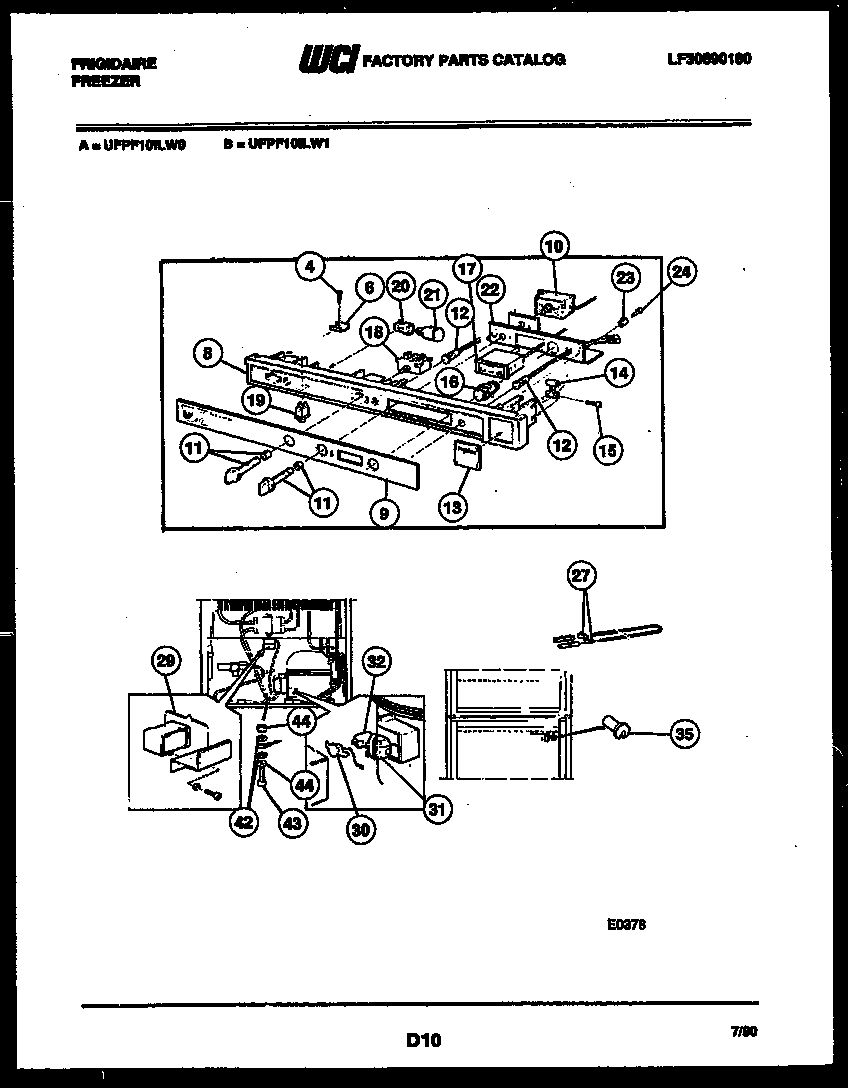

Interior and control parts diagram
Relay
Part #5303017753
Replaced by #5303007173
?
Manufacturer substitution
This part replaces 5303017753. Substitute parts can look different from the original.
$152.69 |
7% OFF Phone Price : $164.69
In Stock
#26
System and automatic defrost parts diagram
Thermostat
Part #5303209818
Replaced by #5303917629
?
Manufacturer substitution
This part replaces 5303209818. Substitute parts can look different from the original.
$11.17
In Stock
#32
Interior and control parts diagram
Capacitor
Part #3015552
Replaced by #5304464438
?
Manufacturer substitution
This part replaces 3015552. Substitute parts can look different from the original.
$45.78 |
12% OFF Phone Price : $51.78
In Stock
#41
Cabinet parts diagram
Muffler
Part #3015511
The manufacturer no longer makes this part, and there's no substitute part
#39
System and automatic defrost parts diagram
Motor
Part #5303209829
The manufacturer no longer makes this part, and there's no substitute part
#114

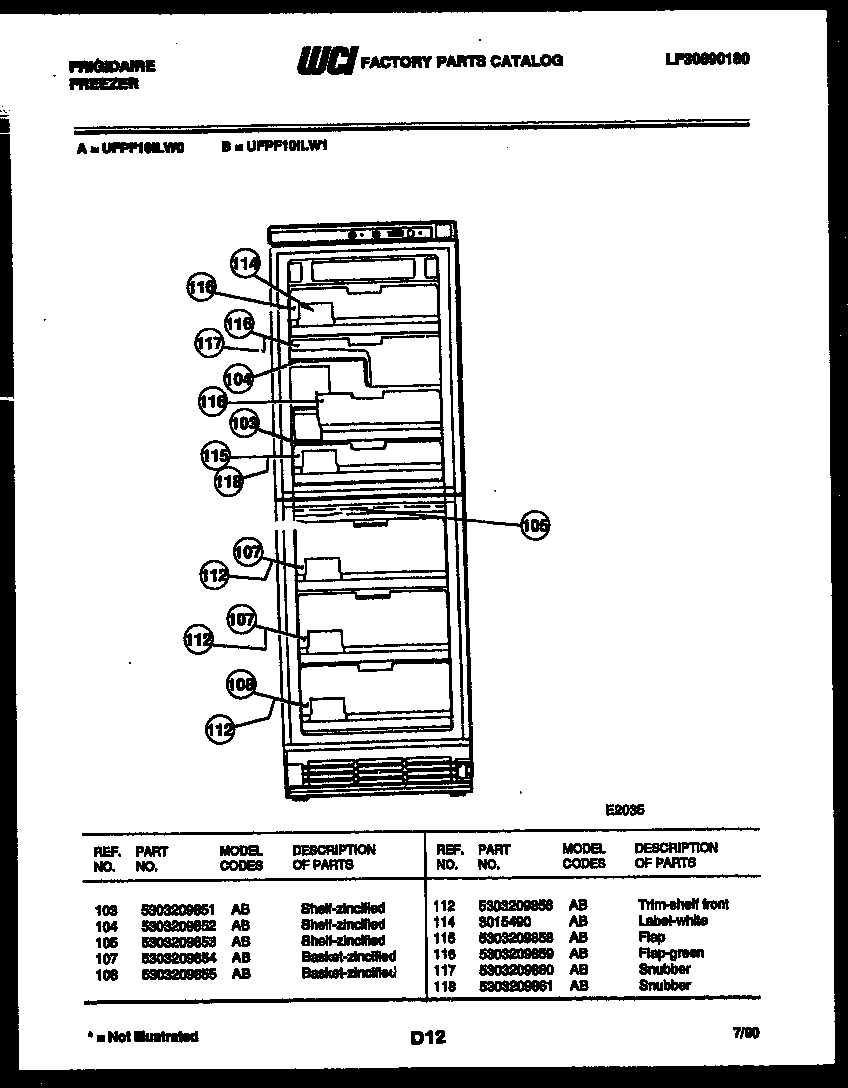

Shelves and supports diagram
Label
Part #3015490
The manufacturer no longer makes this part, and there's no substitute part
