Amana
Electric Cooktop

Model # CAK2H30W-P1131562N Official Amana electric cooktop

Here are the diagrams and repair parts for Official Amana CAK2H30W-P1131562N electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Screw M0218231
#4

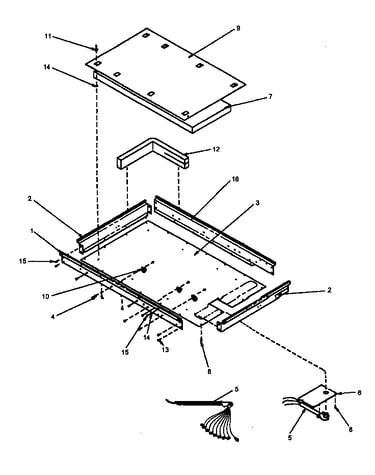

Heater box assembly diagram

Screw

Part #M0218231

Replaced by #W11233072

?
Manufacturer substitution
This part replaces M0218231. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Knob 314488B
#3A

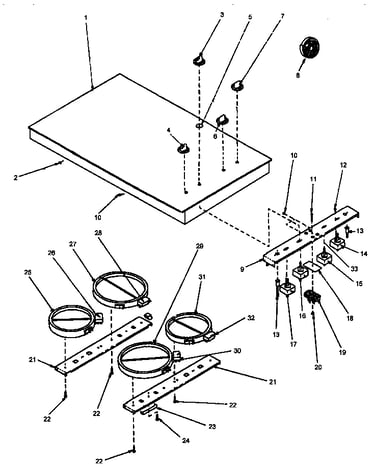

Cooktop assembly diagram

Knob

Part #314488B

Replaced by #WP31760601B

?
Manufacturer substitution
This part replaces 314488B. Substitute parts can look different from the original.
$38.84
In Stock
Screw M0216703
#8

Heater box assembly diagram

Screw

Part #M0216703

Replaced by #M0216703

?
Manufacturer substitution
This part replaces M0216703. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Hex Nut 0097885
#13

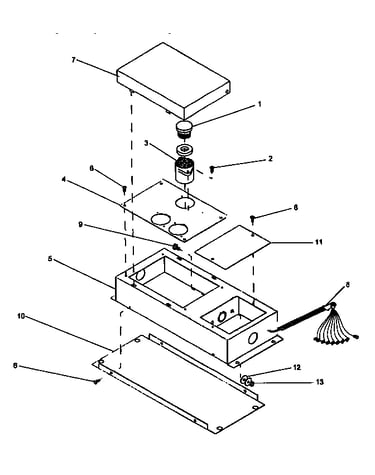

Fuse box (cak2h30e/p1131562n) (cak2h30w/p1131562n) diagram

Hex nut

Part #0097885

Replaced by #M0282009

?
Manufacturer substitution
This part replaces 0097885. Substitute parts can look different from the original.
$12.49
In Stock
Cleaner 0314274

#NI

All parts diagram

Cleaner

Part #0314274

The manufacturer no longer makes this part, and there's no substitute part

Switch 0309862
#16

Cooktop assembly diagram

Switch

Part #0309862

Replaced by #W11121639

?
Manufacturer substitution
This part replaces 0309862. Substitute parts can look different from the original.
$74.41 |
7% OFF Phone Price : $80.41
In Stock
Heater 0306218
#27

Cooktop assembly diagram

Heater

Part #0306218

Replaced by #W10823726

?
Manufacturer substitution
This part replaces 0306218. Substitute parts can look different from the original.
$128.56 |
9% OFF Phone Price : $140.56
In Stock
Screw M0234422
#15

Heater box assembly diagram

Screw

Part #M0234422

Replaced by #M0234422

?
Manufacturer substitution
This part replaces M0234422. Substitute parts can look different from the original.
This item is not returnable
$4.22
In Stock
Screw 0041809
#13A

Heater box assembly diagram

Screw

Part #0041809

Replaced by #W11245710

?
Manufacturer substitution
This part replaces 0041809. Substitute parts can look different from the original.
This item is not returnable
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw M0210816
Screw

Part #M0210816

Replaced by #12991101

?
Manufacturer substitution
This part replaces M0210816. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
