Model # 625348570 Official Kenmore water softener

Here are the diagrams and repair parts for Official Kenmore 625348570 water softener, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

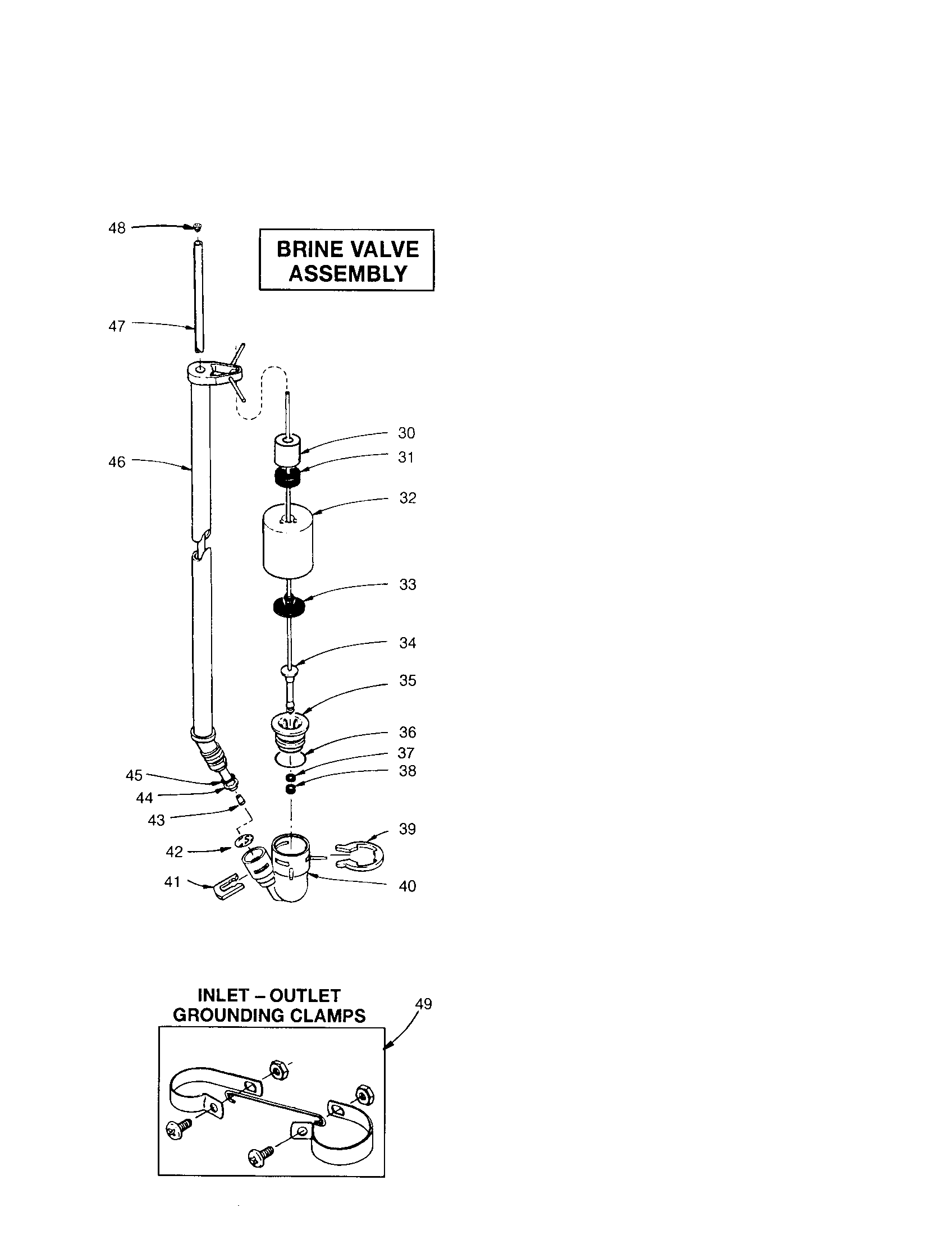

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 110 parts  |
Kenmore Water Softener Seal Kit (replaces 7092163, 7134224, Ws35x10005) 7129716

#NI06

All parts diagram

Kenmore water softener seal kit (replaces 7092163, 7134224, ws35x10005)

Part #7129716

BEST SELLER
$45.68 |
12% OFF Phone Price : $51.68
In Stock
Disc Seal Kt 7134224
#67

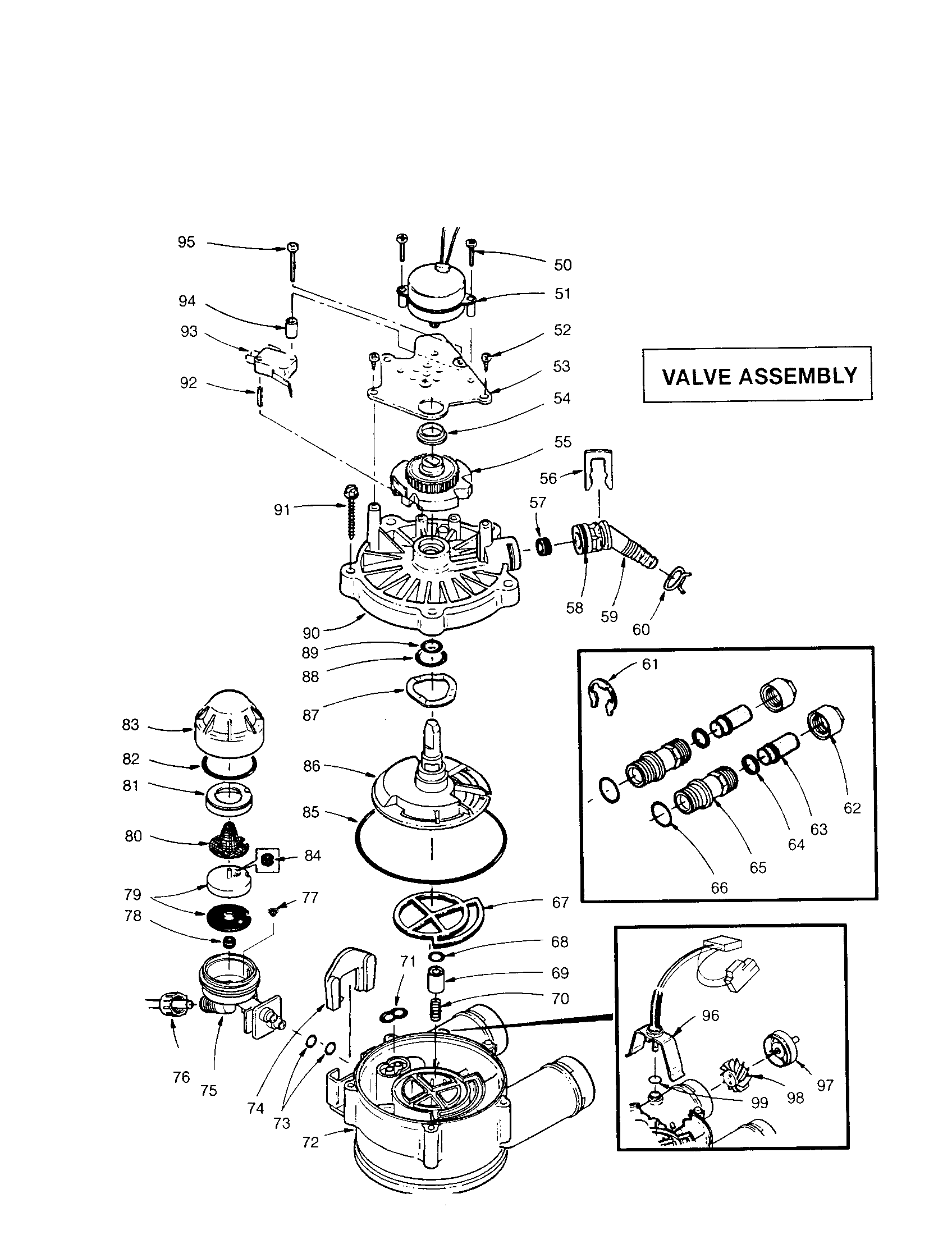

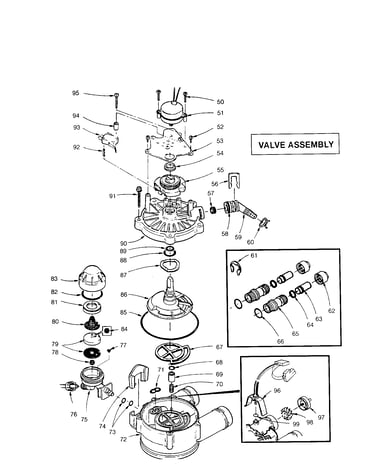

Valve assembly diagram

Disc seal kt

Part #7134224

Replaced by #7129716

?
Manufacturer substitution
This part replaces 7134224. Substitute parts can look different from the original.
BEST SELLER
$45.68 |
12% OFF Phone Price : $51.68
In Stock
Replacement Rotor 7103964
#86

Valve assembly diagram

Replacement rotor

Part #7103964

Replaced by #7199232

?
Manufacturer substitution
This part replaces 7103964. Substitute parts can look different from the original.
BEST SELLER
$65.46 |
8% OFF Phone Price : $71.46
In Stock
Kenmore Elite Water Softener Valve Body (replaces 7080611, Ws15x10010) 7082053
#72

Valve assembly diagram

Kenmore elite water softener valve body (replaces 7080611, ws15x10010)

Part #7082053

BEST SELLER
$73.40 |
8% OFF Phone Price : $79.40
In Stock
Bypass Valve 42-3437

#NI08

All parts diagram

Bypass valve

Part #42-3437

Replaced by #7129871

?
Manufacturer substitution
This part replaces 42-3437. Substitute parts can look different from the original.
BEST SELLER
$54.79 |
10% OFF Phone Price : $60.79
In Stock
Water Softener Resin (replaces 0501741, 0501744, 0502260, 0505644, 502272) 0502272
#18

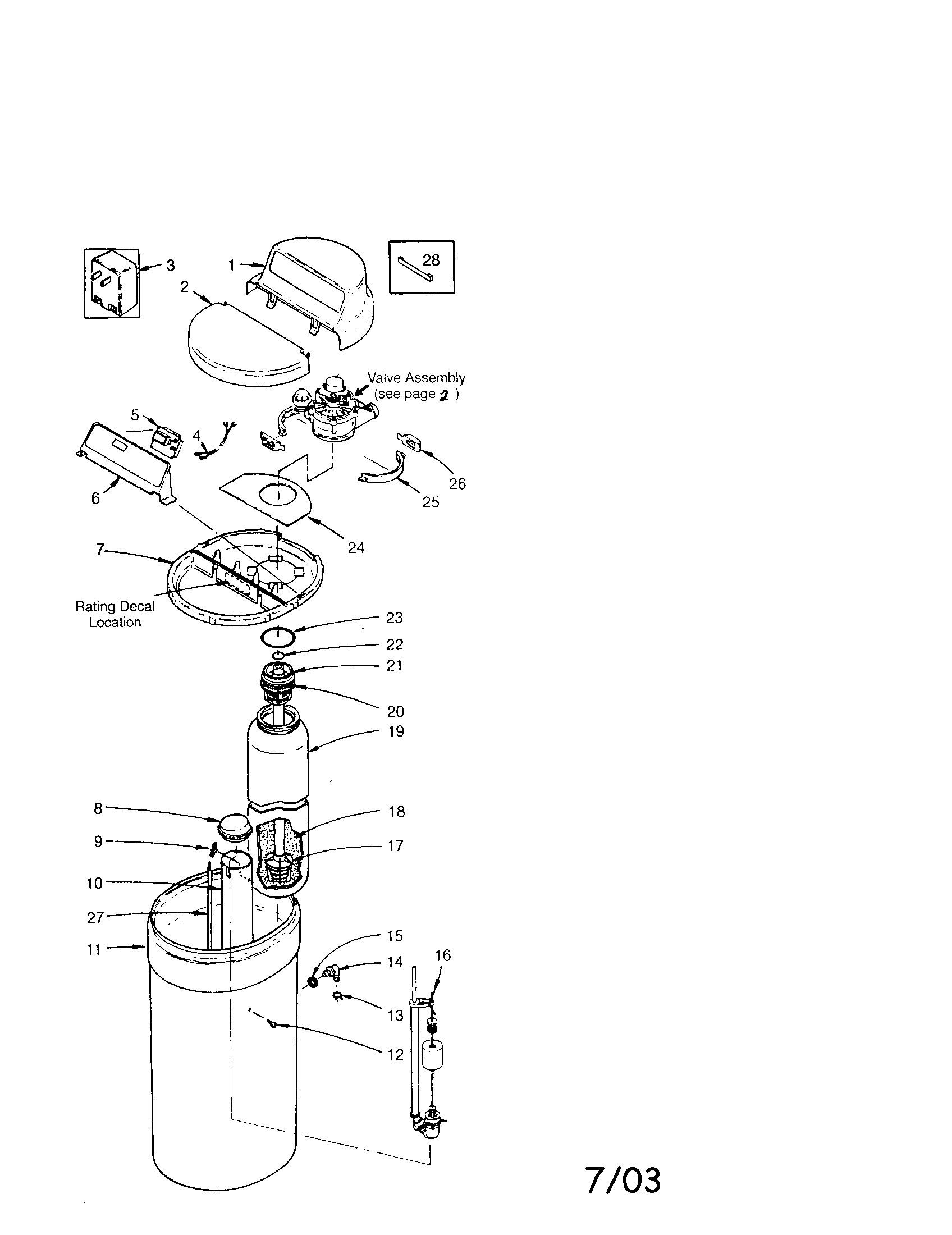

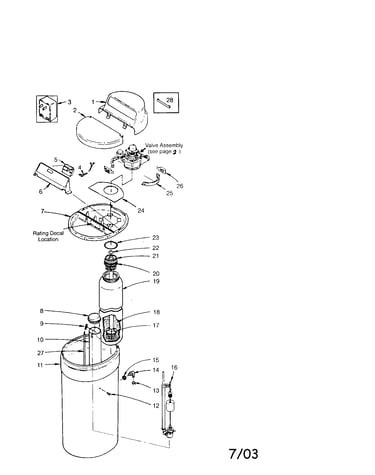

Salt tank/resin tank diagram

Water softener resin (replaces 0501741, 0501744, 0502260, 0505644, 502272)

Part #0502272

BEST SELLER
$248.36 |
5% OFF Phone Price : $260.36
In Stock
Whirlpool Water Softener Valve Body Cover (replaces Ws31x10006) 7085263
#90

Valve assembly diagram

Whirlpool water softener valve body cover (replaces ws31x10006)

Part #7085263

BEST SELLER
$34.48 |
15% OFF Phone Price : $40.48
In Stock
Water Softener Ferrule Nut (replaces 7031450, Ws03x10017, Ws3x10017) 1202600
#76

Valve assembly diagram

Water softener ferrule nut (replaces 7031450, ws03x10017, ws3x10017)

Part #1202600

BEST SELLER
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Water Softener Distributor Top (replaces Ws14x10002) 7077870
#21

Salt tank/resin tank diagram

Water softener distributor top (replaces ws14x10002)

Part #7077870

BEST SELLER
$18.79 |
10% OFF Phone Price : $20.79
In Stock
Housing 7173707
#96

Valve assembly diagram

Housing

Part #7173707

Replaced by #7309803

?
Manufacturer substitution
This part replaces 7173707. Substitute parts can look different from the original.
BEST SELLER
$44.25 |
12% OFF Phone Price : $50.25
In Stock
