Craftsman
Circular Saw

Model # 31511870 Official Craftsman circular saw

Here are the diagrams and repair parts for Official Craftsman 31511870 circular saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

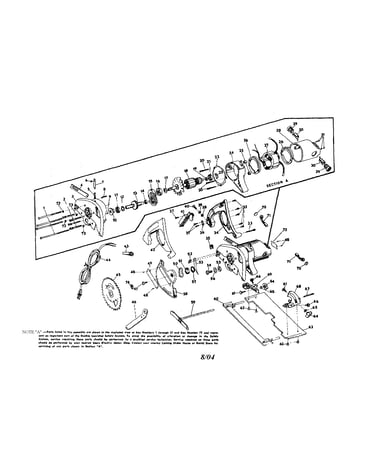

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Retain Ring 1-617096-02
#12

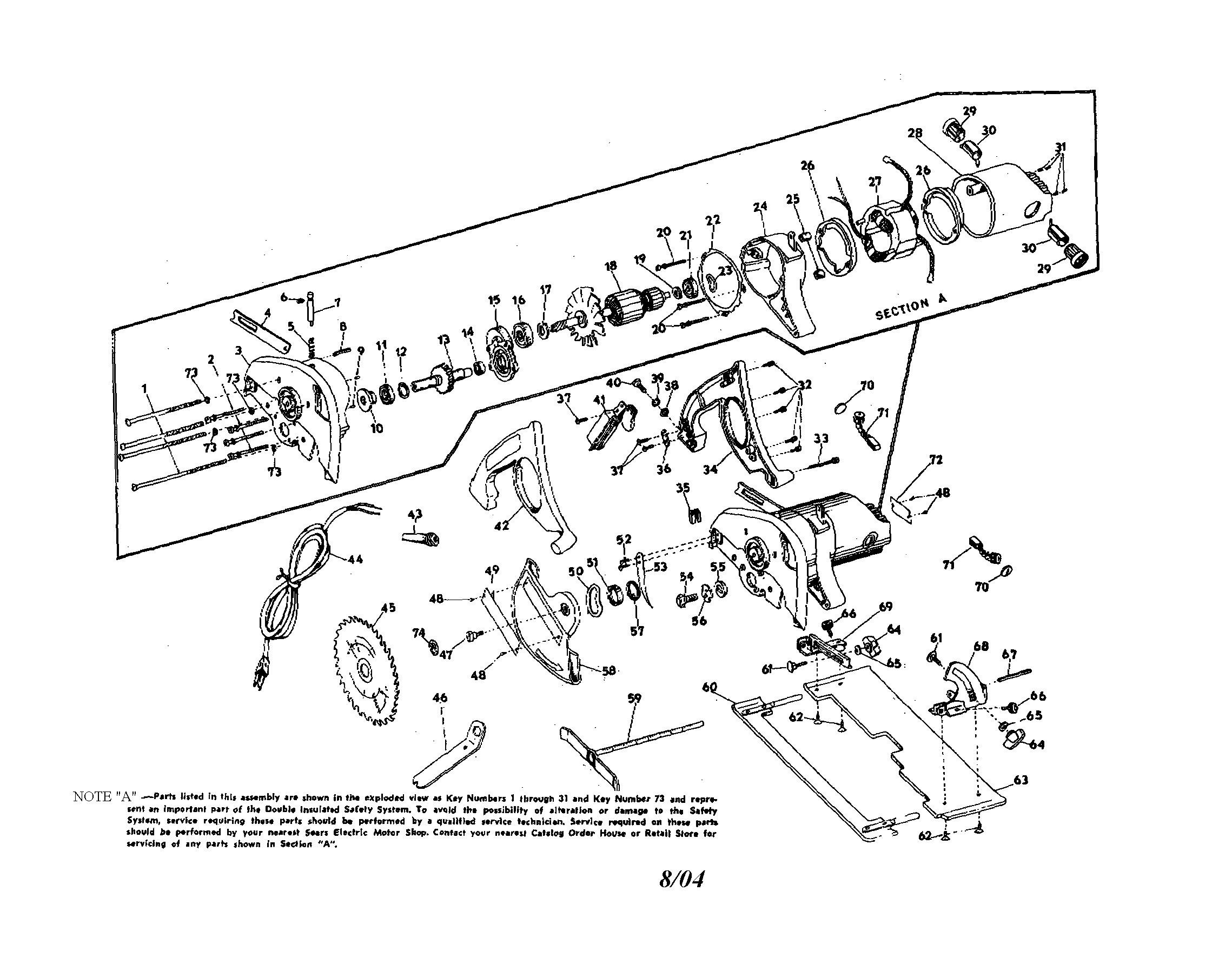

Circular saw diagram

Retain ring

Part #1-617096-02

The manufacturer no longer makes this part, and there's no substitute part

Fan Baffle 2-606178-01
#22

Circular saw diagram

Fan baffle

Part #2-606178-01

The manufacturer no longer makes this part, and there's no substitute part

Spacer 1-617101-02
#25

Circular saw diagram

Spacer

Part #1-617101-02

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-615662-02
#1

Circular saw diagram

Screw

Part #1-615662-02

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-617055-03
#47

Circular saw diagram

Screw

Part #1-617055-03

The manufacturer no longer makes this part, and there's no substitute part

Gr Cvr W/brg 3-617036-04
#15

Circular saw diagram

Gr cvr w/brg

Part #3-617036-04

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-930517-72
#40

Circular saw diagram

Screw

Part #1-930517-72

The manufacturer no longer makes this part, and there's no substitute part

Brush Holder 2-606782-01
#29

Circular saw diagram

Brush holder

Part #2-606782-01

The manufacturer no longer makes this part, and there's no substitute part

Bushing 1-617038-03
#10

Circular saw diagram

Bushing

Part #1-617038-03

The manufacturer no longer makes this part, and there's no substitute part

Bend Relief 2-613651-01
#43

Circular saw diagram

Bend relief

Part #2-613651-01

The manufacturer no longer makes this part, and there's no substitute part
