Kenmore
Gas Range

Model # 103659910 Official Kenmore gas kitchen heater range

Here are the diagrams and repair parts for Official Kenmore 103659910 gas kitchen heater range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

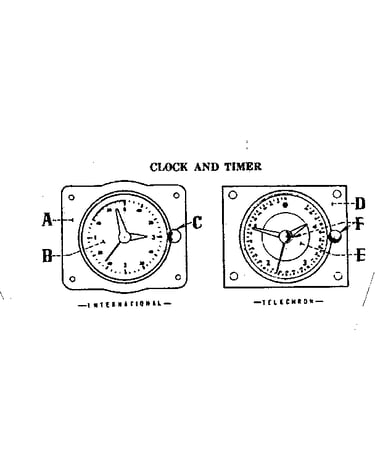

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 222 parts  |
Lamp Bulb 65973

#NI

All parts diagram

Lamp bulb

Part #65973

Replaced by #40A15

?
Manufacturer substitution
This part replaces 65973. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Therm Spring 71129
#24

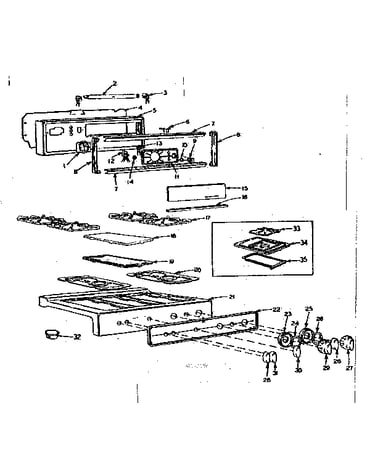

Main top section diagram

Therm spring

Part #71129

The manufacturer no longer makes this part, and there's no substitute part

Extension Box 85034
#130

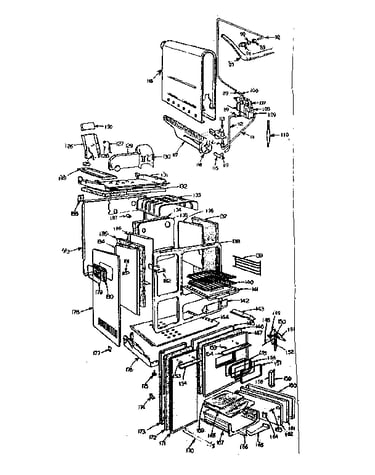

Cabinet diagram

Extension box

Part #85034

The manufacturer no longer makes this part, and there's no substitute part

Compressor Nut 4825
#81

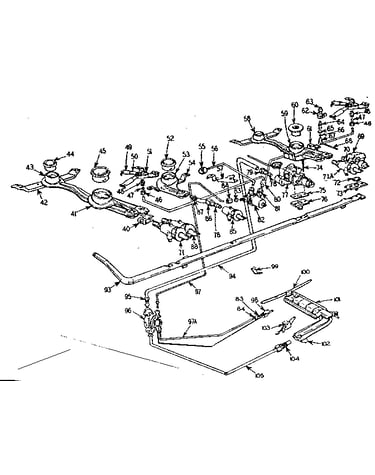

Burner section diagram

Compressor nut

Part #4825

The manufacturer no longer makes this part, and there's no substitute part

Push Switch 77853
#12

Main top section diagram

Push switch

Part #77853

The manufacturer no longer makes this part, and there's no substitute part

End Cap 77210
#8

Main top section diagram

End cap

Part #77210

The manufacturer no longer makes this part, and there's no substitute part

Receptacle 77981
#3B

Main top section diagram

Receptacle

Part #77981

The manufacturer no longer makes this part, and there's no substitute part

Screw 25345
#74

Burner section diagram

Screw

Part #25345

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 88220
#69

Burner section diagram

Thermostat

Part #88220

The manufacturer no longer makes this part, and there's no substitute part

Burner Head 87258
#44

Burner section diagram

Burner head

Part #87258

The manufacturer no longer makes this part, and there's no substitute part
