Model # 315105050 Official Craftsman 1/2" electric drill

Here are the diagrams and repair parts for Official Craftsman 315105050 1/2" electric drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

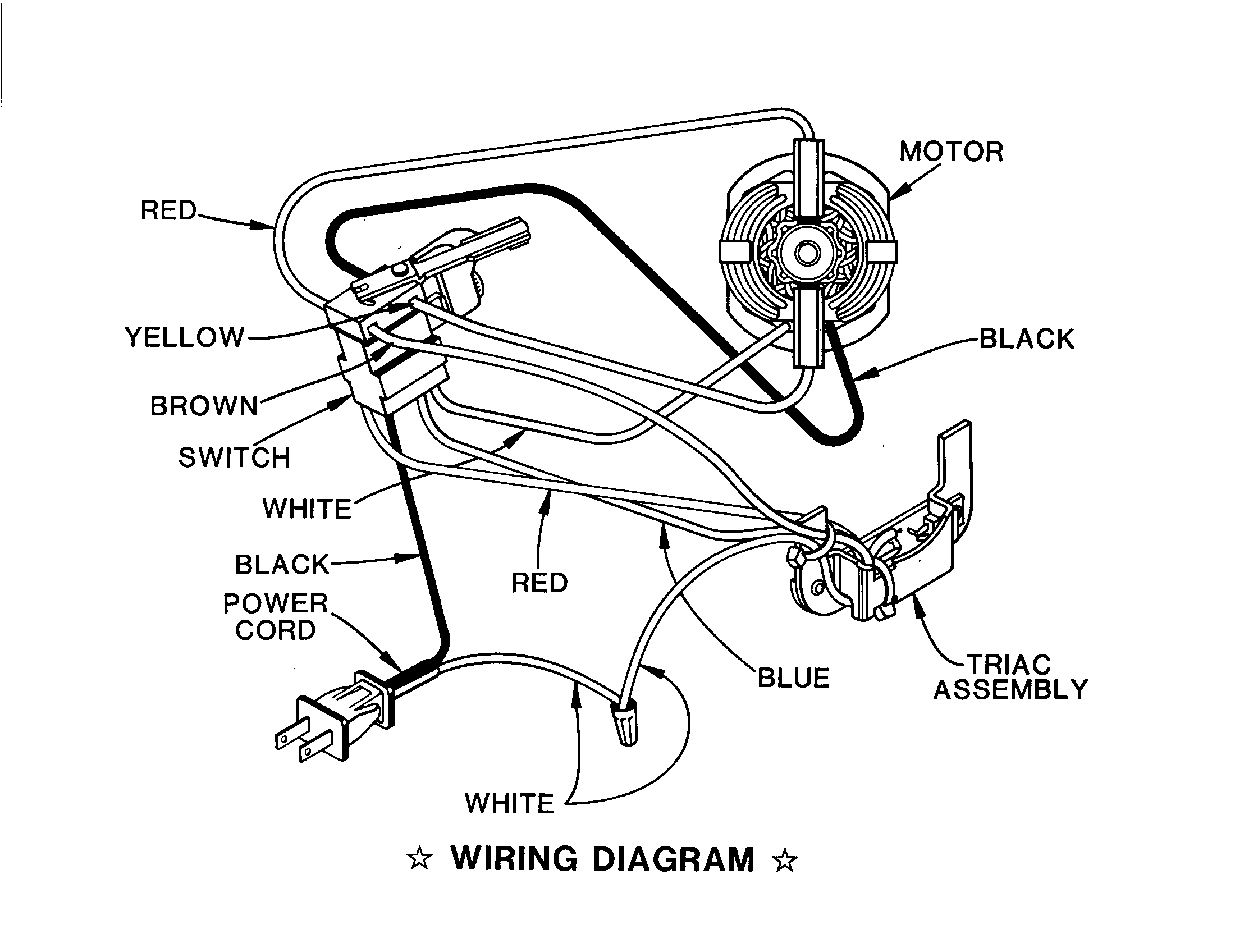

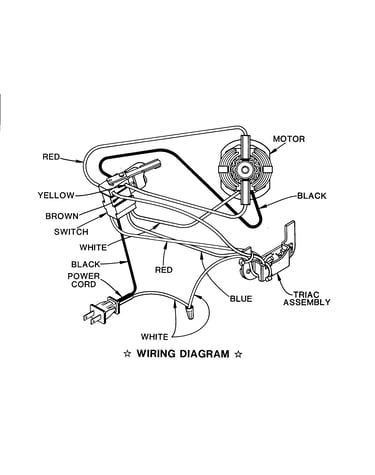

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 40 parts  |
Gear W/pin 999580-001
#18

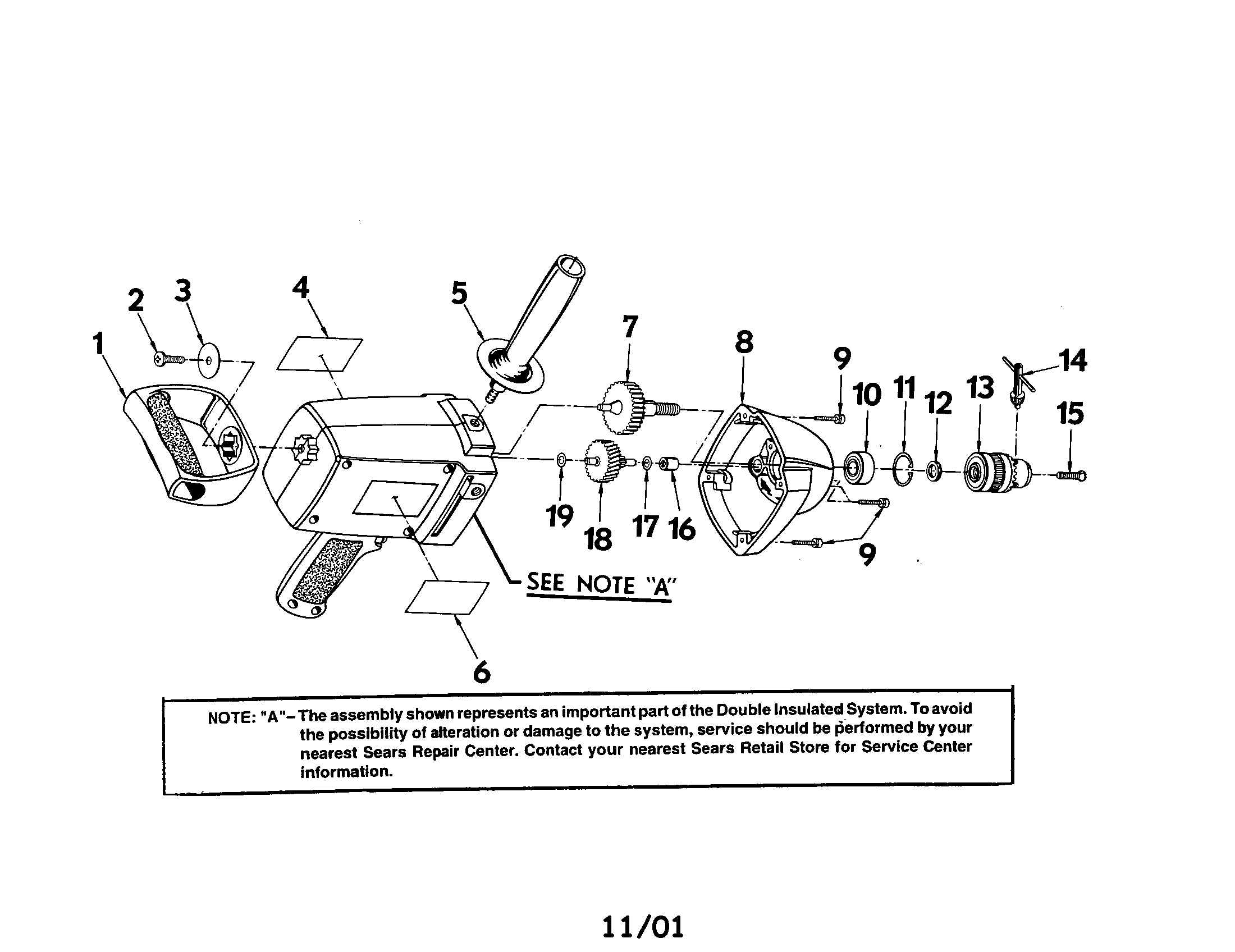

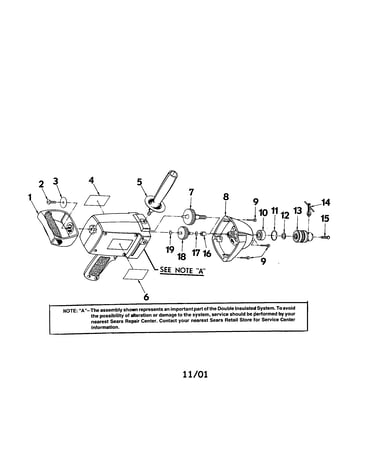

"d" handle/gear housing diagram

Gear w/pin

Part #999580-001

The manufacturer no longer makes this part, and there's no substitute part

Screw With Washer 940038-805
#9

"d" handle/gear housing diagram

Screw with washer

Part #940038-805

The manufacturer no longer makes this part, and there's no substitute part

Wire Connctr 623173-001
#19

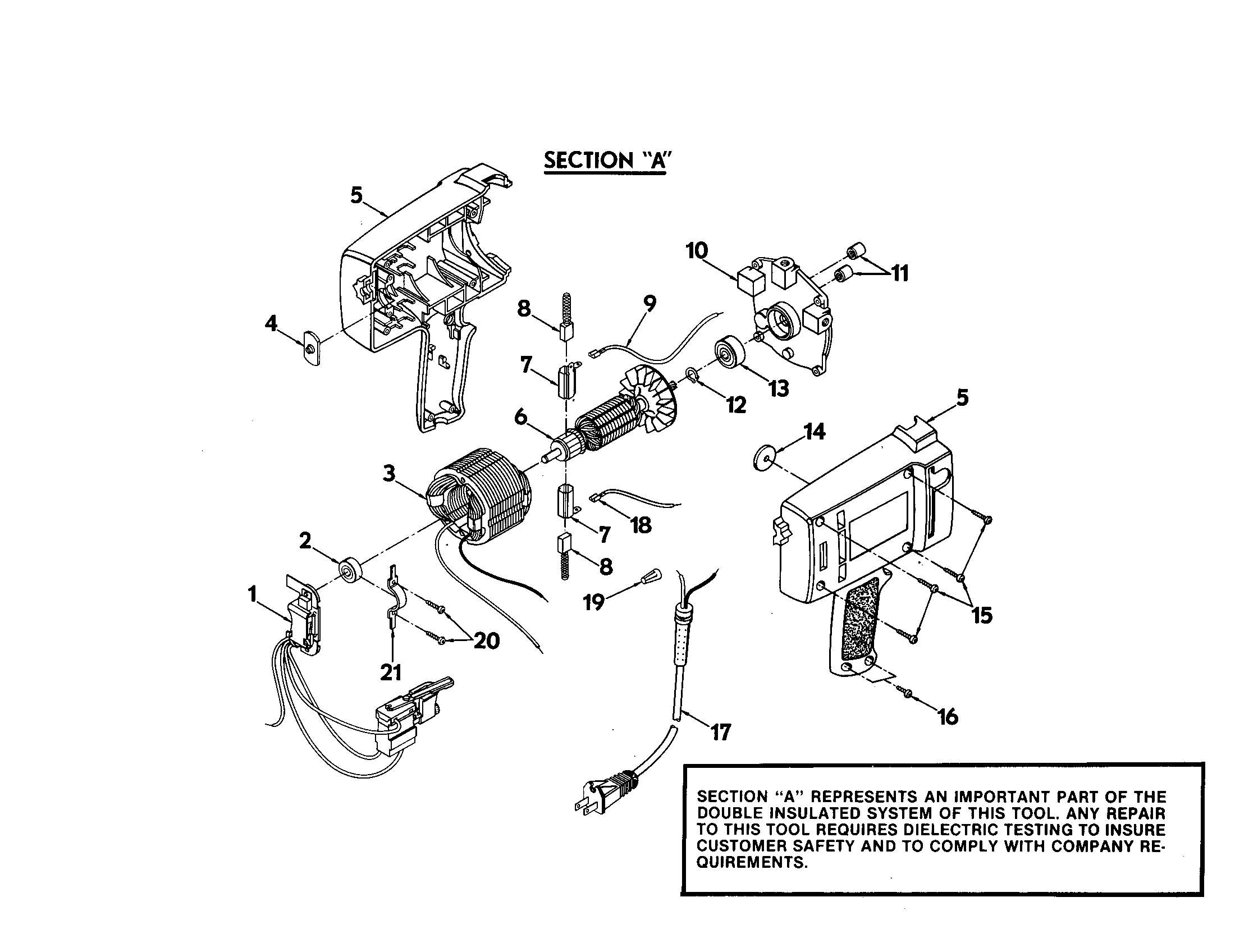

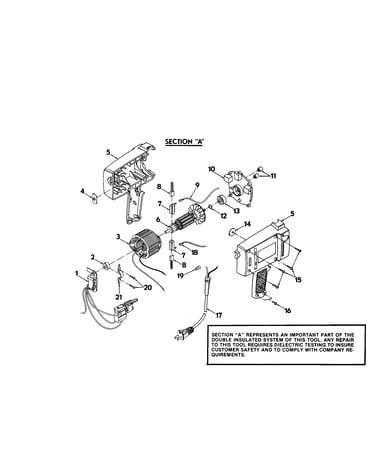

Housing/armature diagram

Wire connctr

Part #623173-001

The manufacturer no longer makes this part, and there's no substitute part

Housing Assembly 998753-000
#5

Housing/armature diagram

Housing assembly

Part #998753-000

The manufacturer no longer makes this part, and there's no substitute part

Ball Bearing 990353-001
#2

Housing/armature diagram

Ball bearing

Part #990353-001

The manufacturer no longer makes this part, and there's no substitute part

Chuck Key 617517-001
#13

"d" handle/gear housing diagram

Chuck key

Part #617517-001

The manufacturer no longer makes this part, and there's no substitute part

Ball Brg 999965-002
#13

Housing/armature diagram

Ball brg

Part #999965-002

The manufacturer no longer makes this part, and there's no substitute part

Gear Shaft 967717-001
#7

"d" handle/gear housing diagram

Gear shaft

Part #967717-001

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Motor Brush 610784-040
#8

Housing/armature diagram

Power tool motor brush

Part #610784-040

The manufacturer no longer makes this part, and there's no substitute part

Screw 613150-003
#15

"d" handle/gear housing diagram

Screw

Part #613150-003

The manufacturer no longer makes this part, and there's no substitute part
