Model # T24ID80NLP/39 Official Thermador built-in freezer column
Here are the diagrams and repair parts for Official Thermador T24ID80NLP/39 built-in freezer column, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual
Error CodesBy Schematic
By Part

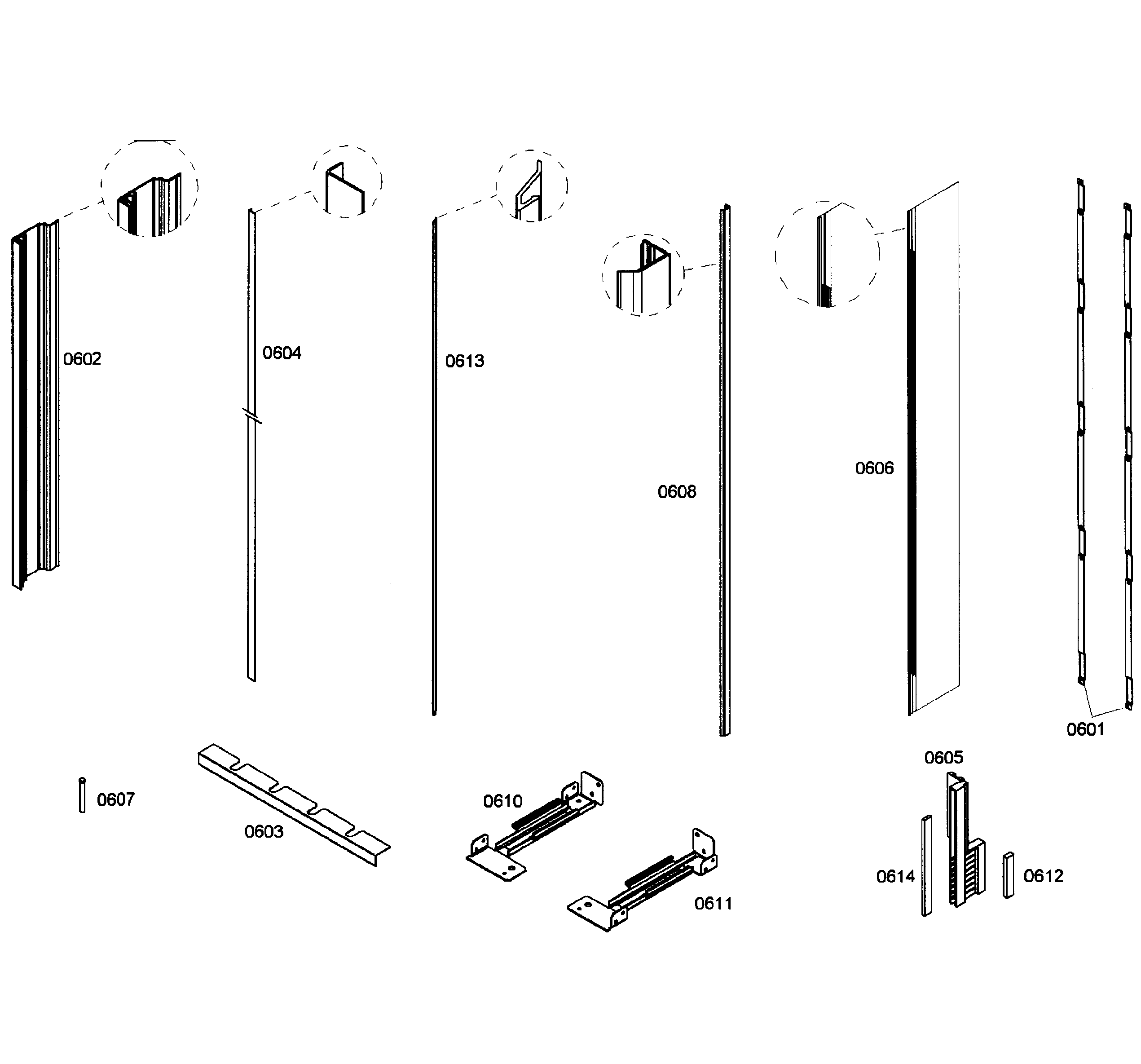

SELECT DIAGRAM
Browse Parts for
T24ID80NLP/39 Freestanding Freezers
#429

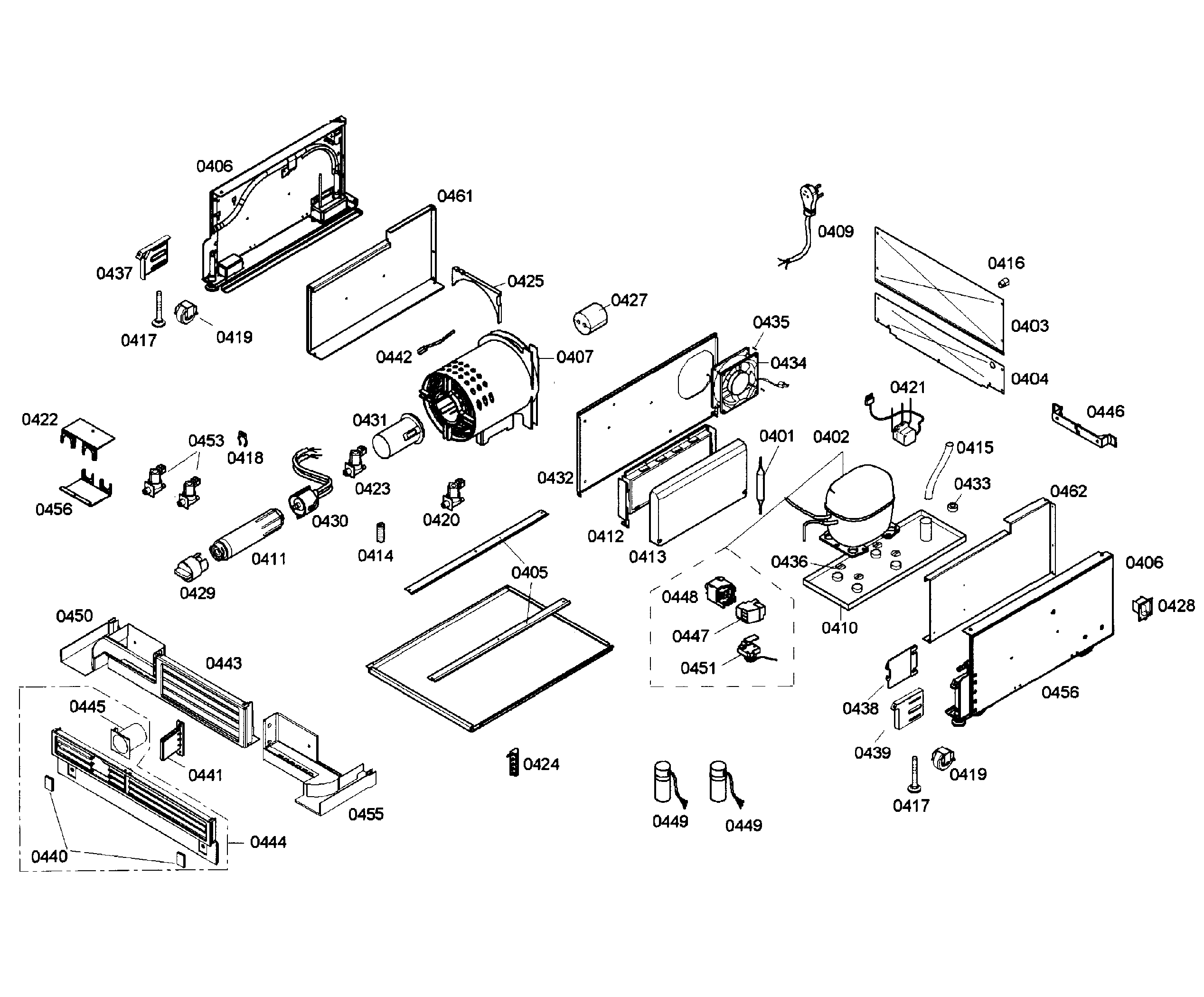

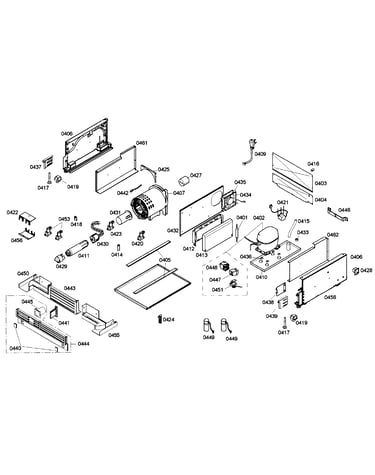

Compressor diagram
Freezer water filter cap
Part #604684
Replaced by #00604684
?
Manufacturer substitution
This part replaces 604684. Substitute parts can look different from the original.
$11.49 |
15% OFF Phone Price : $13.49
Back Order
#214

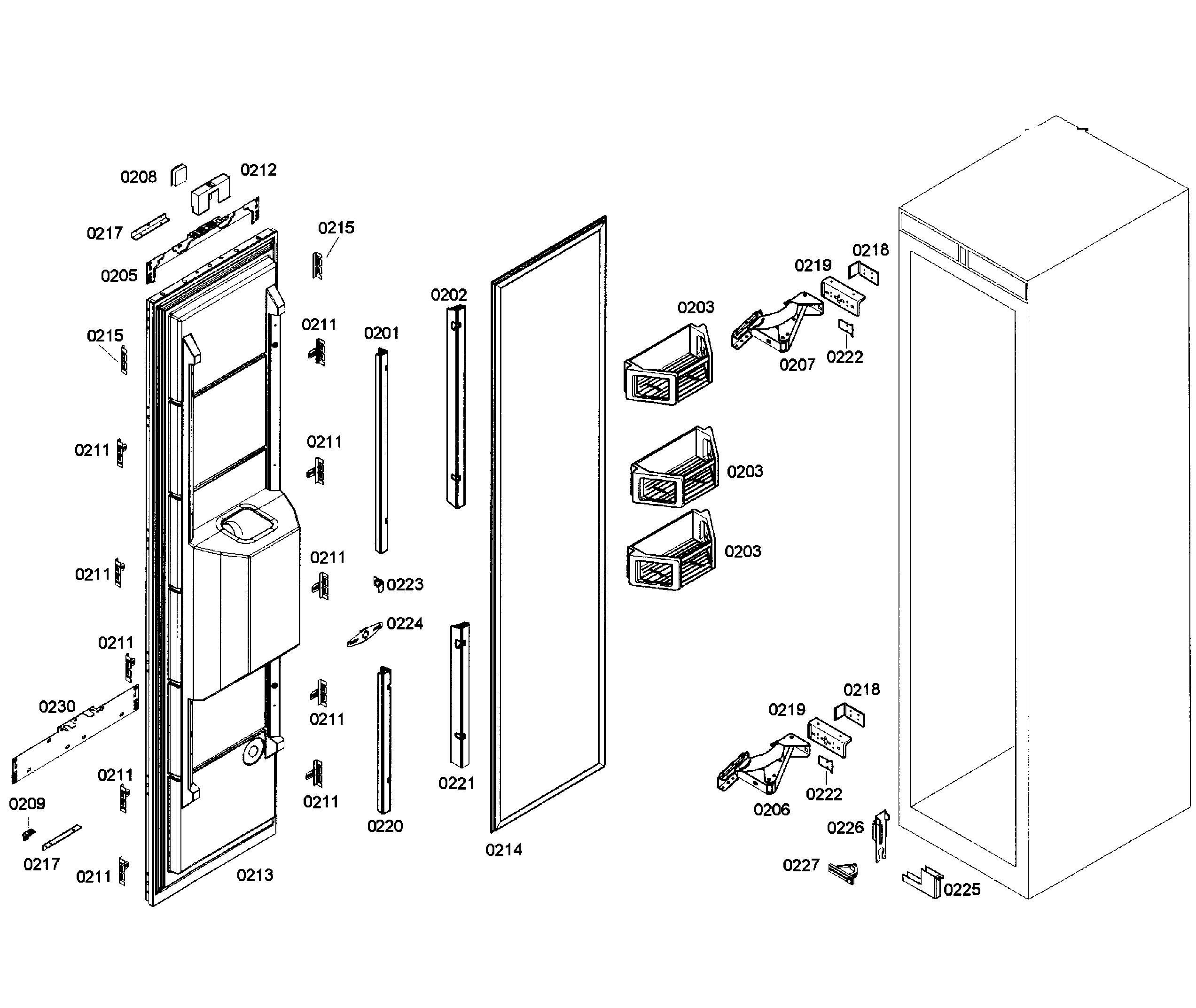

Door assy diagram
Door seal
Part #247252
Replaced by #00716384
?
Manufacturer substitution
This part replaces 247252. Substitute parts can look different from the original.
$142.09 |
8% OFF Phone Price : $154.09
In Stock
#520

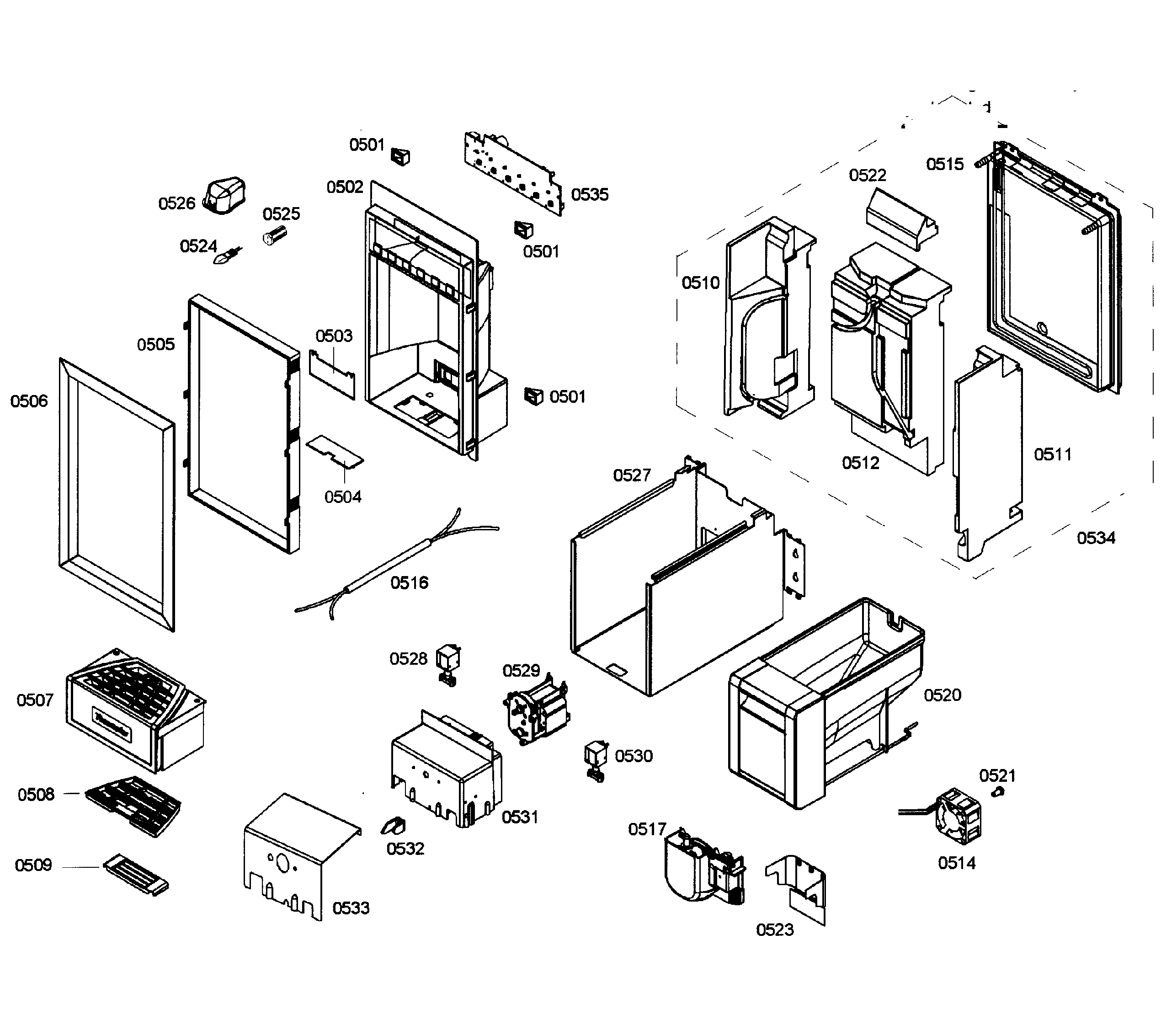

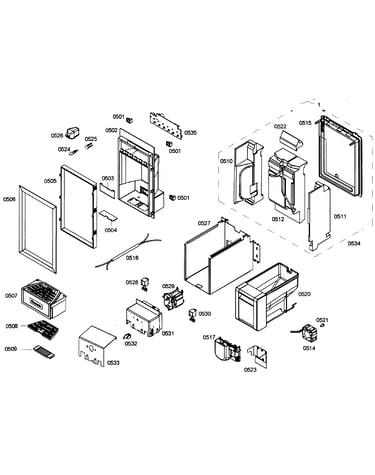

Dispenser diagram
Upright freezer ice bin
Part #685665
Replaced by #00685665
?
Manufacturer substitution
This part replaces 685665. Substitute parts can look different from the original.
$255.29 |
$12.00 OFF Phone Price : $267.29
In Stock
#535
Dispenser diagram
Operation module
Part #701347
Replaced by #00653628
?
Manufacturer substitution
This part replaces 701347. Substitute parts can look different from the original.
$151.86
In Stock
#106

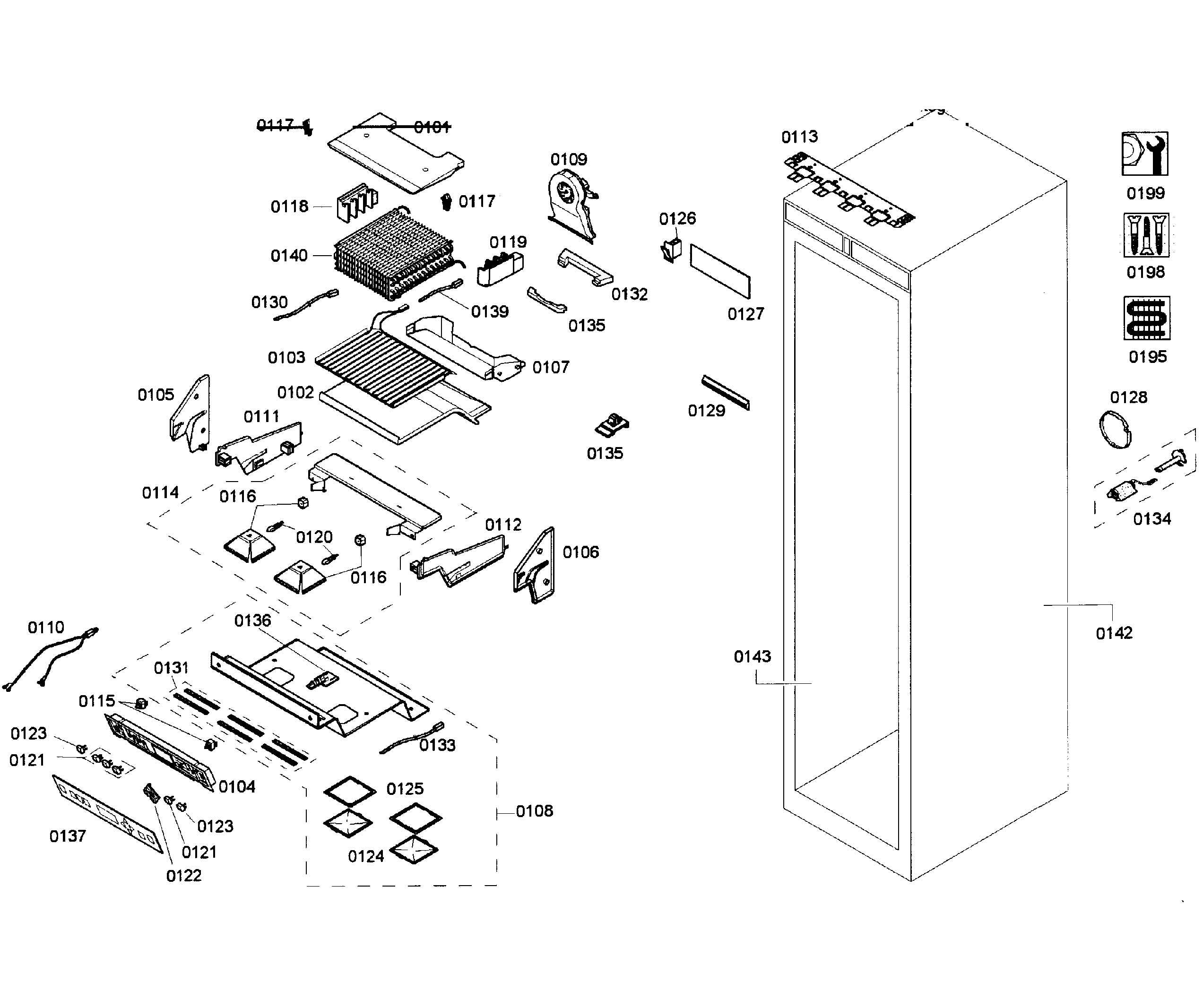

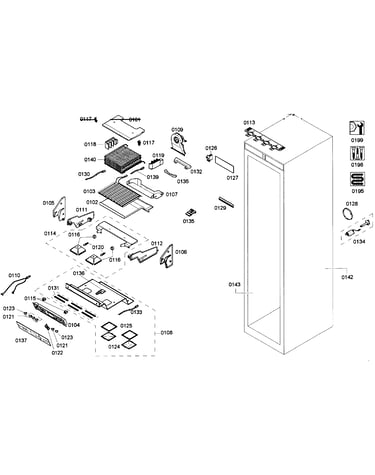

Cabinet parts diagram
Holder, r
Part #448945
Replaced by #11012327
?
Manufacturer substitution
This part replaces 448945. Substitute parts can look different from the original.
$10.86
In Stock
#130
Cabinet parts diagram
Sensor
Part #617203
Replaced by #00617203
?
Manufacturer substitution
This part replaces 617203. Substitute parts can look different from the original.
This item is not returnable
$23.59 |
20% OFF Phone Price : $29.59
In Stock
#303

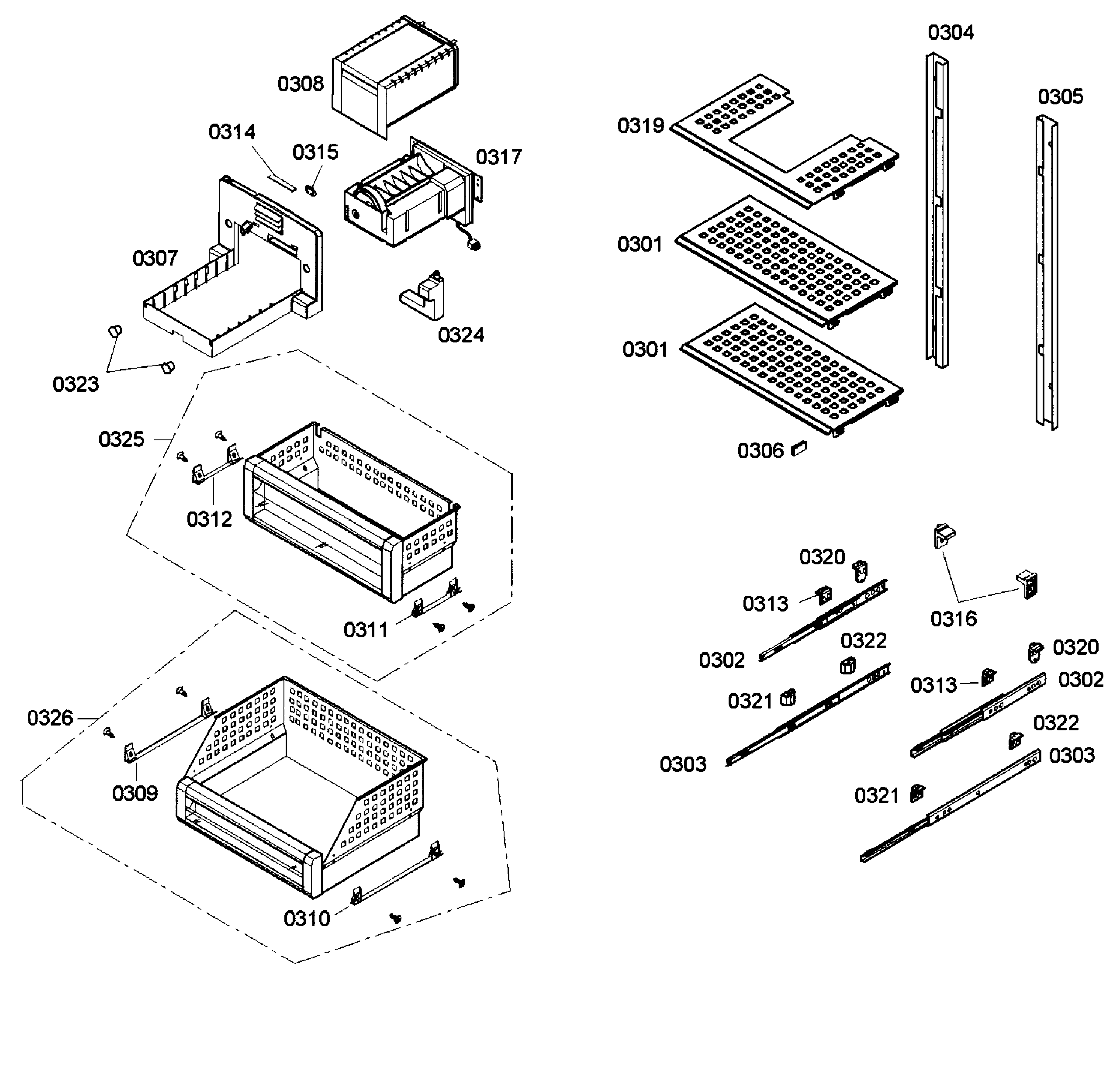

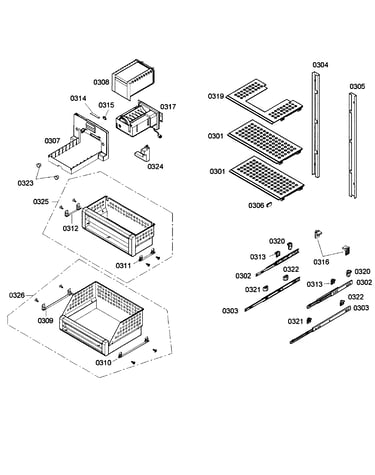

Shelfs diagram
Rail
Part #449068
Replaced by #00449068
?
Manufacturer substitution
This part replaces 449068. Substitute parts can look different from the original.
$71.38
In Stock
#137
Cabinet parts diagram
Panel
Part #605501
The manufacturer no longer makes this part, and there's no substitute part
#126
Cabinet parts diagram
Switch
Part #604020
Replaced by #00604020
?
Manufacturer substitution
This part replaces 604020. Substitute parts can look different from the original.
$18.94
In Stock
#112
Cabinet parts diagram
Holder
Part #499975
Replaced by #00753436
?
Manufacturer substitution
This part replaces 499975. Substitute parts can look different from the original.
$8.37
In Stock
