Lawn & Garden Engine

Model # 143794032 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143794032 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

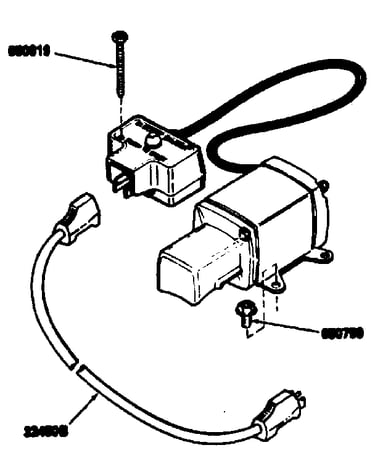

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 177 parts  |
Lawn Mower O-ring 631028
#25

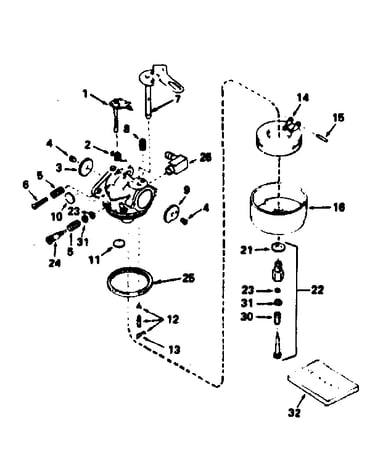

Carburetor no. 632107 diagram

Lawn mower o-ring

Part #631028

Replaced by #631028A

?
Manufacturer substitution
This part replaces 631028. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Troybilt Lawn & Garden Equipment Engine Carburetor Gasket (replaces 27141) 26756
#96

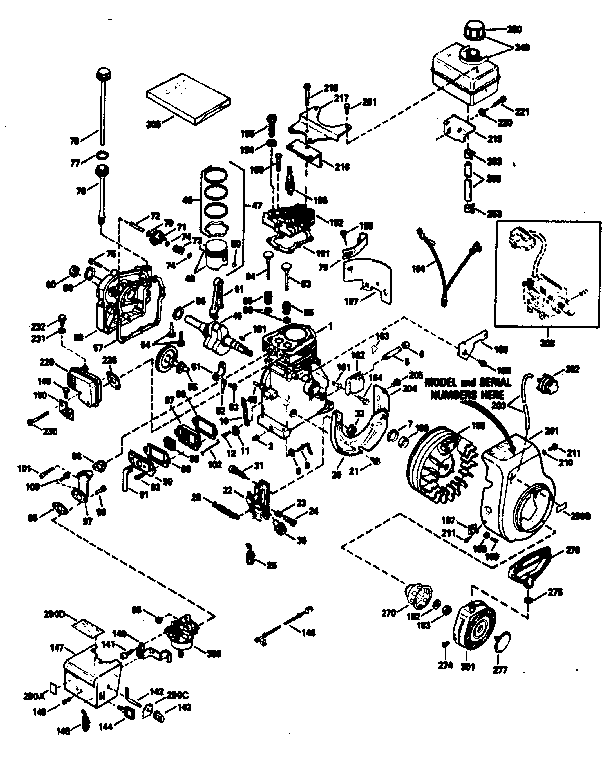

Engine diagram

Troybilt lawn & garden equipment engine carburetor gasket (replaces 27141)

Part #26756

BEST SELLER
This item is not returnable
$3.64 |
22% OFF Phone Price : $4.64
In Stock
Rope 590451A
#12

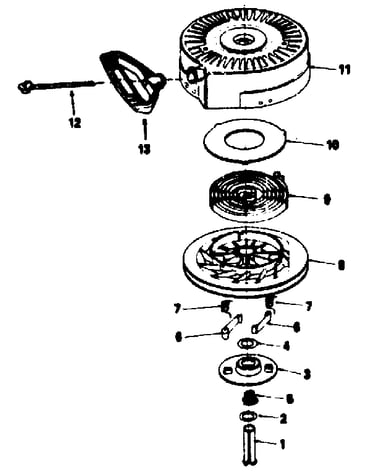

Rewind starter no. 590646 diagram

Rope

Part #590451A

Replaced by #590535

?
Manufacturer substitution
This part replaces 590451A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Gasket 27110
#21

Carburetor no. 632107 diagram

Gasket

Part #27110

Replaced by #27110A

?
Manufacturer substitution
This part replaces 27110. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Troybilt Lawn & Garden Equipment Engine Fuel Line Clamp 26460
#253

Engine diagram

Troybilt lawn & garden equipment engine fuel line clamp

Part #26460

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Carburetor 632107
Carburetor

Part #632107

Replaced by #640084B

?
Manufacturer substitution
This part replaces 632107. Substitute parts can look different from the original.
BEST SELLER
$85.18 |
7% OFF Phone Price : $91.18
Back Order
Lawn & Garden Equipment Engine Fuel Line (replaces 32180, 32180a, 32180b, 500236, Tc-32180c) 32180C
#203

Engine diagram

Lawn & garden equipment engine fuel line (replaces 32180, 32180a, 32180b, 500236, tc-32180c)

Part #32180C

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Primer 570682
#202

Engine diagram

Primer

Part #570682

Replaced by #570682A

?
Manufacturer substitution
This part replaces 570682. Substitute parts can look different from the original.
BEST SELLER
$11.79 |
15% OFF Phone Price : $13.79
In Stock
Lawn & Garden Equipment Engine Fuel Tank Cap 35355
#250

Engine diagram

Lawn & garden equipment engine fuel tank cap

Part #35355

Replaced by #37845

?
Manufacturer substitution
This part replaces 35355. Substitute parts can look different from the original.
BEST SELLER
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Starter 590646
Starter

Part #590646

Replaced by #590787

?
Manufacturer substitution
This part replaces 590646. Substitute parts can look different from the original.
$40.20 |
13% OFF Phone Price : $46.20
In Stock
