Model # ENH4X48C21A1 Official ICP evaporator coil
Here are the diagrams and repair parts for Official ICP ENH4X48C21A1 evaporator coil, as well as links to manuals and error code tables, if available.
Installation guide
Error CodesBy Schematic
SELECT DIAGRAM
Browse Parts for
ENH4X48C21A1 Evaporator Coil
#A

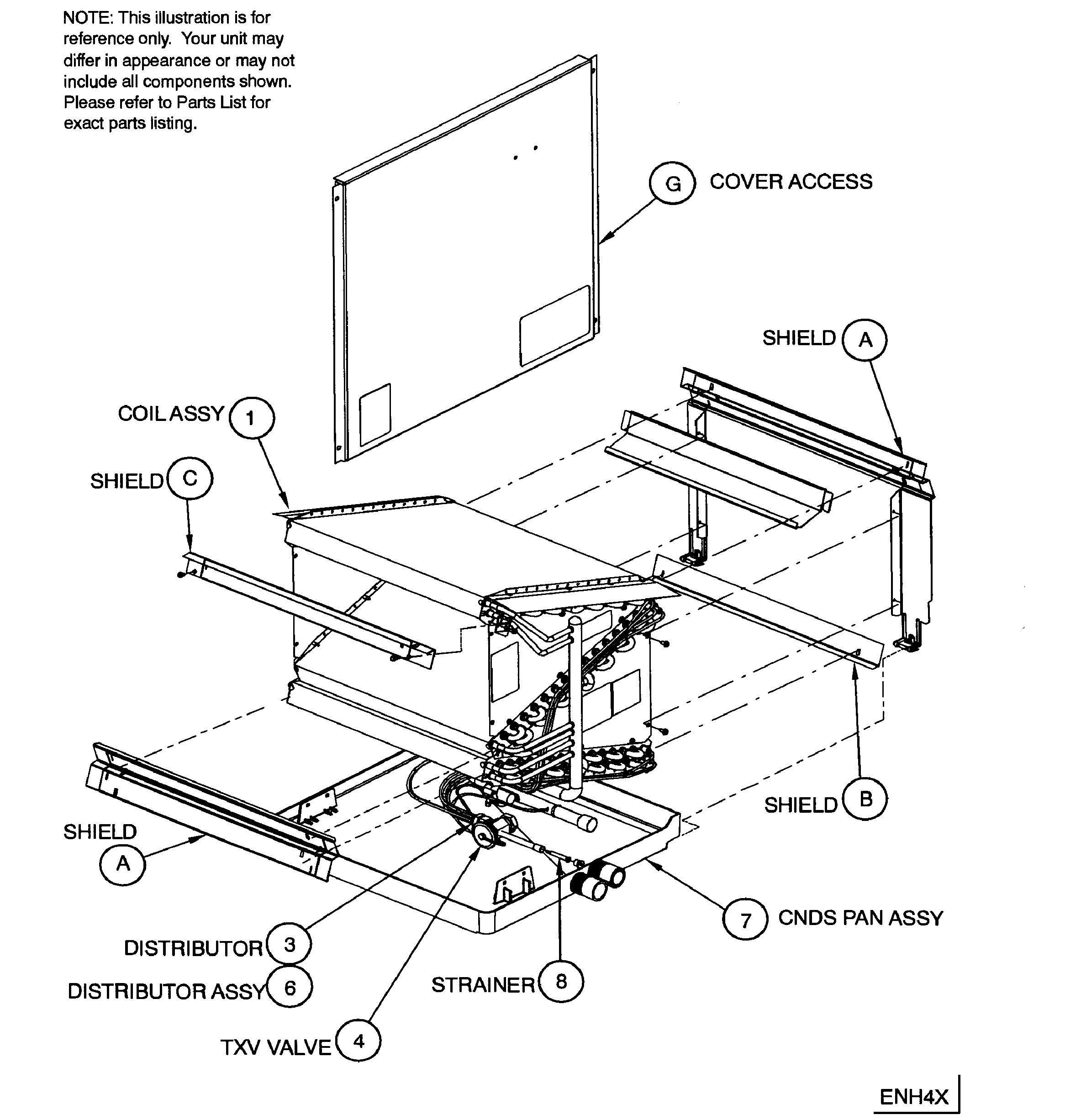

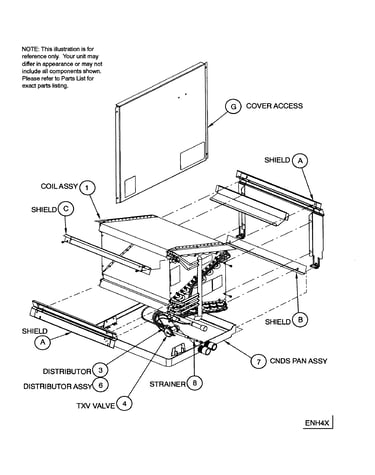

Evap coil diagram
Shield a
Part #1176840
$25.87
In Stock
#NI
Evap coil diagram
Adapter
Part #1085010
$10.20
In Stock
#NI
Evap coil diagram
Grommet
Part #1173157
This item is not returnable
$2.16
In Stock
#NI
Evap coil diagram
Grommet
Part #1173160
This item is not returnable
$3.03
In Stock
#C
Evap coil diagram
Shield
Part #1176827
$33.24
In Stock
#B
Evap coil diagram
Shield b
Part #1176841
The manufacturer no longer makes this part, and there's no substitute part
#NI
Evap coil diagram
Washer
Part #1174012
The manufacturer no longer makes this part, and there's no substitute part
#G
Evap coil diagram
Access cover
Part #1183273
The manufacturer no longer makes this part, and there's no substitute part
#4
Evap coil diagram
Valve txv,
Part #1183196
The manufacturer no longer makes this part, and there's no substitute part
#7
Evap coil diagram
Cnds pan assy
Part #1183266
The manufacturer no longer makes this part, and there's no substitute part
