Model # 1039387912 Official Kenmore 30" electric range with glass cooktop

Here are the diagrams and repair parts for Official Kenmore 1039387912 30" electric range with glass cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

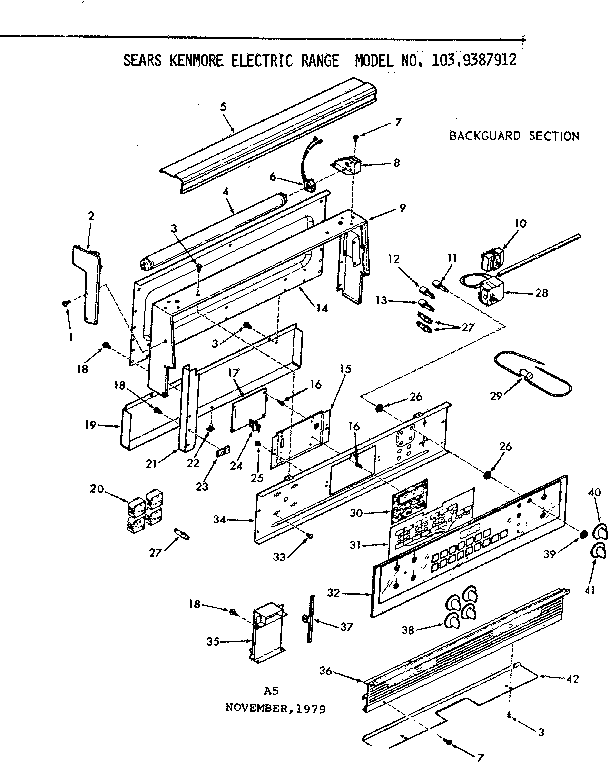

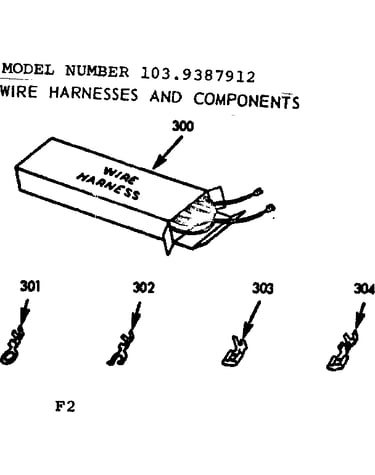

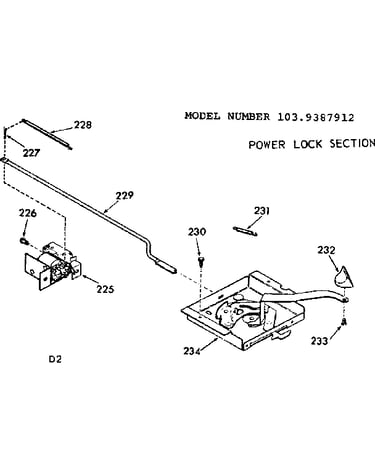

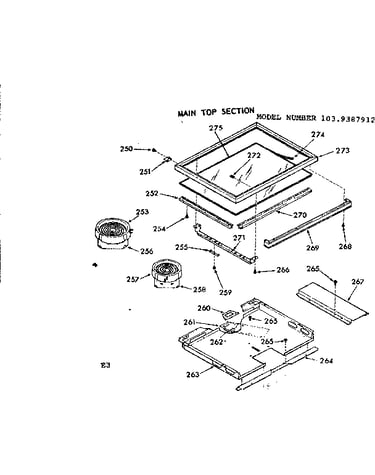

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 215 parts  |
Lamp Bulb STD372401
#99

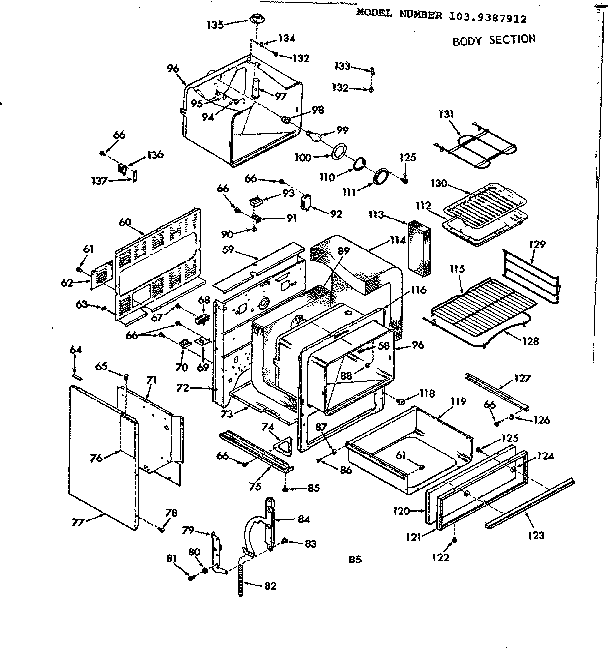

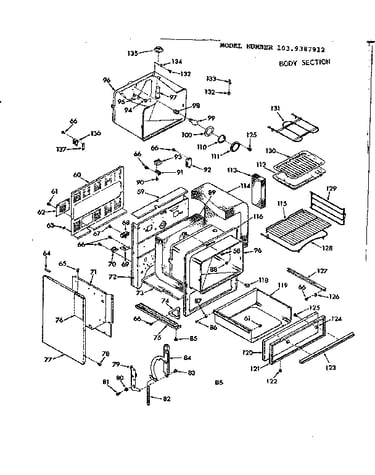

Body diagram

Lamp bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Screw 105771
Screw

Part #105771

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces 105771. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Broil Element 293105
#131A

Body diagram

Broil element

Part #293105

Replaced by #WB44M5

?
Manufacturer substitution
This part replaces 293105. Substitute parts can look different from the original.
$68.07 |
8% OFF Phone Price : $74.07
In Stock
Gasket 292244
#160

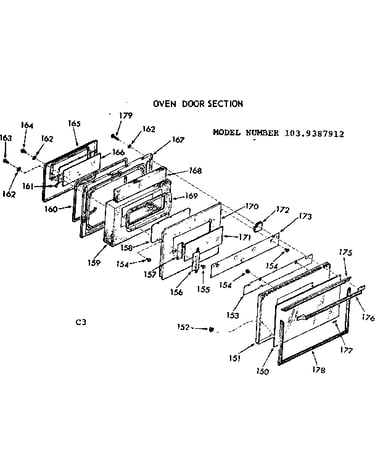

Oven door diagram

Gasket

Part #292244

Replaced by #WB2X9373

?
Manufacturer substitution
This part replaces 292244. Substitute parts can look different from the original.
$79.27 |
7% OFF Phone Price : $85.27
In Stock
Vent Tube 312501
#97

Body diagram

Vent tube

Part #312501

$26.49
In Stock
Wire Cover 281938
#60

Body diagram

Wire cover

Part #281938

$14.49
In Stock
Shade Window 307839
#158

Oven door diagram

Shade window

Part #307839

$28.99
In Stock
Lead Wire (white) 284278
#262A

Optional rotisserie diagram

Lead wire (white)

Part #284278

This item is not returnable
$2.29
In Stock
Bake Element 301471
#128A

Body diagram

Bake element

Part #301471

The manufacturer no longer makes this part, and there's no substitute part

Seal 302935
#161

Oven door diagram

Seal

Part #302935

Replaced by #WB2X9168

?
Manufacturer substitution
This part replaces 302935. Substitute parts can look different from the original.
This item is not returnable
$9.62 |
9% OFF Phone Price : $10.62
In Stock
