Model # KSM3311QCU0 Official KitchenAid mixer
Here are the diagrams and repair parts for Official KitchenAid KSM3311QCU0 mixer, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts forKSM3311QCU0 Mixer
- #11

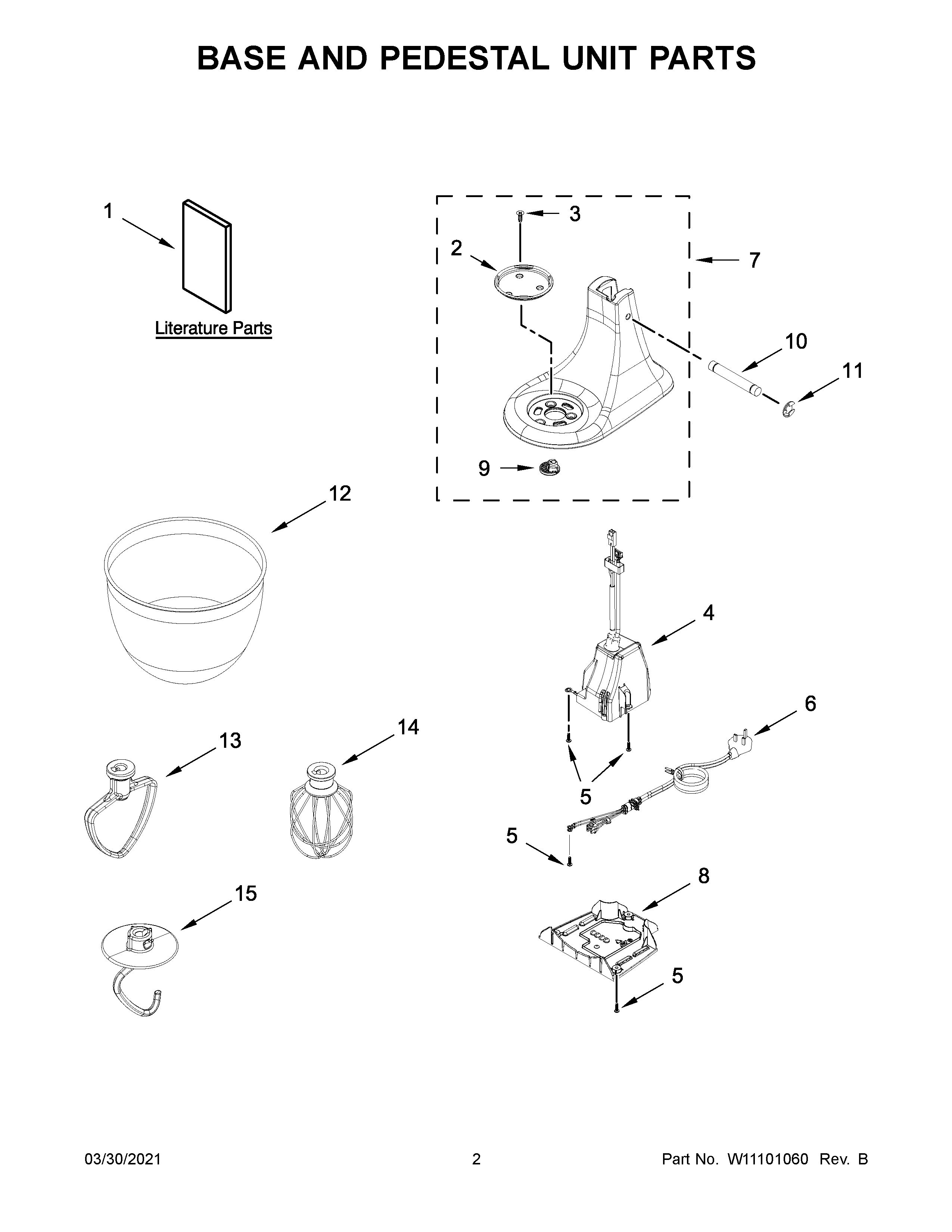

Base and pedestal unit parts diagram
RingPart #354987
Replaced by #WP354987
?Manufacturer substitutionThis part replaces 354987. Substitute parts can look different from the original.This item is not returnable$8.57 |10% OFF Phone Price : $9.57In Stock - Screw
Part #3400814
Replaced by #WP3400814
?Manufacturer substitutionThis part replaces 3400814. Substitute parts can look different from the original.This item is not returnable$5.19 |16% OFF Phone Price : $6.19In Stock - #9
Base and pedestal unit parts diagram
FootPart #9709707
Replaced by #WP9709707
?Manufacturer substitutionThis part replaces 9709707. Substitute parts can look different from the original.This item is not returnable$5.19 |16% OFF Phone Price : $6.19In Stock - #3
Base and pedestal unit parts diagram
ScrewPart #3400020
Replaced by #W11544572
?Manufacturer substitutionThis part replaces 3400020. Substitute parts can look different from the original.$28.28In Stock - #21

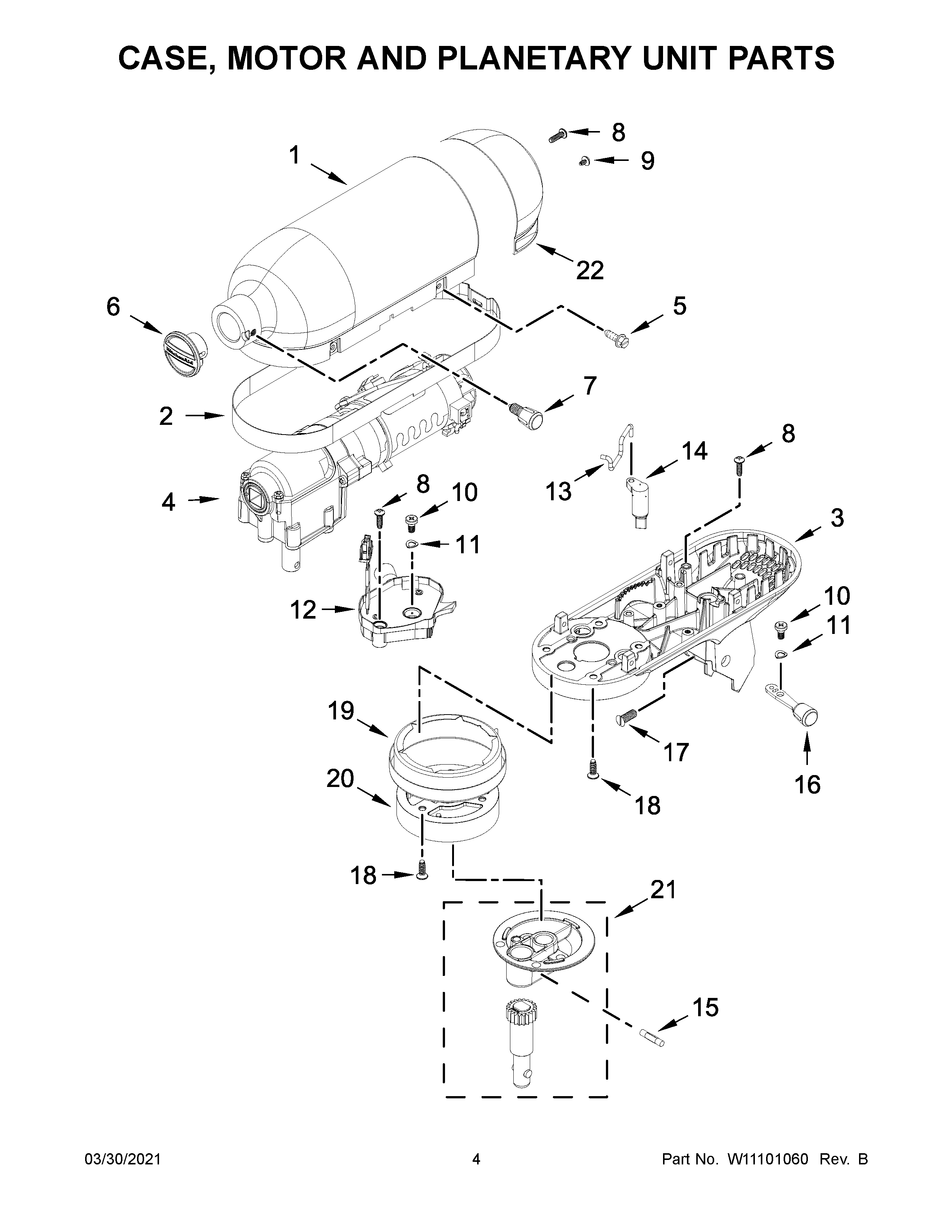

Case, motor and planetary unit parts diagram
Planetary assemblyPart #W10765474
$90.64In Stock - #21E
Case, motor and planetary unit parts diagram
Planetary assemblyPart #W10835936
$90.64In Stock - #NI
Base and pedestal unit parts diagram
Beater assy-Part #W10747069
$58.87In Stock - #1
Case, motor and planetary unit parts diagram
Upper housingPart #W10765466
$78.60In Stock - #22E
Case, motor and planetary unit parts diagram
End cover-paPart #W10835954
$79.80In Stock - #3C
Case, motor and planetary unit parts diagram
Empire red lPart #W10870570
$71.27In Stock
Most common symptoms to help you fix your stand mixers
Choose a symptom to see related stand mixer repairs.
Main causes: bad wiring connections, faulty speed control plate, electronic control board failure…
Main causes: phase control board failure, wiring connection problem, faulty electronic control board…
Main causes: bad lubricating grease, mixer sitting idle for weeks at a time, mixer running constantly for more than 30 m…
Main cause: worn carbon motor brushes…
Main causes: bad worm gear, damaged planetary gear assembly…
Main cause: attachment clearance setting needs adjustment…
Main causes: lack of electrical power, wiring failure, worn carbon motor brushes, bad drive motor, tripped overload swit…
Most common repair guides to help fix your stand mixers
These step-by-step repair guides will help you safely fix what’s broken on your stand mixer.
How to replace a stand mixer worm gear
Here’s how to replace the worm gear in your stand mixer if it’s worn or damaged.…
Repair difficulty
Time required
30 minutes or less
How to replace a stand mixer phase control board
The phase control board works with the governor and control plate to control motor speed. Replace the phase control boar…
Repair difficulty
Time required
30 minutes or less
How to replace stand mixer motor brushes
If the carbon brushes are worn and damaged, replace them using these steps.…
Repair difficulty
Time required
15 minutes or less
Effective articles & videos to help repair your stand mixers
Use the advice and tips in these articles and videos to get the most out of your stand mixer.
Learn about all the convenient features on our Sears PartsDirect website that make your parts purchases easier.…
Learn some of the most common symbols found in a wiring diagram and what they mean.…
Learn how to use a multimeter to check for wiring problems in an appliance that's not working…
