Model # DNSR473GV0AA Official GE gas dryer
Here are the diagrams and repair parts for Official GE DNSR473GV0AA gas dryer, as well as links to manuals and error code tables, if available.
By Schematic
By Part
SELECT DIAGRAM
Browse Parts forDNSR473GV0AA Gas Dryer
- #313

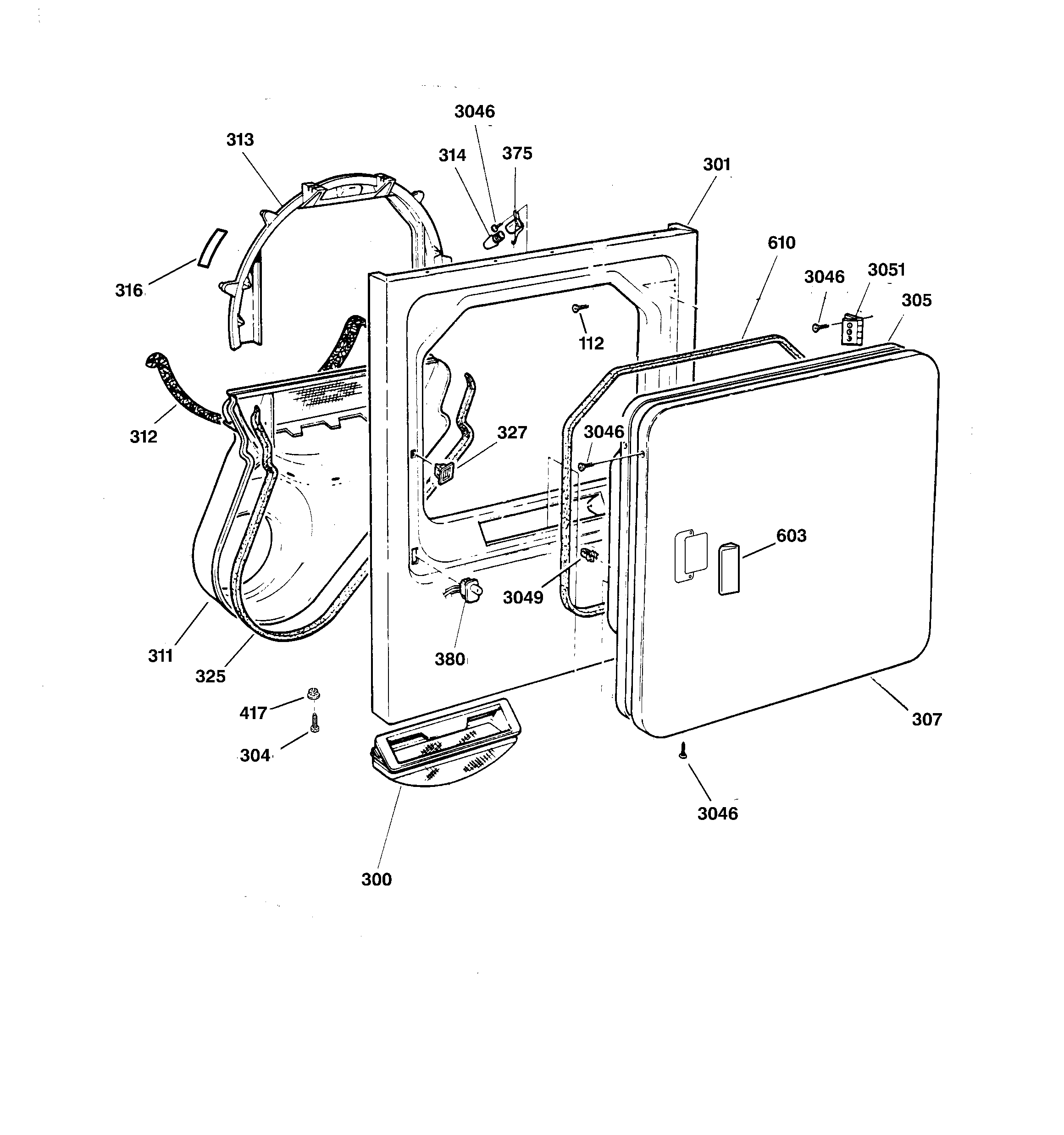

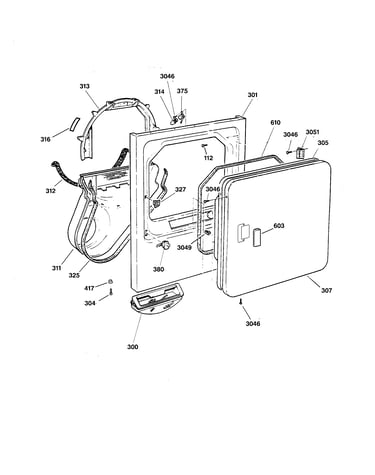

Front panel & door diagram
Drum bearingPart #WE03M0020
Replaced by #WE3M26
?Manufacturer substitutionThis part replaces WE03M0020. Substitute parts can look different from the original.$33.56 |15% OFF Phone Price : $39.56In Stock - #316
Front panel & door diagram
Slide drumPart #WE01M0316
Replaced by #WE03X37317
?Manufacturer substitutionThis part replaces WE01M0316. Substitute parts can look different from the original.$18.24 |7% OFF Phone Price : $19.71In Stock - #312
Front panel & door diagram
FeltPart #WE09M0015
Replaced by #WE09X27634
?Manufacturer substitutionThis part replaces WE09M0015. Substitute parts can look different from the original.$29.51 |17% OFF Phone Price : $35.51In Stock - #216

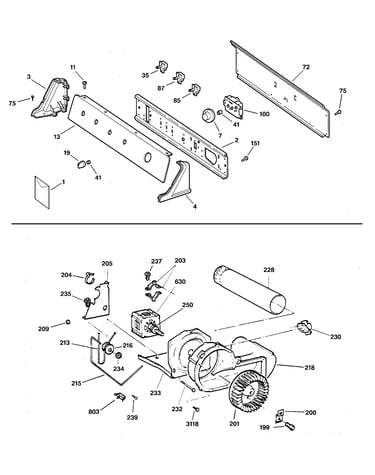

Backsplash, blower & motor assembly diagram
Idler pulleyPart #WE12M0008
Replaced by #WE03X31620
?Manufacturer substitutionThis part replaces WE12M0008. Substitute parts can look different from the original.$60.84In Stock - #316
Front panel & door diagram
Slide drumPart #WE01M0333
Replaced by #WE03X37318
?Manufacturer substitutionThis part replaces WE01M0333. Substitute parts can look different from the original.$10.69 |14% OFF Phone Price : $12.38In Stock - #311
Front panel & door diagram
Air ductPart #WE14M0076
Replaced by #WE14X25080
?Manufacturer substitutionThis part replaces WE14M0076. Substitute parts can look different from the original.$74.73 |5% OFF Phone Price : $78.55In Stock - #717

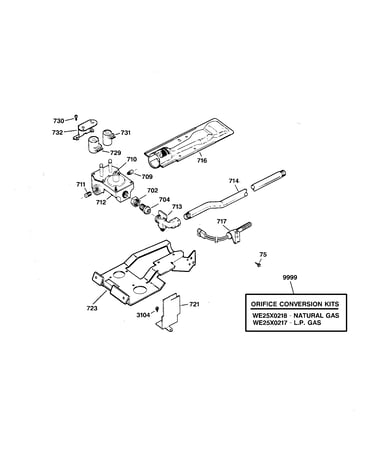

Gas valve & burner assembly diagram
IgniterPart #WE04X0739
Replaced by #WE04X25996
?Manufacturer substitutionThis part replaces WE04X0739. Substitute parts can look different from the original.$50.30 |11% OFF Phone Price : $56.30In Stock - #380
Front panel & door diagram
Door switchPart #WE04M0157
Replaced by #WE4M415
?Manufacturer substitutionThis part replaces WE04M0157. Substitute parts can look different from the original.$30.40 |16% OFF Phone Price : $36.40In Stock - #507
Drum diagram
Thermostat centerPart #WE4M0181
Replaced by #WE4M181
?Manufacturer substitutionThis part replaces WE4M0181. Substitute parts can look different from the original.$67.29In Stock - #630
Backsplash, blower & motor assembly diagram
MotorPart #WE17M0022
Replaced by #WE17X10010
?Manufacturer substitutionThis part replaces WE17M0022. Substitute parts can look different from the original.$209.34 |5% OFF Phone Price : $221.34In Stock
