Model # RJCT3664A Official Jade gas counter unit cooktop

Here are the diagrams and repair parts for Official Jade RJCT3664A gas counter unit cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |

Cleaner 20000008
#36

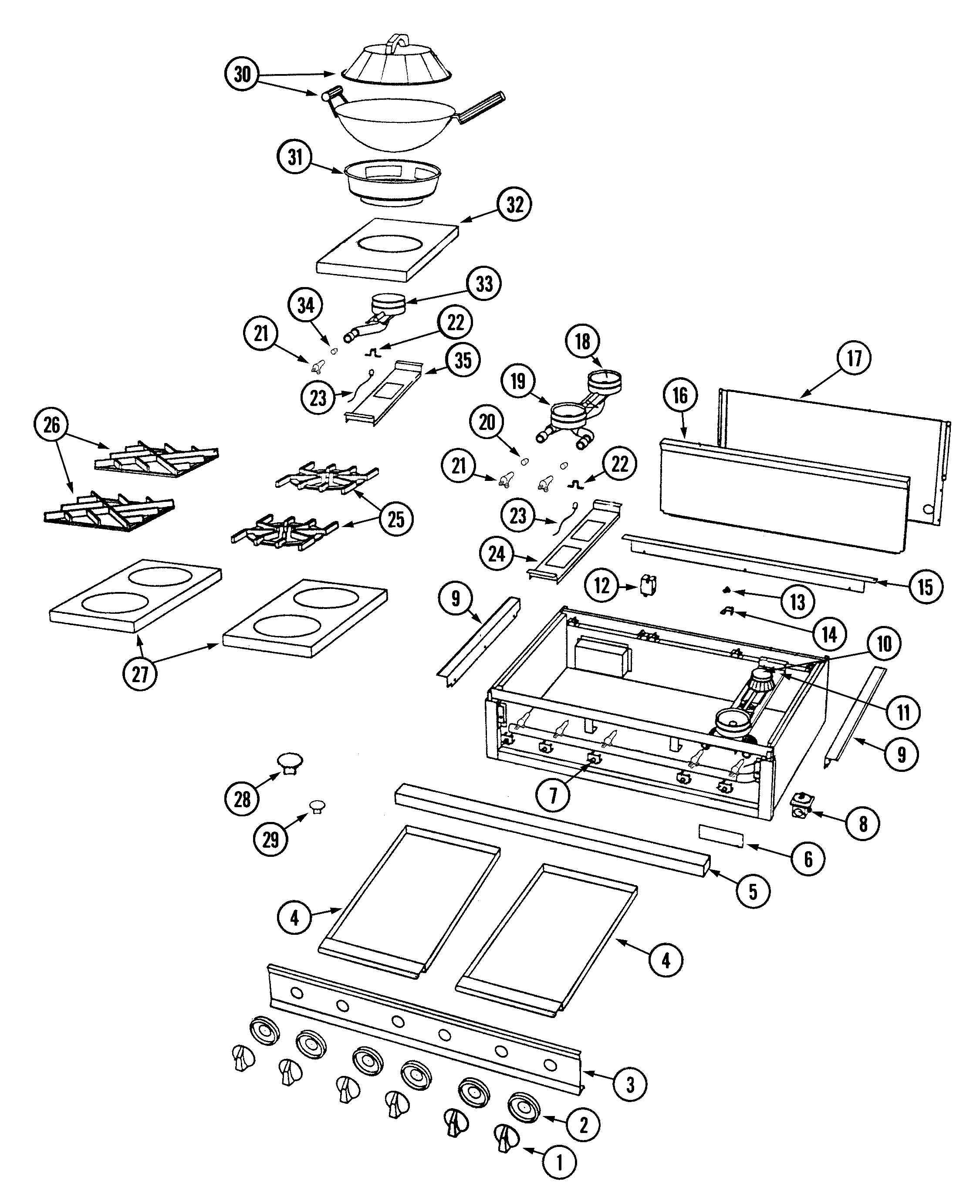

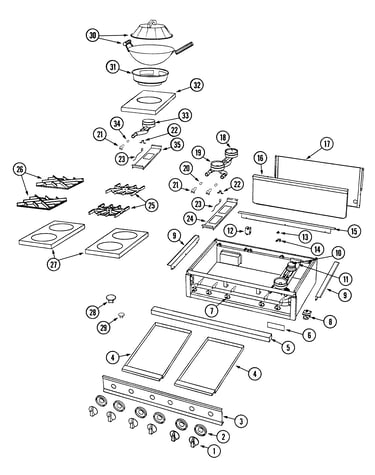

Top assembly/gas controls diagram

Cleaner

Part #20000008

The manufacturer no longer makes this part, and there's no substitute part

Plate 70001067
#32

Top assembly/gas controls diagram

Plate

Part #70001067

The manufacturer no longer makes this part, and there's no substitute part

Wok Orifice 70001071
#34

Top assembly/gas controls diagram

Wok orifice

Part #70001071

The manufacturer no longer makes this part, and there's no substitute part

Igniter Hood 70001037
#22

Top assembly/gas controls diagram

Igniter hood

Part #70001037

The manufacturer no longer makes this part, and there's no substitute part

Burner Valve 70001032
#21

Top assembly/gas controls diagram

Burner valve

Part #70001032

The manufacturer no longer makes this part, and there's no substitute part

Wok Adapter 70001388
#31

Top assembly/gas controls diagram

Wok adapter

Part #70001388

The manufacturer no longer makes this part, and there's no substitute part

Hanger Burner 70001054
#24

Top assembly/gas controls diagram

Hanger burner

Part #70001054

The manufacturer no longer makes this part, and there's no substitute part

Plate 70001052
#27

Top assembly/gas controls diagram

Plate

Part #70001052

The manufacturer no longer makes this part, and there's no substitute part

Wok Burner 70001387
#33

Top assembly/gas controls diagram

Wok burner

Part #70001387

The manufacturer no longer makes this part, and there's no substitute part

Bezel Knob 70001059
#2

Top assembly/gas controls diagram

Bezel knob

Part #70001059

The manufacturer no longer makes this part, and there's no substitute part
