Model # 262002, MAROON Official Weber outdoor grill - 425 ng

Here are the diagrams and repair parts for Official Weber 262002-MAROON outdoor grill - 425 ng, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Kenmore Gas Grill Igniter Kit 40826403
#12

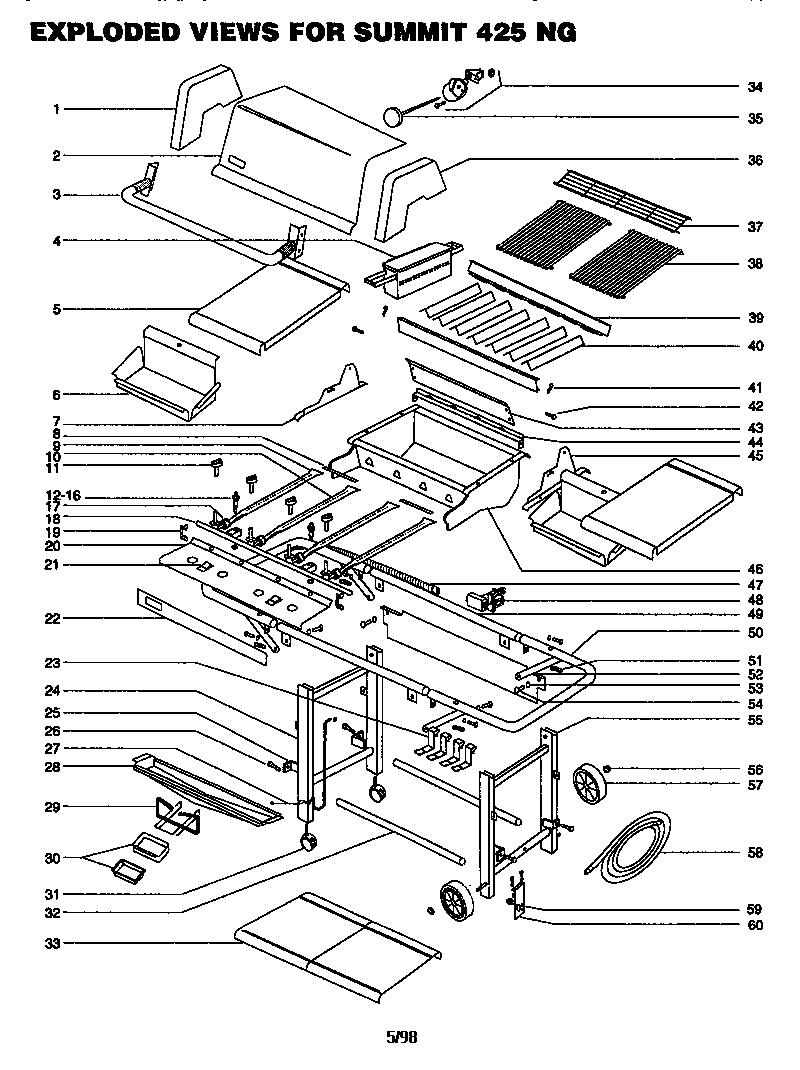

Replacement parts diagram

Kenmore gas grill igniter kit

Part #40826403

The manufacturer no longer makes this part, and there's no substitute part

Switch 97140
#21

Replacement parts diagram

Switch

Part #97140

The manufacturer no longer makes this part, and there's no substitute part

Shroud 98186
#2A

Replacement parts diagram

Shroud

Part #98186

The manufacturer no longer makes this part, and there's no substitute part

Tool Holder 97455
#23

Replacement parts diagram

Tool holder

Part #97455

The manufacturer no longer makes this part, and there's no substitute part

Qtr Panel 97262
#52

Replacement parts diagram

Qtr panel

Part #97262

The manufacturer no longer makes this part, and there's no substitute part

Warming Rack 97339
#37

Replacement parts diagram

Warming rack

Part #97339

The manufacturer no longer makes this part, and there's no substitute part

Bracket 4978675
#27C

Replacement parts diagram

Bracket

Part #4978675

The manufacturer no longer makes this part, and there's no substitute part

Panel 98040
#22

Replacement parts diagram

Panel

Part #98040

The manufacturer no longer makes this part, and there's no substitute part

Shroud 98188
#2C

Replacement parts diagram

Shroud

Part #98188

The manufacturer no longer makes this part, and there's no substitute part

Wire 92113
#15

Replacement parts diagram

Wire

Part #92113

The manufacturer no longer makes this part, and there's no substitute part
