Model # 11077675200 Official Kenmore gas dryer
Here are the diagrams and repair parts for Official Kenmore 11077675200 gas dryer, as well as links to manuals and error code tables, if available.
By Schematic
By Part

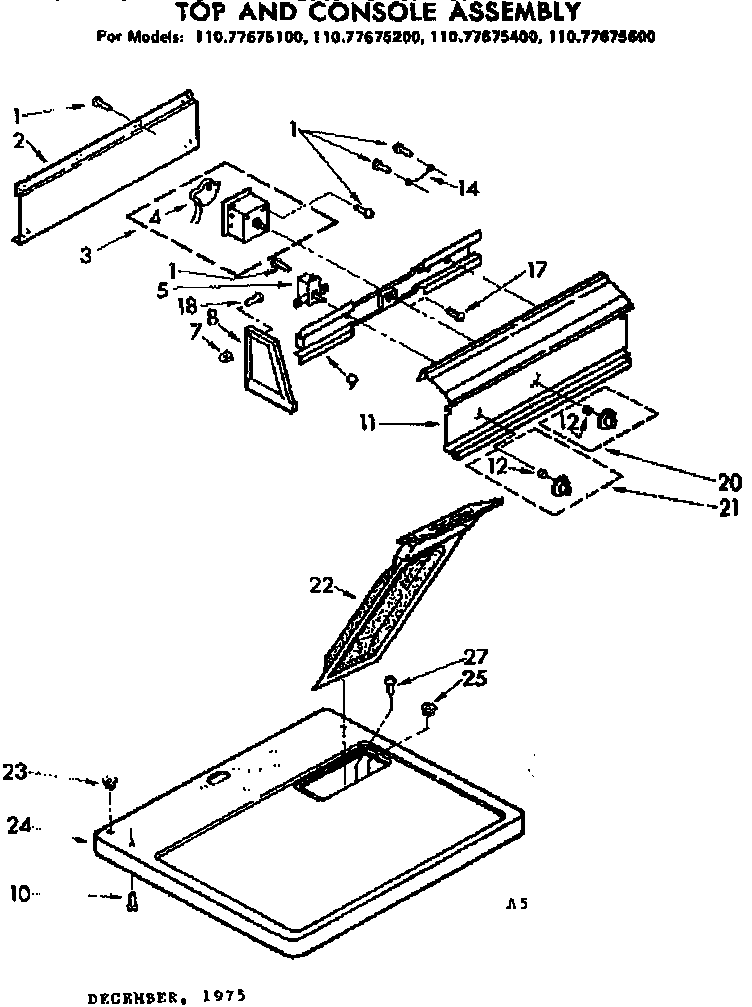

SELECT DIAGRAM
Browse Parts for
11077675200 Gas Dryer
#30

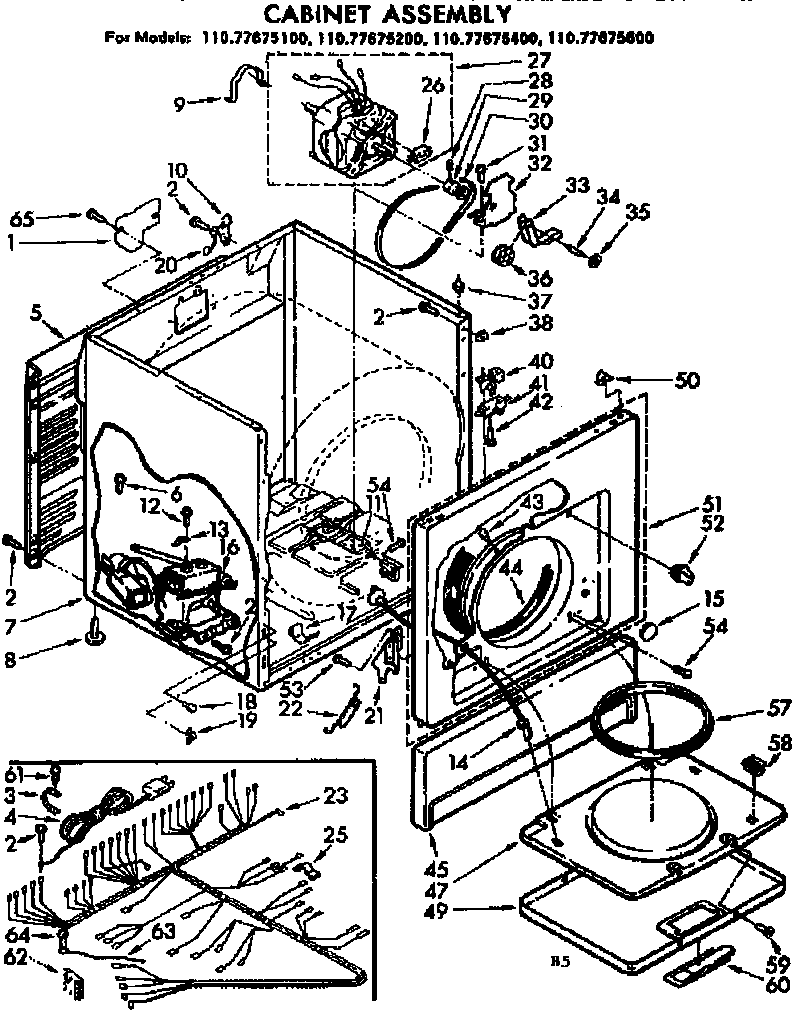

Cabinet assembly diagram
Drum belt
Part #349533
Replaced by #341241
?
Manufacturer substitution
This part replaces 349533. Substitute parts can look different from the original.
$12.51 |
14% OFF Phone Price : $14.51
In Stock
#34
Cabinet assembly diagram
Shaft pulley
Part #337407
Replaced by #WP691366
?
Manufacturer substitution
This part replaces 337407. Substitute parts can look different from the original.
$15.83 |
11% OFF Phone Price : $17.83
In Stock
#33
Cabinet assembly diagram
Bracket
Part #337510
Replaced by #WP691366
?
Manufacturer substitution
This part replaces 337510. Substitute parts can look different from the original.
$15.83 |
11% OFF Phone Price : $17.83
In Stock
#36
Cabinet assembly diagram
Pulley
Part #347226
Replaced by #WP691366
?
Manufacturer substitution
This part replaces 347226. Substitute parts can look different from the original.
$15.83 |
11% OFF Phone Price : $17.83
In Stock
#27
Cabinet assembly diagram
Motor
Part #346744
Replaced by #279827
?
Manufacturer substitution
This part replaces 346744. Substitute parts can look different from the original.
$78.88 |
7% OFF Phone Price : $84.88
In Stock
#26C
Cabinet assembly diagram
Switch
Part #349588
Replaced by #279827
?
Manufacturer substitution
This part replaces 349588. Substitute parts can look different from the original.
$78.88 |
7% OFF Phone Price : $84.88
In Stock
#26A
Cabinet assembly diagram
Switch
Part #337351
Replaced by #279827
?
Manufacturer substitution
This part replaces 337351. Substitute parts can look different from the original.
$78.88 |
7% OFF Phone Price : $84.88
In Stock
#37

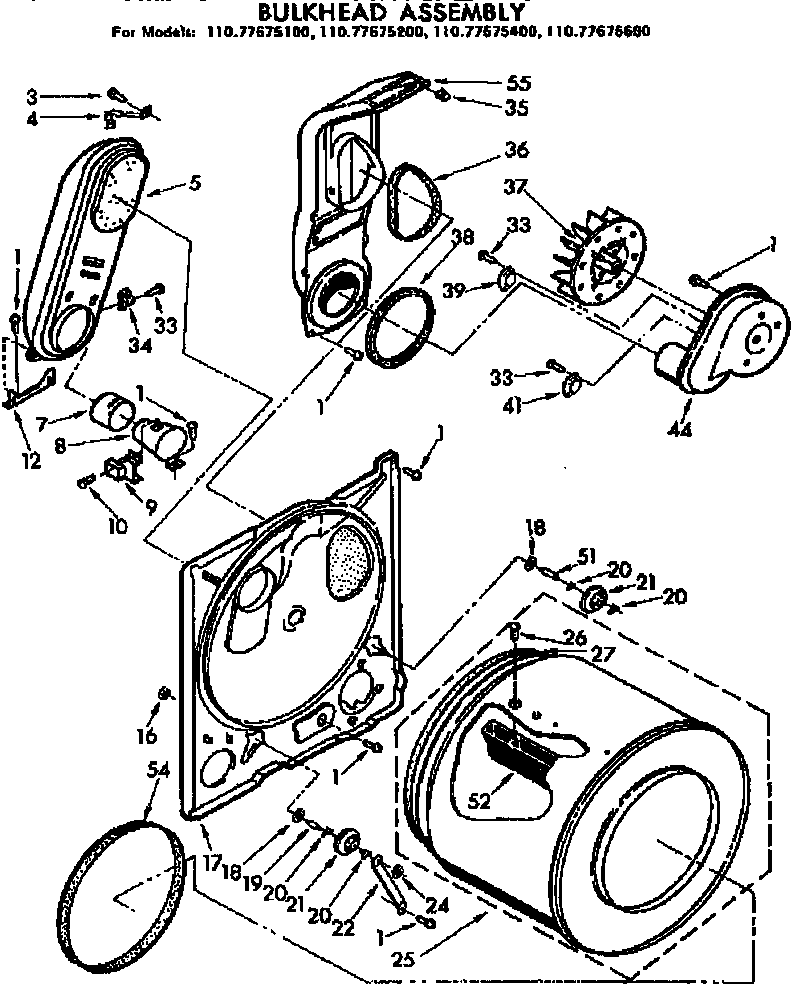

Bulkhead assembly diagram
Dryer blower wheel
Part #343939
Replaced by #WP694089
?
Manufacturer substitution
This part replaces 343939. Substitute parts can look different from the original.
$26.90 |
18% OFF Phone Price : $32.90
In Stock
#58
Cabinet assembly diagram
Door catch
Part #347813
Replaced by #279570
?
Manufacturer substitution
This part replaces 347813. Substitute parts can look different from the original.
This item is not returnable
$4.13 |
19% OFF Phone Price : $5.13
In Stock
#52
Cabinet assembly diagram
Door strike
Part #236876
Replaced by #279570
?
Manufacturer substitution
This part replaces 236876. Substitute parts can look different from the original.
This item is not returnable
$4.13 |
19% OFF Phone Price : $5.13
In Stock
