Electric Range

Model # 7909611340D Official Kenmore electric range

Here are the diagrams and repair parts for Official Kenmore 7909611340D electric range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

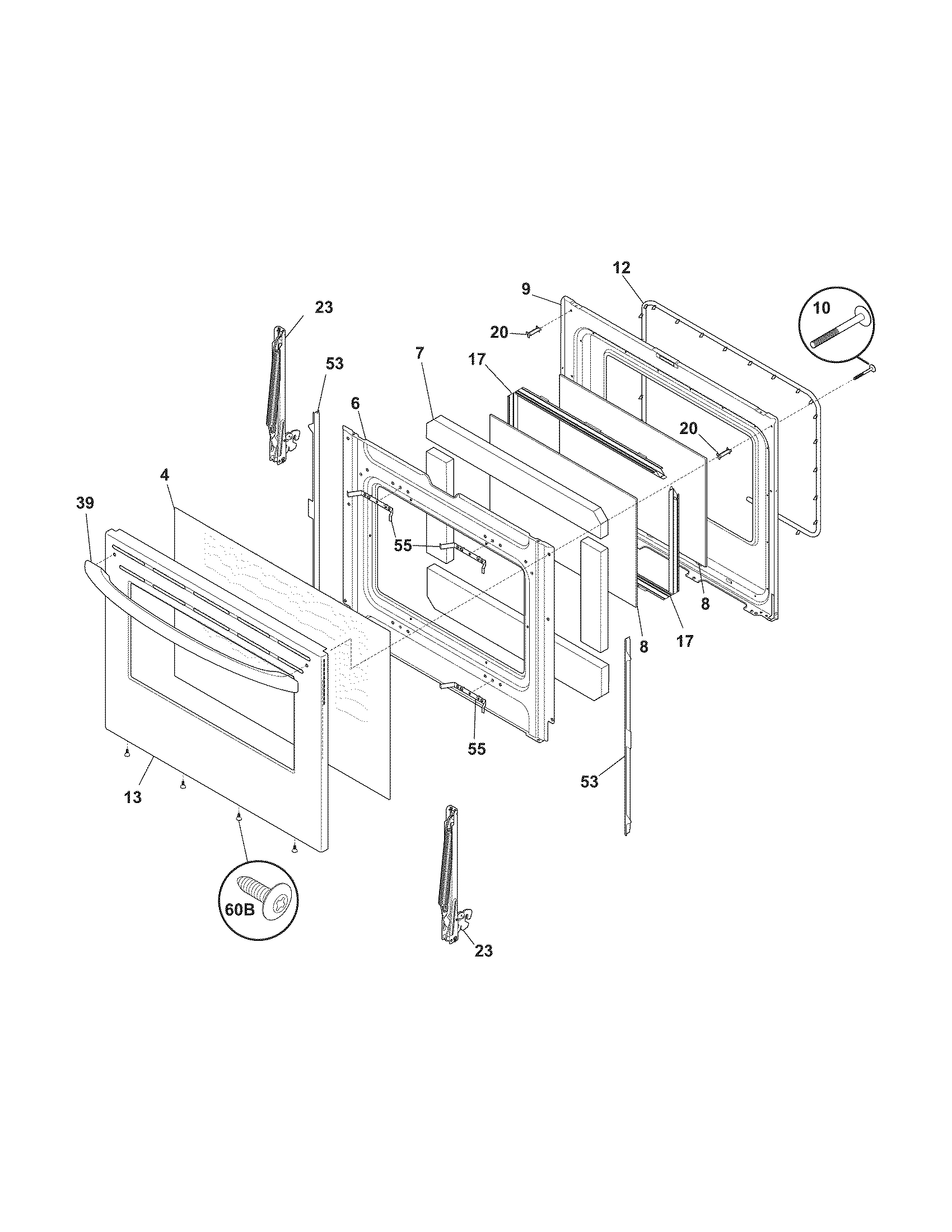

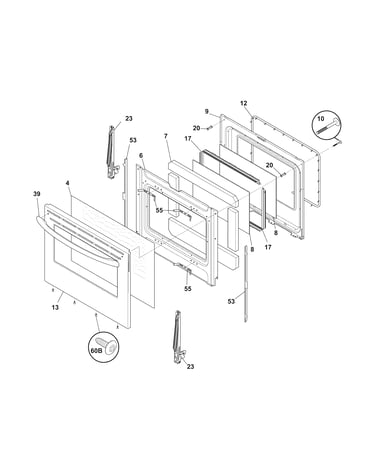

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
7909611340D Ranges
Frigidaire Range Surface Element Control Switch (replaces 316021501, 5304506425) 316436001
#54A

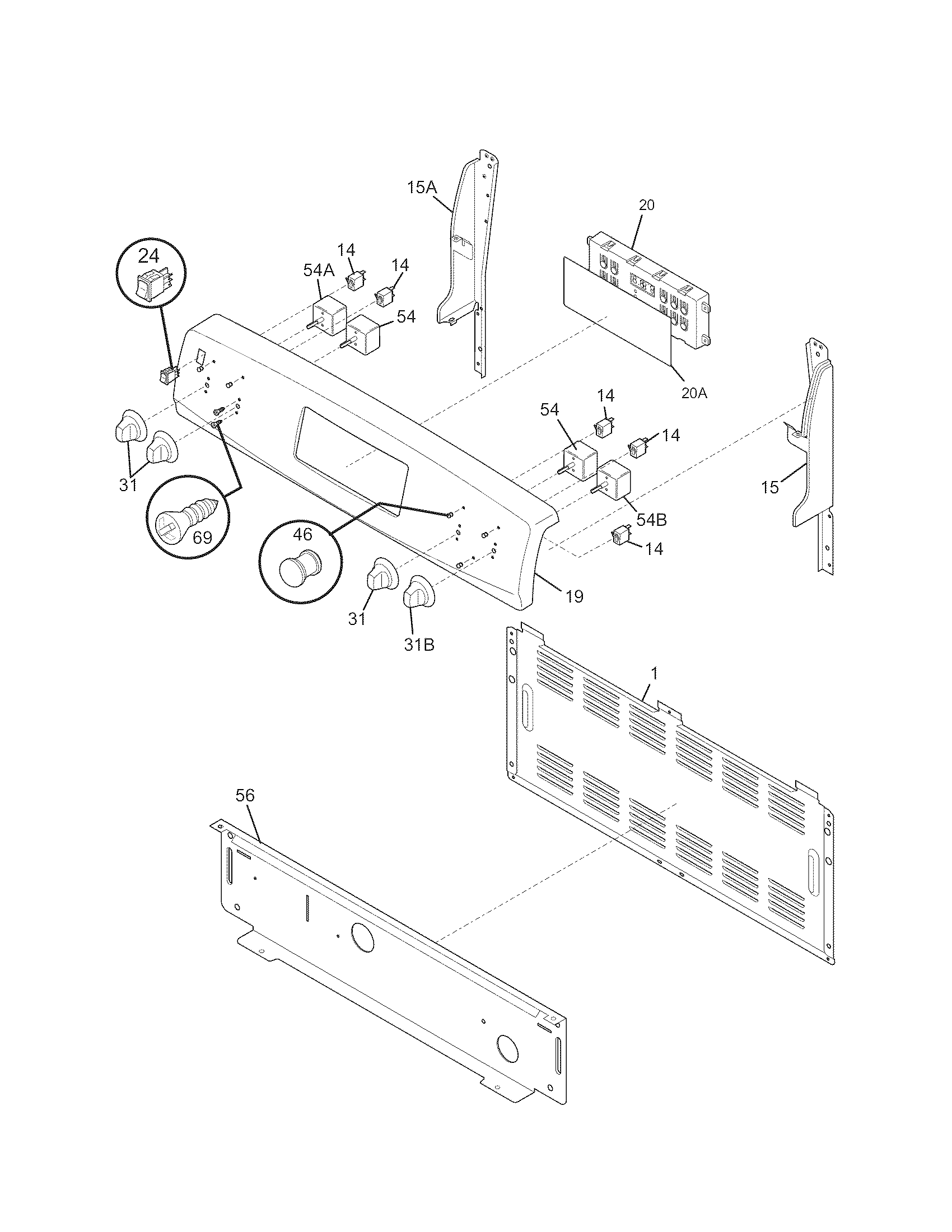

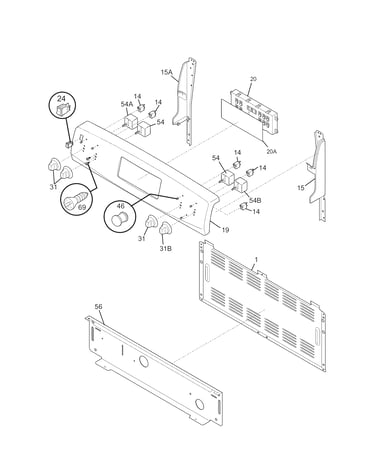

Backguard diagram

Frigidaire range surface element control switch (replaces 316021501, 5304506425)

Part #316436001

4.55 (113)
BEST SELLER
$33.15 |
15% OFF Phone Price : $39.15
In Stock
Frigidaire Range Oven Temperature Sensor (replaces 316490003) 316490000
#37

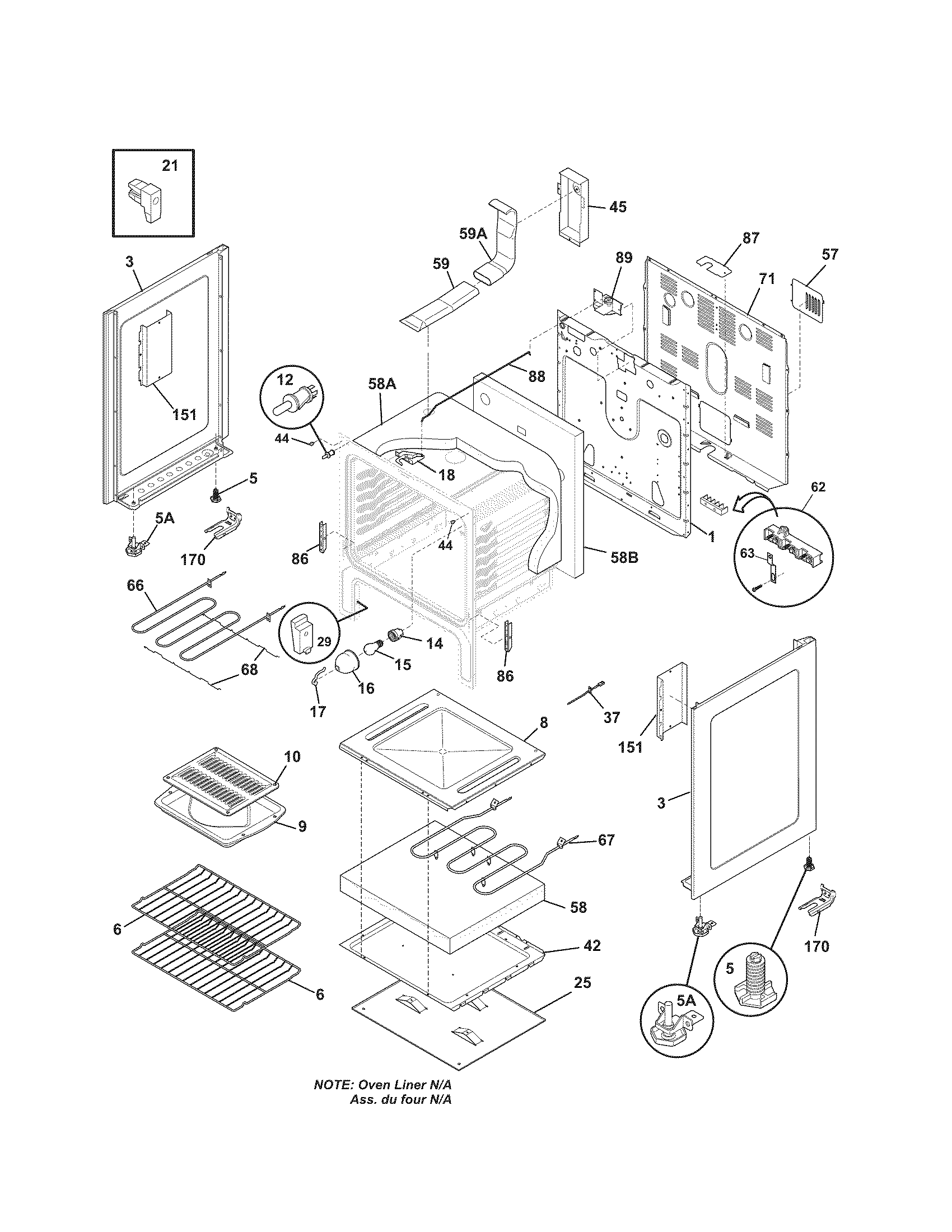

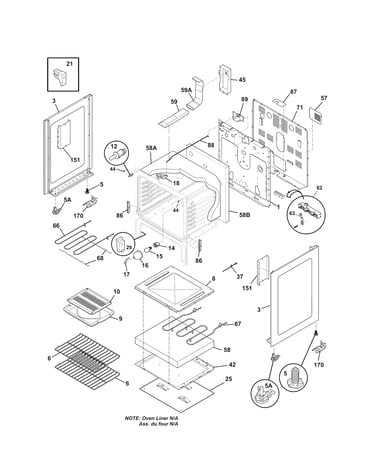

Body diagram

Frigidaire range oven temperature sensor (replaces 316490003)

Part #316490000

3.83 (36)
BEST SELLER
$36.99 |
14% OFF Phone Price : $42.99
In Stock
Appliance Light Bulb, 40-watt 316538901
#15

Body diagram

Appliance light bulb, 40-watt

Part #316538901

Replaced by #316538904

?
Manufacturer substitution
This part replaces 316538901. Substitute parts can look different from the original.
5 (2)
BEST SELLER
$17.47 |
10% OFF Phone Price : $19.47
In Stock
Cooktop Surface Element Control Switch 316238200
#54B

Backguard diagram

Cooktop surface element control switch

Part #316238200

Replaced by #316238201

?
Manufacturer substitution
This part replaces 316238200. Substitute parts can look different from the original.
3.64 (22)
BEST SELLER
$89.62 |
6% OFF Phone Price : $95.62
In Stock
Frigidaire Range Radiant Surface Element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110) 318178110
#15

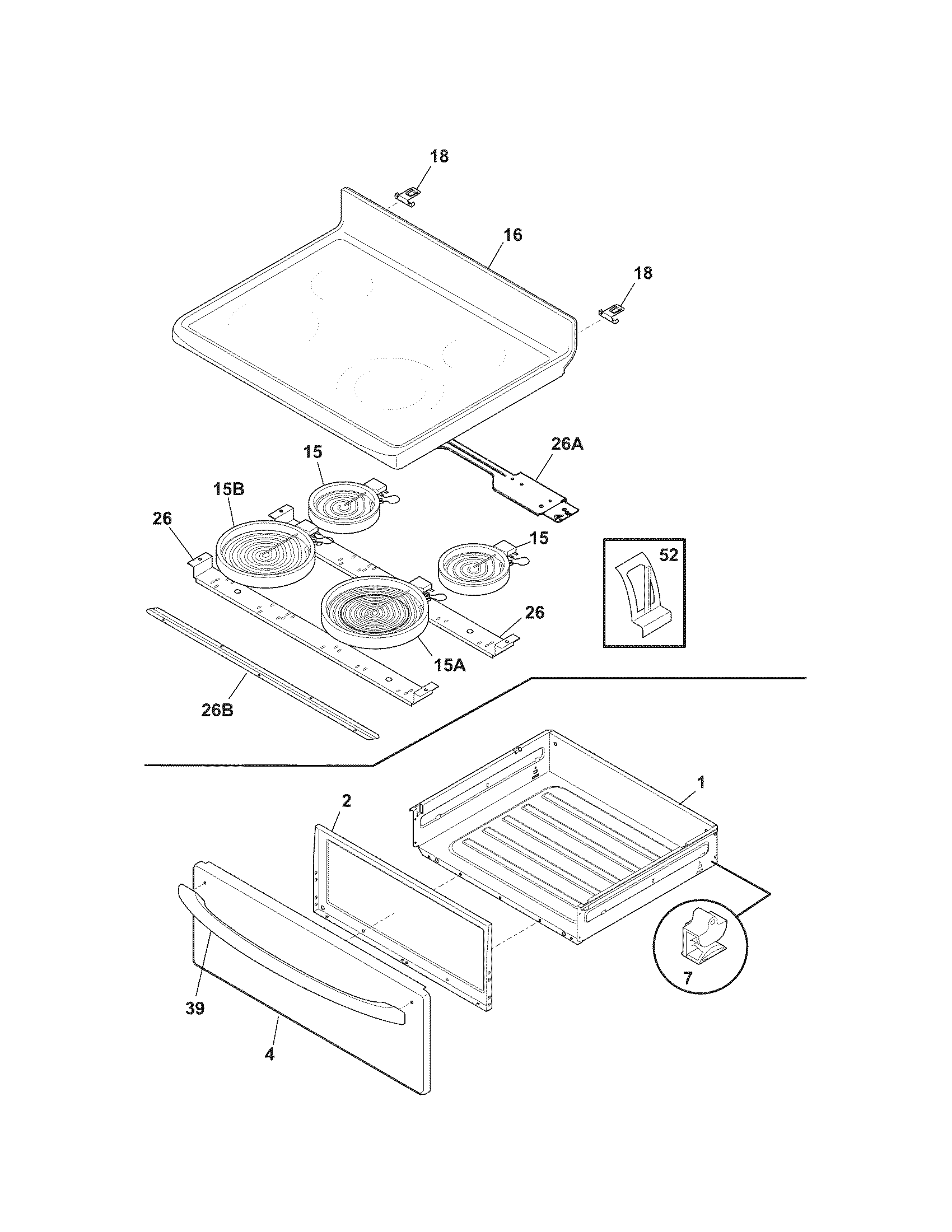

Top/drawer diagram

Frigidaire range radiant surface element, 6-in (replaces 316010205, 318198846, 31878110, 7318178110)

Part #318178110

4.35 (20)
BEST SELLER
$92.01 |
6% OFF Phone Price : $98.01
In Stock
Range Control Overlay 316419109
#20A

Backguard diagram

Range control overlay

Part #316419109

Replaced by #316419141

?
Manufacturer substitution
This part replaces 316419109. Substitute parts can look different from the original.
5 (3)
BEST SELLER
$36.41 |
14% OFF Phone Price : $42.41
In Stock
Range Indicator Light Lens (replaces 316437800) 316557300
#46

Backguard diagram

Range indicator light lens (replaces 316437800)

Part #316557300

5 (2)
BEST SELLER
$13.63 |
13% OFF Phone Price : $15.63
In Stock
Frigidaire Tappan Range Radiant Surface Element, 9-in (replaces 316224200, 316224201) 316135401
#15B

Top/drawer diagram

Frigidaire tappan range radiant surface element, 9-in (replaces 316224200, 316224201)

Part #316135401

4.31 (13)
BEST SELLER
$97.87 |
11% OFF Phone Price : $109.87
In Stock
Range Indicator Light 316022500
#14

Backguard diagram

Range indicator light

Part #316022500

4.33 (6)
BEST SELLER
$42.64 |
12% OFF Phone Price : $48.64
In Stock
Universal/multiflex (frigidaire) Range Terminal Block (replaces 75303935271) 5303935271
#62

Body diagram

Universal/multiflex (frigidaire) range terminal block (replaces 75303935271)

Part #5303935271

4.67 (9)
BEST SELLER
$38.49 |
13% OFF Phone Price : $44.49
In Stock
