Model # 6477147340 Official Kenmore 30" gas range

Here are the diagrams and repair parts for Official Kenmore 6477147340 30" gas range, as well as links to manuals and error code tables, if available.

By Schematic
By Part

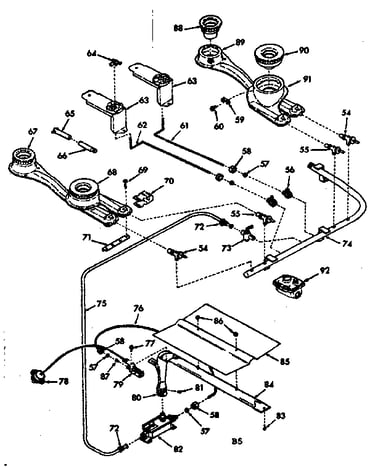

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
6477147340 Ranges
Lamp Bulb 630610
#130

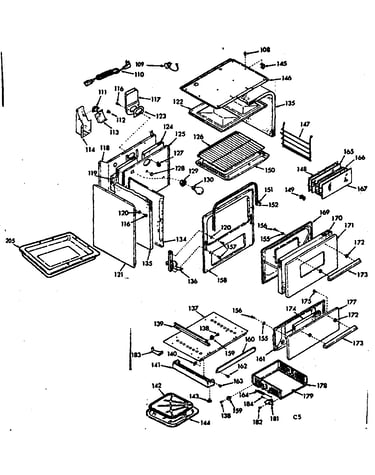

Body section diagram

Lamp bulb

Part #630610

Replaced by #40A15

?
Manufacturer substitution
This part replaces 630610. Substitute parts can look different from the original.
1.72 (18)
BEST SELLER
$17.23 |
10% OFF Phone Price : $19.23
In Stock
Lamp Bulb 99035
#52

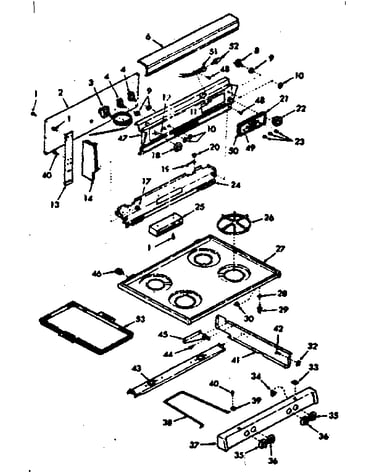

Backguard and main top section diagram

Lamp bulb

Part #99035

Replaced by #STD372071

?
Manufacturer substitution
This part replaces 99035. Substitute parts can look different from the original.
3.63 (8)
This item is not returnable
$4.87 |
17% OFF Phone Price : $5.87
In Stock
Screw 105771
#330

Optional rotisserie diagram

Screw

Part #105771

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces 105771. Substitute parts can look different from the original.
This item is not returnable
$9.16 |
10% OFF Phone Price : $10.16
In Stock
Glass Gasket 105025
#148

Body section diagram

Glass gasket

Part #105025

Replaced by #WB2X9168

?
Manufacturer substitution
This part replaces 105025. Substitute parts can look different from the original.
1 (1)
This item is not returnable
$14.24 |
12% OFF Phone Price : $16.24
In Stock
Screw 120791
#157

Body section diagram

Screw

Part #120791

Replaced by #WB1X1137

?
Manufacturer substitution
This part replaces 120791. Substitute parts can look different from the original.
$8.37 |
11% OFF Phone Price : $9.37
In Stock
Cook Top Side Trim Kit Spit Support 282922
#339

Optional rotisserie diagram

Cook top side trim kit spit support

Part #282922

$45.99
In Stock
Lead Wire (white) 284278
#342

Optional rotisserie diagram

Lead wire (white)

Part #284278

This item is not returnable
$2.29
In Stock
Screw 102428
Screw

Part #102428

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 102428. Substitute parts can look different from the original.
$9.16 |
10% OFF Phone Price : $10.16
In Stock
Trim Clip 70588
Trim clip

Part #70588

Replaced by #WB2X9573

?
Manufacturer substitution
This part replaces 70588. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Screw 102430
Screw

Part #102430

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 102430. Substitute parts can look different from the original.
$9.16 |
10% OFF Phone Price : $10.16
In Stock
