Model # FTQ352IWUW/XAA-00 Official Samsung range

Here are the diagrams and repair parts for Official Samsung FTQ352IWUW-XAA-00 range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

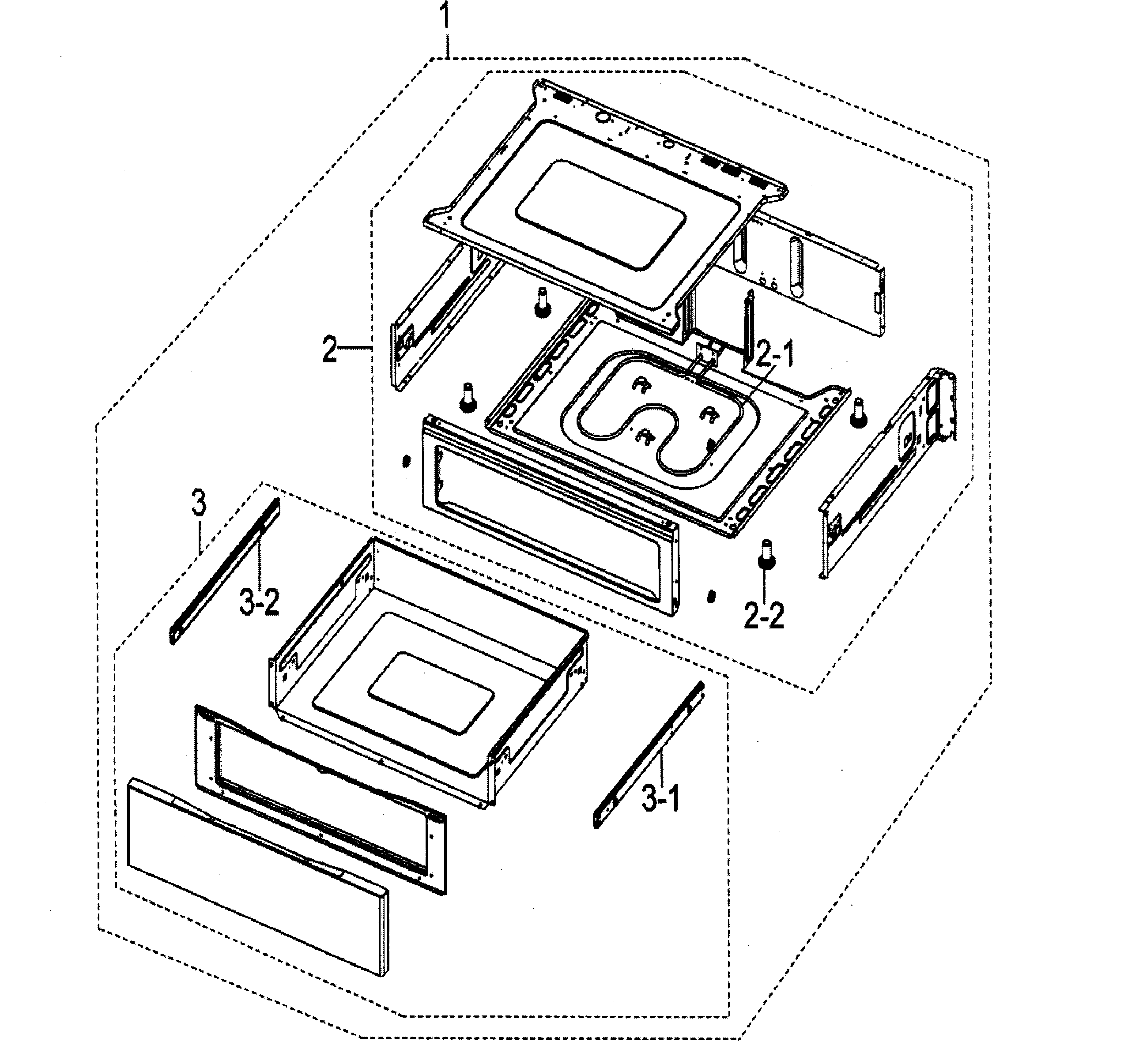

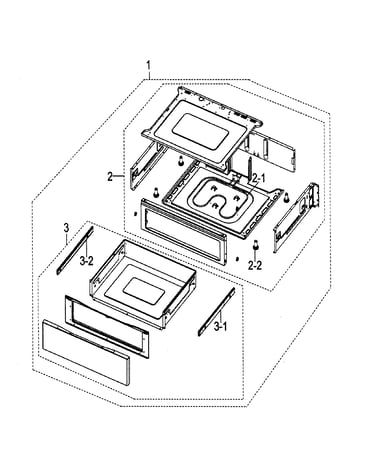

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 72 parts  |
Range Surface Element Control Switch DG44-01002A
#1-3

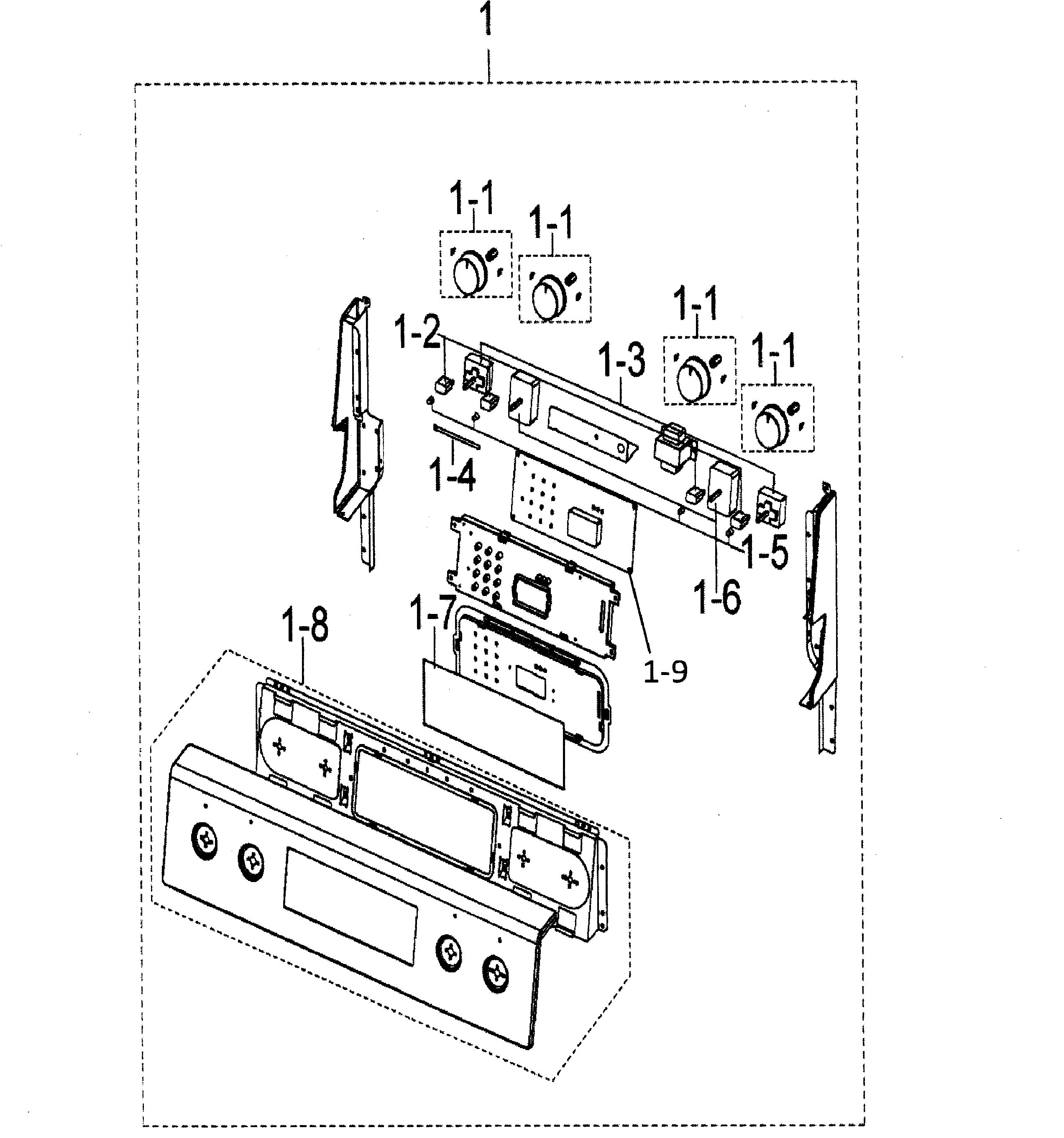

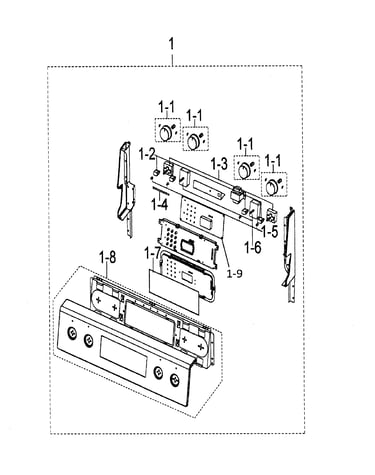

Control panel diagram

Range surface element control switch

Part #DG44-01002A

BEST SELLER
$106.52 |
10% OFF Phone Price : $118.52
In Stock
Range Oven Door Switch DG34-00006A
#18

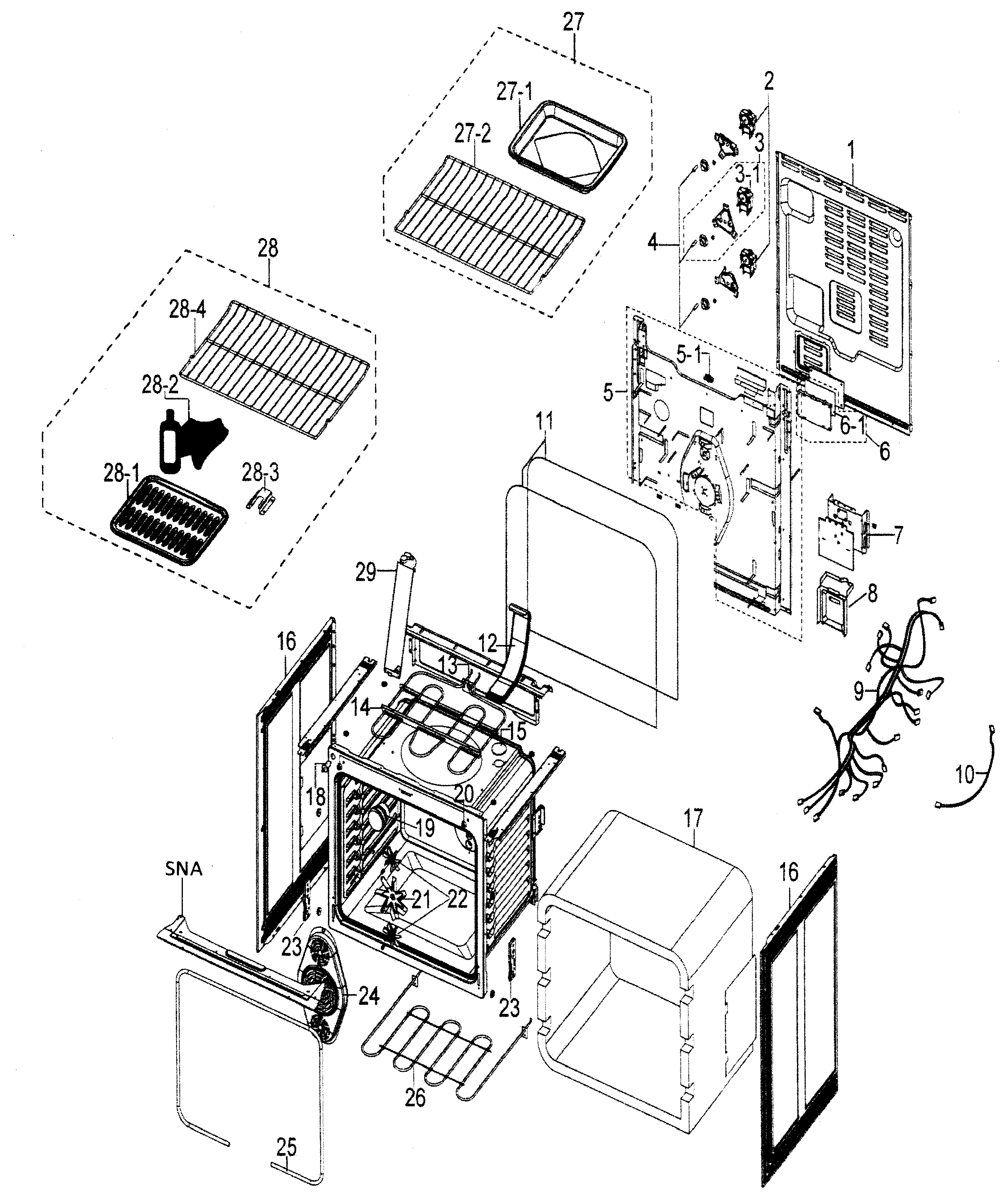

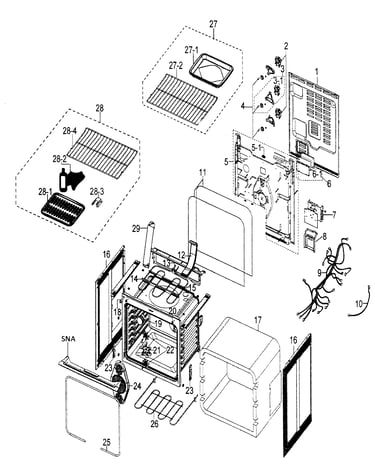

Cabinet parts diagram

Range oven door switch

Part #DG34-00006A

BEST SELLER
This item is not returnable
$35.15 |
15% OFF Phone Price : $41.15
In Stock
Range High-limit Thermostat DE47-20037A
#5-1

Cabinet parts diagram

Range high-limit thermostat

Part #DE47-20037A

BEST SELLER
$18.39 |
10% OFF Phone Price : $20.39
In Stock
Cooktop Indicator Light Lens DG67-00022A
#1-5

Control panel diagram

Cooktop indicator light lens

Part #DG67-00022A

BEST SELLER
This item is not returnable
$2.71
In Stock
Range Bake Element DG47-00020A
#26

Cabinet parts diagram

Range bake element

Part #DG47-00020A

$127.94
Back Order
Range Convection Fan Motor (replaces Dg97-00127a) DG31-00005A
#3-1

Cabinet parts diagram

Range convection fan motor (replaces dg97-00127a)

Part #DG31-00005A

$114.08 |
10% OFF Phone Price : $126.08
In Stock
Range Oven Insulation DG62-00011A
#17

Cabinet parts diagram

Range oven insulation

Part #DG62-00011A

$130.46 |
8% OFF Phone Price : $142.46
Back Order
Range Dual Radiant Surface Element DG47-00022A
#1-10

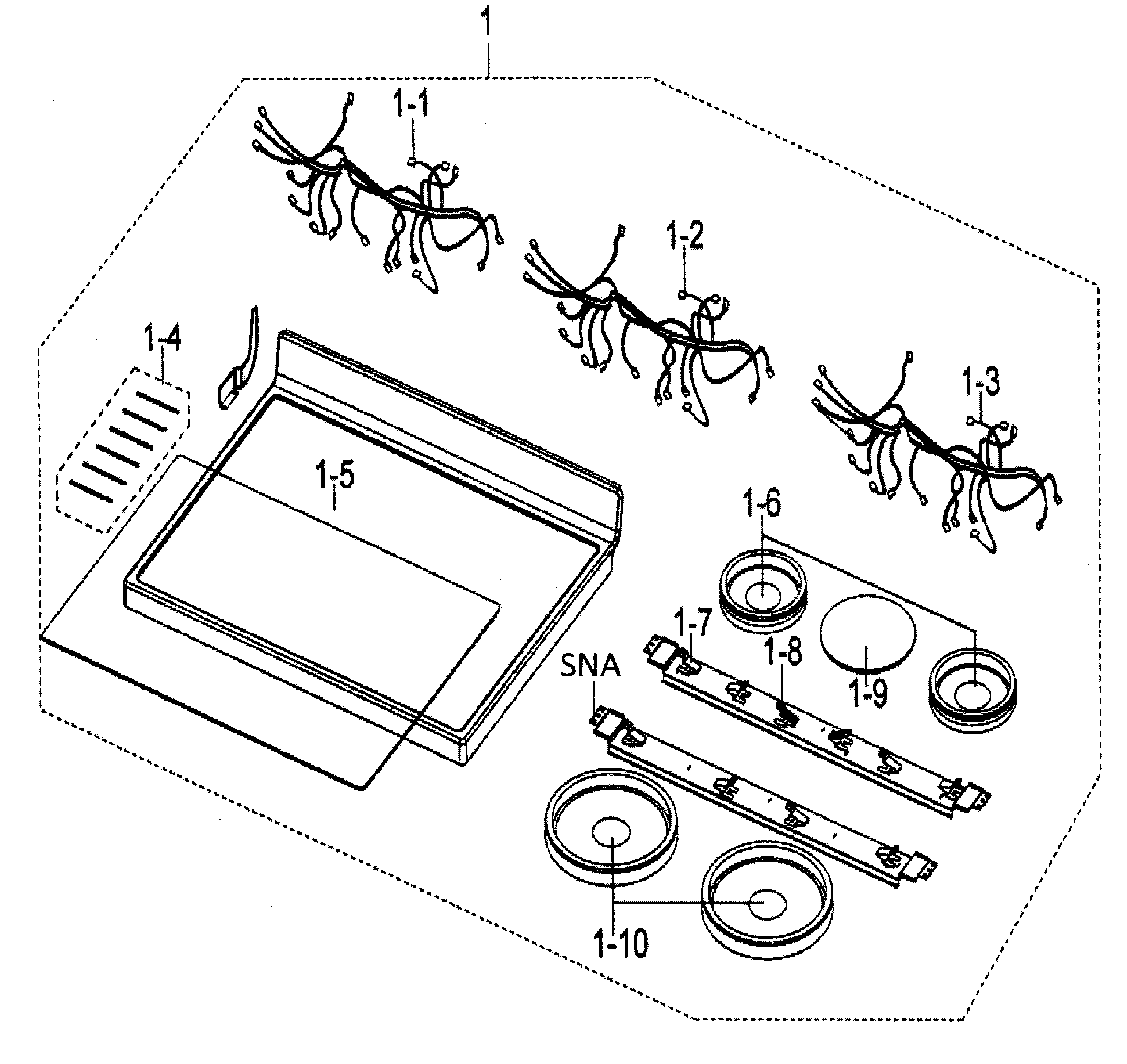

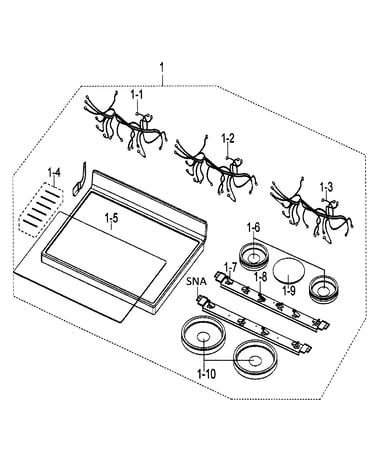

Cooktop diagram

Range dual radiant surface element

Part #DG47-00022A

$154.77 |
7% OFF Phone Price : $166.77
In Stock
Range Oven Door Inner Glass DG64-00133A
#1-3

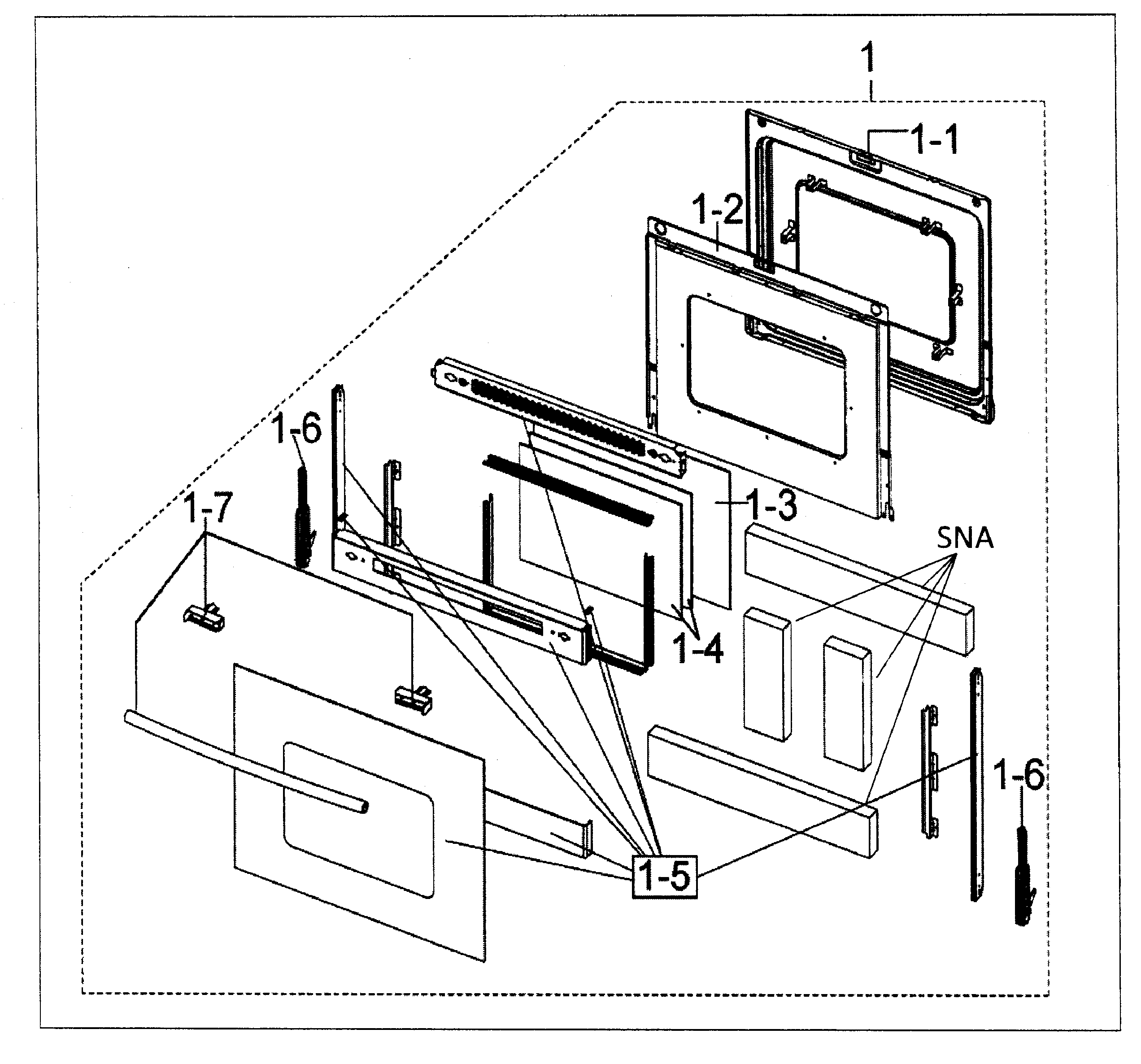

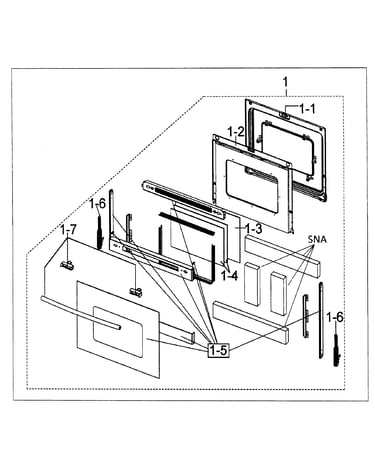

Door assy diagram

Range oven door inner glass

Part #DG64-00133A

$58.12 |
9% OFF Phone Price : $64.12
In Stock
Flat Rack DG75-01001A
Flat rack

Part #DG75-01001A

Replaced by #DG75-01001D

?
Manufacturer substitution
This part replaces DG75-01001A. Substitute parts can look different from the original.
$117.71 |
9% OFF Phone Price : $129.71
In Stock
