Model # 315271970 Official Craftsman 3/8" cordless drill/driver

Here are the diagrams and repair parts for Official Craftsman 315271970 3/8" cordless drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 28 parts  |
Battery 975172-001
#4

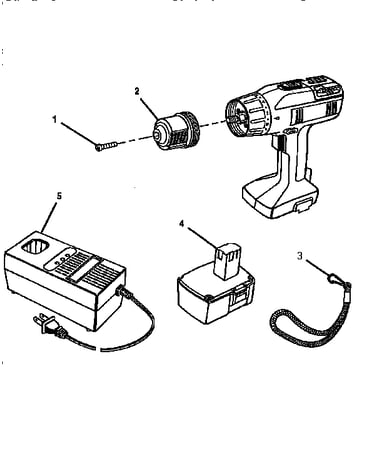

Unit parts diagram

Battery

Part #975172-001

The manufacturer no longer makes this part, and there's no substitute part

Clutch Cap 975261-000
#6

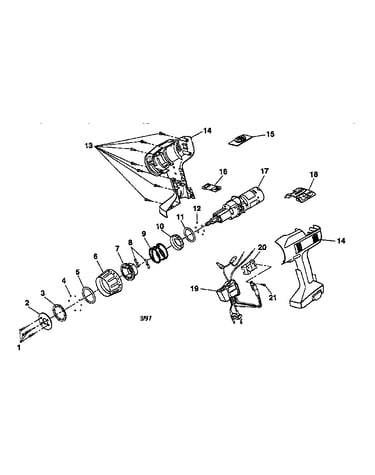

Motor and housing assembly diagram

Clutch cap

Part #975261-000

The manufacturer no longer makes this part, and there's no substitute part

Clip 974362-000
#8

Motor and housing assembly diagram

Clip

Part #974362-000

The manufacturer no longer makes this part, and there's no substitute part

Screw 974367-000
#1

Motor and housing assembly diagram

Screw

Part #974367-000

The manufacturer no longer makes this part, and there's no substitute part

Gear Bottom 974365-000
#15

Motor and housing assembly diagram

Gear bottom

Part #974365-000

The manufacturer no longer makes this part, and there's no substitute part

Charger 975208-001
#5

Unit parts diagram

Charger

Part #975208-001

The manufacturer no longer makes this part, and there's no substitute part

Spring 974357-000
#9

Motor and housing assembly diagram

Spring

Part #974357-000

The manufacturer no longer makes this part, and there's no substitute part

Ring 974360-000
#10

Motor and housing assembly diagram

Ring

Part #974360-000

The manufacturer no longer makes this part, and there's no substitute part

Motor 975265-000
#17

Motor and housing assembly diagram

Motor

Part #975265-000

The manufacturer no longer makes this part, and there's no substitute part

Ball Ret 974361-000
#3

Motor and housing assembly diagram

Ball ret

Part #974361-000

The manufacturer no longer makes this part, and there's no substitute part
