Caloric
Gas Wall Oven

Model # RXS212 Official Caloric gas built-in oven

Here are the diagrams and repair parts for Official Caloric RXS212 gas built-in oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 149 parts  |
Front Cross Channel 75-095787-00-0
#10

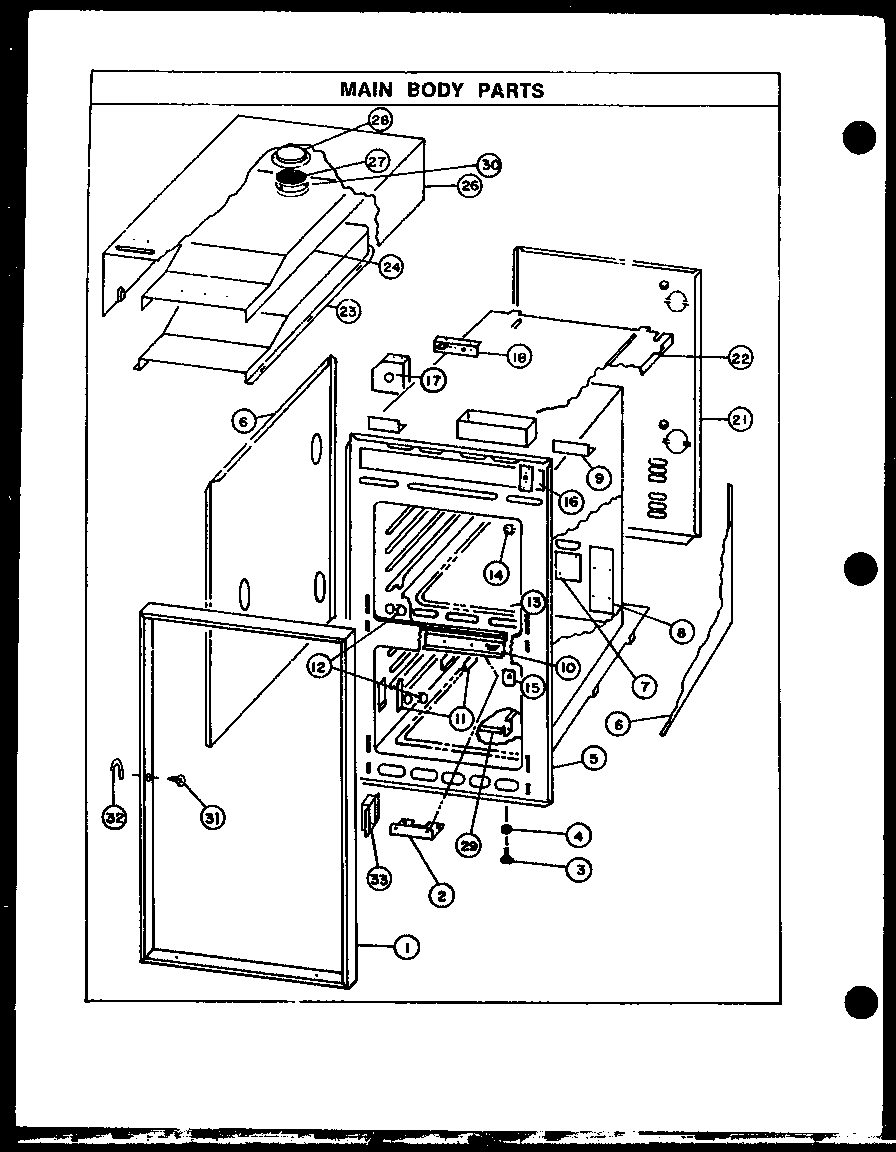

Cabinet parts diagram

Front cross channel

Part #75-095787-00-0

The manufacturer no longer makes this part, and there's no substitute part

Button Plug 35916
#14

Cabinet parts diagram

Button plug

Part #35916

The manufacturer no longer makes this part, and there's no substitute part

Oven Light Switch Knob 07-064412-02-0
#5

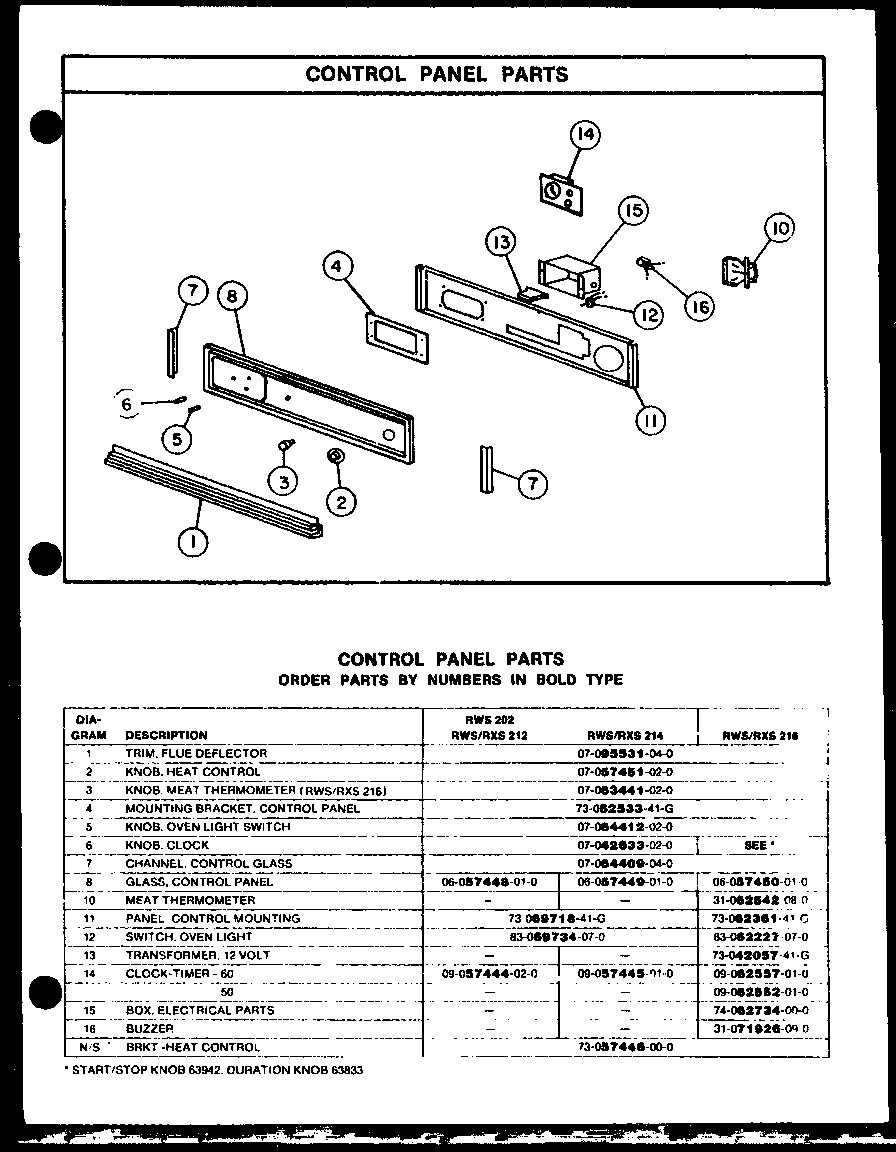

Control panel parts diagram

Oven light switch knob

Part #07-064412-02-0

The manufacturer no longer makes this part, and there's no substitute part

Hinge Socket - Right Hand 68-035096-00-0
#14A

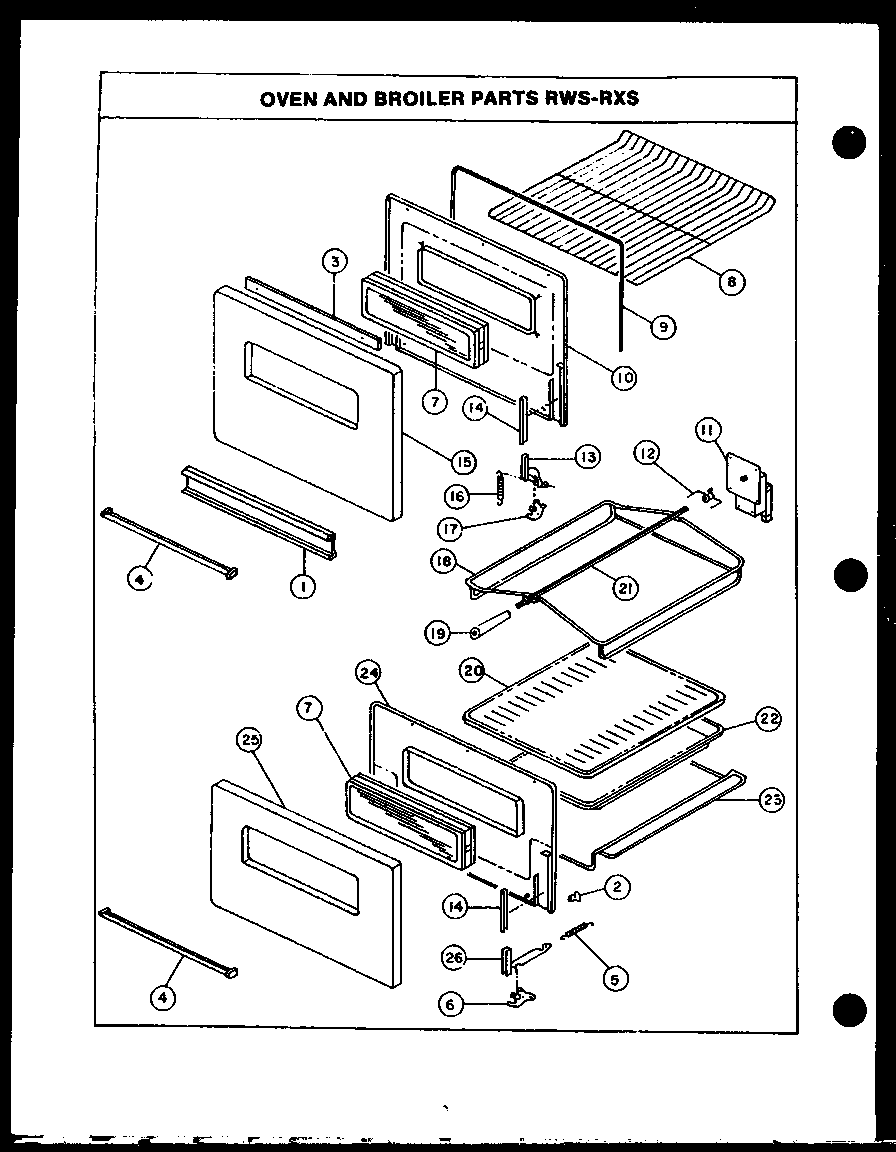

Oven and broiler parts rws-rxs diagram

Hinge socket - right hand

Part #68-035096-00-0

The manufacturer no longer makes this part, and there's no substitute part

Backer, Broiler Door, W/window 84-077254-05-CG
#24A

Oven and broiler parts rws-rxs diagram

Backer, broiler door, w/window

Part #84-077254-05-CG

The manufacturer no longer makes this part, and there's no substitute part

Cover, Oven Back 75-094645-00-0
#15

Cabinet parts diagram

Cover, oven back

Part #75-094645-00-0

The manufacturer no longer makes this part, and there's no substitute part

Box, Electrical Parts 74-062734-00-0
#15

Control panel parts diagram

Box, electrical parts

Part #74-062734-00-0

The manufacturer no longer makes this part, and there's no substitute part

Backer, Oven Door-rxs 59-074285-45-CG
#3B

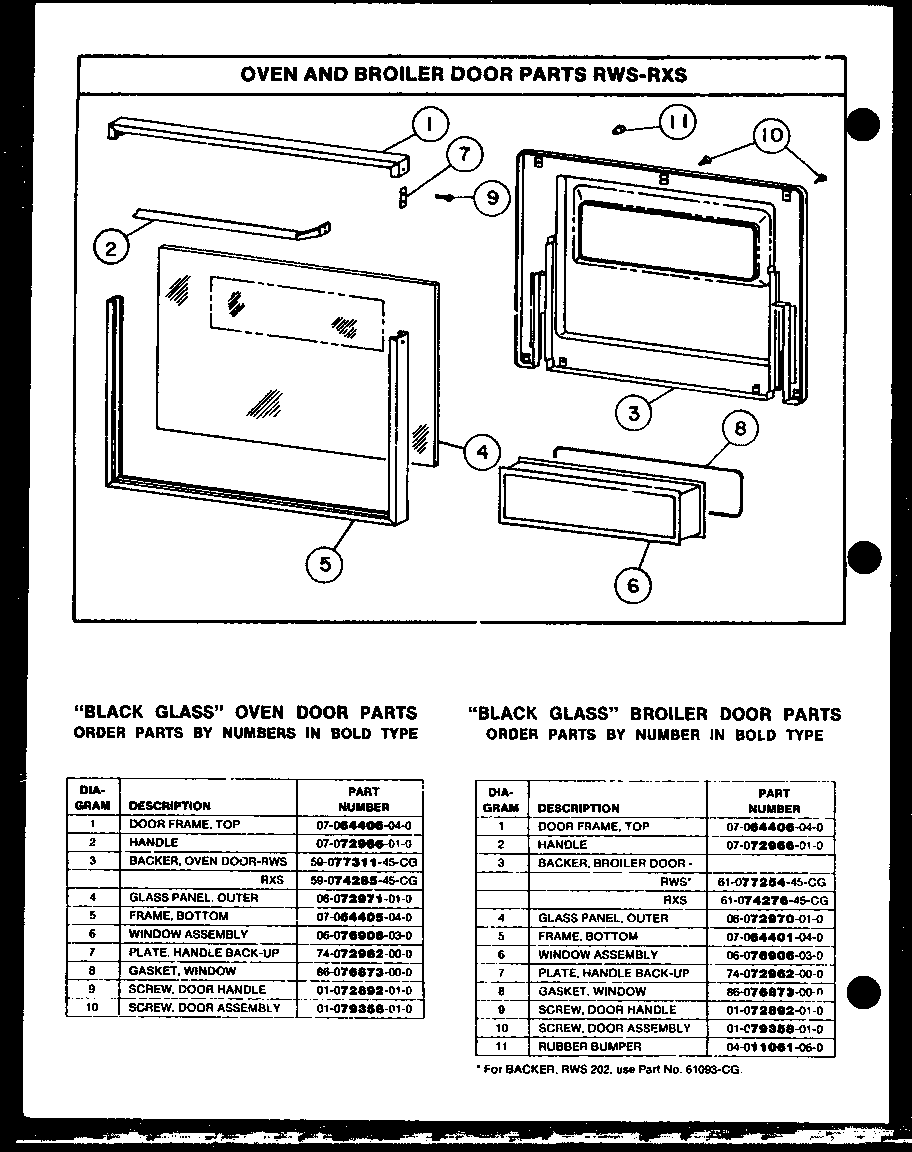

Oven and broiler door parts rws-rxs diagram

Backer, oven door-rxs

Part #59-074285-45-CG

The manufacturer no longer makes this part, and there's no substitute part

Tbg. W/ftg., 3/8"-gas Valve To Orifice Ftg. 34-060503-02-0
#4

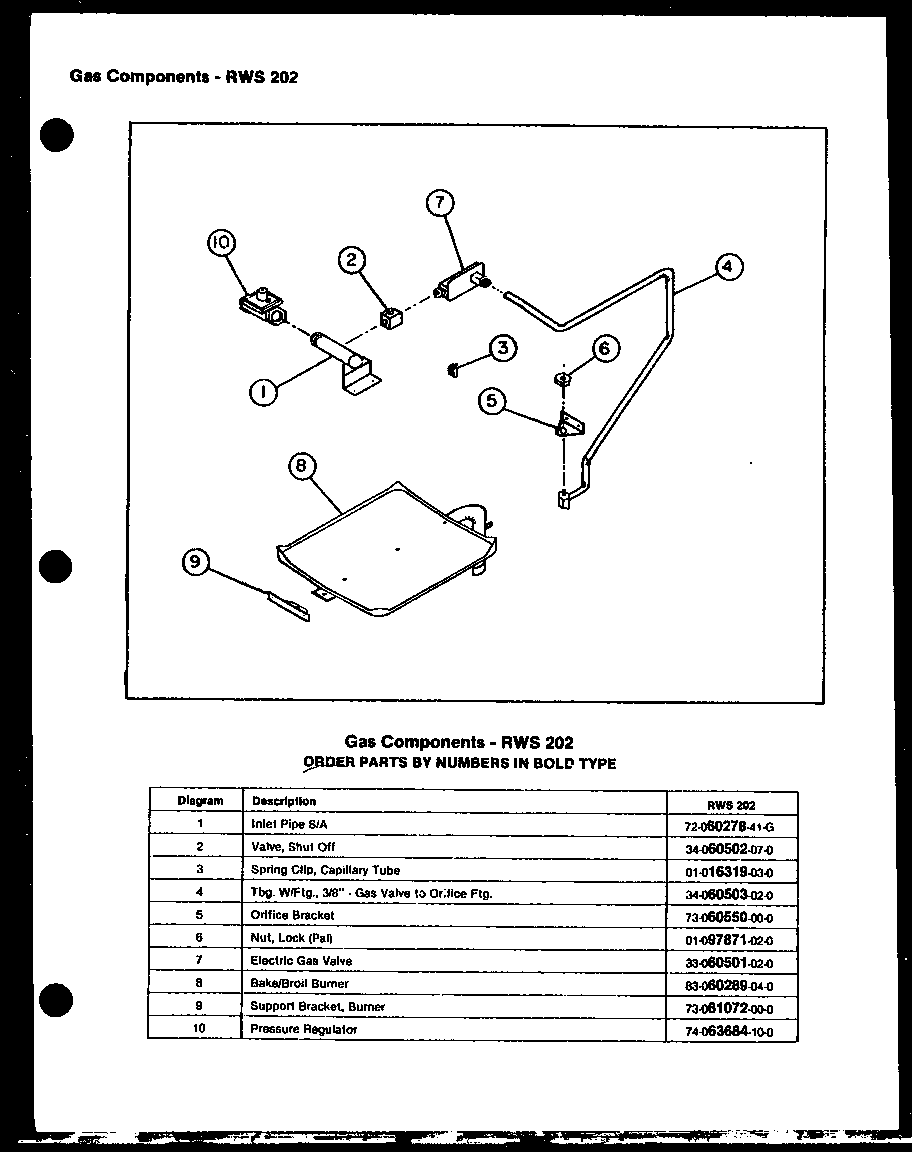

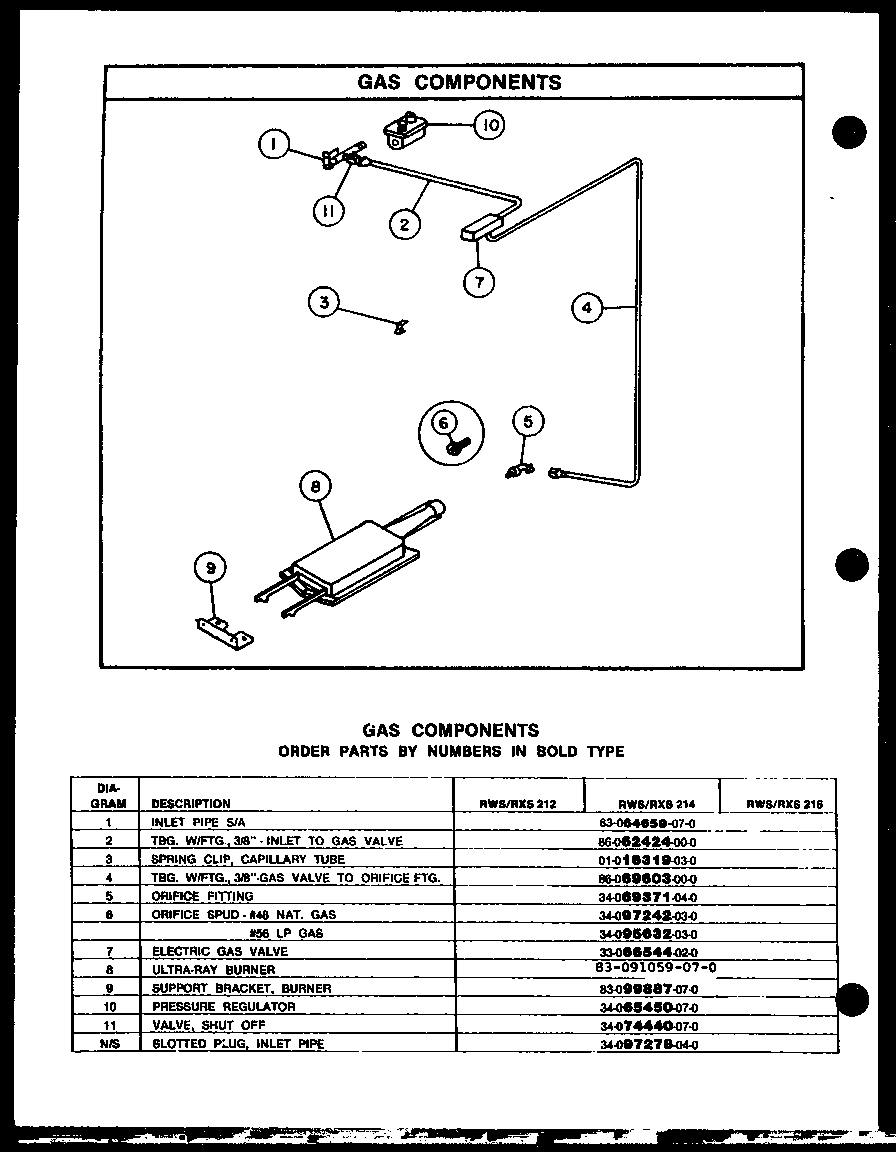

Gas components - rws 202 (rws202) diagram

Tbg. w/ftg., 3/8"-gas valve to orifice ftg.

Part #34-060503-02-0

The manufacturer no longer makes this part, and there's no substitute part

Oven Light Socket 32-035884-10-0
#7

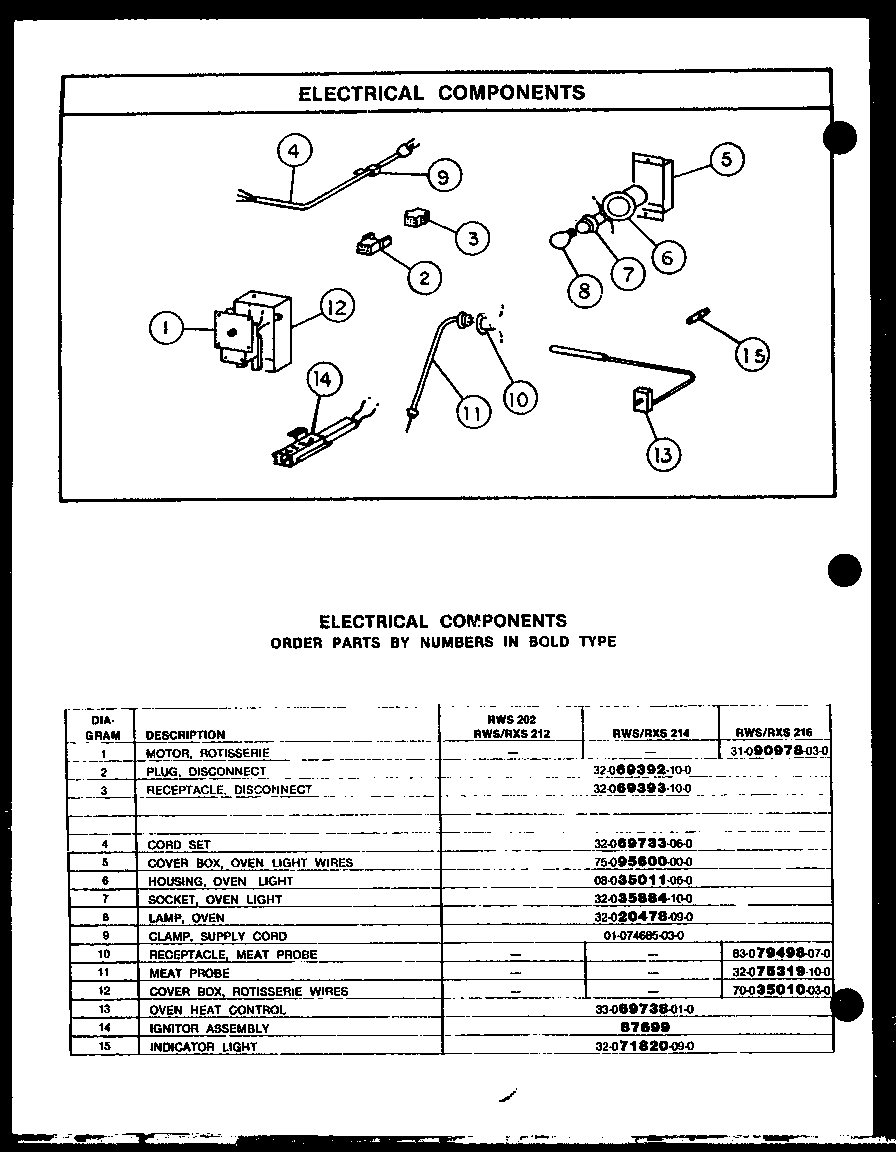

Electrical components diagram

Oven light socket

Part #32-035884-10-0

The manufacturer no longer makes this part, and there's no substitute part
