Maytag
Washer

Model # MAV7057AWQ Official Maytag washer

Here are the diagrams and repair parts for Official Maytag MAV7057AWQ washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

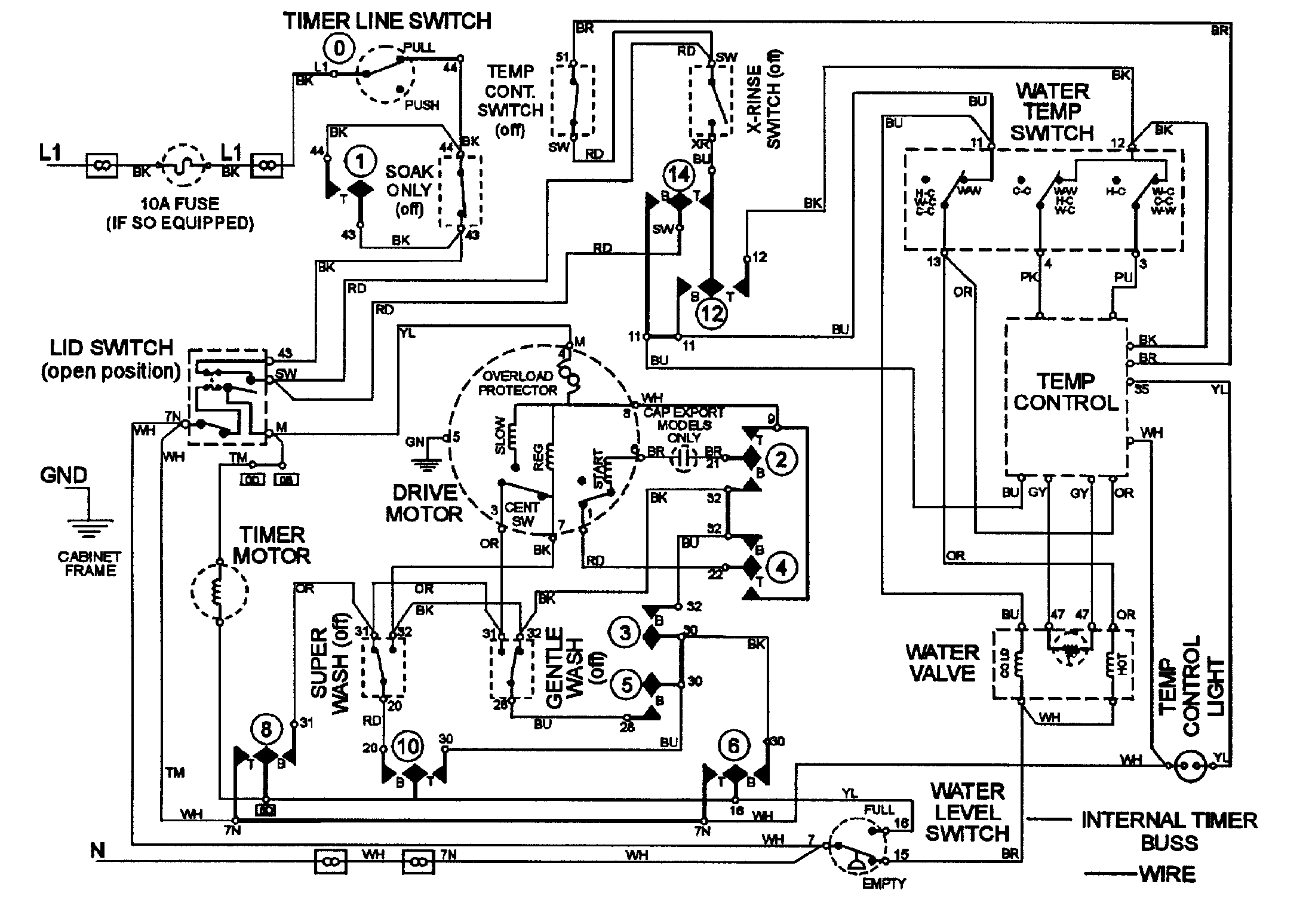

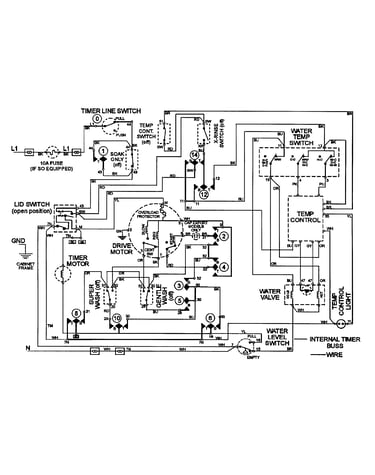

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 194 parts  |
Clamp,hose-i 216169
#7

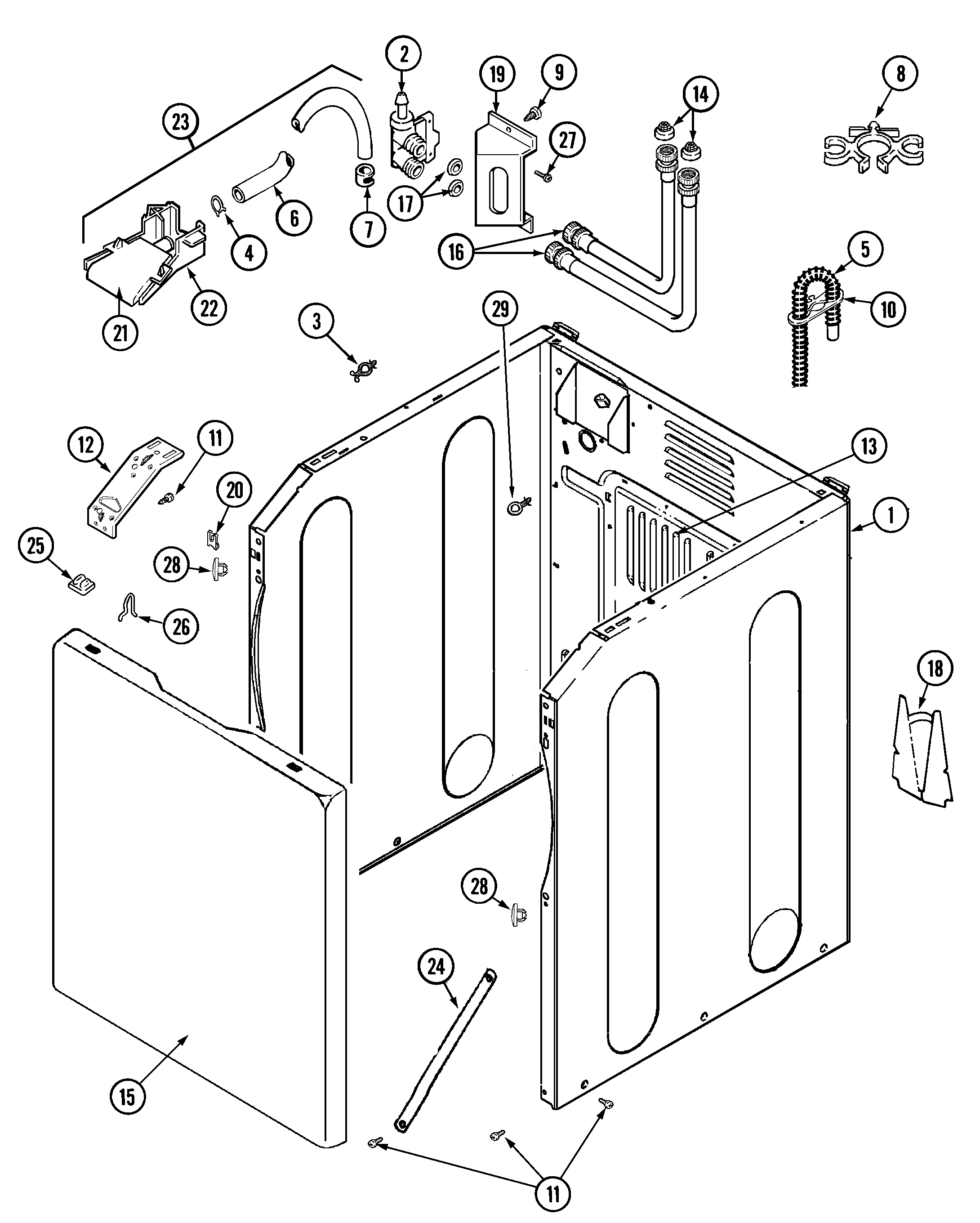

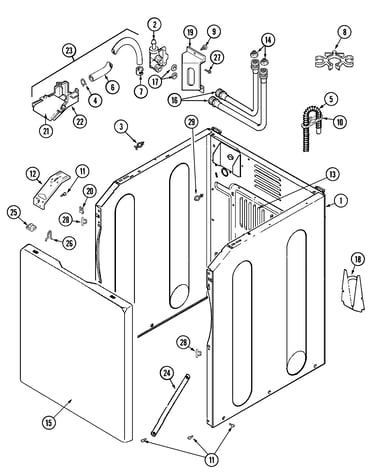

Cabinet diagram

Clamp,hose-i

Part #216169

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 216169. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Drive Belt 22002709
#30

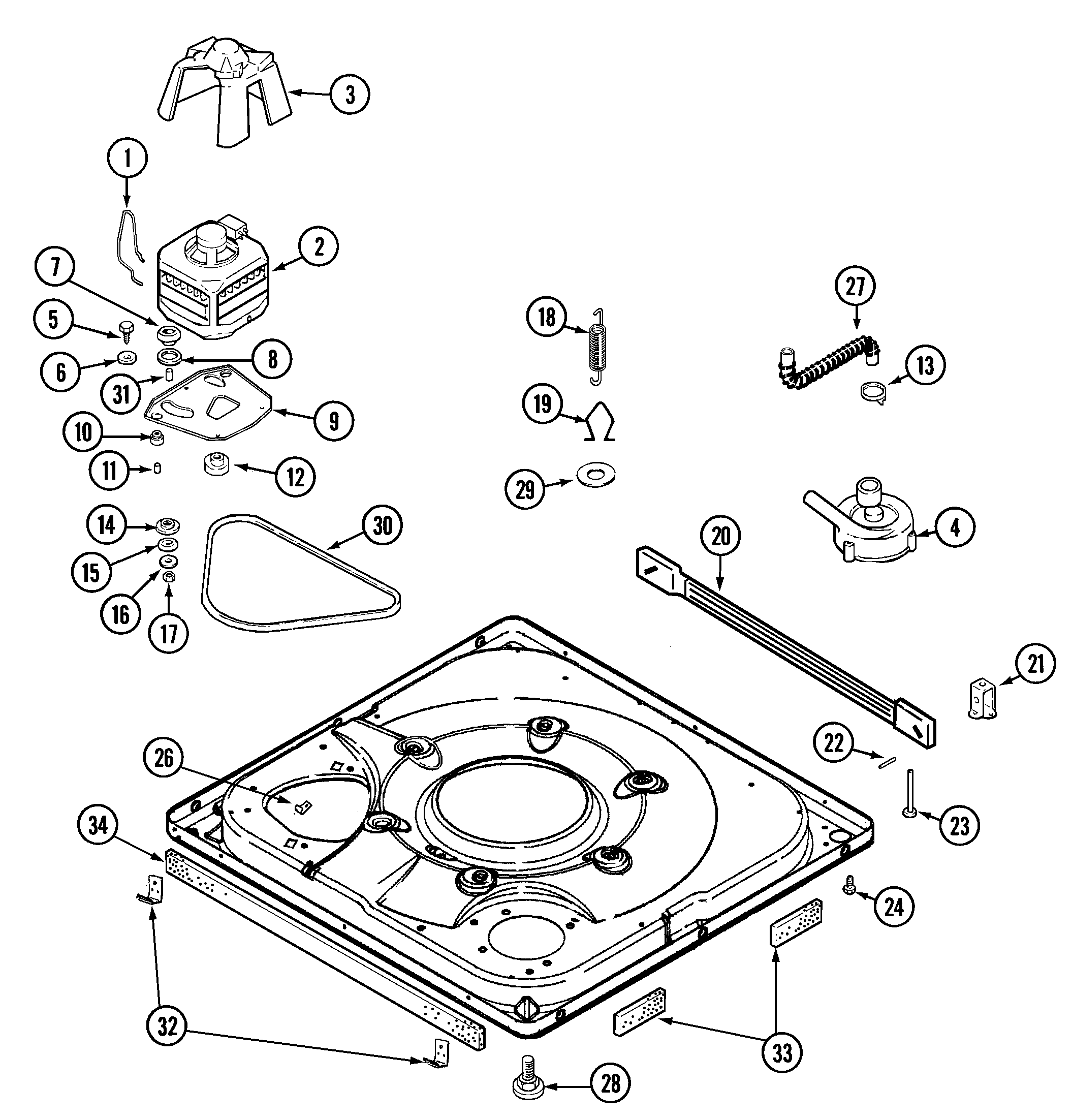

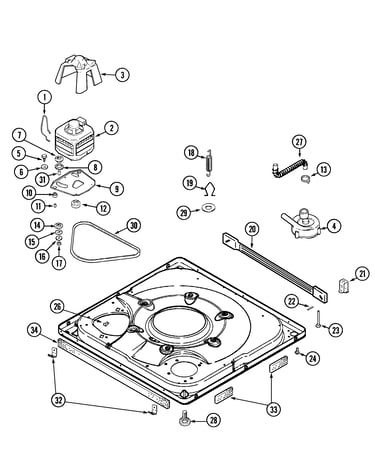

Base diagram

Drive belt

Part #22002709

Replaced by #WP22003483

?
Manufacturer substitution
This part replaces 22002709. Substitute parts can look different from the original.
BEST SELLER
$37.00 |
14% OFF Phone Price : $43.00
In Stock
Washer Drive Motor 21001506
#12

Base diagram

Washer drive motor

Part #21001506

Replaced by #WP21001950

?
Manufacturer substitution
This part replaces 21001506. Substitute parts can look different from the original.
BEST SELLER
$128.96 |
9% OFF Phone Price : $140.96
In Stock
Motor With Pulley 21001516
#2

Base diagram

Motor with pulley

Part #21001516

Replaced by #WP21001950

?
Manufacturer substitution
This part replaces 21001516. Substitute parts can look different from the original.
BEST SELLER
$128.96 |
9% OFF Phone Price : $140.96
In Stock
Pulley 22004297
#12A

Base diagram

Pulley

Part #22004297

Replaced by #WP21001950

?
Manufacturer substitution
This part replaces 22004297. Substitute parts can look different from the original.
BEST SELLER
$128.96 |
9% OFF Phone Price : $140.96
In Stock
Washer Screw 22001995
#11

Cabinet diagram

Washer screw

Part #22001995

Replaced by #W11573574

?
Manufacturer substitution
This part replaces 22001995. Substitute parts can look different from the original.
BEST SELLER
$11.78
In Stock
Snubber 21001161
#22

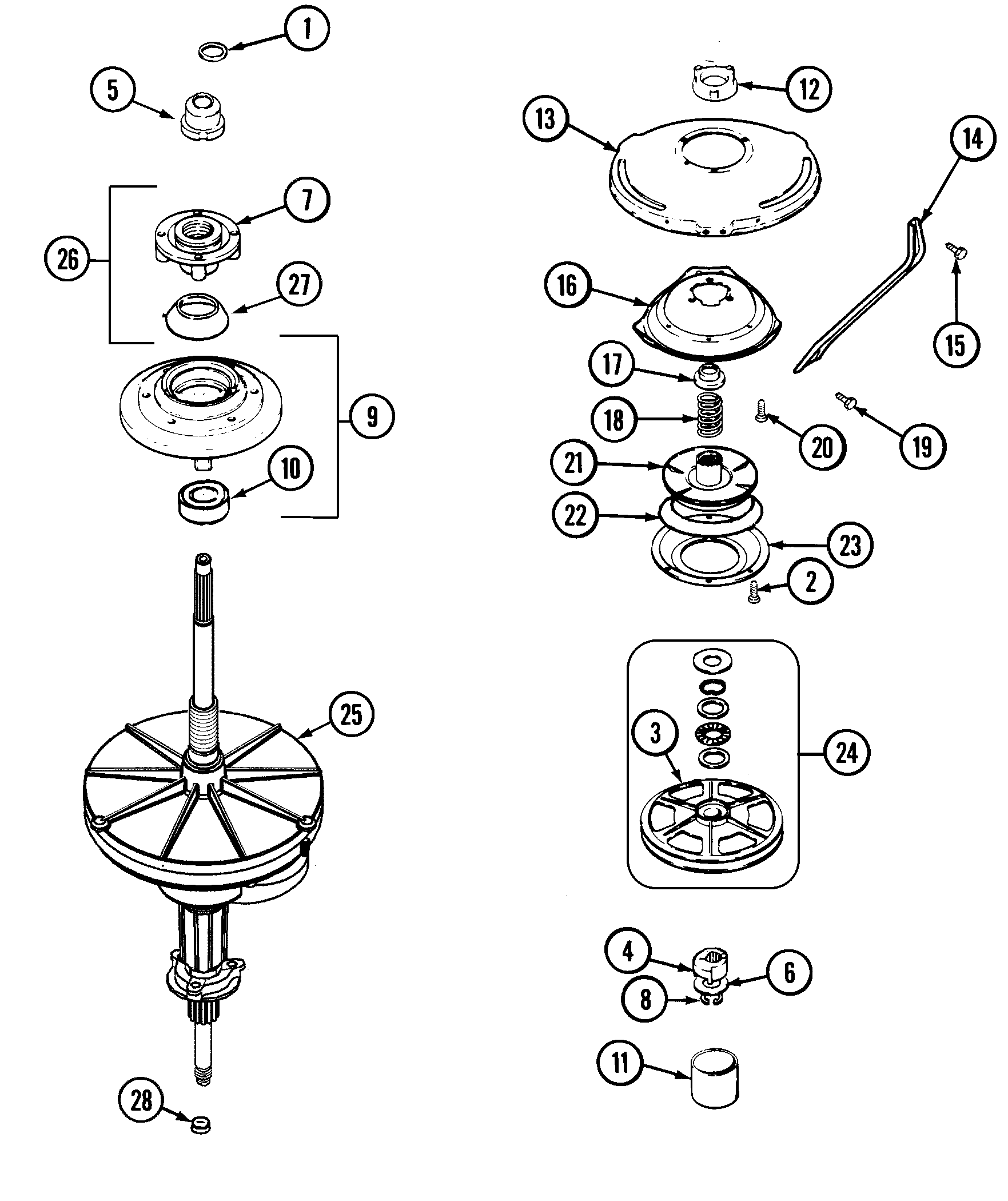

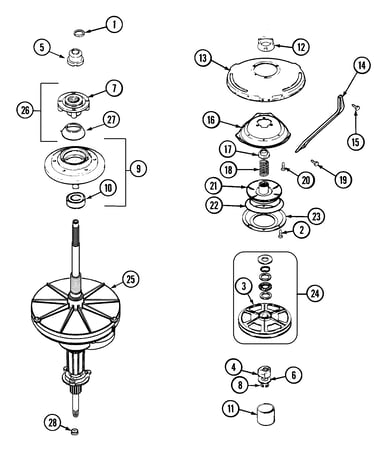

Transmission diagram

Snubber

Part #21001161

Replaced by #WP21002026

?
Manufacturer substitution
This part replaces 21001161. Substitute parts can look different from the original.
This item is not returnable
$7.49 |
12% OFF Phone Price : $8.49
In Stock
Washer Suspension Spring 21001598
#18

Base diagram

Washer suspension spring

Part #21001598

Replaced by #WP21001598

?
Manufacturer substitution
This part replaces 21001598. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Ground Screw 705026
#13

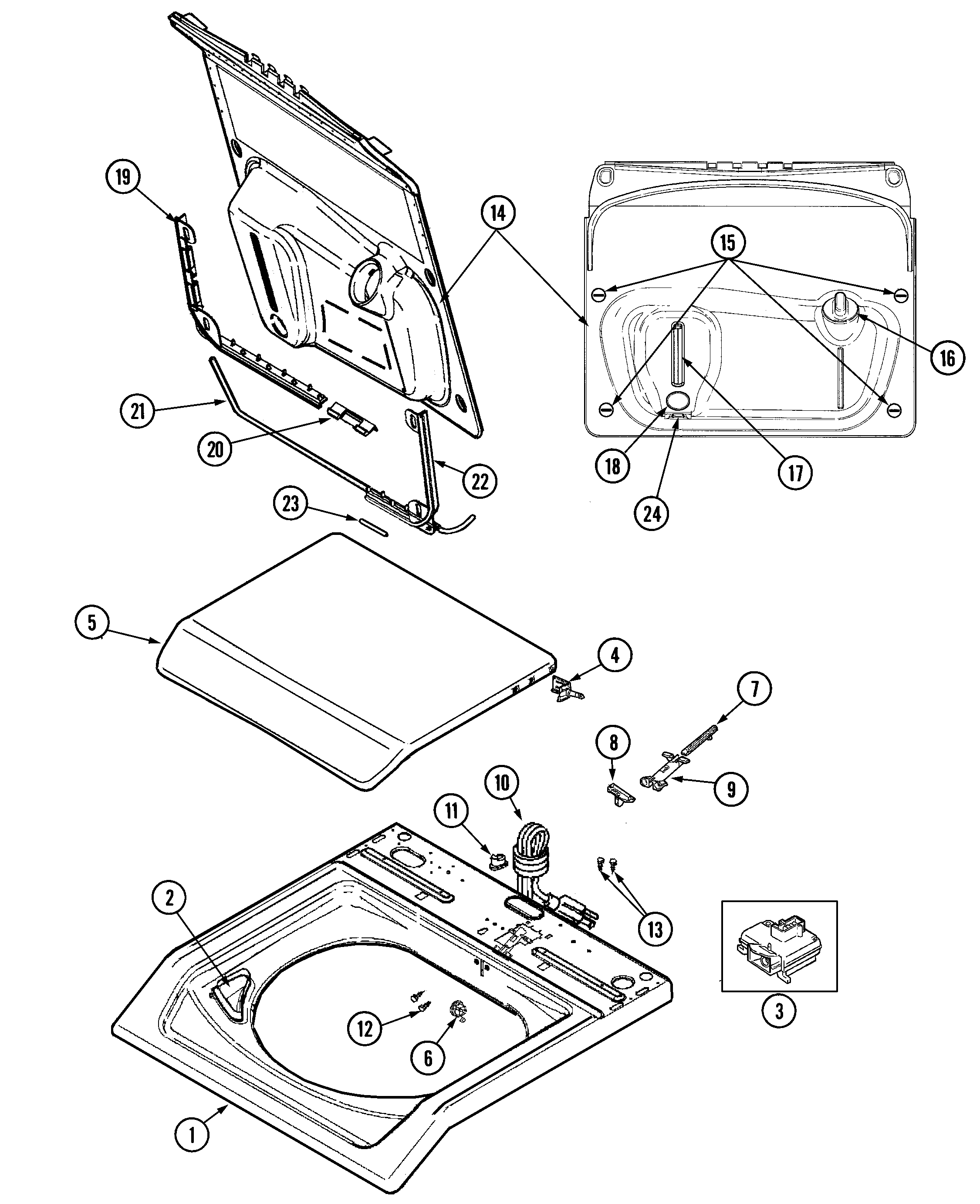

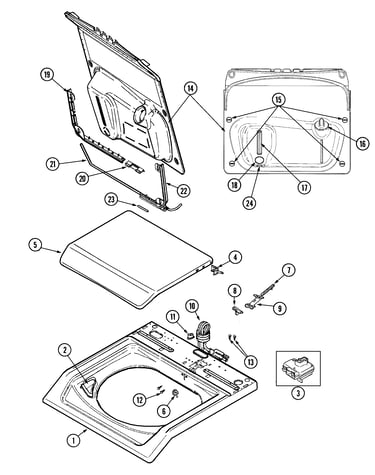

Top diagram

Ground screw

Part #705026

Replaced by #WP489128

?
Manufacturer substitution
This part replaces 705026. Substitute parts can look different from the original.
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Cam, Lid (wh 22002755
#8

Top diagram

Cam, lid (wh

Part #22002755

Replaced by #W10814230

?
Manufacturer substitution
This part replaces 22002755. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
