Maytag
Gas Wall Oven

Model # CWG3510AAB Official Maytag gas wall oven

Here are the diagrams and repair parts for Official Maytag CWG3510AAB gas wall oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

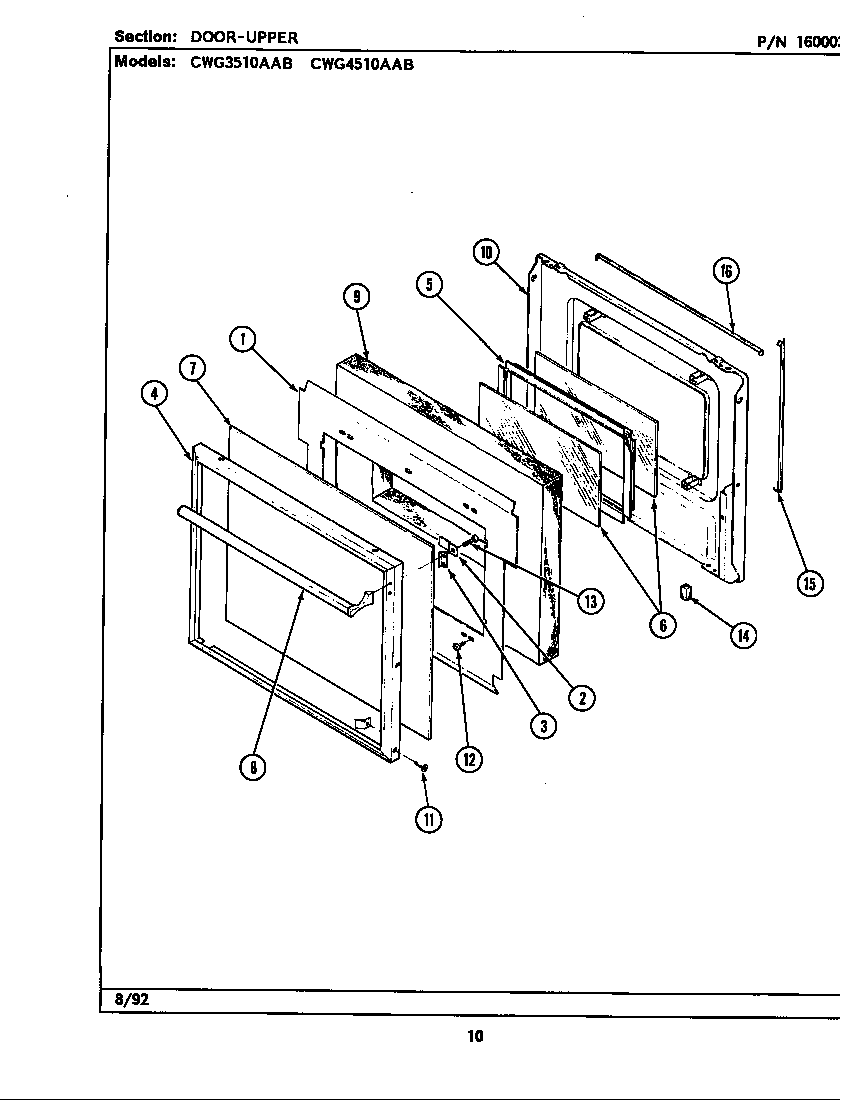

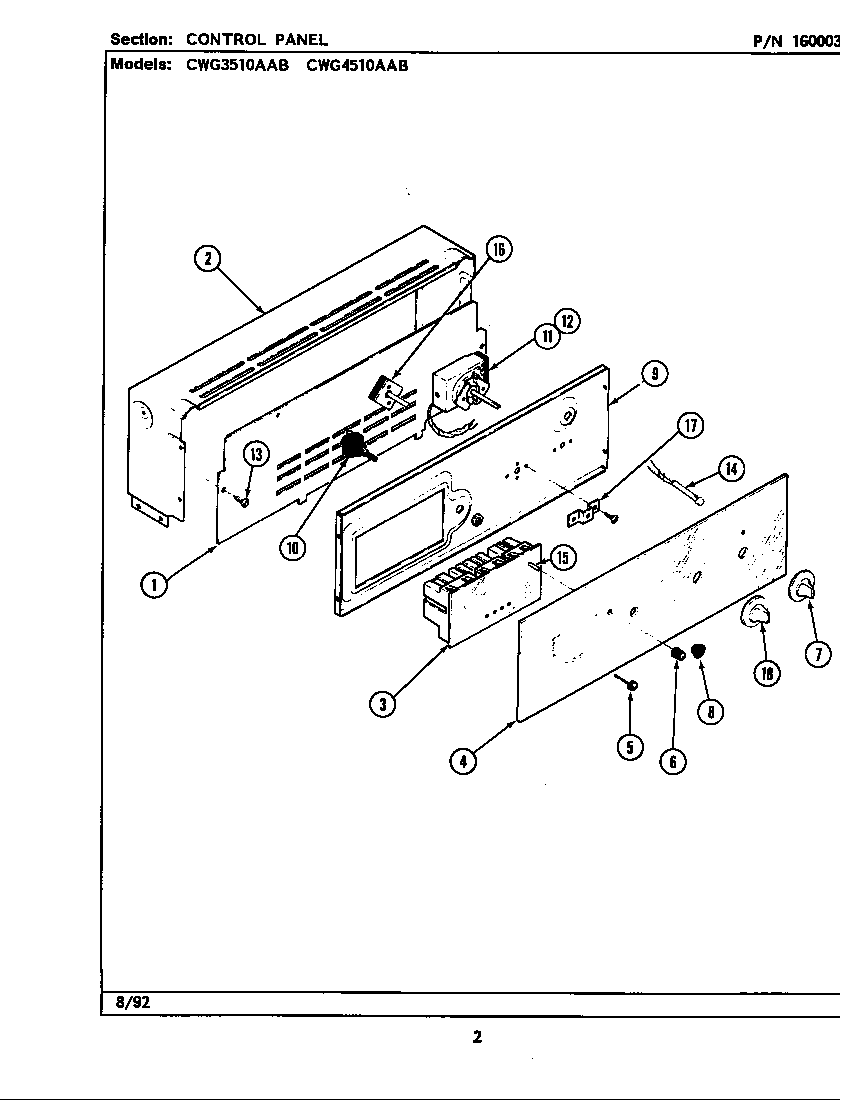

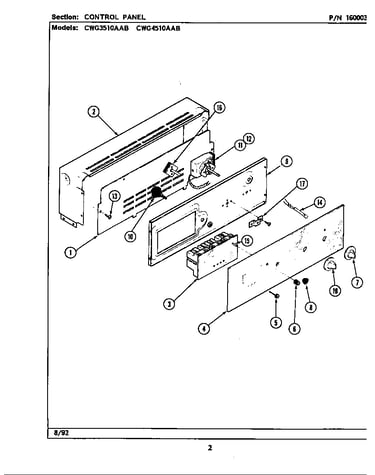

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 92 parts  |
Range Oven Door Seal 7212P006-60
Range oven door seal

Part #7212P006-60

Replaced by #WP7212P006-60

?
Manufacturer substitution
This part replaces 7212P006-60. Substitute parts can look different from the original.
$47.20 |
11% OFF Phone Price : $53.20
In Stock
Screw 7101P061-60
Screw

Part #7101P061-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P061-60. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Thermostat Clip 7112P004-60
#9

Oven diagram

Thermostat clip

Part #7112P004-60

Replaced by #WP7112P004-60

?
Manufacturer substitution
This part replaces 7112P004-60. Substitute parts can look different from the original.
This item is not returnable
$8.99 |
10% OFF Phone Price : $9.99
In Stock
Screw, #10-1 7101P221-60
Screw, #10-1

Part #7101P221-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P221-60. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Screw 7101P058-60
#12

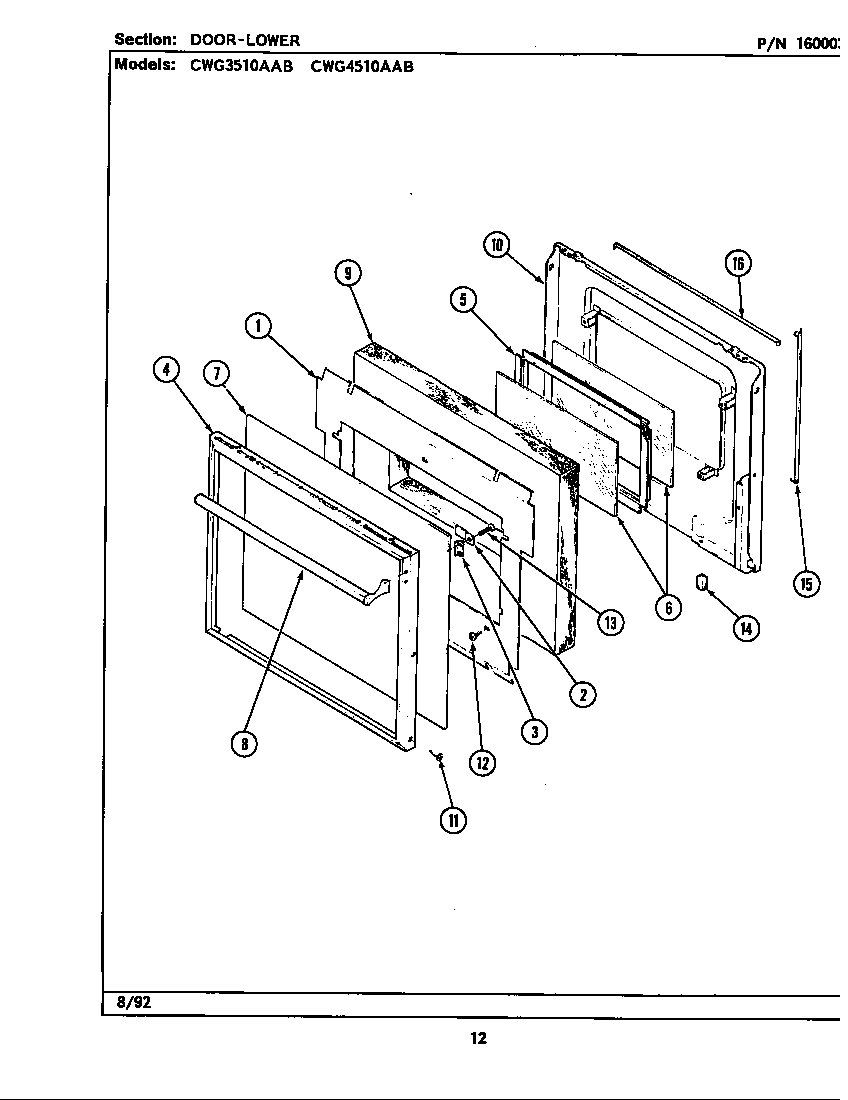

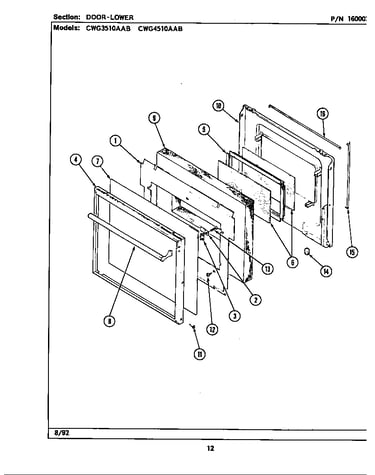

Door-lower diagram

Screw

Part #7101P058-60

Replaced by #WP7101P126-60

?
Manufacturer substitution
This part replaces 7101P058-60. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
Range Wing Nut 7103P030-60
#6

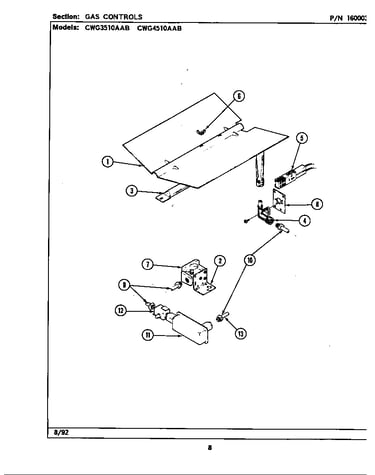

Gas controls diagram

Range wing nut

Part #7103P030-60

$8.49 |
11% OFF Phone Price : $9.49
In Stock
Screw 7101P282-60
#5B

Gas controls diagram

Screw

Part #7101P282-60

Replaced by #WP4159193

?
Manufacturer substitution
This part replaces 7101P282-60. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
Door Seal 7212P007-60
#15

Door-lower diagram

Door seal

Part #7212P007-60

Replaced by #WP7212P007-60

?
Manufacturer substitution
This part replaces 7212P007-60. Substitute parts can look different from the original.
$47.99 |
11% OFF Phone Price : $53.99
In Stock
Snap Nut 7103P039-60
#15A

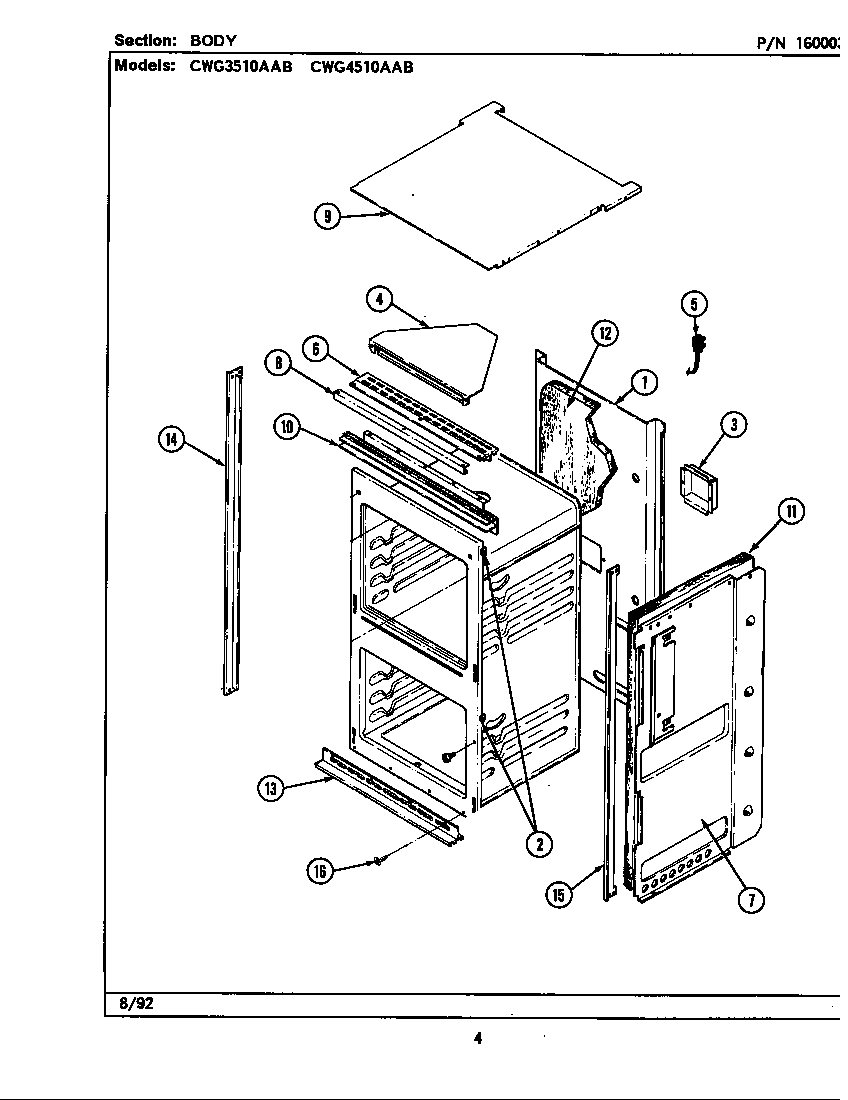

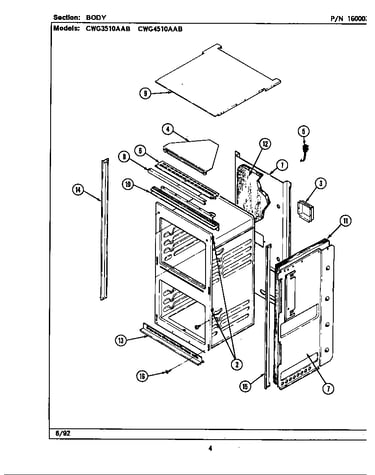

Body diagram

Snap nut

Part #7103P039-60

Replaced by #WP7103P114-60

?
Manufacturer substitution
This part replaces 7103P039-60. Substitute parts can look different from the original.
This item is not returnable
$6.14
In Stock
Oven Broiler Pan 3401F015-19
#16

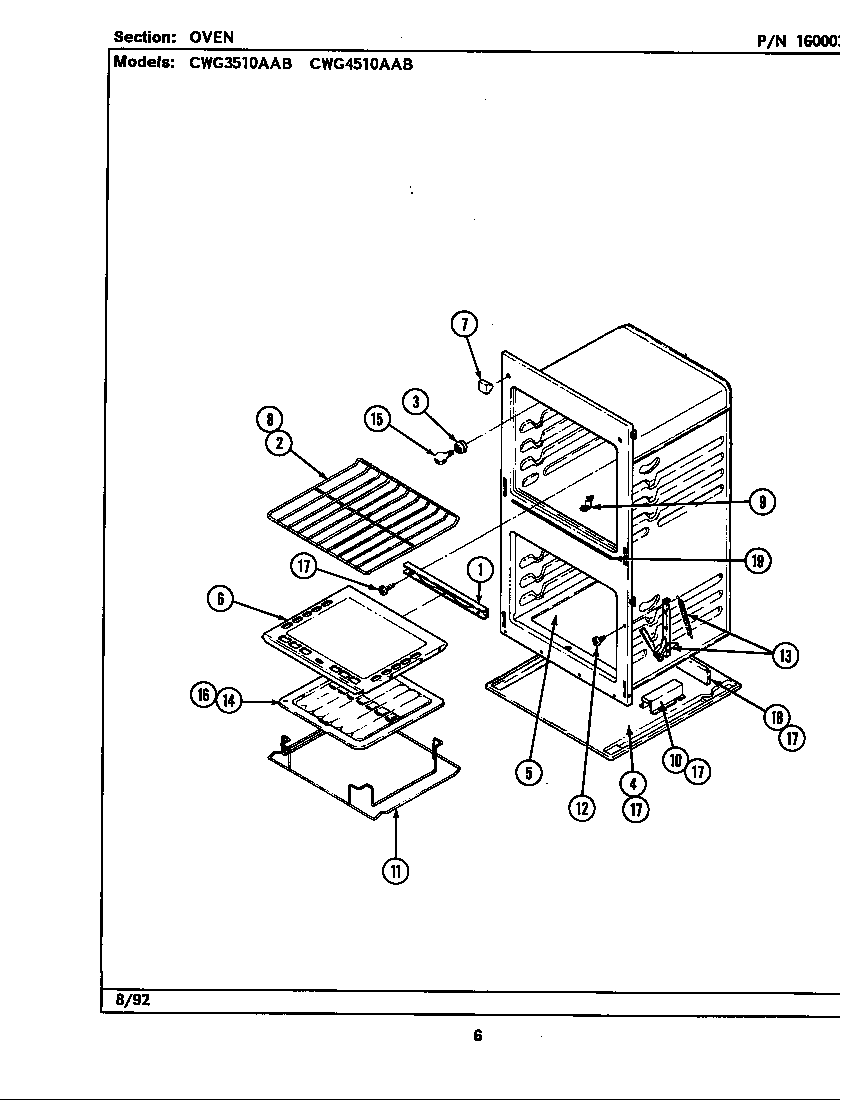

Oven diagram

Oven broiler pan

Part #3401F015-19

Replaced by #4396923

?
Manufacturer substitution
This part replaces 3401F015-19. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
