Gas Cooktop

Model # KGCS127GBL0 Official KitchenAid 42" gas cooktop

Here are the diagrams and repair parts for Official KitchenAid KGCS127GBL0 42" gas cooktop, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forKGCS127GBL0 Cooktops

  • Range Screw 3368921
    #20

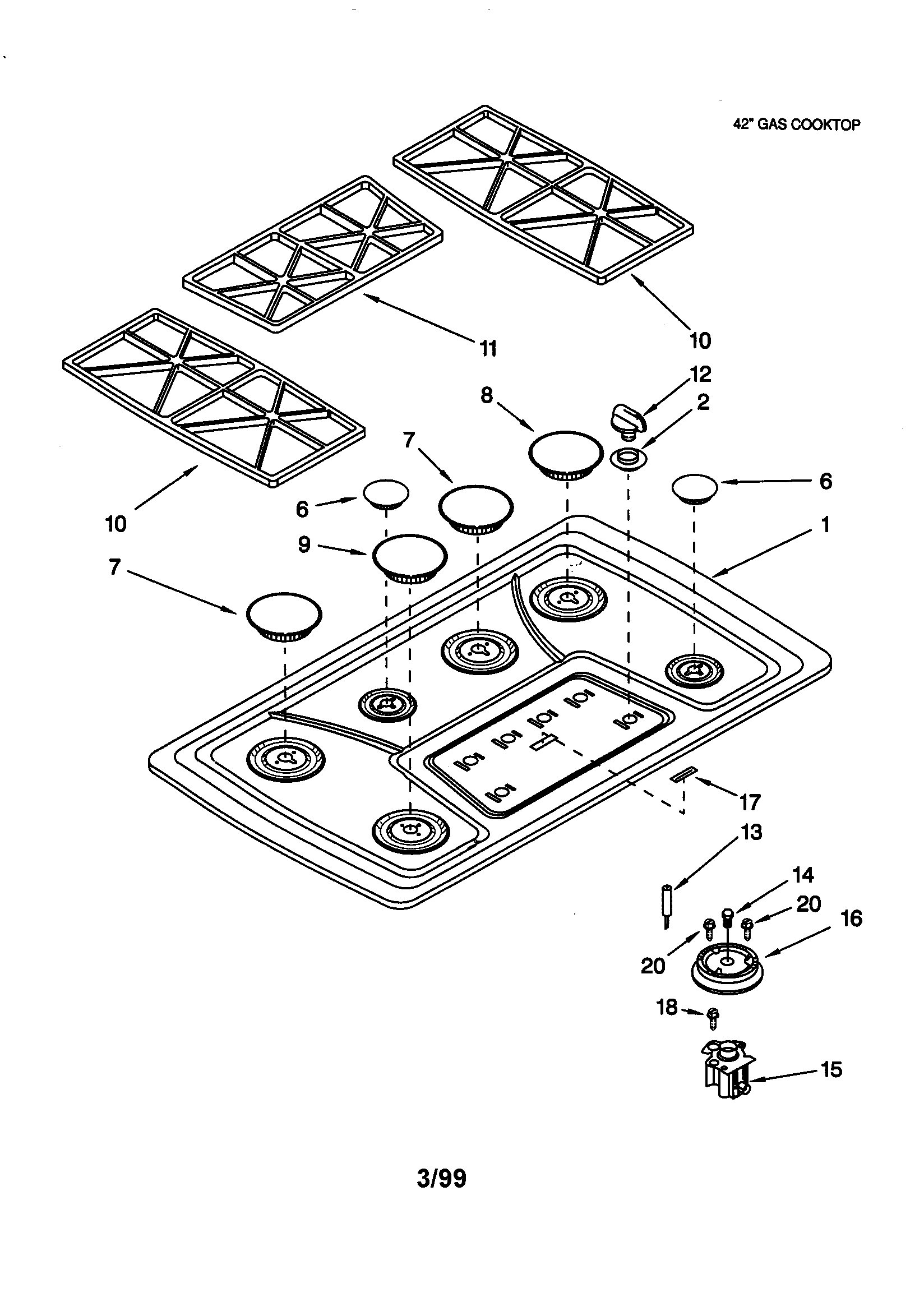

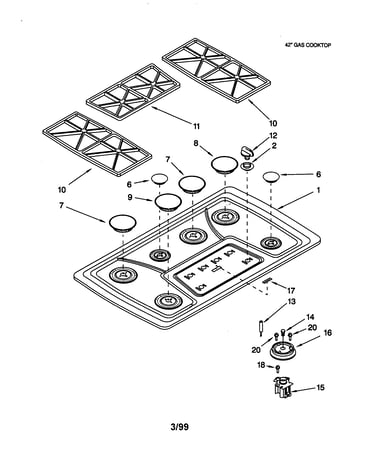

    Cooktop/burner/grate diagram

    Range screw

    Part #3368921

    Replaced by #WP3368921

    ?
    Manufacturer substitution
    This part replaces 3368921. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $2.83
    44% OFF Was : $5.05
    In Stock
  • Range Spark Module 8053421
    #27

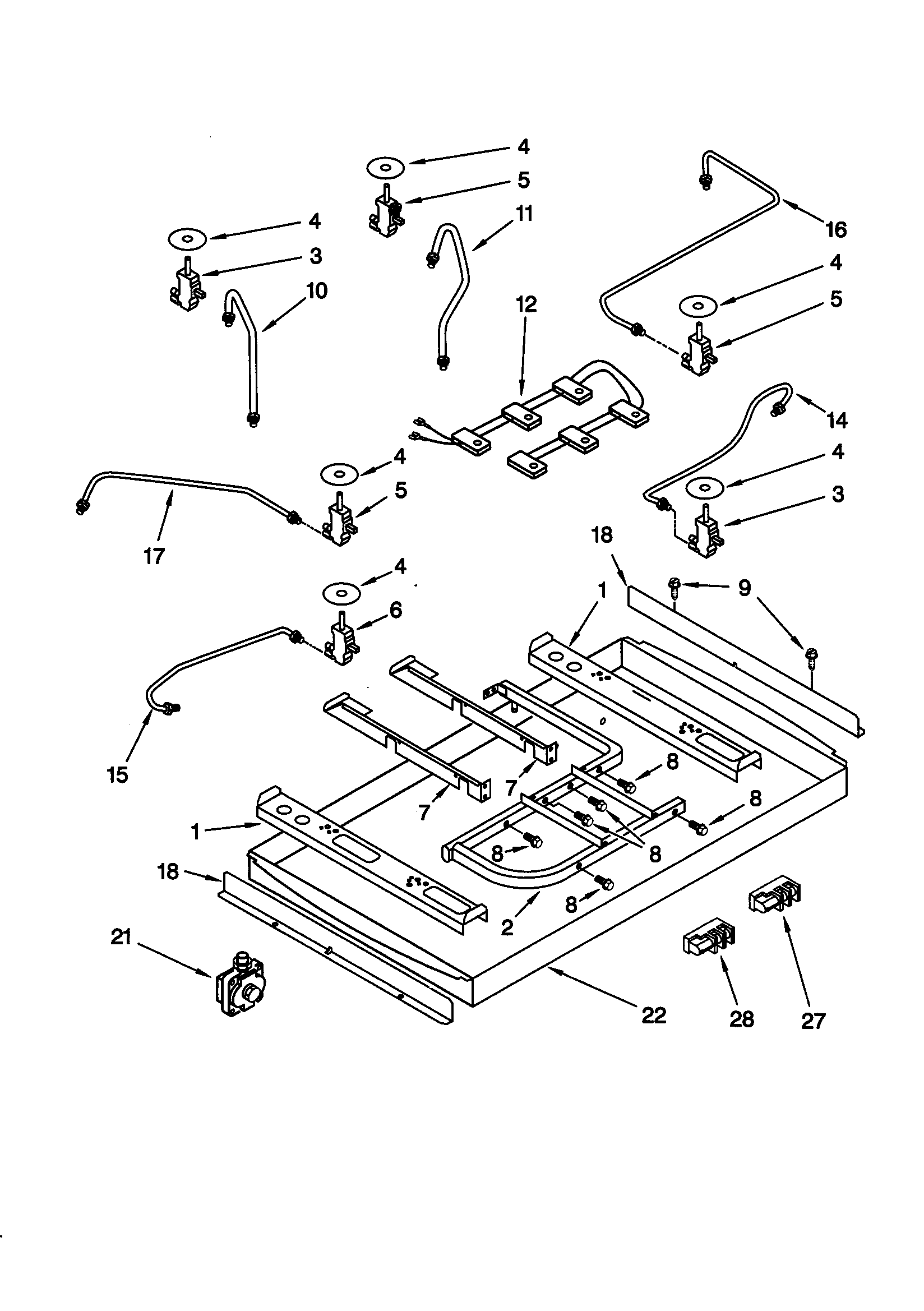

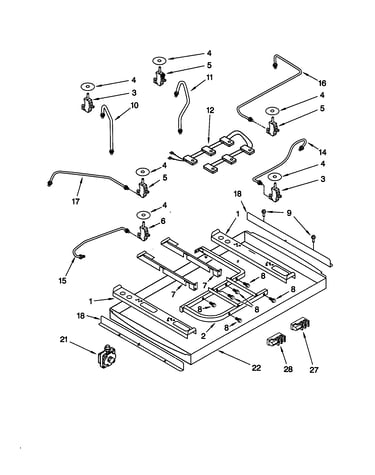

    Burner box/gas valves/switches diagram

    Range spark module

    Part #8053421

    The manufacturer no longer makes this part, and there's no substitute part

  • Cooktop Burner Cap 3191731
    #7A

    Cooktop/burner/grate diagram

    Cooktop burner cap

    Part #3191731

    Replaced by #WP3191731

    ?
    Manufacturer substitution
    This part replaces 3191731. Substitute parts can look different from the original.
    In Stock
  • Holder Orifice 3191741
    #15A

    Cooktop/burner/grate diagram

    Holder orifice

    Part #3191741

    Replaced by #814513

    ?
    Manufacturer substitution
    This part replaces 3191741. Substitute parts can look different from the original.
    $106.63
    10% OFF Phone Price : $118.63
    In Stock
  • Gasket Switch 3191387
    #4

    Burner box/gas valves/switches diagram

    Gasket switch

    Part #3191387

    Replaced by #WP3188425

    ?
    Manufacturer substitution
    This part replaces 3191387. Substitute parts can look different from the original.
    $39.06
    13% OFF Phone Price : $45.06
    In Stock
  • Burner Head 9753187
    #16A

    Cooktop/burner/grate diagram

    Burner head

    Part #9753187

    Replaced by #814513

    ?
    Manufacturer substitution
    This part replaces 9753187. Substitute parts can look different from the original.
    $106.63
    10% OFF Phone Price : $118.63
    In Stock
  • Shield 3191462
    #18

    Burner box/gas valves/switches diagram

    Shield

    Part #3191462

    $18.43
    10% OFF Phone Price : $20.43
    In Stock
  • Gas Tubing 3191324
    #14

    Burner box/gas valves/switches diagram

    Gas tubing

    Part #3191324

    $52.88
    10% OFF Phone Price : $58.88
    In Stock
  • Bushing 4173634

    #NI

    All parts diagram

    Bushing

    Part #4173634

    $8.07
    11% OFF Phone Price : $9.07
    In Stock
  • Cooktop Bracket 3183401

    #NI

    All parts diagram

    Cooktop bracket

    Part #3183401

    Replaced by #8186533

    ?
    Manufacturer substitution
    This part replaces 3183401. Substitute parts can look different from the original.
    $39.06
    13% OFF Phone Price : $45.06
    In Stock
