Model # FGES3065KBE Official Frigidaire electric range
Here are the diagrams and repair parts for Official Frigidaire FGES3065KBE electric range, as well as links to manuals and error code tables, if available.
Installation guide
Owner’s manual

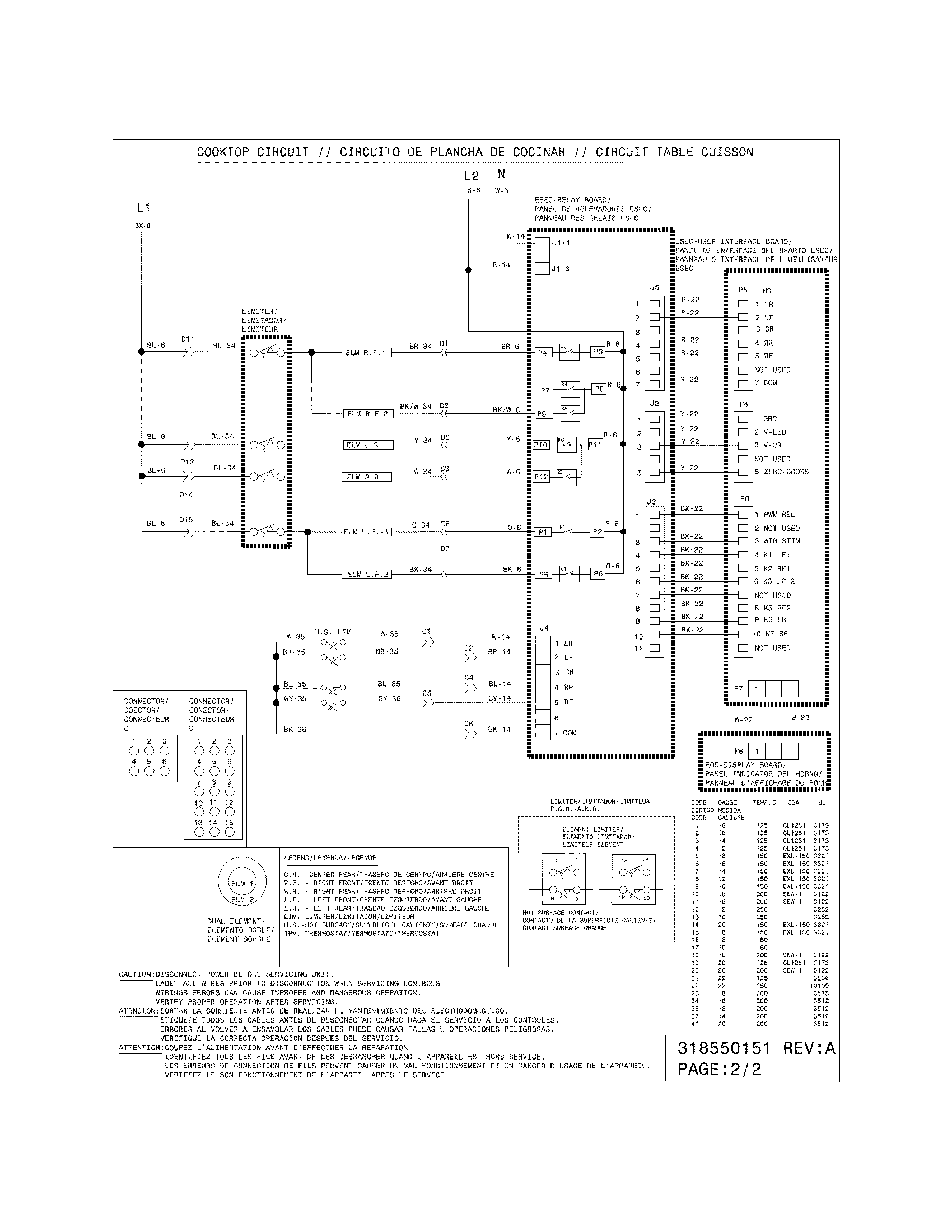

Error CodesBy Schematic
By Part

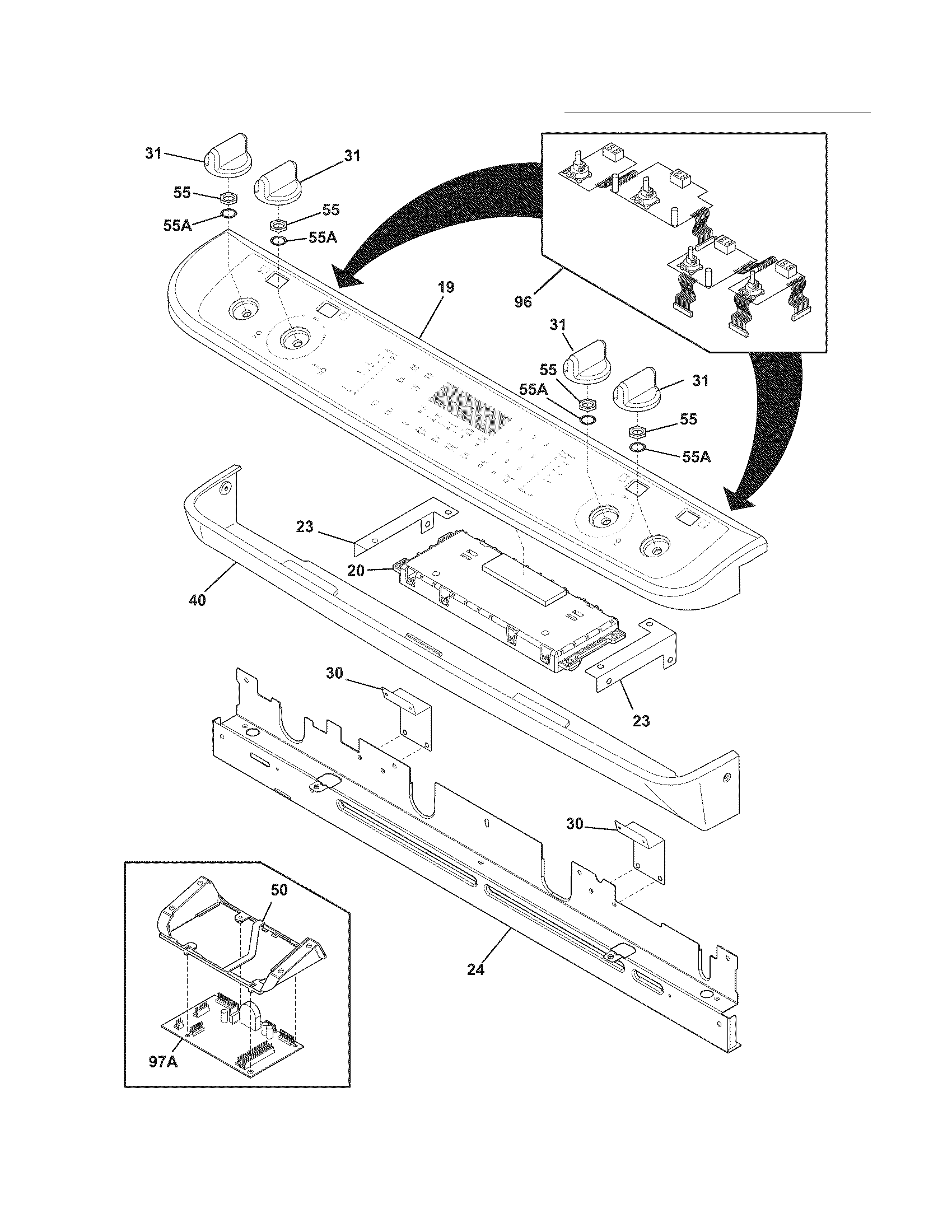

SELECT DIAGRAM
Browse Parts forFGES3065KBE Ranges
- #15

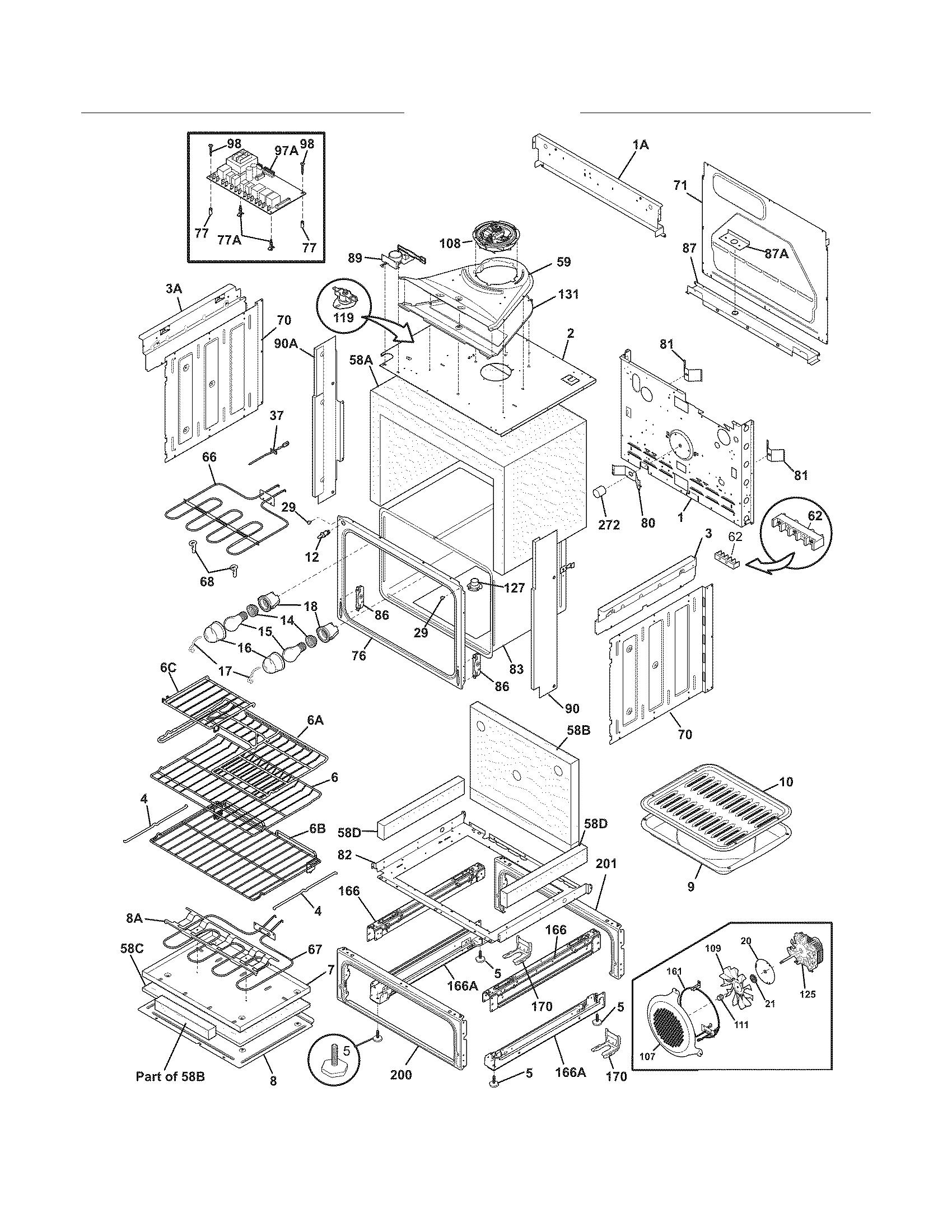

Body diagram
Appliance light bulb, 40-wattPart #316538901
Replaced by #316538904
?Manufacturer substitutionThis part replaces 316538901. Substitute parts can look different from the original.$15.89 |11% OFF Phone Price : $17.89In Stock - #8

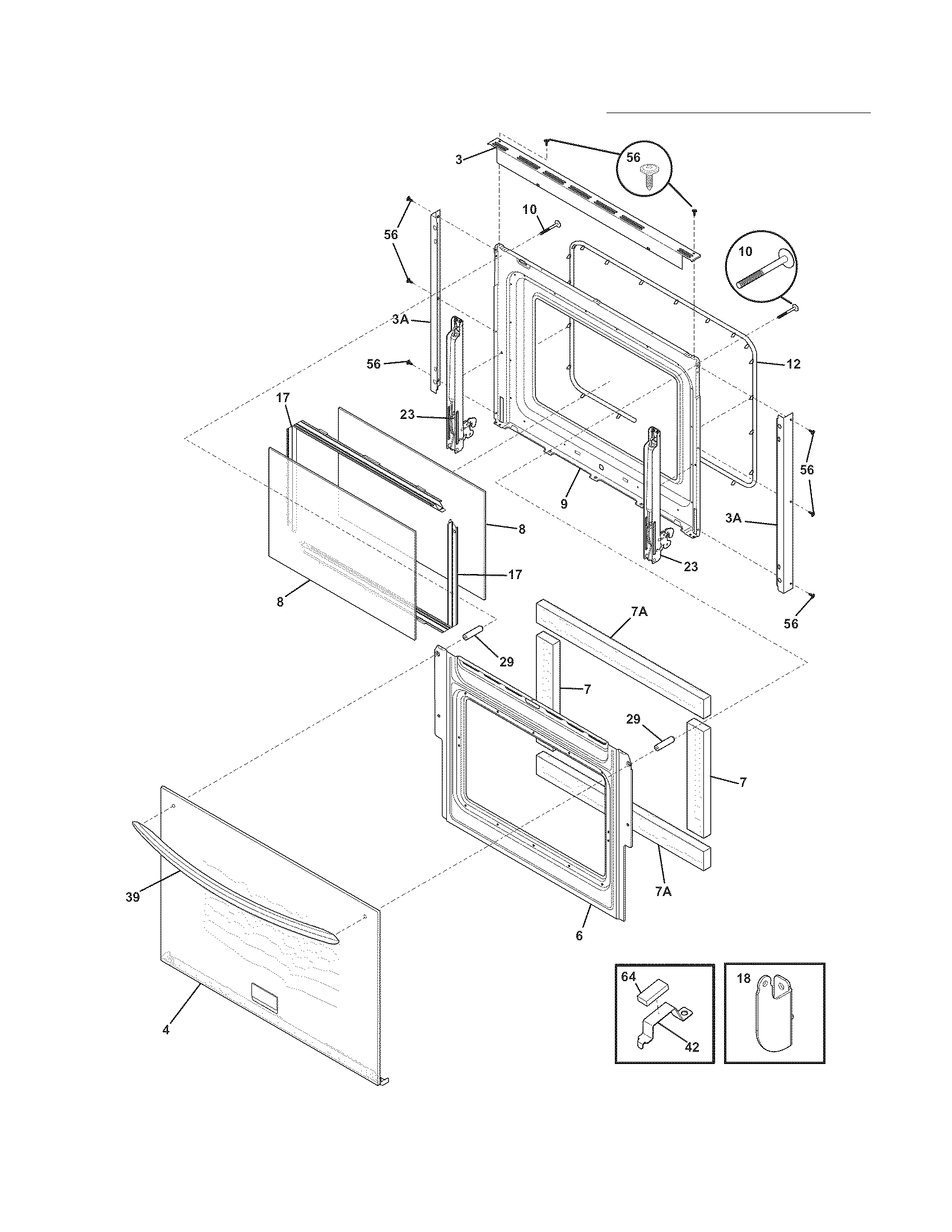

Door diagram
Range oven door inner glassPart #316117502
Replaced by #5304503232
?Manufacturer substitutionThis part replaces 316117502. Substitute parts can look different from the original.$77.39 |7% OFF Phone Price : $83.39In Stock - #119
Body diagram
Frigidaire range high-limit thermostatPart #318578506
$36.16 |14% OFF Phone Price : $42.16In Stock - #37
Body diagram
Range oven temperature sensorPart #318562500
Replaced by #5304504897
?Manufacturer substitutionThis part replaces 318562500. Substitute parts can look different from the original.$31.06 |16% OFF Phone Price : $37.06In Stock - #15A

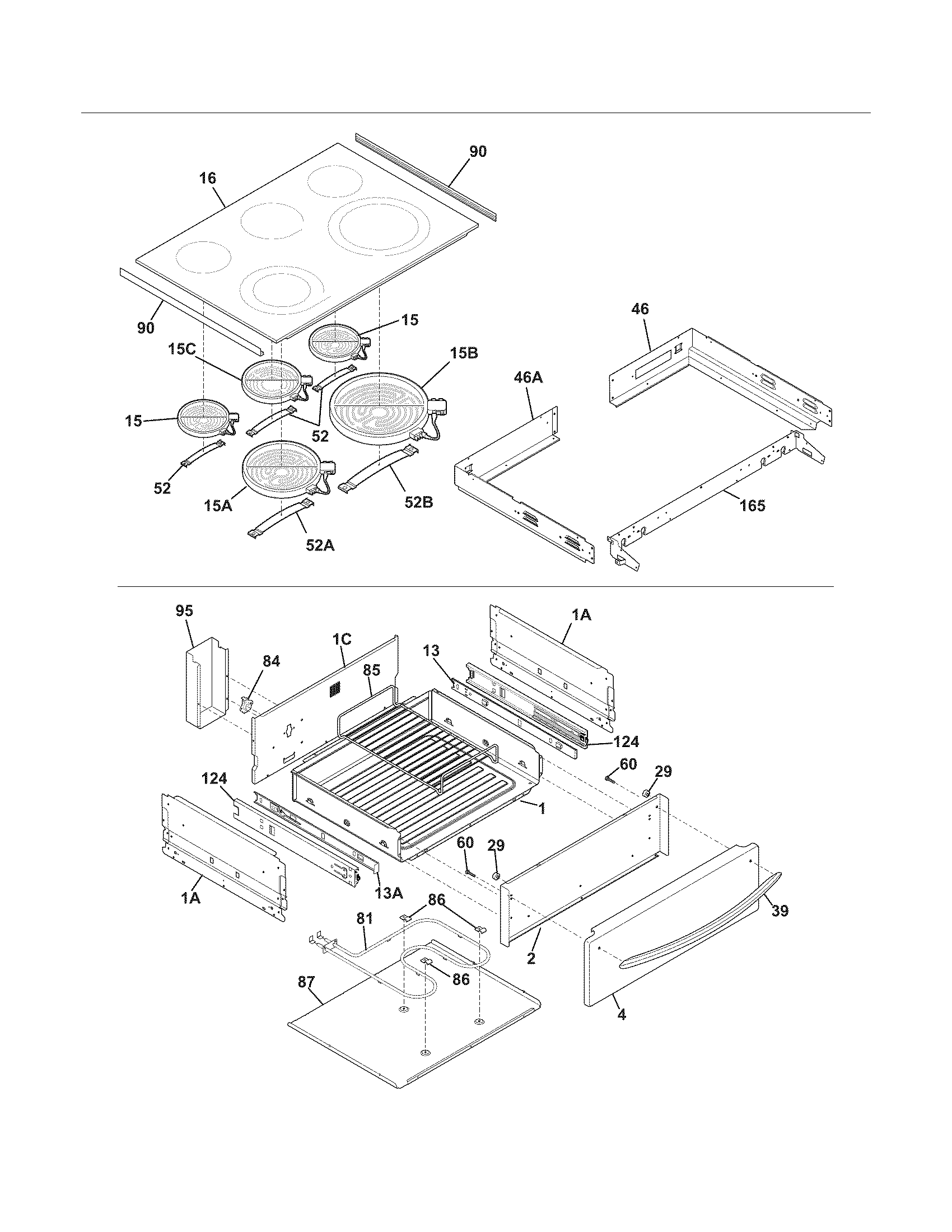

Top/drawer diagram
Surface elementPart #316465002
Replaced by #5304533520
?Manufacturer substitutionThis part replaces 316465002. Substitute parts can look different from the original.$80.61 |7% OFF Phone Price : $86.61In Stock - #109
Body diagram
Range convection fan bladePart #318398302
$23.24 |21% OFF Phone Price : $29.24In Stock - #16
Body diagram
Range oven light lensPart #318406100
Replaced by #5304524341
?Manufacturer substitutionThis part replaces 318406100. Substitute parts can look different from the original.$15.61 |11% OFF Phone Price : $17.61In Stock - #12
Body diagram
Range door light switchPart #318394802
Replaced by #808136601
?Manufacturer substitutionThis part replaces 318394802. Substitute parts can look different from the original.$34.17 |15% OFF Phone Price : $40.17In Stock - #124
Top/drawer diagram
Frigidaire range storage drawer outer railPart #316105501
$71.86 |8% OFF Phone Price : $77.86In Stock - #125
Body diagram
Range convection fan motorPart #318398201
Replaced by #5304463302
?Manufacturer substitutionThis part replaces 318398201. Substitute parts can look different from the original.$218.71 |5% OFF Phone Price : $230.71In Stock
Most common symptoms to help you fix your ranges
Choose a symptom to see related range repairs.
Main causes: broken oven door lock assembly, wiring failure, electronic control board problem…
Main causes: faulty temperature sensor, electronic control board problem, control thermostat failure, weak burner ignite…
Main causes: power supply problem, control thermostat or electronic control board failure, broken element, bad burner ig…
Main causes: food splatters, spilling food on the oven door, allowing liquid to drip through oven door vent when cleanin…
Main causes: broken broiler element, weak or broken broil burner igniter, control system failure, faulty temperature sen…
Main causes: bad bake element, broken burner igniter, control system failure, blown thermal fuse, faulty temperature sen…
Main causes: power supply failure, blown thermal fuse, bad relay control board, damaged terminal block, wiring failure…
Most common repair guides to help fix your ranges
These step-by-step repair guides will help you safely fix what’s broken on your range.
How to replace a range oven door switch
The oven door switch detects whether the oven door is closed and helps control the oven light. Replace the switch if it …
Repair difficulty
Time required
30 minutes or less
How to replace a range oven door lock assembly
Oven door not locking? You can replace the lock assembly in less than 30 minutes. Here's how.…
Repair difficulty
Time required
15 minutes or less
Effective articles & videos to help repair your ranges
Use the advice and tips in these articles and videos to get the most out of your range.
Learn how the self-clean cycle works in an oven.…
You might be surprised by these 4 tips for using your oven better.…
Learn how to troubleshoot problems with your range that cause an F10 error to be displayed.…
