Model # PFSS5PJXASS Official GE bottom-mount refrigerator
Here are the diagrams and repair parts for Official GE PFSS5PJXASS bottom-mount refrigerator, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part

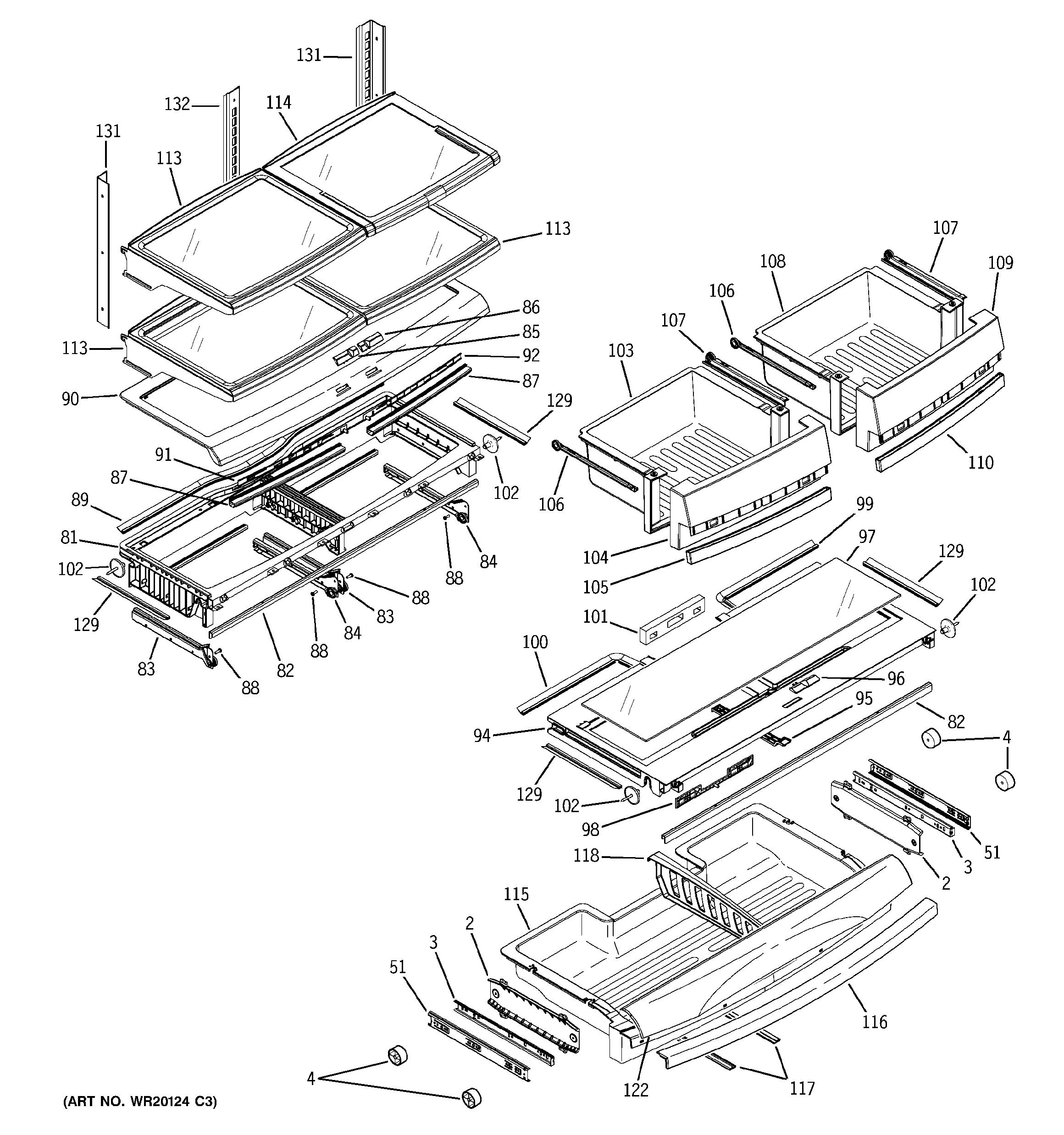

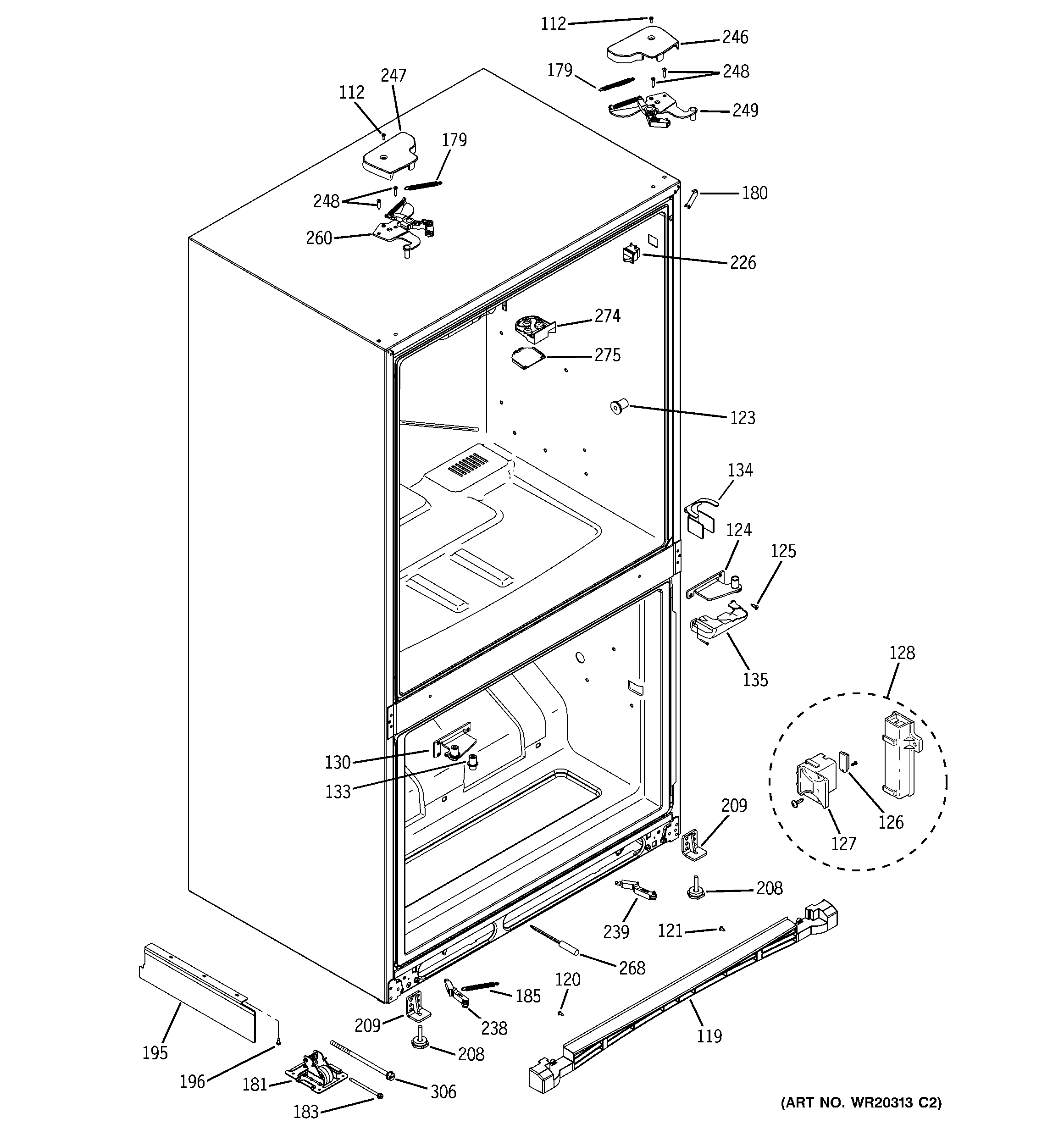

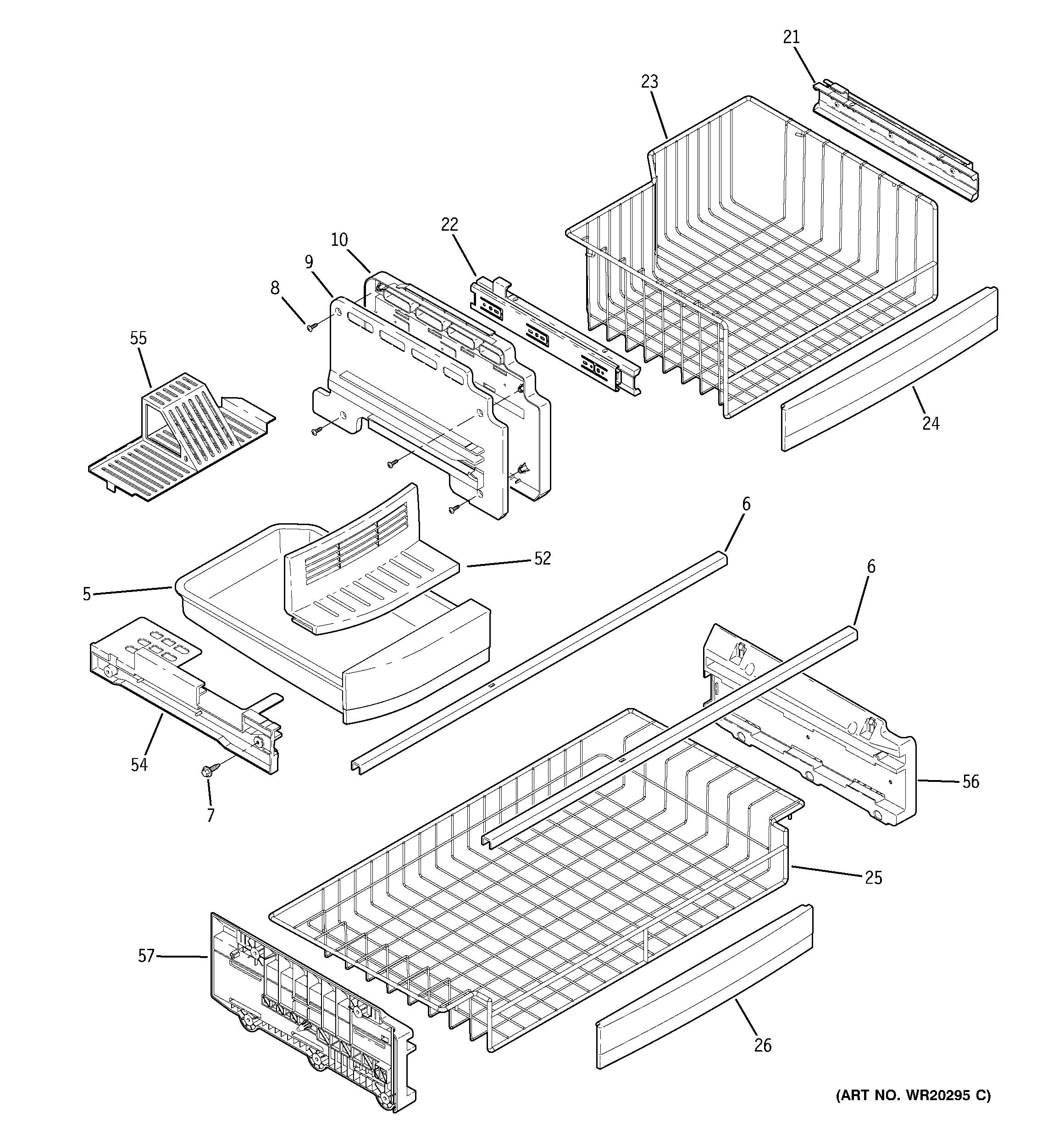

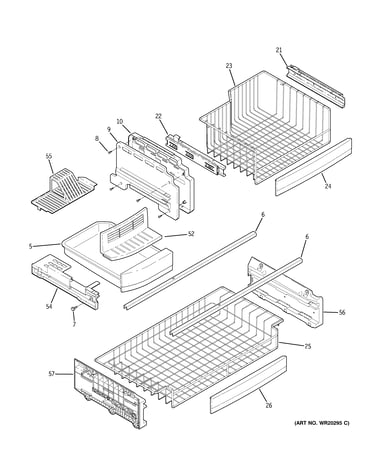

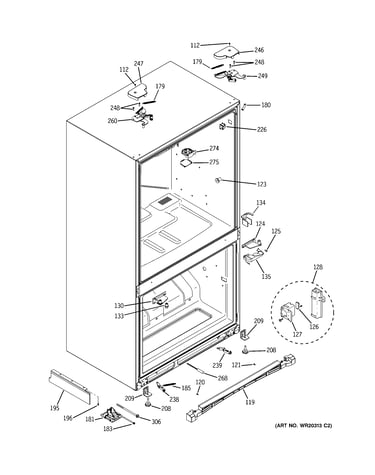

SELECT DIAGRAM
Browse Parts forPFSS5PJXASS Refrigerators
- #740

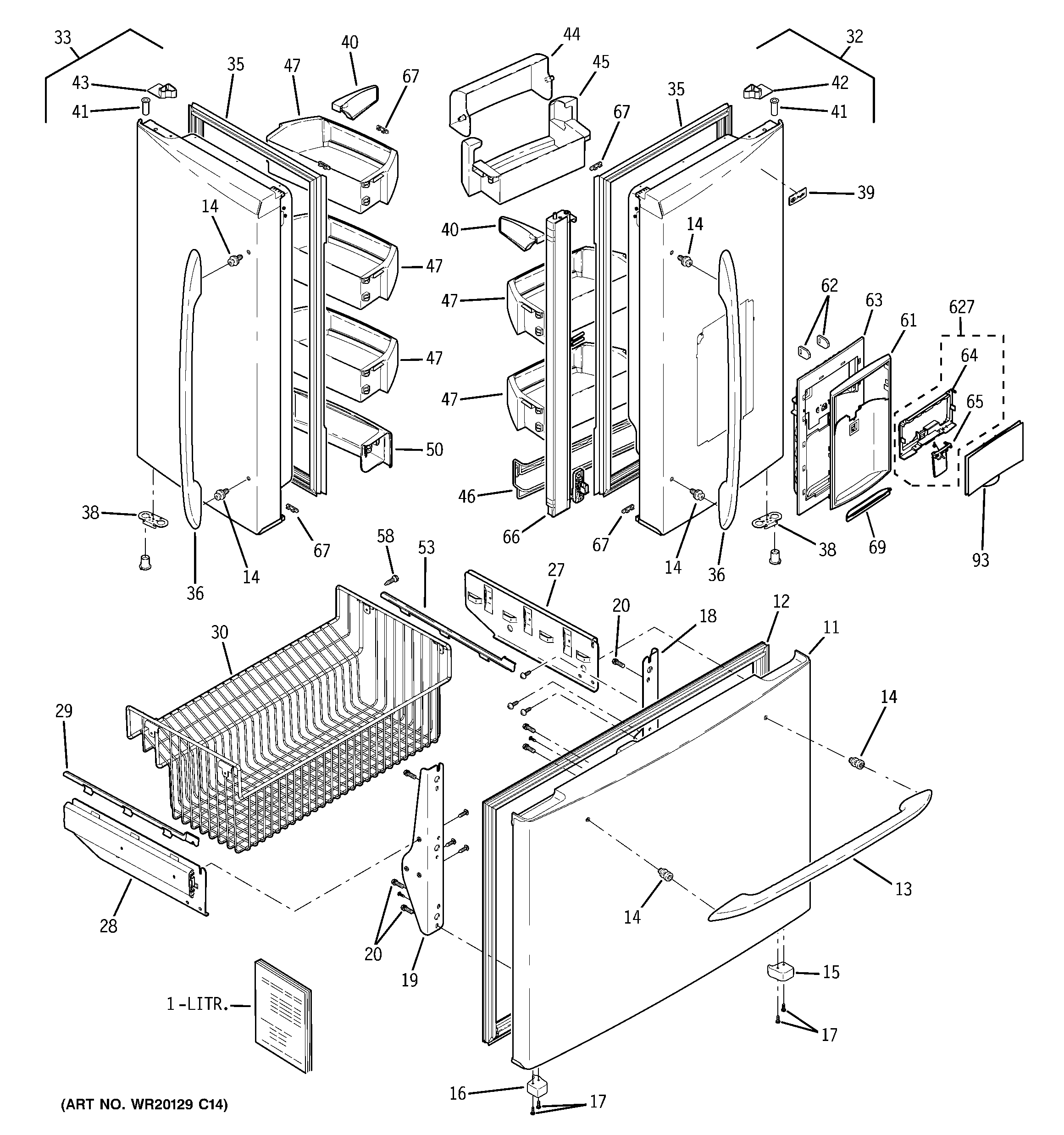

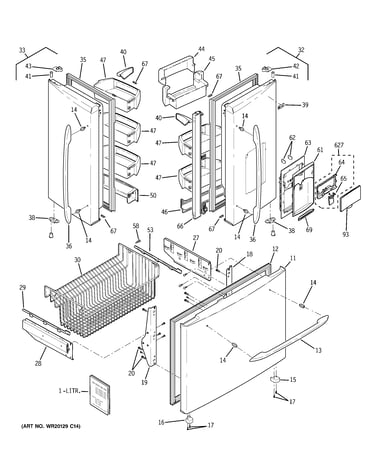

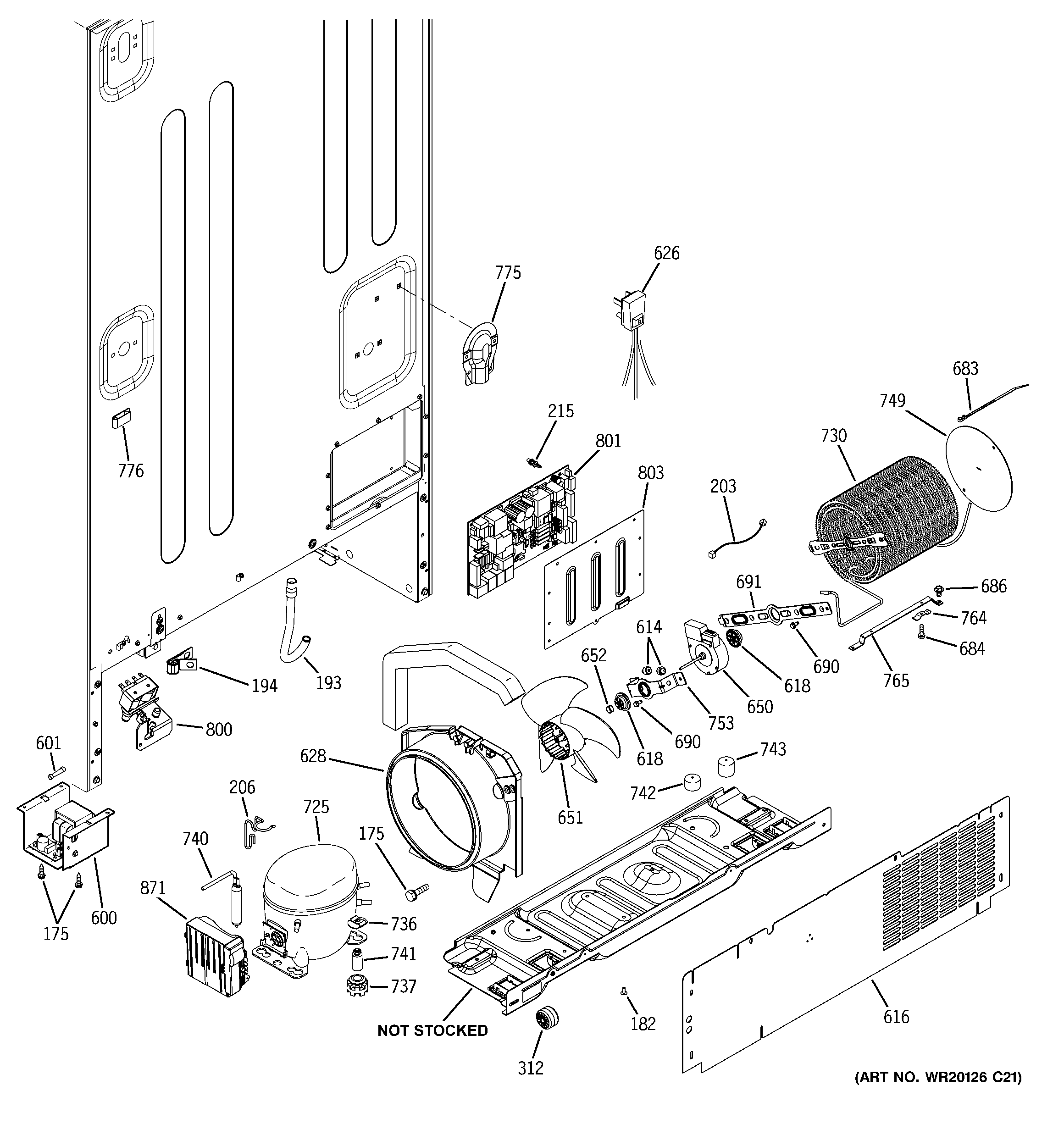

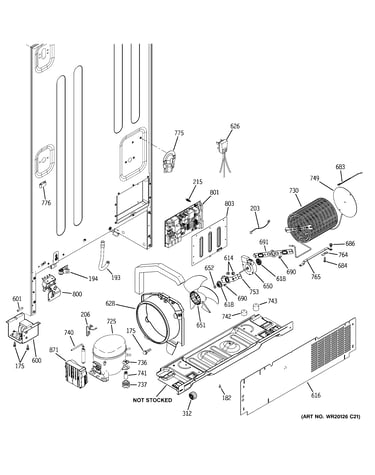

Machine compartment diagram
Dryer filterPart #WR86X0096
Replaced by #WR86X25269
?Manufacturer substitutionThis part replaces WR86X0096. Substitute parts can look different from the original.$74.11 |7% OFF Phone Price : $80.11In Stock - #800
Machine compartment diagram
Refrigerator water valvePart #WR57X10040
Replaced by #WR57X33326
?Manufacturer substitutionThis part replaces WR57X10040. Substitute parts can look different from the original.$81.37 |7% OFF Phone Price : $87.37In Stock - #227

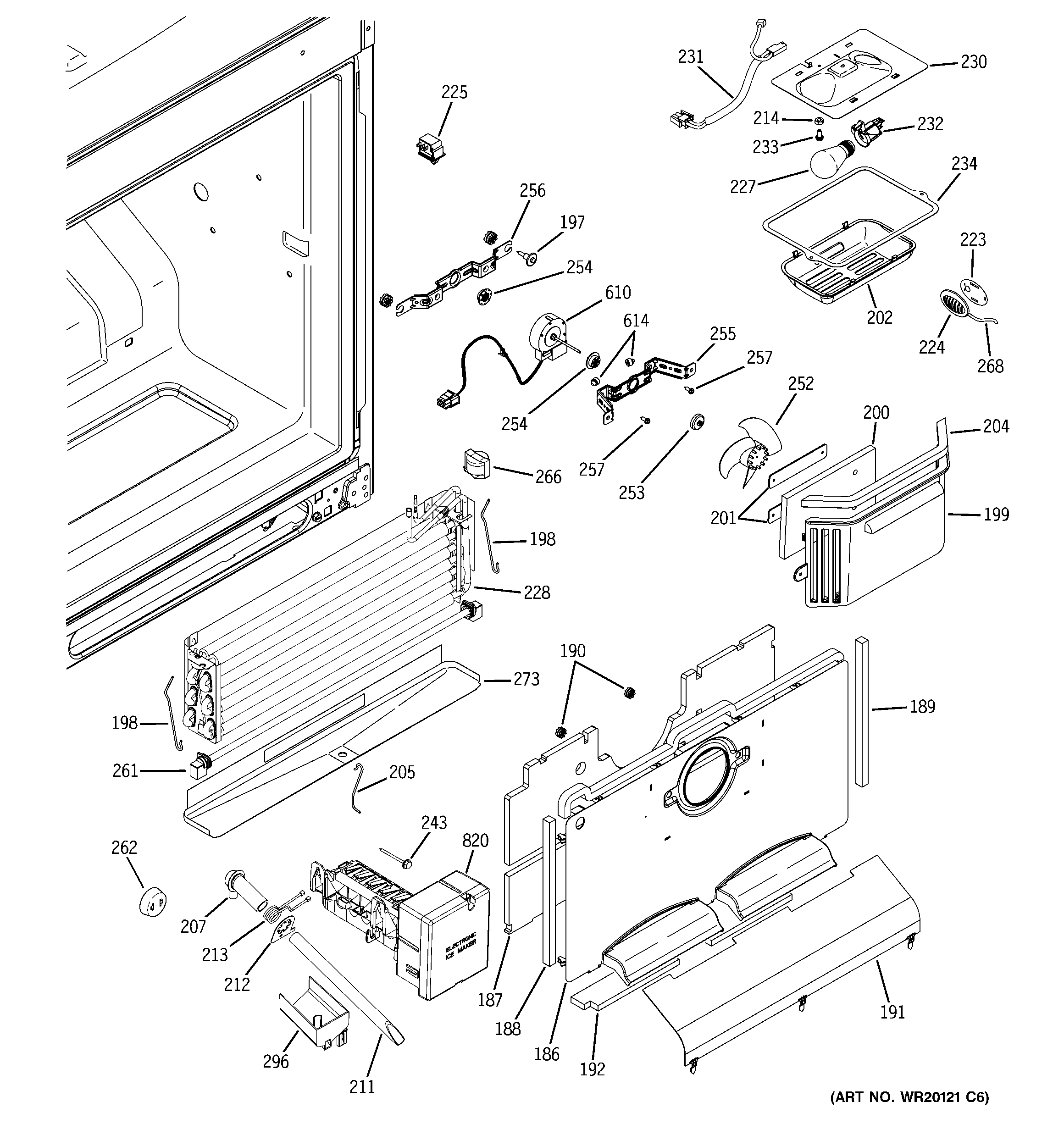

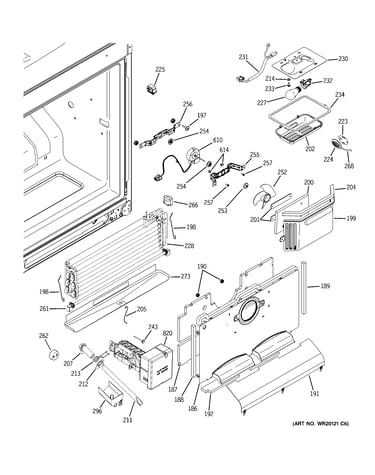

Freezer section diagram
Refrigerator lampPart #WR02X12289
Replaced by #40A15
?Manufacturer substitutionThis part replaces WR02X12289. Substitute parts can look different from the original.$14.62 |12% OFF Phone Price : $16.62In Stock - #871
Machine compartment diagram
InverterPart #WR55X10685
Replaced by #WR49X10283
?Manufacturer substitutionThis part replaces WR55X10685. Substitute parts can look different from the original.$223.87 |5% OFF Phone Price : $235.87In Stock - #266
Freezer section diagram
Refrigerator defrost bi-metal thermostatPart #WR50X10065
$51.45 |10% OFF Phone Price : $57.45In Stock - #820
Freezer section diagram
Refrigerator ice maker kitPart #WR30X10087
Replaced by #WR30X35285
?Manufacturer substitutionThis part replaces WR30X10087. Substitute parts can look different from the original.$100.16 |11% OFF Phone Price : $112.16In Stock - #252
Freezer section diagram
Refrigerator evaporator fan bladePart #WR60X10208
Replaced by #WR60X30922
?Manufacturer substitutionThis part replaces WR60X10208. Substitute parts can look different from the original.$79.66 |7% OFF Phone Price : $85.66In Stock - #725
Machine compartment diagram
CompressorPart #WR87X10180
Replaced by #WR87X10111
?Manufacturer substitutionThis part replaces WR87X10180. Substitute parts can look different from the original.$735.57 |$12.00 OFF Phone Price : $747.57In Stock - #264

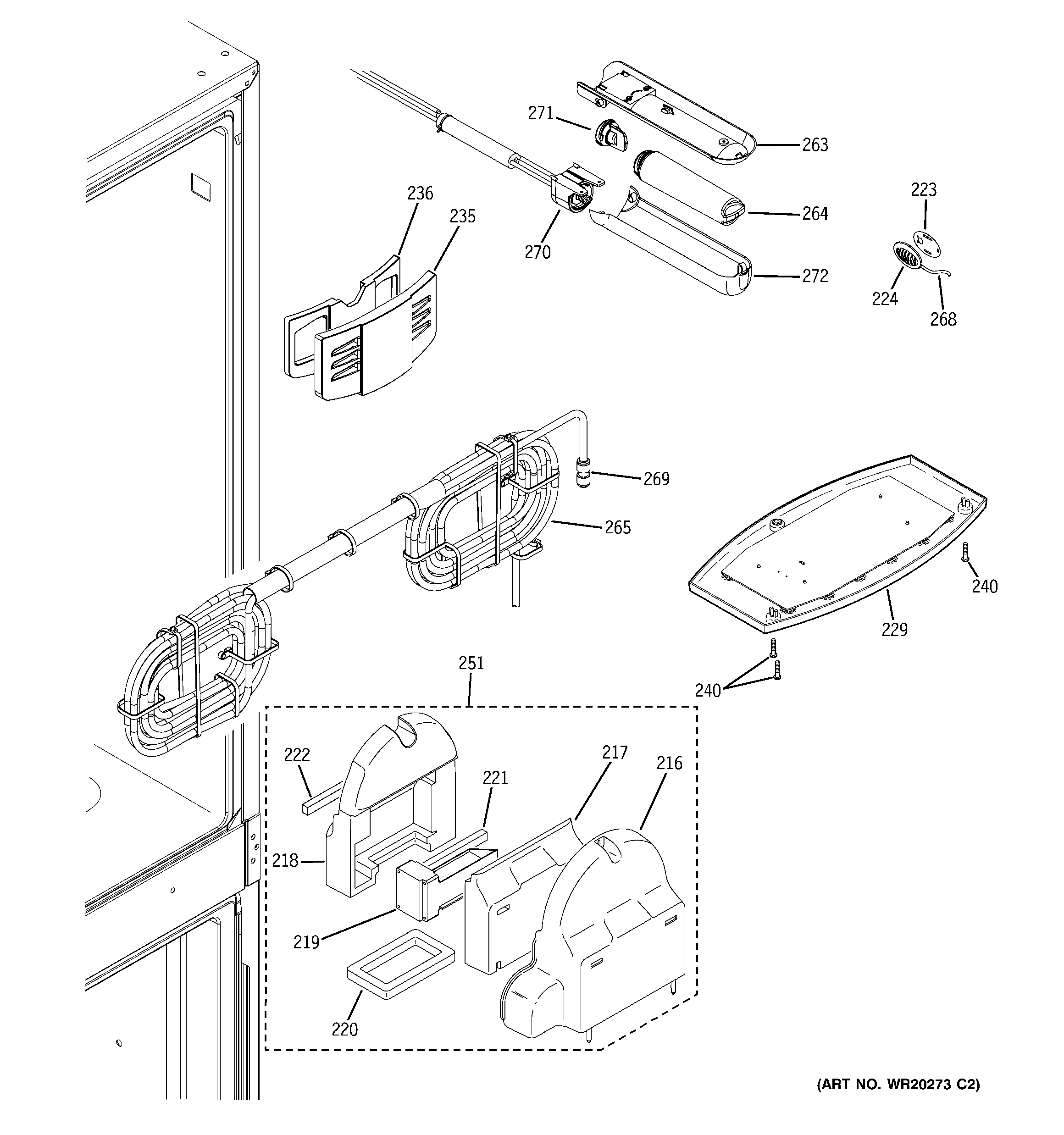

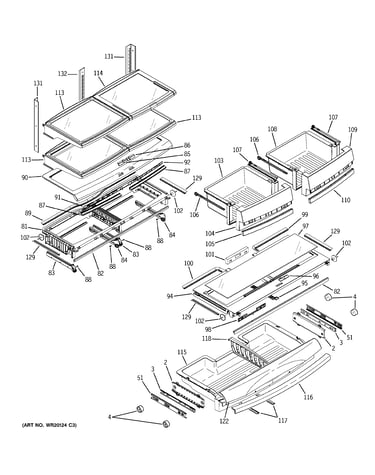

Fresh food section diagram
G.e. smartwater refrigerator water filterPart #GSWF
Get free shipping with Automatic Reorder
$58.94 |9% OFF Phone Price : $64.94In Stock - #650
Machine compartment diagram
Condenser motorPart #WR60X10216
Replaced by #WR60X10209
?Manufacturer substitutionThis part replaces WR60X10216. Substitute parts can look different from the original.$60.17 |9% OFF Phone Price : $66.17In Stock
