Gas Cooktop

Model # JGP389BEVBB Official GE gas cooktop

Here are the diagrams and repair parts for Official GE JGP389BEVBB gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

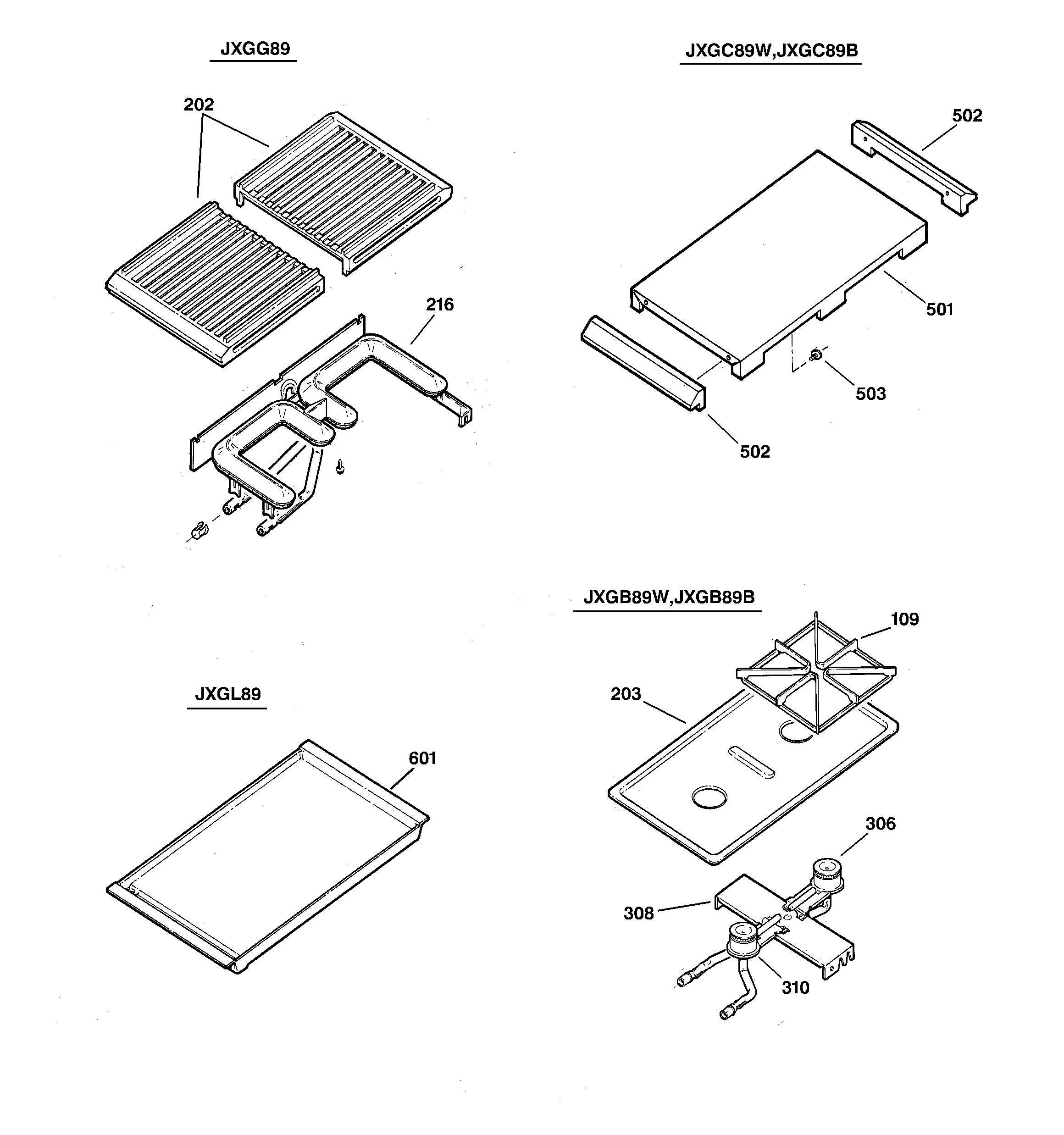

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Cooktop Igniter Switch WB24X5345
#4

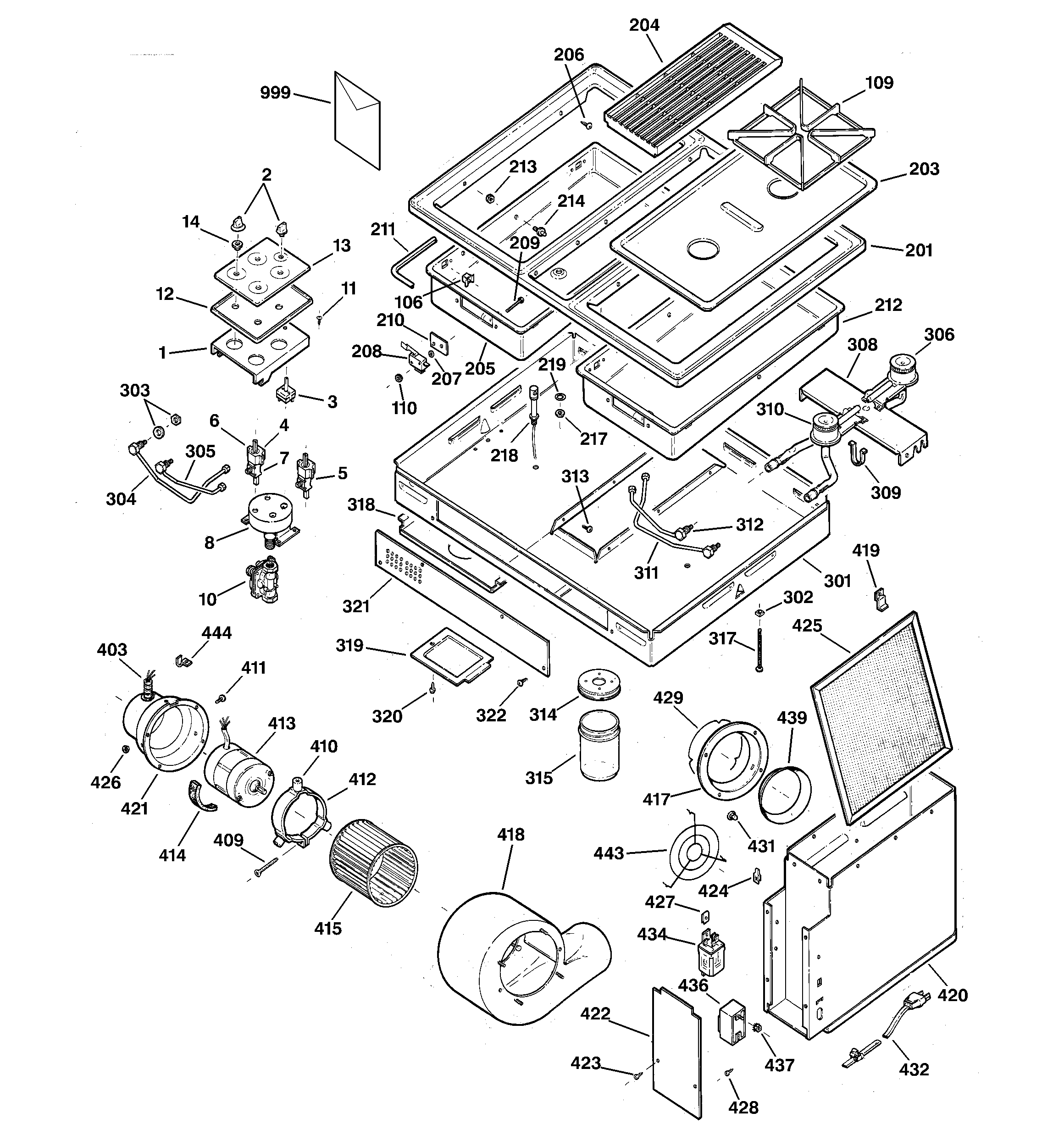

Cooktop gas double burner diagram

Cooktop igniter switch

Part #WB24X5345

$112.94 |
10% OFF Phone Price : $124.94
In Stock
Jgp389 Jgp18 49-8585
#999

Cooktop gas double burner diagram

Jgp389 jgp18

Part #49-8585

Replaced by #49-8976

?
Manufacturer substitution
This part replaces 49-8585. Substitute parts can look different from the original.
$8.49
In Stock
Screw WB01X5938
#423

Cooktop gas double burner diagram

Screw

Part #WB01X5938

Replaced by #WZ5X219D

?
Manufacturer substitution
This part replaces WB01X5938. Substitute parts can look different from the original.
$16.70 |
11% OFF Phone Price : $18.70
In Stock
Micro-switch WB21X5327
#208

Cooktop gas double burner diagram

Micro-switch

Part #WB21X5327

Replaced by #WB27X25120

?
Manufacturer substitution
This part replaces WB21X5327. Substitute parts can look different from the original.
$151.59 |
7% OFF Phone Price : $163.59
In Stock
Cooktop Burner, Rear (black) WB28X5041
Cooktop burner, rear (black)

Part #WB28X5041

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Burner Valve WB21X5323
#7

Cooktop gas double burner diagram

Cooktop burner valve

Part #WB21X5323

The manufacturer no longer makes this part, and there's no substitute part

Unit Top Blk WB62X5447
#201

Cooktop gas double burner diagram

Unit top blk

Part #WB62X5447

The manufacturer no longer makes this part, and there's no substitute part

Tube,left Ft WB02X8463
#305

Cooktop gas double burner diagram

Tube,left ft

Part #WB02X8463

The manufacturer no longer makes this part, and there's no substitute part

Tinnerman, J WB01X5945
#434

Cooktop gas double burner diagram

Tinnerman, j

Part #WB01X5945

The manufacturer no longer makes this part, and there's no substitute part

Jar Drain WB02X8467
#315

Cooktop gas double burner diagram

Jar drain

Part #WB02X8467

The manufacturer no longer makes this part, and there's no substitute part
