Model # CWE6230ACE Official Maytag wall oven
Here are the diagrams and repair parts for Official Maytag CWE6230ACE wall oven, as well as links to manuals and error code tables, if available.

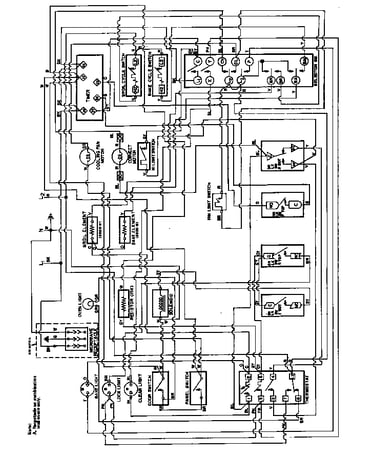

Error CodesBy Schematic
By Part

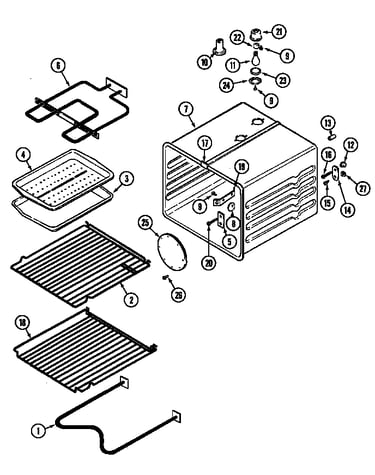

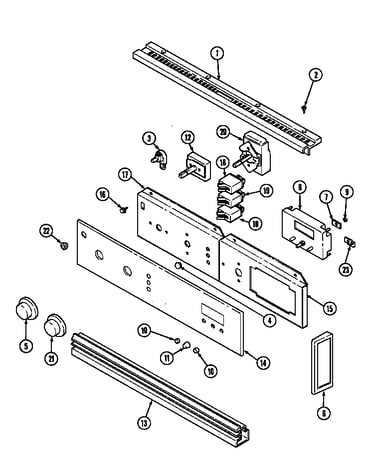

SELECT DIAGRAM
Browse Parts for
CWE6230ACE Wall Ovens
#7A

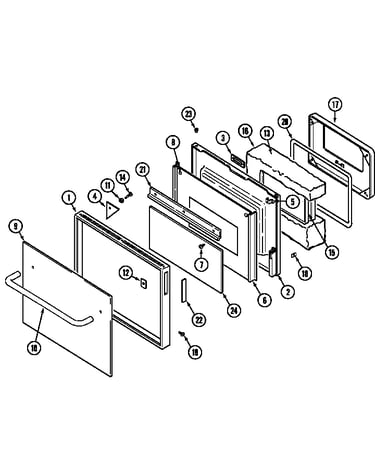

Door diagram
Screw (#8ab)
Part #71001183
Replaced by #W11233072
?
Manufacturer substitution
This part replaces 71001183. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
#10

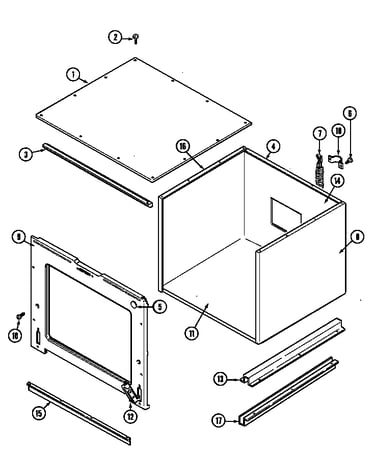

Body diagram
Screw
Part #708733
Replaced by #W11233072
?
Manufacturer substitution
This part replaces 708733. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
#12A
Body diagram
Torx screw
Part #04100336
Replaced by #WP4159193
?
Manufacturer substitution
This part replaces 04100336. Substitute parts can look different from the original.
This item is not returnable
$5.06 |
17% OFF Phone Price : $6.06
In Stock
#6
Body diagram
Screw
Part #708310
Replaced by #WP7101P126-60
?
Manufacturer substitution
This part replaces 708310. Substitute parts can look different from the original.
This item is not returnable
$4.10 |
20% OFF Phone Price : $5.10
In Stock
#20
Door diagram
Oven seal
Part #702338
Replaced by #WPY702338
?
Manufacturer substitution
This part replaces 702338. Substitute parts can look different from the original.
$92.70 |
6% OFF Phone Price : $98.70
In Stock
#6A

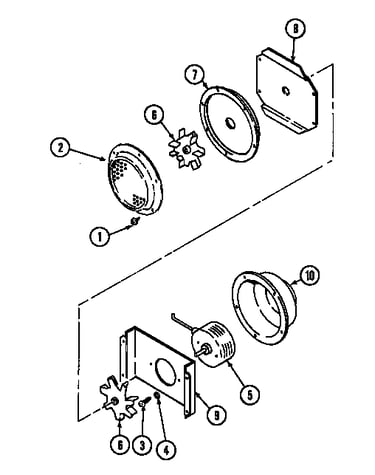

Blower motor (convection) diagram
Kenmore range screw
Part #708861
This item is not returnable
$4.22
In Stock
#10

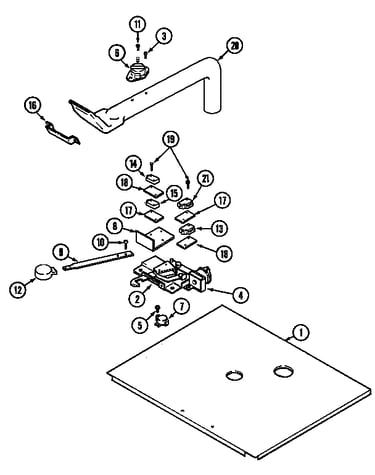

Internal controls diagram
Magic chef range screw
Part #707407
This item is not returnable
$5.09
In Stock
#8
Blower motor (convection) diagram
Motor cover
Part #701713
This item is not returnable
$4.09 |
20% OFF Phone Price : $5.09
In Stock
#3
Internal controls diagram
Grounding screw
Part #703817
Replaced by #WP71001171
?
Manufacturer substitution
This part replaces 703817. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
#7
Door diagram
Screw (blk)
Part #704238
Replaced by #WPY706189
?
Manufacturer substitution
This part replaces 704238. Substitute parts can look different from the original.
This item is not returnable
$4.46 |
18% OFF Phone Price : $5.46
In Stock
Most common symptoms to help you fix your wall oven
Choose a symptom to see related wall oven repairs.
Main causes: bad oven door lock assembly, faulty electronic control board, wiring failure…
Main causes: broken broil element, faulty broil burner igniter, control system failure…
Main causes: broken bake element, bad bake burner igniter, tripped thermal switch, control system failure…
Main causes: faulty oven temperature sensor, control system problem, weak burner igniter, damaged oven element…
Main causes: lack of electrical power, bad electronic control board, faulty oven control thermostat…
Main causes: lack of gas supply, broken igniter, tripped circuit breaker, broken oven element, tripped thermal fuse, con…
Most common repair guides to help fix your wall oven
These step-by-step repair guides will help you safely fix what’s broken on your wall oven.
How to replace a wall oven door outer glass panel
Learn how to replace a damaged outer window panel on your wall oven door with these step-by-step instructions. …
Repair difficulty
Time required
45 minutes or less
How to replace a wall oven control thermostat
Get your oven temperature under your control by replacing a faulty oven control thermostat.…
Repair difficulty
Time required
60 minutes or less
How to replace a wall oven thermal fuse
The thermal fuse trips to prevent the over from excessively overheating. The oven won't heat again until you replace the…
Repair difficulty
Time required
60 minutes or less
