Thermador
Range Hood

Model # HB36QB Official Thermador range hood

Here are the diagrams and repair parts for Official Thermador HB36QB range hood, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Range Hood Light Socket 14-09-941
#7

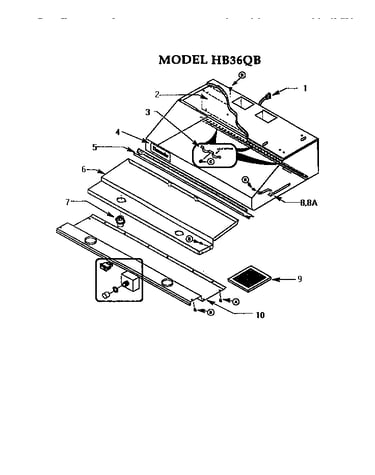

Model hb36qb diagram

Range hood light socket

Part #14-09-941

This item is not returnable
$6.99
In Stock
Control Switch 19-11-915-01
#6

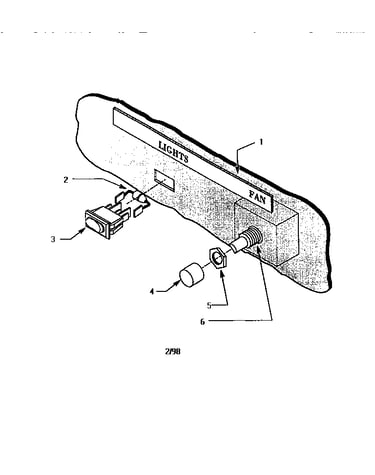

Switch assembly model hb36qb diagram

Control switch

Part #19-11-915-01

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Support Bracket 19-01-101
#14B

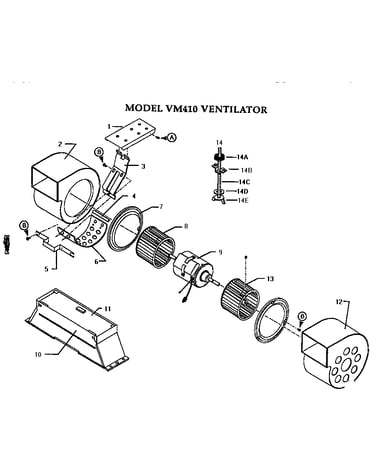

Blower diagram

Range hood blower support bracket

Part #19-01-101

The manufacturer no longer makes this part, and there's no substitute part

Housing, Lamp And Switch 19-11-902-14
#10

Model hb36qb diagram

Housing, lamp and switch

Part #19-11-902-14

The manufacturer no longer makes this part, and there's no substitute part

Screw, Swage 6-32 X 3/8" (4) 19-19-003
#A

Blower diagram

Screw, swage 6-32 x 3/8" (4)

Part #19-19-003

The manufacturer no longer makes this part, and there's no substitute part

Range Hood Blower Wrapper 19-08-458
#6

Blower diagram

Range hood blower wrapper

Part #19-08-458

The manufacturer no longer makes this part, and there's no substitute part

Diode W/ Terminals (1) 19-11-817-01
#2

Switch assembly model hb36qb diagram

Diode w/ terminals (1)

Part #19-11-817-01

The manufacturer no longer makes this part, and there's no substitute part

Wing Nut 1/4 - 20 Zinc Plated 14-93-032
#14E

Blower diagram

Wing nut 1/4 - 20 zinc plated

Part #14-93-032

The manufacturer no longer makes this part, and there's no substitute part

Left Scroll 19-08-028
#2

Blower diagram

Left scroll

Part #19-08-028

The manufacturer no longer makes this part, and there's no substitute part

Nameplate Switch, S.s. 19-11-914-05
#1

Switch assembly model hb36qb diagram

Nameplate switch, s.s.

Part #19-11-914-05

The manufacturer no longer makes this part, and there's no substitute part
