Craftsman
Gas Walk-Behind Mower

Model # 917376152 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917376152 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 248 parts  |
Hndl.knob.bl 189713X428
#6

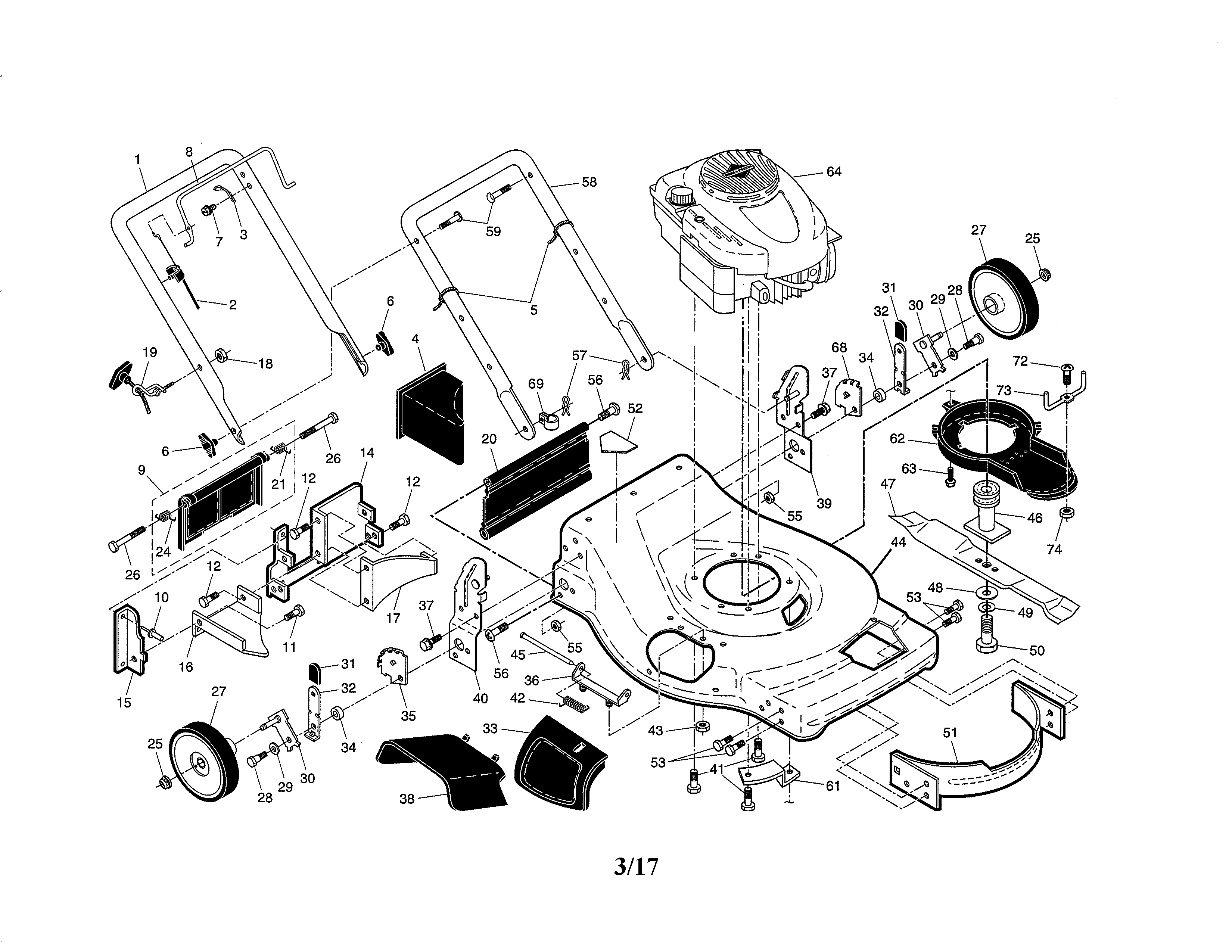

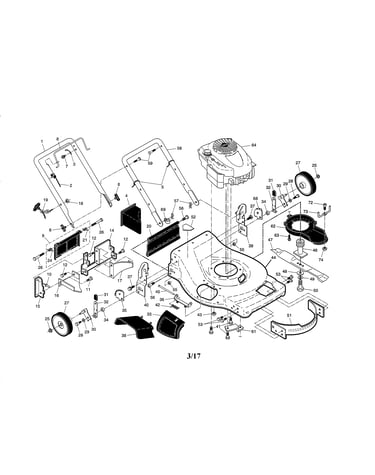

Engine/housing/handle diagram

Hndl.knob.bl

Part #189713X428

Replaced by #532185577

?
Manufacturer substitution
This part replaces 189713X428. Substitute parts can look different from the original.
BEST SELLER
$10.64 |
16% OFF Phone Price : $12.64
In Stock
Handle Bolt 191574
#59

Engine/housing/handle diagram

Handle bolt

Part #191574

Replaced by #532191574

?
Manufacturer substitution
This part replaces 191574. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn Mower Height Adjuster Knob 701037
Lawn mower height adjuster knob

Part #701037

Replaced by #532701037

?
Manufacturer substitution
This part replaces 701037. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Drive Pawl 191017
#15

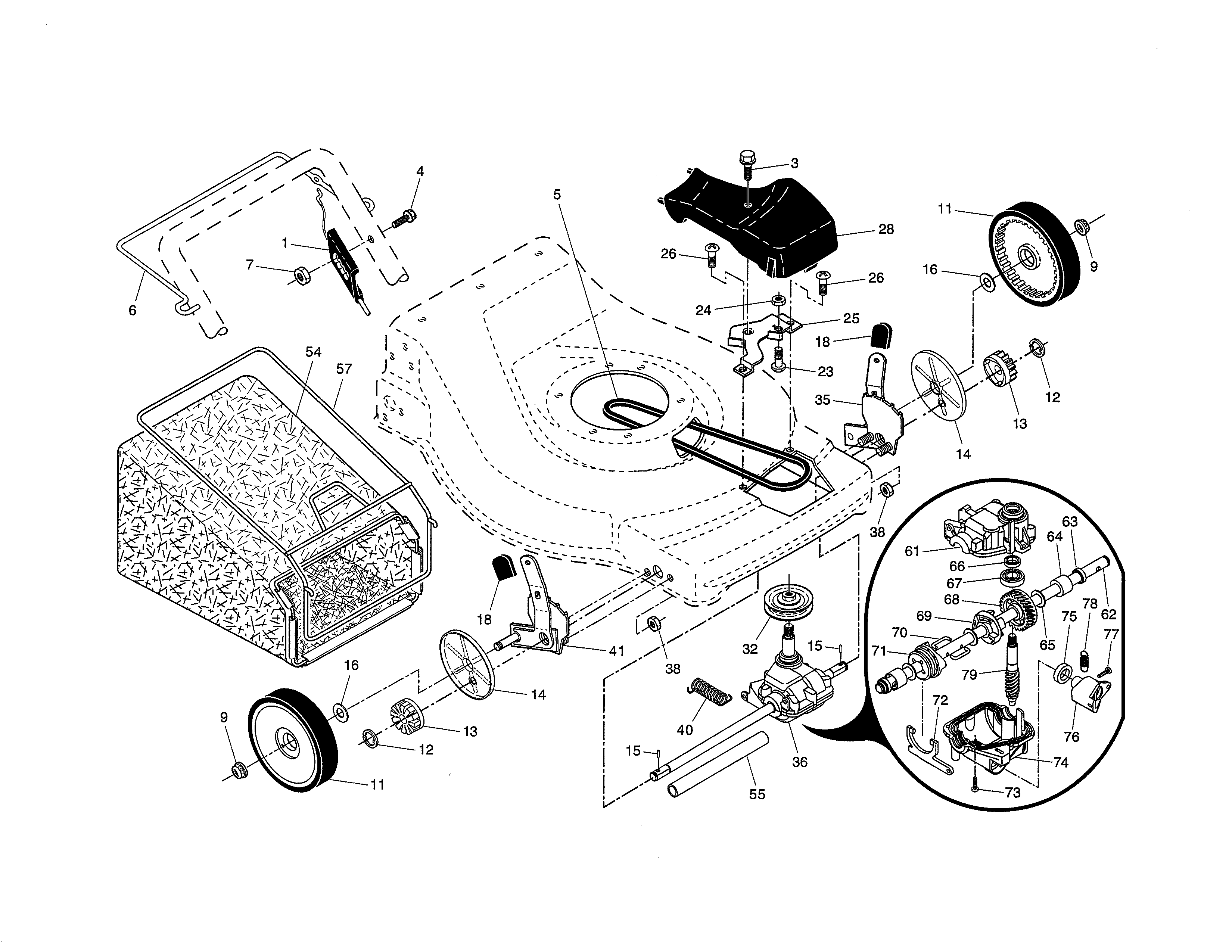

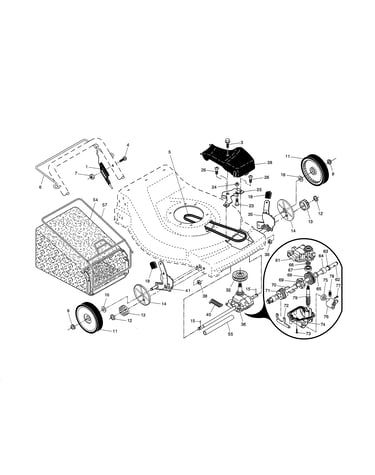

Drive control/gear case/wheels diagram

Drive pawl

Part #191017

Replaced by #532404845

?
Manufacturer substitution
This part replaces 191017. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
Lawn Mower Drive Control Cable 400292
#1

Drive control/gear case/wheels diagram

Lawn mower drive control cable

Part #400292

Replaced by #583261801

?
Manufacturer substitution
This part replaces 400292. Substitute parts can look different from the original.
BEST SELLER
$27.98 |
18% OFF Phone Price : $33.98
In Stock
Lawn Mower Wheel 193912X460
#11

Drive control/gear case/wheels diagram

Lawn mower wheel

Part #193912X460

Replaced by #581009202

?
Manufacturer substitution
This part replaces 193912X460. Substitute parts can look different from the original.
BEST SELLER
$26.64 |
18% OFF Phone Price : $32.64
In Stock
Lawn & Garden Equipment Lock Nut 73800400
Lawn & garden equipment lock nut

Part #73800400

Replaced by #582478602

?
Manufacturer substitution
This part replaces 73800400. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Nut 132004
#18

Engine/housing/handle diagram

Nut

Part #132004

Replaced by #582478602

?
Manufacturer substitution
This part replaces 132004. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.64 |
27% OFF Phone Price : $3.64
In Stock
Lawn Mower Engine Control Cable 183567
#2

Engine/housing/handle diagram

Lawn mower engine control cable

Part #183567

Replaced by #532183567

?
Manufacturer substitution
This part replaces 183567. Substitute parts can look different from the original.
$19.98 |
9% OFF Phone Price : $21.98
In Stock
Rod.hinge.21 175650
#45

Engine/housing/handle diagram

Rod.hinge.21

Part #175650

Replaced by #532175650

?
Manufacturer substitution
This part replaces 175650. Substitute parts can look different from the original.
This item is not returnable
$6.64 |
13% OFF Phone Price : $7.64
In Stock
