Washer

Model # WWSR3090T6WW Official GE washer

Here are the diagrams and repair parts for Official GE WWSR3090T6WW washer, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
WWSR3090T6WW Washer
Hub Washer WH02X1199
#315

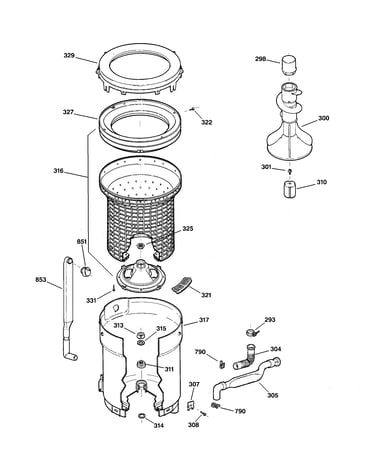

Tub, basket & agitator diagram

Hub washer

Part #WH02X1199

Replaced by #WH2X1199

?
Manufacturer substitution
This part replaces WH02X1199. Substitute parts can look different from the original.
BEST SELLER
$7.64 |
12% OFF Phone Price : $8.64
In Stock
Tub Bearing WH02X1197
#314

Tub, basket & agitator diagram

Tub bearing

Part #WH02X1197

Replaced by #WH2X1197

?
Manufacturer substitution
This part replaces WH02X1197. Substitute parts can look different from the original.
BEST SELLER
$8.49 |
11% OFF Phone Price : $9.49
In Stock
Agitator Assembly WH43X0142
#300

Tub, basket & agitator diagram

Agitator assembly

Part #WH43X0142

Replaced by #WH43X10034

?
Manufacturer substitution
This part replaces WH43X0142. Substitute parts can look different from the original.
4.35 (23)
BEST SELLER
$52.53 |
10% OFF Phone Price : $58.53
In Stock
Pump Bracket WH23X0091
#655

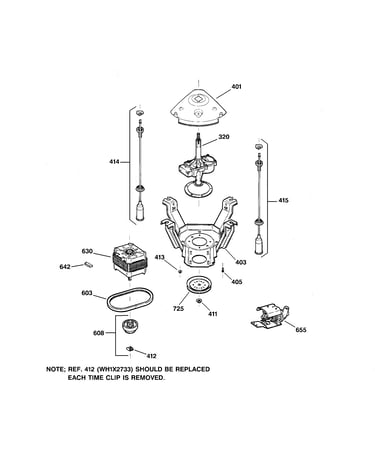

Suspension, pump & drive components diagram

Pump bracket

Part #WH23X0091

Replaced by #WH23X10030

?
Manufacturer substitution
This part replaces WH23X0091. Substitute parts can look different from the original.
4.8 (5)
BEST SELLER
$56.20 |
10% OFF Phone Price : $62.20
In Stock
Spring Clip WH01X2117
#9

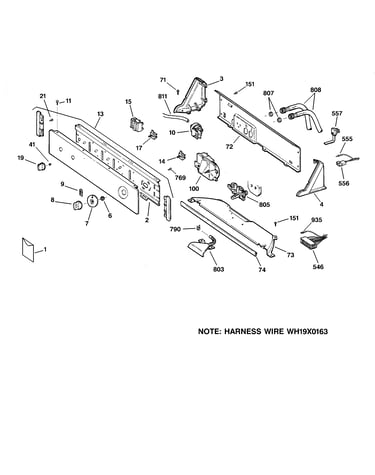

Controls & backsplash diagram

Spring clip

Part #WH01X2117

Replaced by #WH1X2117

?
Manufacturer substitution
This part replaces WH01X2117. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Rod/sprg Blk WH16X0544
#414

Suspension, pump & drive components diagram

Rod/sprg blk

Part #WH16X0544

Replaced by #WH16X544

?
Manufacturer substitution
This part replaces WH16X0544. Substitute parts can look different from the original.
BEST SELLER
$41.29 |
13% OFF Phone Price : $47.29
In Stock
Drive Extension Hose WH41X0367
#825

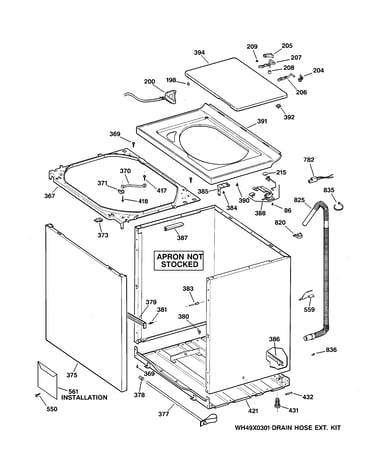

Cabinet, cover & front panel diagram

Drive extension hose

Part #WH41X0367

Replaced by #WH41X10096

?
Manufacturer substitution
This part replaces WH41X0367. Substitute parts can look different from the original.
4.38 (8)
$22.22 |
21% OFF Phone Price : $28.22
In Stock
Scr 1/4-20 M WH02X10037
#301

Tub, basket & agitator diagram

Scr 1/4-20 m

Part #WH02X10037

Replaced by #WH49X10042

?
Manufacturer substitution
This part replaces WH02X10037. Substitute parts can look different from the original.
4.5 (2)
$32.67 |
16% OFF Phone Price : $38.67
In Stock
Coupling WH43X0137
#310

Tub, basket & agitator diagram

Coupling

Part #WH43X0137

Replaced by #WH49X10042

?
Manufacturer substitution
This part replaces WH43X0137. Substitute parts can look different from the original.
4.5 (2)
$32.67 |
16% OFF Phone Price : $38.67
In Stock
Hose Pressure Switch WH41X0365
#811

Controls & backsplash diagram

Hose pressure switch

Part #WH41X0365

Replaced by #WH41X365

?
Manufacturer substitution
This part replaces WH41X0365. Substitute parts can look different from the original.
$13.13 |
13% OFF Phone Price : $15.13
In Stock
