Model # GTW490ACJ4WW Official GE washer
Here are the diagrams and repair parts for Official GE GTW490ACJ4WW washer, as well as links to manuals and error code tables, if available.
There are a couple of ways to find the part or diagram you need:
- Click a diagram to see the parts shown on that diagram.
- In the search box below, enter all or part of the part number or the part’s name.
Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.
We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.
For DIY troubleshooting advice and repair guides, visit our repair help section.
Model diagram and schematic
SEARCH WITHIN THIS MODEL
ALL PARTS
Showing 10 of 92 parts |
#650

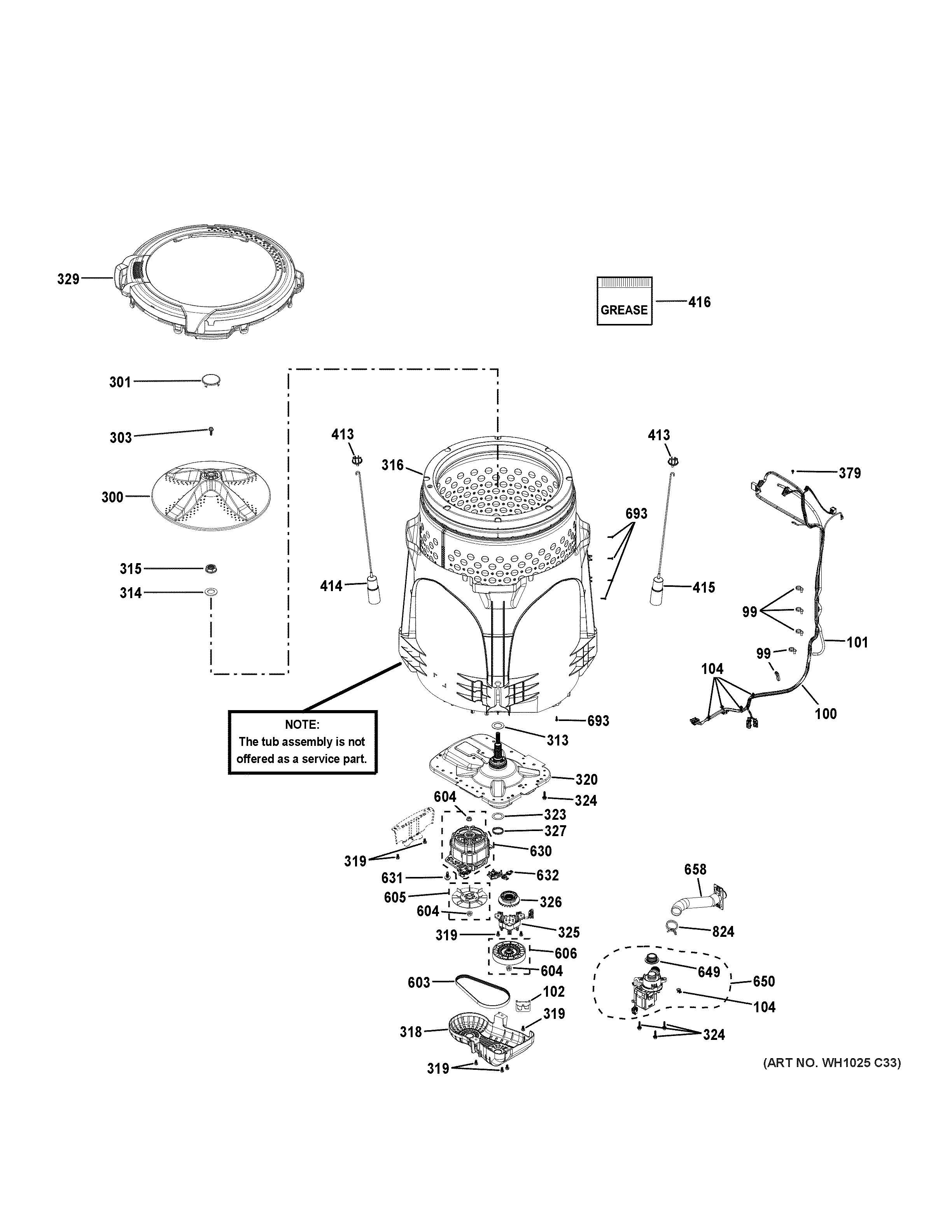

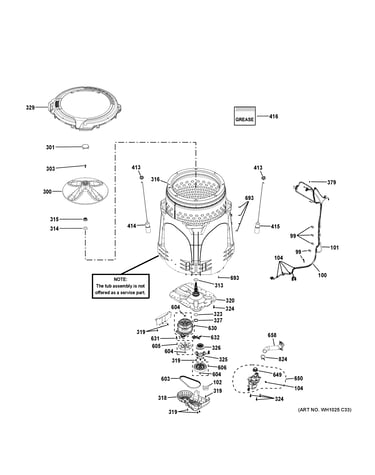

Tub & motor diagram
Washer drain pump assembly
Part #WH23X24178
Replaced by #WH23X28418
?
Manufacturer substitution
This part replaces WH23X24178. Substitute parts can look different from the original.
$51.98 |
10% OFF Phone Price : $57.98
In Stock
#414
Tub & motor diagram
Washer suspension rod and spring assembly (replaces wh16x24145)
Part #WH16X26911
$14.42 |
12% OFF Phone Price : $16.42
In Stock
#415
Tub & motor diagram
Washer suspension rod and spring assembly, right (green) (replaces wh16x24144)
Part #WH16X26910
$14.31 |
12% OFF Phone Price : $16.31
In Stock
#606
Tub & motor diagram
Washer transmission pulley
Part #WH49X25379
Replaced by #WH03X32097
?
Manufacturer substitution
This part replaces WH49X25379. Substitute parts can look different from the original.
$48.93
In Stock
#326
Tub & motor diagram
Washer clutch
Part #WH05X24185
$22.33 |
21% OFF Phone Price : $28.33
In Stock
#632
Tub & motor diagram
Washer speed sensor
Part #WH12X25294
Replaced by #WH03X32158
?
Manufacturer substitution
This part replaces WH12X25294. Substitute parts can look different from the original.
$48.93
In Stock
#603
Tub & motor diagram
Washer drive belt
Part #WH01X24180
$16.36 |
11% OFF Phone Price : $18.36
In Stock
#805

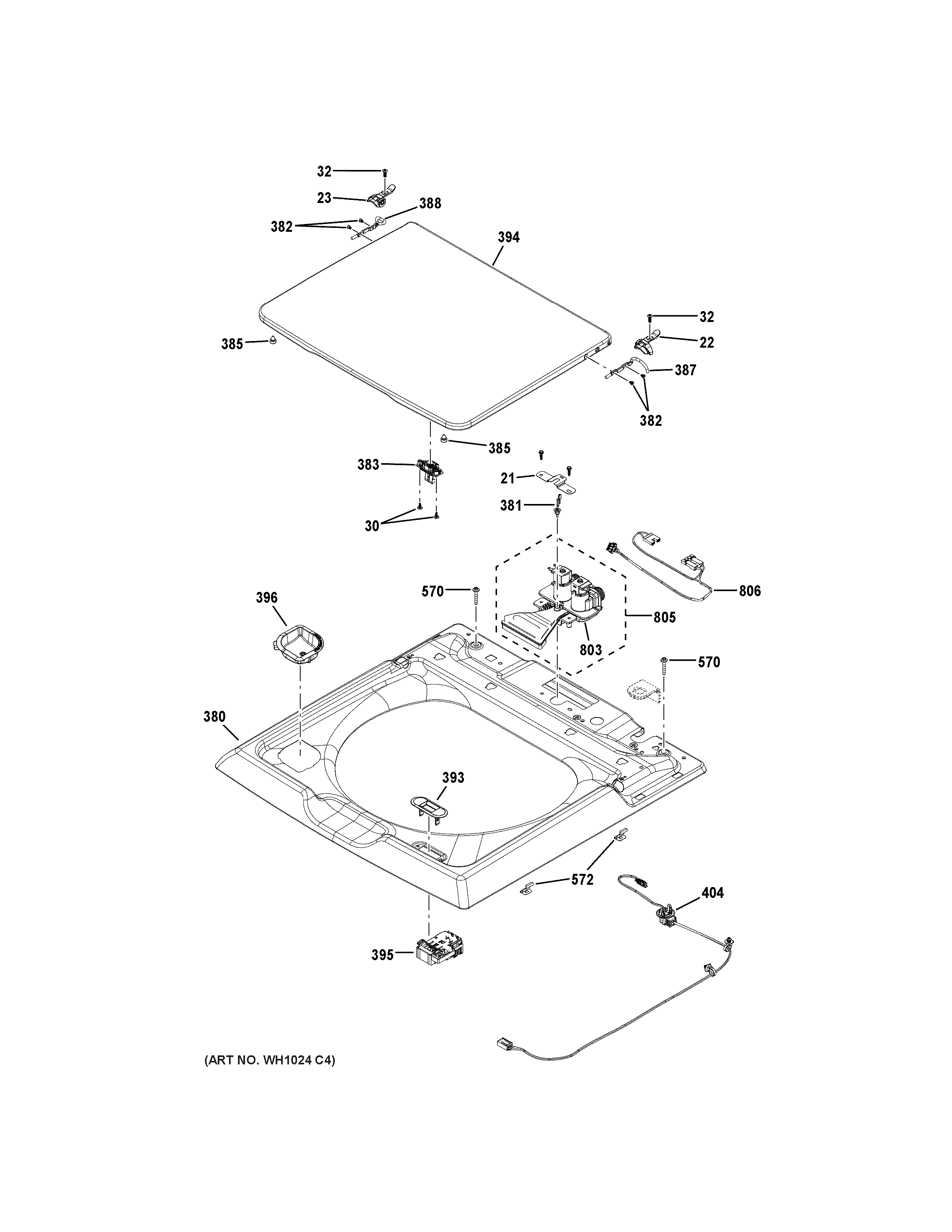

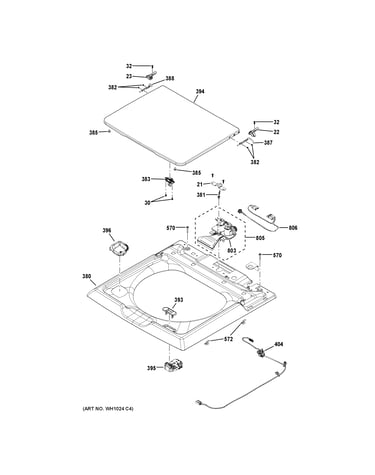

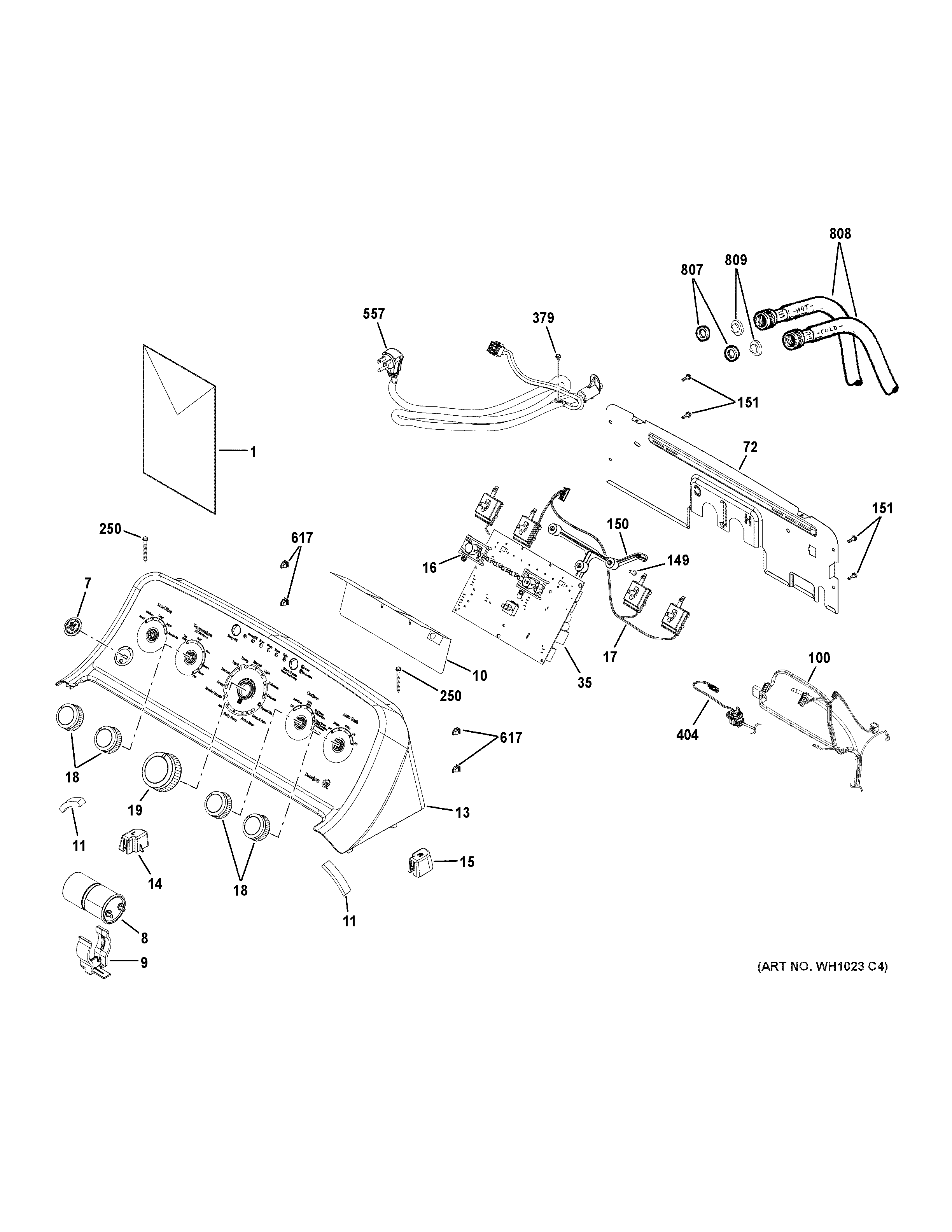

Top panel & lid diagram
Washer water inlet valve assembly
Part #WH13X24386
Replaced by #WH13X26535
?
Manufacturer substitution
This part replaces WH13X24386. Substitute parts can look different from the original.
$36.05 |
14% OFF Phone Price : $42.05
In Stock
#803
Top panel & lid diagram
Washer water inlet valve assembly
Part #WH13X24392
Replaced by #WH13X26535
?
Manufacturer substitution
This part replaces WH13X24392. Substitute parts can look different from the original.
$36.05 |
14% OFF Phone Price : $42.05
In Stock
#315
Tub & motor diagram
Washer hub nut
Part #WH02X10363
$13.21 |
13% OFF Phone Price : $15.21
In Stock
Most common symptoms to help you fix your washers
Choose a symptom to see related washer repairs.
Main causes: clogged drain hose, house drain clogged, bad drain pump, water-level pressure switch failure, bad control b…
Main causes: worn agitator dogs, bad clutch, broken motor coupler, shifter assembly failure, broken door lock, suspensio…
Main causes: bad lid switch or door lock, bad timer or electronic control board, wiring failure, bad water inlet valve a…
Main causes: broken lid switch or lid lock, bad pressure switch, broken shifter assembly, faulty control system…
Main causes: unbalanced load, loose spanner nut, worn drive block, broken shock absorber or suspension spring, debris in…
Main causes: no water supply, bad water valves, water-level pressure switch failure, control system failure, bad door lo…
Main causes: lack of electrical power, wiring failure, bad power cord, electronic control board failure, bad user interf…
Main causes: leaky water inlet valve, faulty water-level pressure switch, bad electronic control board…
Main causes: water heater failure, bad water temperature switch, faulty control board, bad water valve, faulty water tem…
